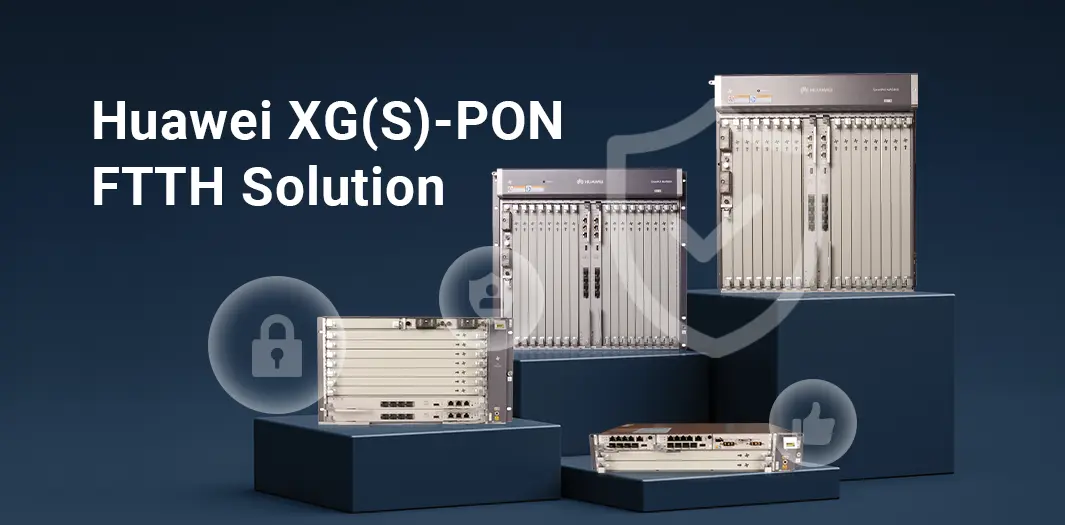

Huawei XG(S)-PON FTTH SolutionLuis
Why do we need to upgrade to XG(S)-PON?
XG(S)-PON is evolved from the existing GPON technology, the factors promoting the technology evolution to XG(S)-PON are as follows:
With the rise of new services such as 4K/8K video, AR, VR, and smart home solutions, the demand for bandwidth is increasing at a rate of 10-100 times, and the number of user connections is increasing geometrically, and home access network is facing new challenges. Developing services require higher bandwidths and the GPON technology cannot meet bandwidth requirements.
As the network environment changes, the types of services carried by each family are more diverse, and multi-service carrying has become a trend. Innovative access technologies on the user side require higher bandwidths and the GPON technology will face bandwidth bottlenecks.
A greater split ratio and a longer transmission distance increase network construction investments. And the fiber coverage is wider and the number of users is larger, requiring a simpler, easier-to-deploy, O&M network.
What is the difference between GPON and XG(S)-PON?
Please check the below table:
|Wavelength||Downstream: 1480-1500 nm Upstream: 1290-1330 nm||Downstream: 1575-1580 nm Upstream: 1260-1280 nm||Downstream: 1575-1580 nm Upstream: 1260-1280 nm|
|Center wavelength||Downstream: 1490 nm Upstream: 1310 nm||Downstream: 1577 nm Upstream: 1270 nm||Downstream: 1577 nm Upstream: 1270 nm|
|Maximum Line Rate||Downstream: 2.488 Gbit/s Upstream: 1.244 Gbit/s||Downstream: 9.953 Gbit/s Upstream: 2.488 Gbit/s||Downstream: 9.953 Gbit/s Upstream: 2.488 Gbit/s|
Why choose Huawei’s XG(S)-PON solution?
Huawei FTTH solution carries multiple services on one optical fiber network, providing high-speed Internet access, Wi-Fi coverage, voice, video, and CATV services for home access users. Its ultra-wide architecture, simple and flat network, and easy deployment and operation, and maintenance have become an innovative solution to solve the bottleneck phenomenon from the Internet main network to the user’s home.
Future-oriented high-quality experience Next-generation distributed architecture OLT.
The MA5800 is the industry’s first smart aggregation OLT with a distributed architecture. It is positioned as the next-generation OLT for NG-PON. The product is designed to help carriers build networks with larger bandwidths, higher speeds, and smarter connectivity to deliver a better service experience.
Providing GPON, 10G PON (including XG-PON and XGS-PON), and P2P 10GE/GE access, the MA5800 supports deployment on FTTH, FTTD, FTTB, and FTTC networks. This makes it applicable to home access, enterprise access, mobile backhaul, and Wi-Fi hotspot backhaul scenarios to aggregate all services on one fiber network.
The MA5800 functions as a large-capacity aggregation device on the network to aggregate the traffic from ONTs, MDUs, and campus switches, thereby simplifying the network architecture and reducing the OPEX.
The only difference between these subracks relies on the service slot quantity (they have the same functions and network positions). MA5800 series OLT includes 4 sizes of chassis for you to choose from:
MA5800-X15 (large-capacity, IEC）
MA5800-X17 (large-capacity, ETSI)
- Video Quality Monitoring
The built-in eMDI probe realizes the collection of video indicators, and remotely monitors and queries monitoring results through the network management system to improve the video operation and maintenance experience.
- Smooth evolution from GPON to XG(S)-PON
Huawei’s FTTH gigabit end-to-end capability and industrial chain have gradually matured and been commercialized on a large scale. By adding WDM1r equipment, XG(S)-PON and GPON signals can be transmitted on the same ODN by multiplexing, which can realize technology and bandwidth. Smooth evolution to protect user investment.
Also, combo cards can make your network flexible. For example, CGHF Board: The board is a 16-port XG-PON and GPON Combo OLT interface board. It works together with the optical network unit (ONU) to provide XG-PON and GPON access services.
CSHF Board: The board is a 16-port XGS-PON and GPON Combo OLT interface board. It works together with the optical network unit (ONU) to provide XGS-PON and GPON access services.
- High Reliability
OLT supports dual master controllers, dual power supply redundant backup, and multiple uplink protection, and provides a safe and reliable operating environment. At the same time, it supports Type B protection. When a business failure occurs, the business is guaranteed to be uninterrupted, providing customers with high-reliability protection.
- Versatile ONT (ONU)
Huawei EchoLife EG8080P is a routing ONT of Huawei’s Agile POL solution, which implements ultra-broadband access through GPON technology.
The uplink provides 1 GPON port, and the user side provides 8 GE Ethernet ports, of which the GE port supports the PoE function. Through the high-performance forwarding capability, the service experience of voice, data and high-definition video can be effectively guaranteed, providing an ideal solution for enterprise campus deployment solutions and future-oriented business support capabilities.
Huawei OptiXstar HN8546X6 is a Wi-Fi 60 Gigabit ONT of Huawei’s all-optical access solution, which realizes ultra-broadband access for users through XG-PON or asymmetric 10G GPON technology. Provide 4 Gigabit Ethernet interfaces, 1 POTS voice interface, 2 USB interfaces, 1 2.4G Wi-Fi interface, and 5G Wi-Fi interface, and effectively guarantee voice, data, and 4K/VR through high-performance forwarding capabilities Excellent business experience, providing customers with ideal all-optical access solutions and future-oriented business support capabilities
In addition, MA5800 has better compatibility and can be compatible with third-party XG(S)-PON after unlocking, providing you with more choices.
