Introduction to Huawei inverters and comparison of different models

ETP23006-C1A1

Today’s article mainly introduces  Huawei inverters and comparison of different models.

The Huawei inverters ETP23006-C1A1, ETP23012-C2A1, and ETP23018-C3A1 convert –48 V DC power into 220 V AC or 230 V AC power and provide high-performance power for AC devices.

Product features:

  • Reliable: AC modules support N+1 backup.
  • Intelligent: Supports remote management over CAN communications.
  • Easy maintenance: The inverter module is hot-swappable and can be replaced with power on.



Solution configurations

Item

Number of Supported Inverter Modules (I23002G1 or I23003G1)

ETP23006-C1A1

3

ETP23012-C2A1

6

ETP23018-C3A1

9



Technical specifications comparison

Item

ETP23006-C1A1

ETP23012-C2A1

ETP23018-C3A1

Dimensions (H x W x D)

43.6 mm x 442.6 mm x 330 mm

87.9 mm x 442.6 mm x 330 mm

132.1 mm x 442.6 mm x 330 mm

Weight

< 5 kg

< 10 kg

< 16 kg

Cabling

Routed in and out from the front

Routed in and out from the front

Routed in and out from the front

Rated output capacity
  • I23002G1: 3 x 2000 VA/3 x 1600 W
  • I23003G1:

    3 x 3000 VA/3 x 2400 W (52–58V DC)

    3 x 2500 VA/3 x 2000 W (42–52V DC)
  • I23002G1: 6 x 2000 VA/6 x 1600 W
  • I23003G1:

    6 x 3000 VA/6 x 2400 W (52–58V DC)

    6 x 2500 VA/6 x 2000 W (42–52V DC)
  • I23002G1: 9 x 2000 VA/9 x 1600 W
  • I23003G1:

    9 x 3000 VA/9 x 2400 W (52–58V DC)

    9 x 2500 VA/9 x 2000 W (42–52V DC)

DC input

Rated voltage

53.5 V DC

53.5 V DC

53.5 V DC

Rated current

120 A

2 x 120 A

3 x 120 A

AC output

Output voltage

230 V AC±3%

230 V AC±3%

230 V AC±3%

Output frequency

50Hz±1%

50Hz±1%

50Hz±1%

Number of outputs

One 63 A AC output (circuit breaker: 63 A/1P x 2)

Two 63 A AC output (circuit breaker: 63 A/1P x 4)

Three 63 A AC output (circuit breaker: 63 A/1P x 6)



Inverter Module

The I23002G1/I23003G1 is an inverter module that supports DC/AC conversion. The input voltage ranges from 42 V DC to 58 V DC, and the rated output voltage is 220 V AC/230 V AC.

Some people may ask what is the difference between these two inverter modules? Can they replace each other? Let me explain next.

I23002G1 is old model, I23003G1 is new one, the mainstream model in the market is I23003G1.

I23003 is 3000VA/2400W
I23002 is 2000VA/1600W

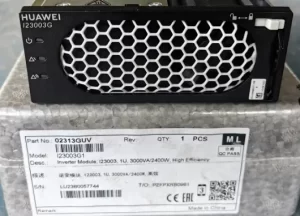

I23003G1

I23002G1

After reading this article, do you know more about Huawei inverters? If you have any questions, please contact csd@telecomate.com.
