Description
ETP23006-C1A1 Overview
The inverter ETP23006-C1A1 converts –48 V DC power into 220 V AC or 230 V AC power, supplying high-performance power to AC devices.
The inverter ETP23006-C1A1 supports three inverter modules. Two inverter modules are configured for the FusionPower9000.
ETP23006-C1A1 Features
- Reliable: Supports N+1 backup
- Easy maintenance: Hot swap and online replacement
- Intelligent: Remote management
ETP23006-C1A1 Panel

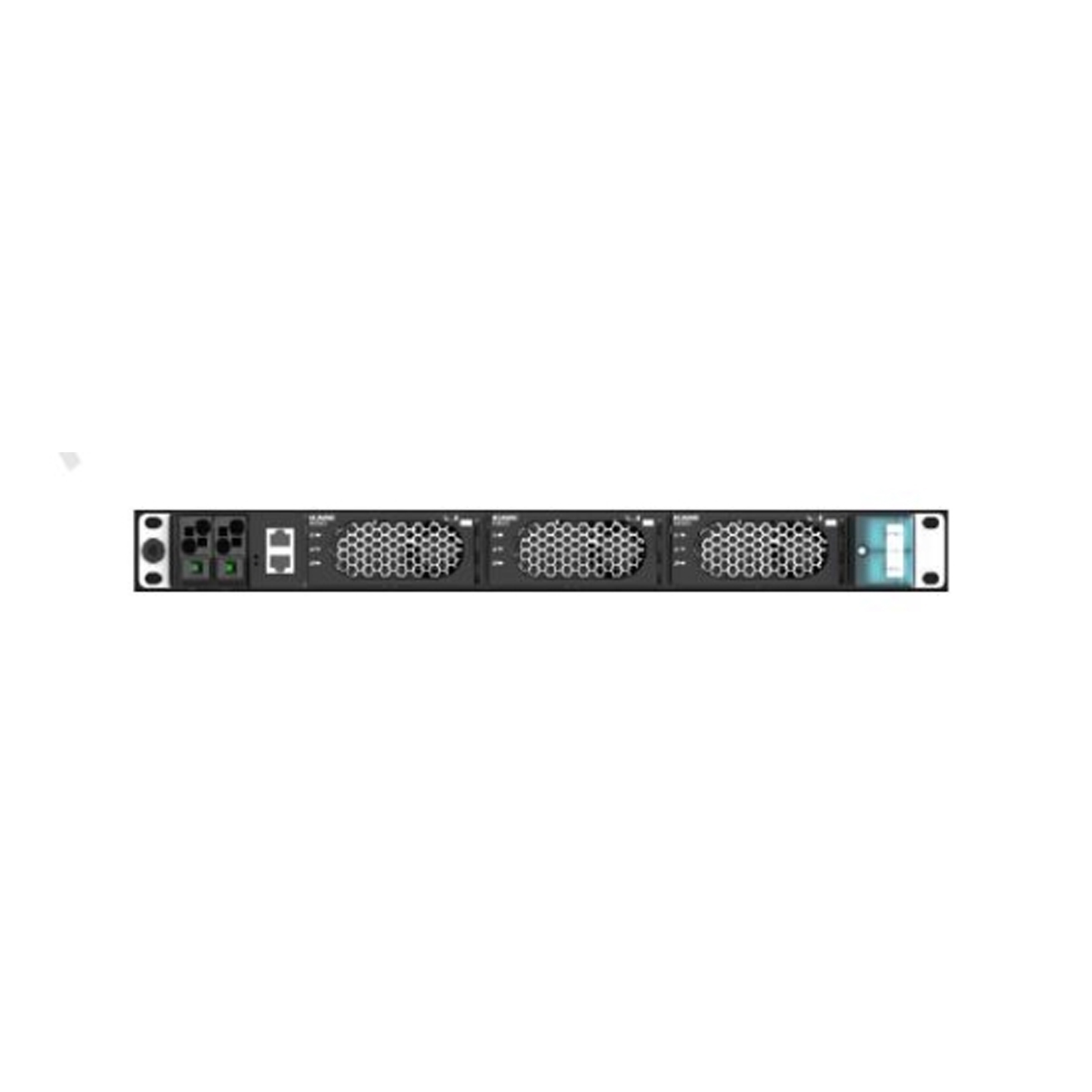

Figure-1 ETP23006-C1A1 interior (front view)
|
(1) Power indicator |
(2) Fault indicator |
(3) Ground screw |
|
(4) AC output circuit breakers |
(5) Space for the inverter module I23002G1 |
(6) –48 V DC input |
|
(7) COM_OUT communications port |
(8) COM_IN communications port |
Figure-2 ETP23006-C1A1 interior (rear view)
|
(1) First group of DIP switches |
(2) Second group of DIP switches |
Inverter Module I23003G1
- Converts DC input into AC output.
- Input voltage range: 42 V DC to 58 V DC (When the input voltage is in the range of 52–58 V DC, the rated output power is 3000 VA/2400 W. When the input voltage is greater than or equal to 42 V DC and less than 52 V DC, the rated output power is 2500 VA/2000 W.)
- Rated output voltage: 220 V AC/230 V AC
- Hot-swappable
- Built-in fan (speed adjustable)
Appearance and Panel
|
(1) Power indicator |
(2) Alarm indicator |
(3) Fault indicator |
|
(4) Locking latch |
(5) Handle |
