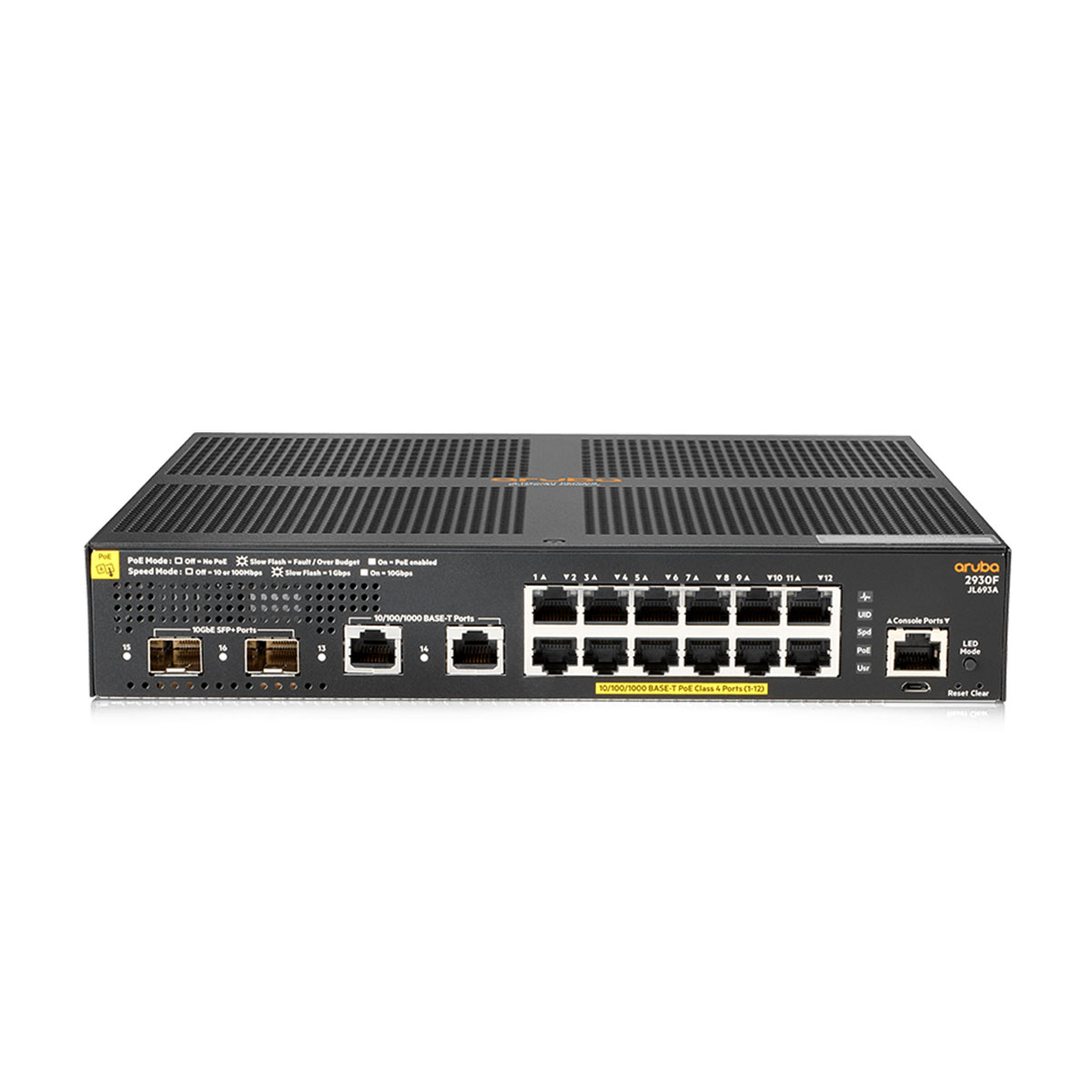

Aruba 2930F series JL693A switch supports 12 RJ-45 10/100/1000 ports, 2 SFP+ 1/10GbE ports

Description

JL693A overview

The Aruba 2930F Switch Series is designed for customers creating smart digital workplaces that are optimized for mobile users with an integrated wired and wireless approach. These convenient Layer 3 network switches include built-in uplinks and PoE power and are simple to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager, Aruba Air Wave and cloud based Aruba Central.

A powerful Aruba Provision ASIC delivers performance, robust feature support and value with programmability for the latest applications. Stacking with Virtual Switching Framework (VSF) provides simplicity and scalability. The 2930F supports built-in 1GbE or 10GbE uplinks, PoE+, Access OSPF routing, Dynamic Segmentation, robust QoS, RIP routing, and IPv6 with no software licensing required. The Aruba 2930F Switch Series provides a convenient and cost-effective access switch solution that can be quickly set up with Zero Touch Provisioning. The robust Layer 3 feature set
includes a limited lifetime warranty.

Key features:

  • Aruba Layer 3 switch series with VSF stacking, static, RIP and Access OSPF Routing, Dynamic Segmentation, ACLs, and robust QoS
  • Supports advanced security and network management via Aruba ClearPass Policy Manager, Aruba Air Wave and Aruba Central
  • Convenient built-in 1GbE or 10GbE uplinks and up to 740 W PoE+
  • Software defined ready with REST APIs and OpenFlow support
  • Simple deployment with Zero Touch Provisioning
Items JL557A JL558A/JL558ACM JL693A
I/O ports and slots 48RJ-45 10/100/1000 PoE+ ports 4 SFP 48RJ-45 10/100/1000 PoE+ ports 4 SFP+1/10GbE ports 12RJ-45 10/100/1000 PoE+ ports 2 SFP+1/10GbE ports
Additional ports and slots 1 dual-personality(RJ-45 or USB micro-B) serial console port 1 dual-personality (RJ-45 or USB micro-B)serial console port 1 dual-personality (RJ-45 or USB micro-B) serial console port
Frequency 50/60 Hz 50/60 Hz 50/60Hz
Power efficiency certifications 80plus.org certification: Gold 80plus.org certification: Gold DoEVl certification
Maximum heat dissipation 420.9 BTU/hr(444.1 k/hr) 420.9 BTU/hr(444.1 k//hr) 68.2 BTU/hr
Voltage 100-127/200- 240 VAC, rated 100-127/200 - 240 VAC, rated 90- 264VAC, rated
Current 9.2/4.9A 9.2/4.9A 1.7A
Maximum power rating 980 w 98o w 170w
ldle power 49.9 w 49.9 w 20 w
PoE power 740 W PoE+ 740 W PoE+ 139 w PoE+
Memory and processor Dual Core ARM Cortex A9@1016 MHz,1GB DDR3 SDRAM; acket buffer size:12.38 MB 4.5 MB Ingress/7.785 Egress, 4 GB eMMc Dual Core ARM Cortex A9@1016 MHz,1 GB DDR3 SDRAM; Packet buffer size: 12.38 MB 4.5MB Ingress/7.785 Egress, 4 GB eMMc Dual CoreARM Cortex A9@1016 MHz,1 GB DDR3 SDRAM; Packet buffer size:12.38 MB 4.5MB Ingress/7.785MB Egress, 4 GB eMMC
1.000 Mb Latency <3.8 us(64-byte packets) <3.8 us (64-byte packets) <3.8 us(64-byte packets)
10 Gbps latency <2.9 us (64-byte packets) <2.9 us(64-byte packets)
Throughput up to 77.4 Mpps up to112.0 Mpps up to 41.7 Mpps
Switching capacity 104 Gbps 176 Gbps 68 Gbps
Routing table size 2,000 IPv4,1,000 lPv6 in hardware, 200 OSPF,256 Static,10,000 RIP 2.000 IPv4,1,000IPv6 in hardware, 200 osPF,256 Static,10,000 RIP 2,000 IPv4,1,0O0 Ipv6 in hardware, 200 OSPF,256 Static,10,000 RIP
MACaddress table size 32,768 entries 32,768 entries 32,768 entries
Dimensions 17.42(w)x 12.77(d)x1.73(h) in (44.25×32.42x4.39 cm) (1U height) 17.42(w)x12.77(d)x1.73 (h) in (44.25x32.42×4.39 cm) (1U height) 10 (w)x 10(d)x1.73 (h) in (25.4x25.4x4.39 cm) (1U height)
Weight 10.56 lb(4.79 kg) 10.56 lb (4.79 kg) 4.85 lb(2.2kg)

Additional information

Brand

Aruba

Items JL557A JL558A/JL558ACM JL693A
I/O ports and slots 48RJ-45 10/100/1000 PoE+ ports 4 SFP 48RJ-45 10/100/1000 PoE+ ports 4 SFP+1/10GbE ports 12RJ-45 10/100/1000 PoE+ ports 2 SFP+1/10GbE ports
Additional ports and slots 1 dual-personality(RJ-45 or USB micro-B) serial console port 1 dual-personality (RJ-45 or USB micro-B)serial console port 1 dual-personality (RJ-45 or USB micro-B) serial console port
Frequency 50/60 Hz 50/60 Hz 50/60Hz
Power efficiency certifications 80plus.org certification: Gold 80plus.org certification: Gold DoEVl certification
Maximum heat dissipation 420.9 BTU/hr(444.1 k/hr) 420.9 BTU/hr(444.1 k//hr) 68.2 BTU/hr
Voltage 100-127/200- 240 VAC, rated 100-127/200 - 240 VAC, rated 90- 264VAC, rated
Current 9.2/4.9A 9.2/4.9A 1.7A
Maximum power rating 980 w 98o w 170w
ldle power 49.9 w 49.9 w 20 w
PoE power 740 W PoE+ 740 W PoE+ 139 w PoE+
Memory and processor Dual Core ARM Cortex A9@1016 MHz,1GB DDR3 SDRAM; acket buffer size:12.38 MB 4.5 MB Ingress/7.785 Egress, 4 GB eMMc Dual Core ARM Cortex A9@1016 MHz,1 GB DDR3 SDRAM; Packet buffer size: 12.38 MB 4.5MB Ingress/7.785 Egress, 4 GB eMMc Dual CoreARM Cortex A9@1016 MHz,1 GB DDR3 SDRAM; Packet buffer size:12.38 MB 4.5MB Ingress/7.785MB Egress, 4 GB eMMC
1.000 Mb Latency <3.8 us(64-byte packets) <3.8 us (64-byte packets) <3.8 us(64-byte packets)
10 Gbps latency <2.9 us (64-byte packets) <2.9 us(64-byte packets)
Throughput up to 77.4 Mpps up to112.0 Mpps up to 41.7 Mpps
Switching capacity 104 Gbps 176 Gbps 68 Gbps
Routing table size 2,000 IPv4,1,000 lPv6 in hardware, 200 OSPF,256 Static,10,000 RIP 2.000 IPv4,1,000IPv6 in hardware, 200 osPF,256 Static,10,000 RIP 2,000 IPv4,1,0O0 Ipv6 in hardware, 200 OSPF,256 Static,10,000 RIP
MACaddress table size 32,768 entries 32,768 entries 32,768 entries
Dimensions 17.42(w)x 12.77(d)x1.73(h) in (44.25×32.42x4.39 cm) (1U height) 17.42(w)x12.77(d)x1.73 (h) in (44.25x32.42×4.39 cm) (1U height) 10 (w)x 10(d)x1.73 (h) in (25.4x25.4x4.39 cm) (1U height)
Weight 10.56 lb(4.79 kg) 10.56 lb (4.79 kg) 4.85 lb(2.2kg)
