Description

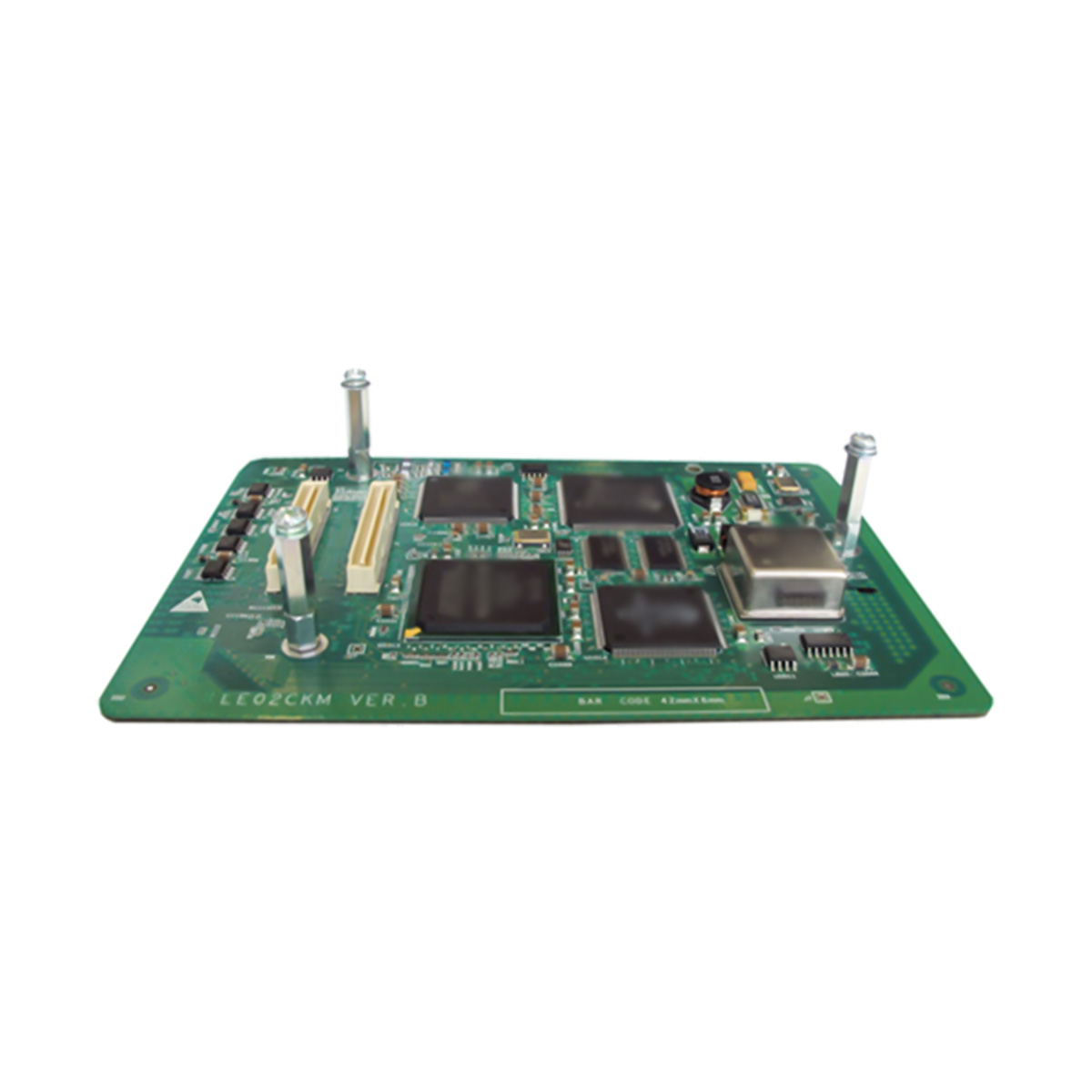

(Optional Clock) Pinch Board
| Item | LE0D00CKMA00 |
| Attribute of a BITS management port | |
| Connector type | RJ45 |
| Standards compliance | Clock synchronization: E1 and T1
Time synchronization: DCLS and Time of Day (ToD) |
| Working mode | Transmission rate
Clock synchronization: 2 MHz, 2 Mbps, 1.544 Mbps Time synchronization: 9600 bit/s (full-duplex mode supported) |
| Physical specification | |
| Dimensions (mm) | 194.5 mm x 426.8 mm x 35.1 mm (7.7 in. x 16.8 in. x 1.4 in.) |
| Weight (kg) | 0.10 kg |
| Maximum power consumption | 6 W |
| Environment parameters | |
| Operating temperature | 0°C to 45°C (32°F to 113°F) |
| Operating relative humidity | 5% RH to 95% RH (noncondensing) |
| Storage temperature | -40°C to +70°C (-40°F to +158°F) |
| Storage relative humidity | 5% RH to 95% RH (noncondensing) |
