Description

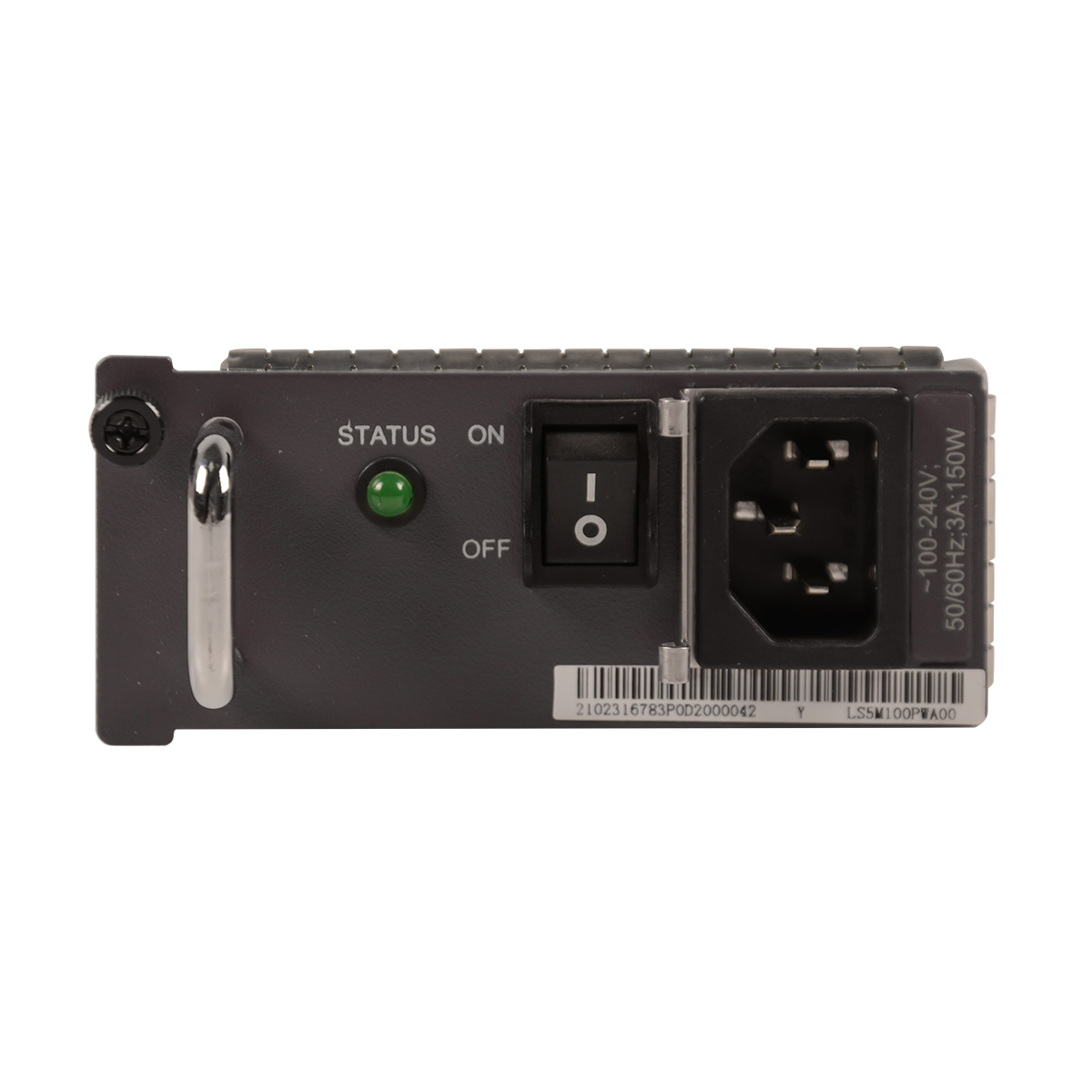

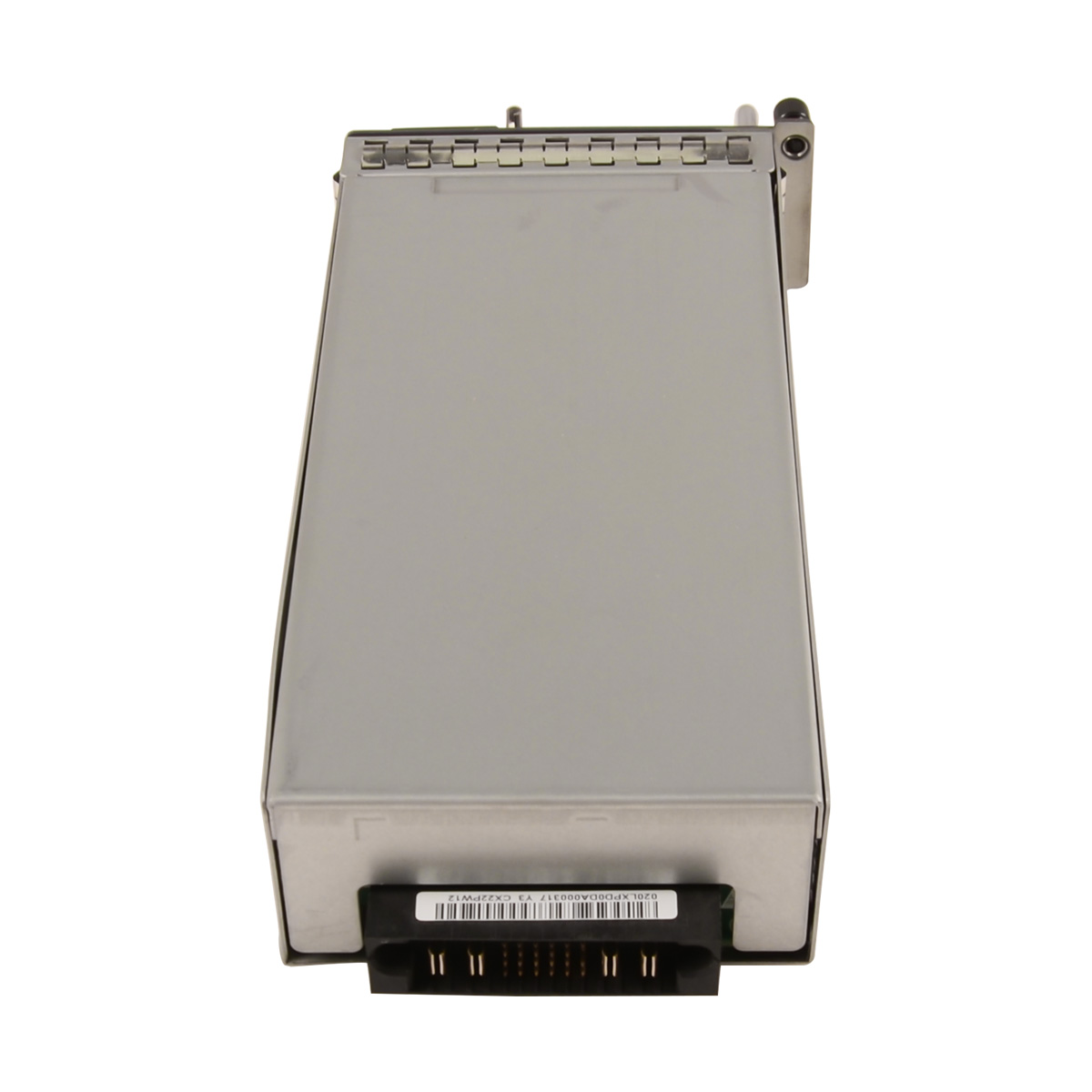

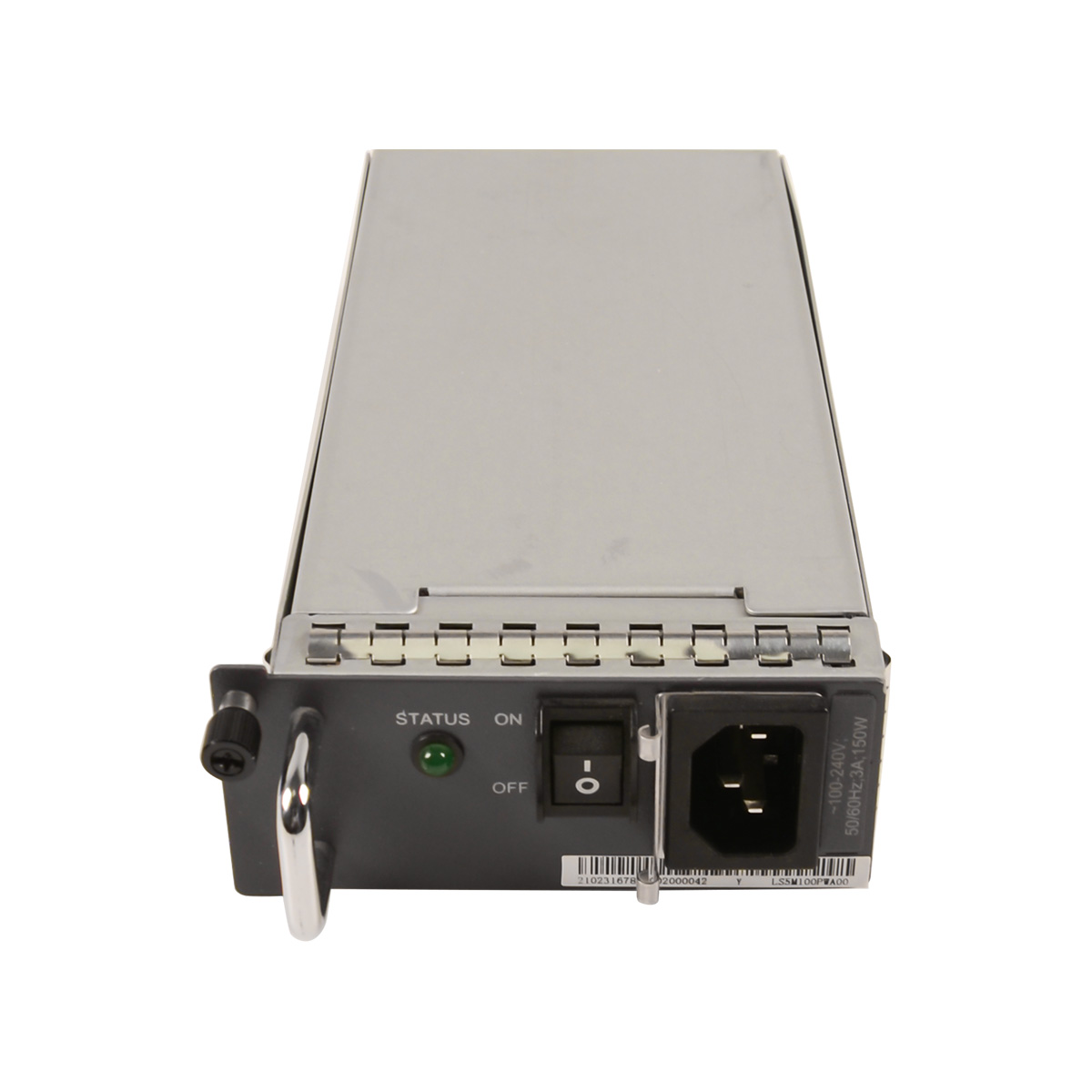

LS5M100PWA00 overview
Huawei LS5M100PWA00 supports 150W AC Power Module apply to S5700/5710/5720/5730 series switch.
Product support for a 150 W AC power module
| Power Module Name | Product Support |
|---|---|
| LS5M100PWA00 (purple gray) | S5700-28C-EI, S5700-28C-EI-24S, S5700-52C-EI, S5700-28C-SI, S5700-52C-SI, S5710-28C-LI, S5710-52C-LI |
| ES0W2PSA0150 (black) | S5700-28P-LI-BAT, S5700-28P-LI-24S-BAT, S5710-28C-EI, S5710-52C-EI, S5720-28P-SI-AC, S5720-28X-SI-AC, S5720-28X-SI-DC, S5720-52P-SI-AC, S5720-52X-SI-AC, S5720-52X-SI-DC, S5720-36C-EI-AC, S5720-36C-EI-DC, S5720-56C-EI-AC, S5720-56C-EI-DC, S5720-36C-EI-28S-AC, S5720-36C-EI-28S-DC, S5720-56C-EI-48S-AC, S5720-56C-EI-48S-DC, S5720-36PC-EI-AC, S5720-56PC-EI-AC, S5730-48C-SI-AC, S5730-68C-SI-AC, S5730S-48C-EI-AC, S5730S-68C-EI-AC, S5730-36C-HI, S5730-44C-HI, S5730-60C-HI, S5730-68C-HI, S5730-44C-HI-24S, S5730-36C-HI-24S, S5720-52X-SI-48S |
Functions of a 150 W AC power module
| Function | Description |
|---|---|
| Input protection | Input undervoltage and overvoltage protection is provided. |
| Output protection | Output undervoltage, overvoltage, overcurrent, and short-circuit protection is provided. |
| Overtemperature protection | When the temperature of the power module exceeds a specified threshold (70°C), the power module stops supplying power. When the temperature falls into the normal range, the power module automatically resumes power supply. |
| Surge protection | – |
| Hot swapping | Supported |
