Description

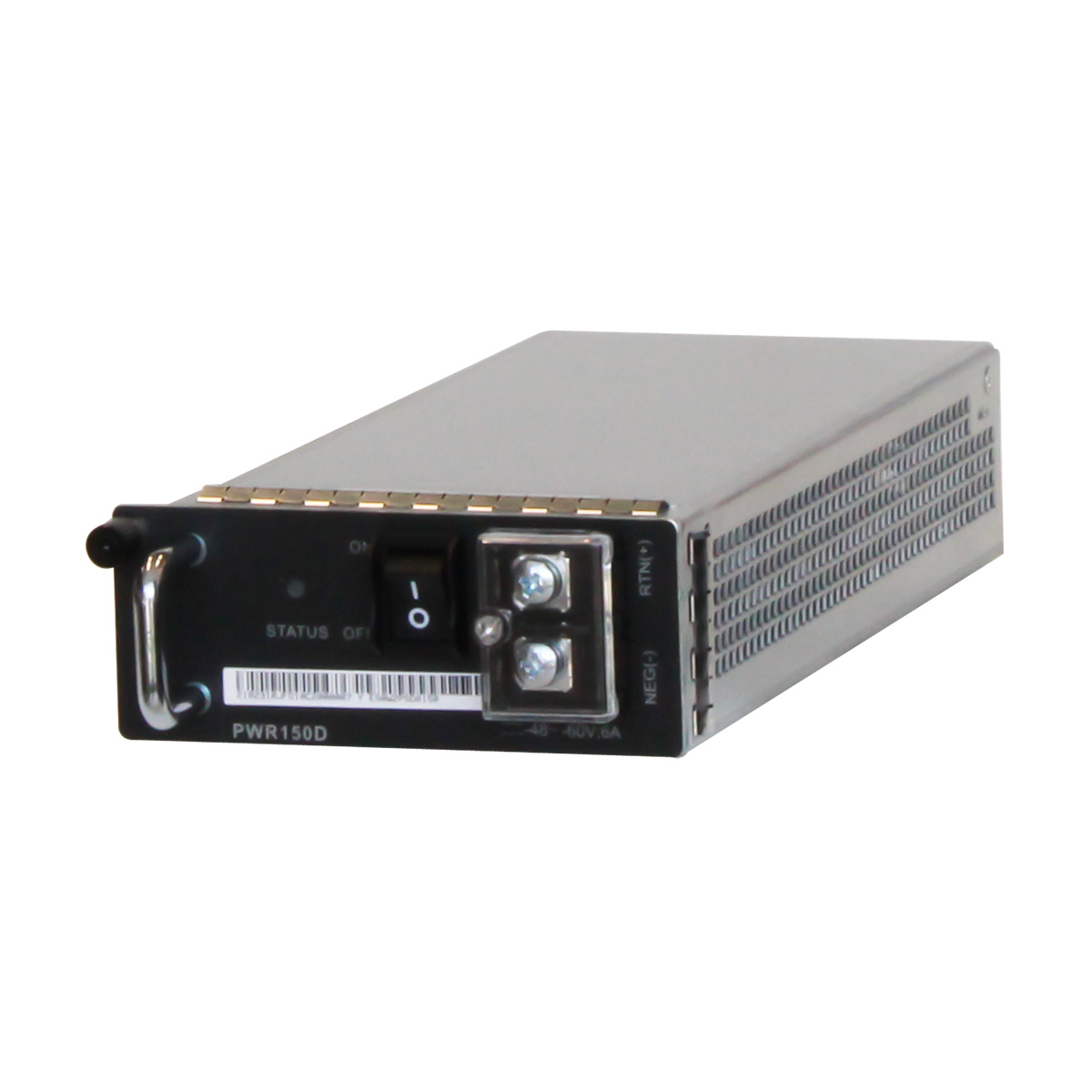

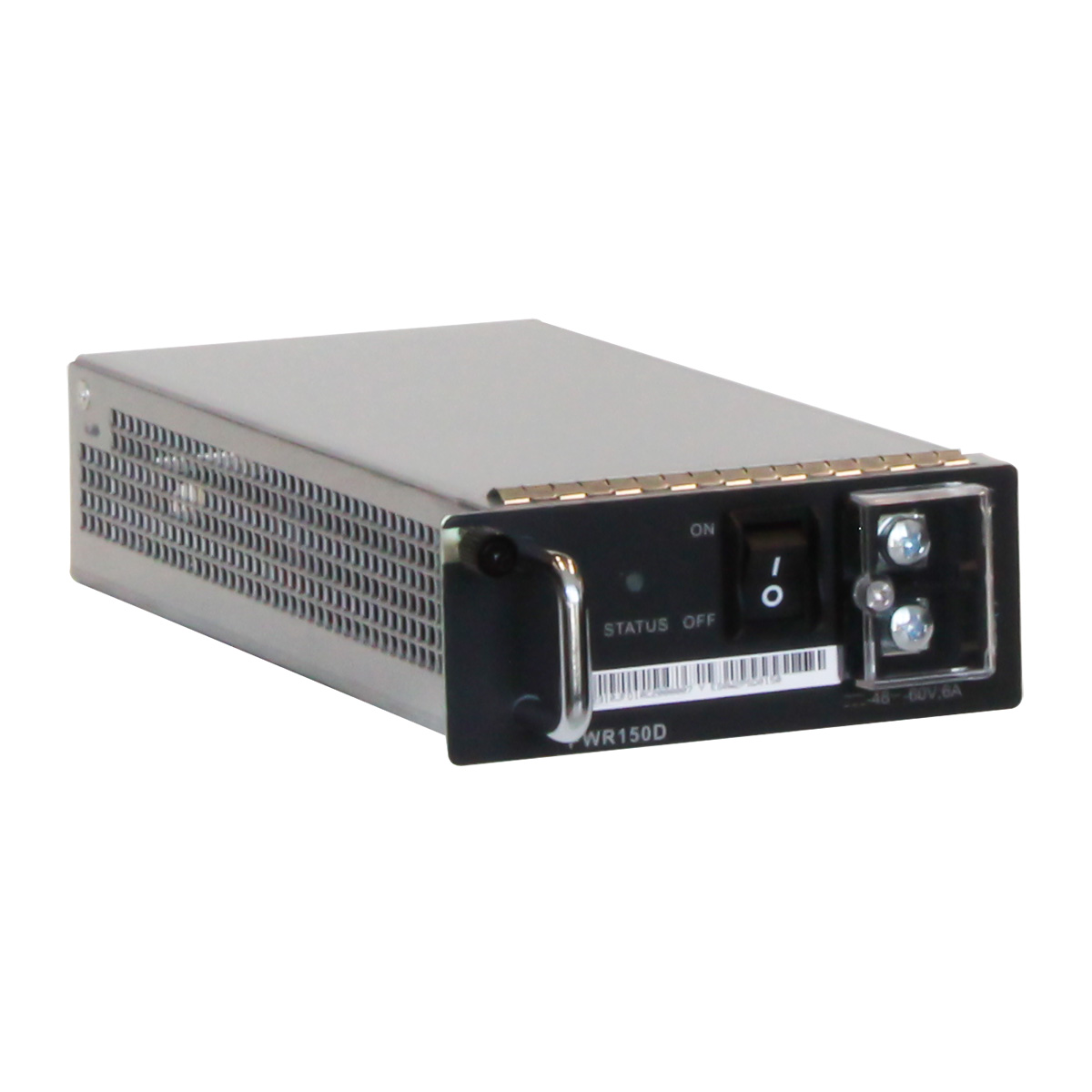

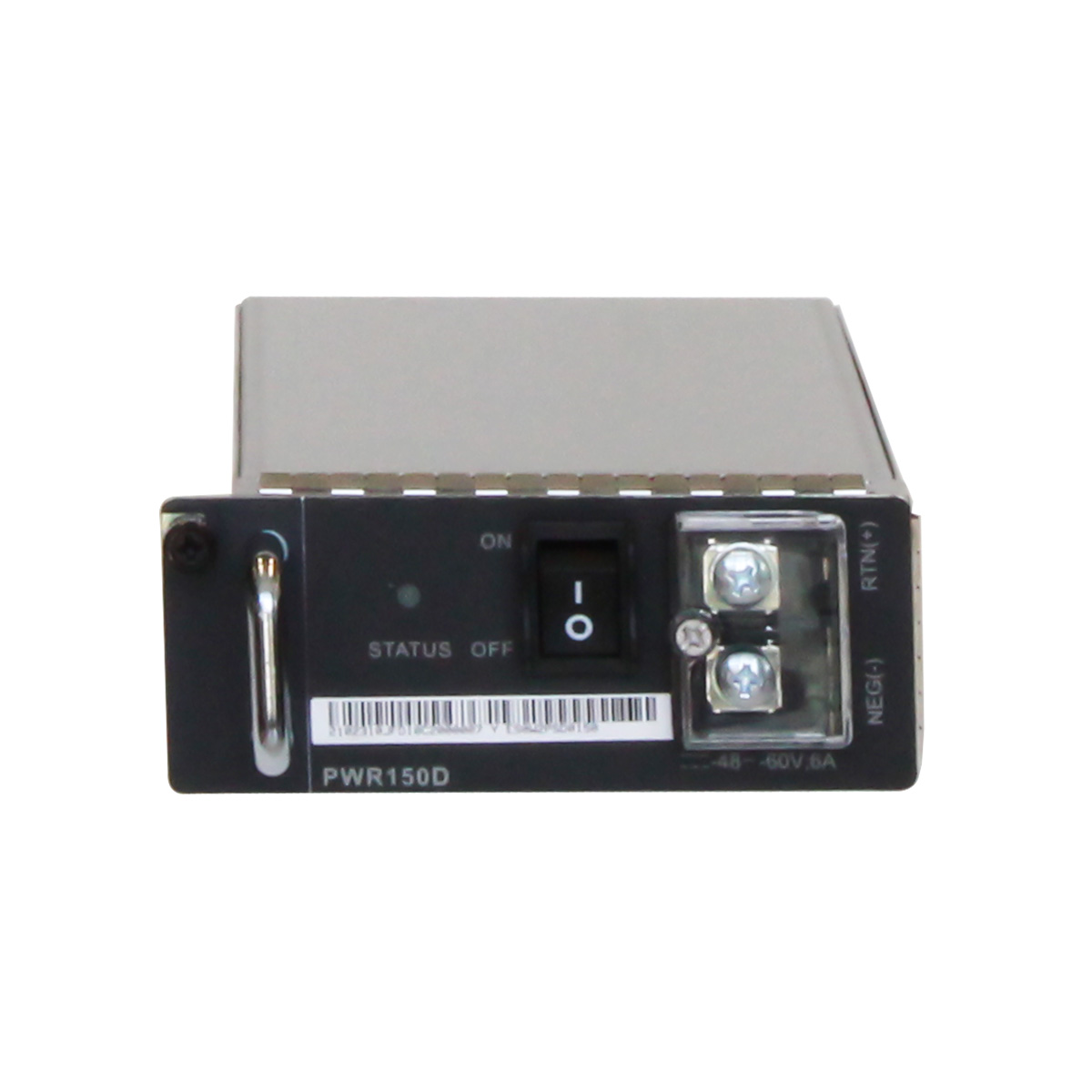

LS5M100PWD00 overview
Huawei LS5M100PWD00 supports 150 W DC Power Module apply to S5700/5710 series switch.
Product support for a 150 W DC power module
| Power Module Name | Product Support |
|---|---|
| LS5M100PWD00 (purple gray) | S5700-28C-EI, S5700-28C-EI-24S, S5700-52C-EI, S5700-28C-SI, S5700-52C-SI, S5710-28C-LI, S5710-52C-LI |
| ES0W2PSD0150 (black) | S5700-28P-LI-BAT, S5700-28P-LI-24S-BAT, S5710-28C-EI, S5710-52C-EI, S5720-28P-SI-AC, S5720-28X-SI-AC, S5720-28X-SI-DC, S5720-52P-SI-AC, S5720-52X-SI-AC, S5720-52X-SI-DC, S5721-28X-SI-24S-AC, S5720-36C-EI-AC, S5720-36C-EI-DC, S5720-56C-EI-AC, S5720-56C-EI-DC, S5720-36C-EI-28S-AC, S5720-36C-EI-28S-DC, S5720-56C-EI-48S-AC, S5720-56C-EI-48S-DC, S5720-36PC-EI-AC, S5720-56PC-EI-AC, S5730-48C-SI-AC, S5730-68C-SI-AC, S5730S-48C-EI-AC, S5730S-68C-EI-AC, S5730-36C-HI, S5730-44C-HI, S5730-60C-HI, S5730-68C-HI, S5730-44C-HI-24S, S5730-36C-HI-24S, S5720-52X-SI-48S |
Functions of a 150 W DC power module
| Function | Description |
|---|---|
| Alarm function | Alarms for various power supply events, such as no power input, air breaker status, ineffective surge protection, and input undervoltage are supported. |
| Short circuit | – |
| Surge protection | – |
| Hot swapping | Supported |
Technical specifications of a 150 W DC power module
| Item | Description |
|---|---|
| Dimensions (H x W x D) | 40 mm x 100 mm x 205 mm (1.6 in. x 3.9 in. x 8.1 in.) |
| Weight | 0.8 kg (1.76 lb) |
| Rated input voltage range | -48 V DC to -60 V DC |
| Maximum input voltage range | -36 V DC to -72 V DC |
| Maximum input current | 6 A |
| Maximum output current | 12.5 A |
| Rated output voltage | 12 V |
| Maximum output power | 150 W |
| Part number | LS5M100PWD00: 02316784
ES0W2PSD0150: 02310JFD |
