LSS7G48VX6E0 Huawei S7700 switch 48-port 100/1000BASE-T interface card (X6E,RJ45,PoE++)

Huawei

3-5 days

Shenzhen Warehouse

SKU: LSS7G48VX6E0 Category:

Description

LSS7G48VX6E0 overview

LSS7G48VX6E0 Huawei S7700 switch 48-port 100/1000BASE-T interface card (X6E,RJ45,PoE++)

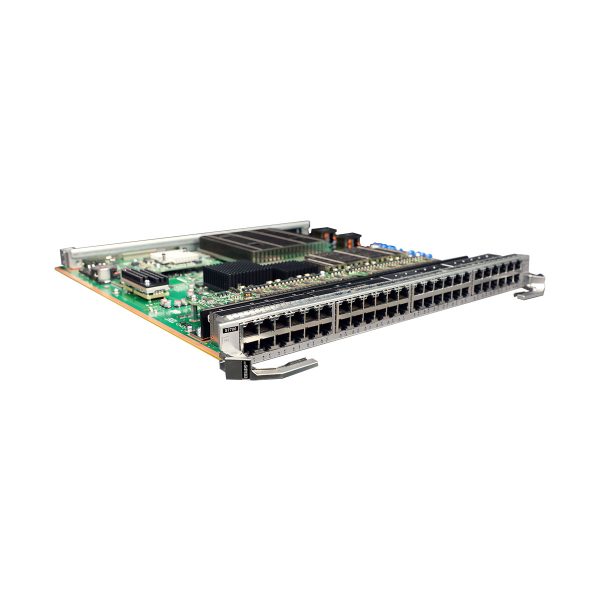

LSS7G48VX6E0 appearance

LSS7G48VX6E0

LSS7G48VX6E0 application
Product First Supported Version Unsupported Model Limitations IDs of available slots
S7700 V200R021C10
  • S7703 PoE, S7703: It cannot be used with the ES0D00MCUA00 or ES1D2MCUAC00. If it is used in V200R021C00 or V200R021C01, install V200R021SPH010 or a later patch.
  • S7706 PoE, S7712, S7706: It cannot be used with the ES0D00SRUA00, ES1D2SRUAC00, or ES0D00SRUB00. If it is used in V200R021C00 or V200R021C01, install V200R021SPH010 or a later patch.
  • S7703 PoE, S7703: 01–03
  • S7712: 01–12
  • S7706 PoE, S7706: 01–06
LSS7G48VX6E0 functions and features
Functions and Features Description
Basic function

The card has two units:

  • Data switching unit: consists of the CPU, switching chip, and physical layer (PHY).
  • PoE management unit: consists of the CPU and the PSE daughter card.

The card provides:

  • Forty-eight 100/1000BASE-T ports for data transmission and switching
  • PoE++ function
Distributed forwarding Performs concurrent data forwarding using a distributed data plane.
Hot swapping Supported
Maximum power
  • When the card is used on a non-PoE chassis: the card does not provide PoE power supply.
  • When the card is used on a PoE chassis of S7703, S7706, or S7712: 90 W for each port and 1776 W for the whole card
  • When the card is used on the S7703 PoE or S7706 PoE: 90 W for each port and 2880 W for the whole card
PoE usage constraints

The card can be registered and used in a PoE chassis only when the following conditions are met:

  • A PSE daughter card has been installed in the card.
  • S7703, S7706, and S7712 chassis: The PoE power modules are supplying power to the chassis normally.
  • S7703 PoE and S7706 PoE chassis: The power modules are supplying power to the chassis normally.

When the card used in a non-PoE chassis, the card does not provide the PoE function.

Item
LSS7G48VX6E0
Dimensions without packaging (H x W x D) [mm(in.)] 35.1 mm x 397.2 mm x 430.4 mm (1.38 in. x 15.64 in. x 16.95 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 160 mm x 510 mm x 570 mm (6.3 in. x 20.1 in. x 22.44 in.)
Weight without packaging [kg(lb)] 4.00 kg (8.82 lb)
Weight with packaging [kg(lb)] 6.00 kg (13.23 lb)
Typical power consumption [W] 140 W
Typical heat dissipation [BTU/hour] 477.69 BTU/hour
Maximum power consumption [W] 144 W
Maximum heat dissipation [BTU/hour] 491.34 BTU/hour
Memory 1 GB
