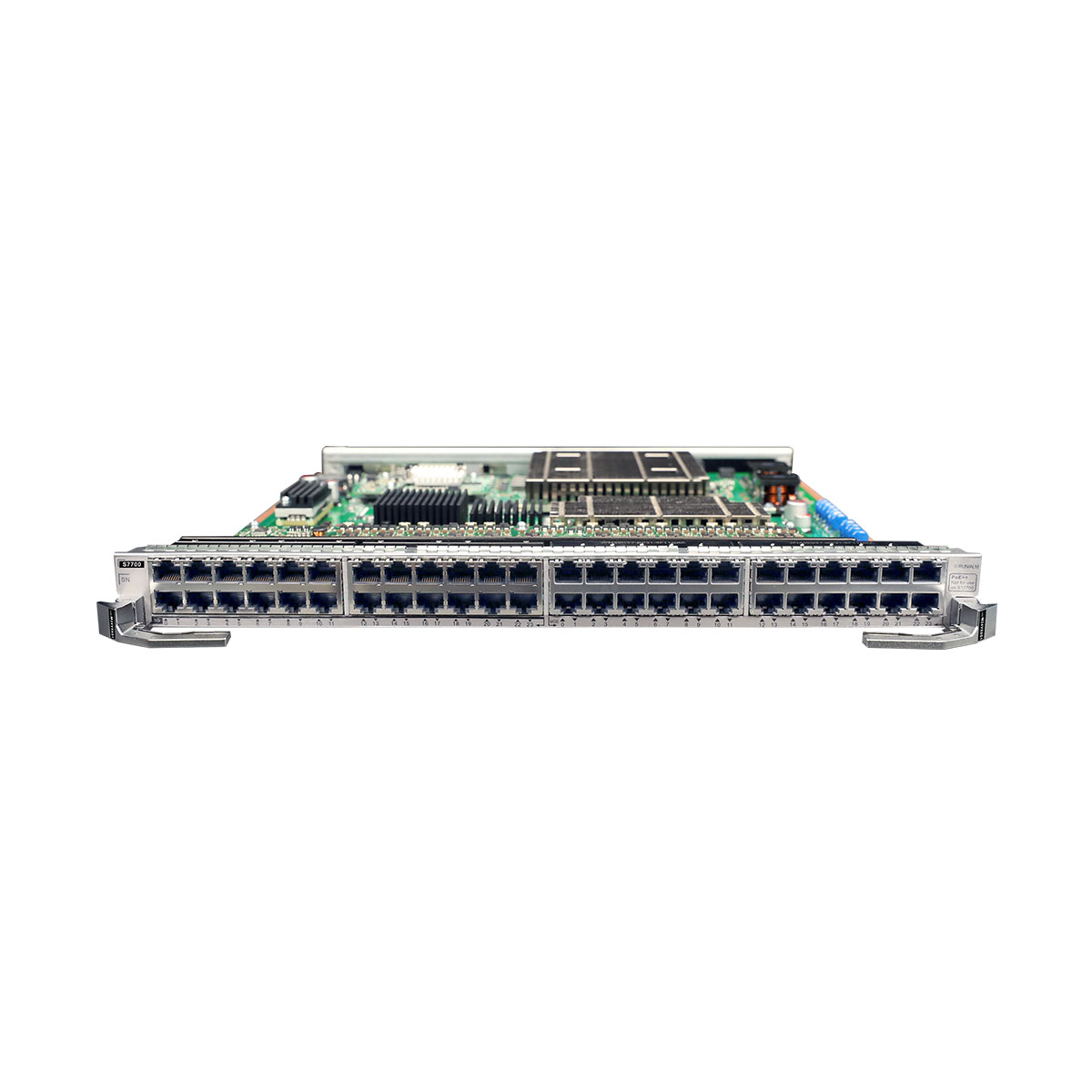

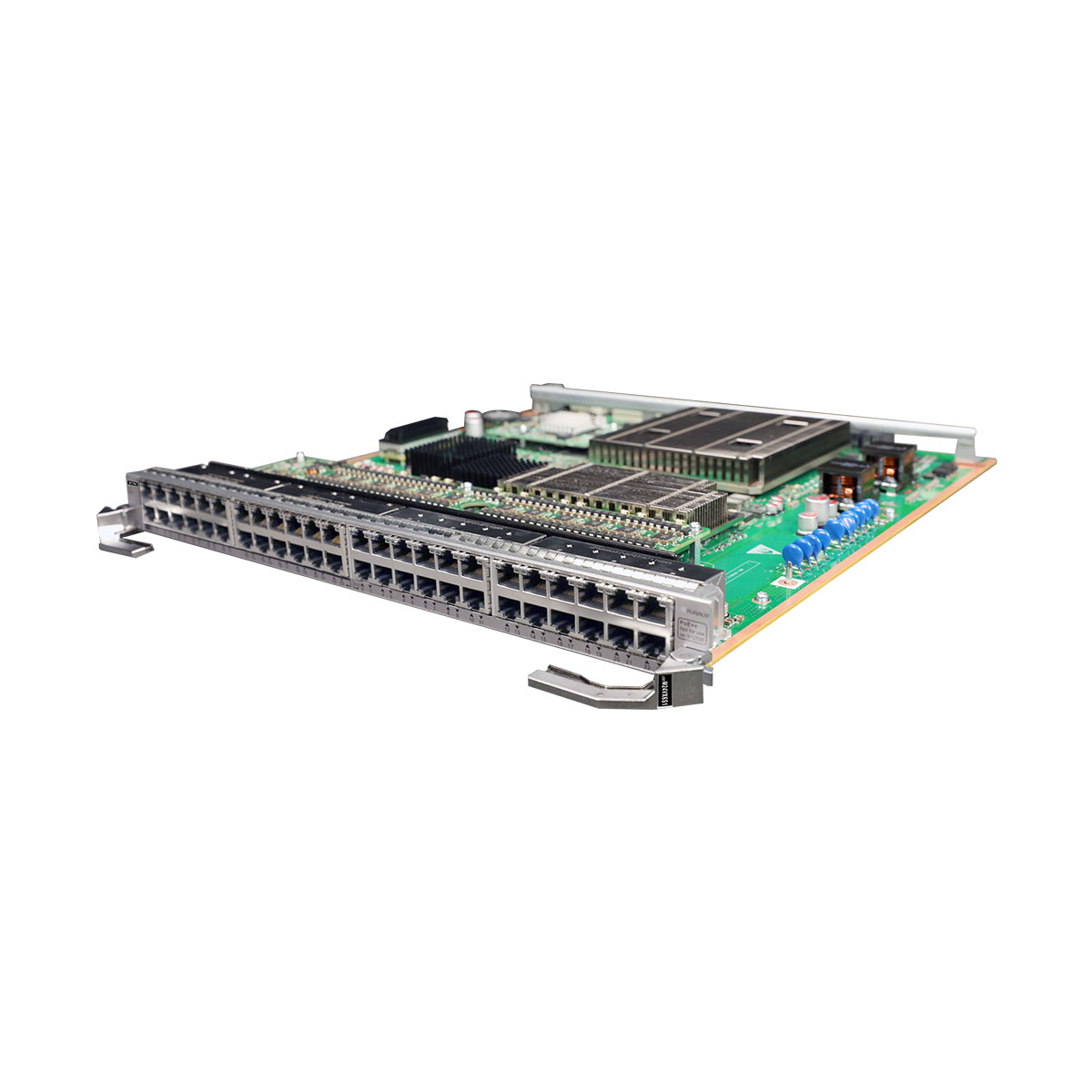

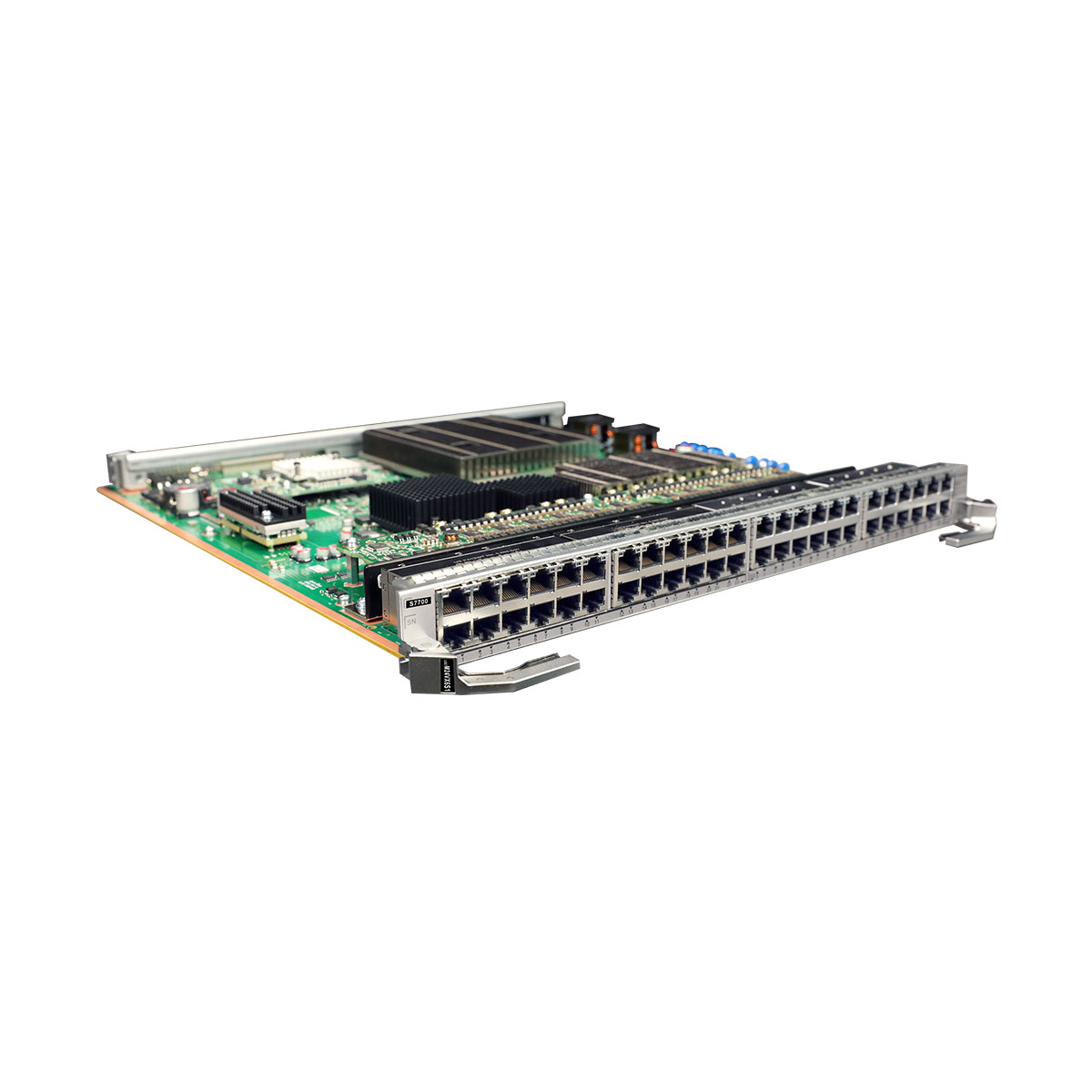

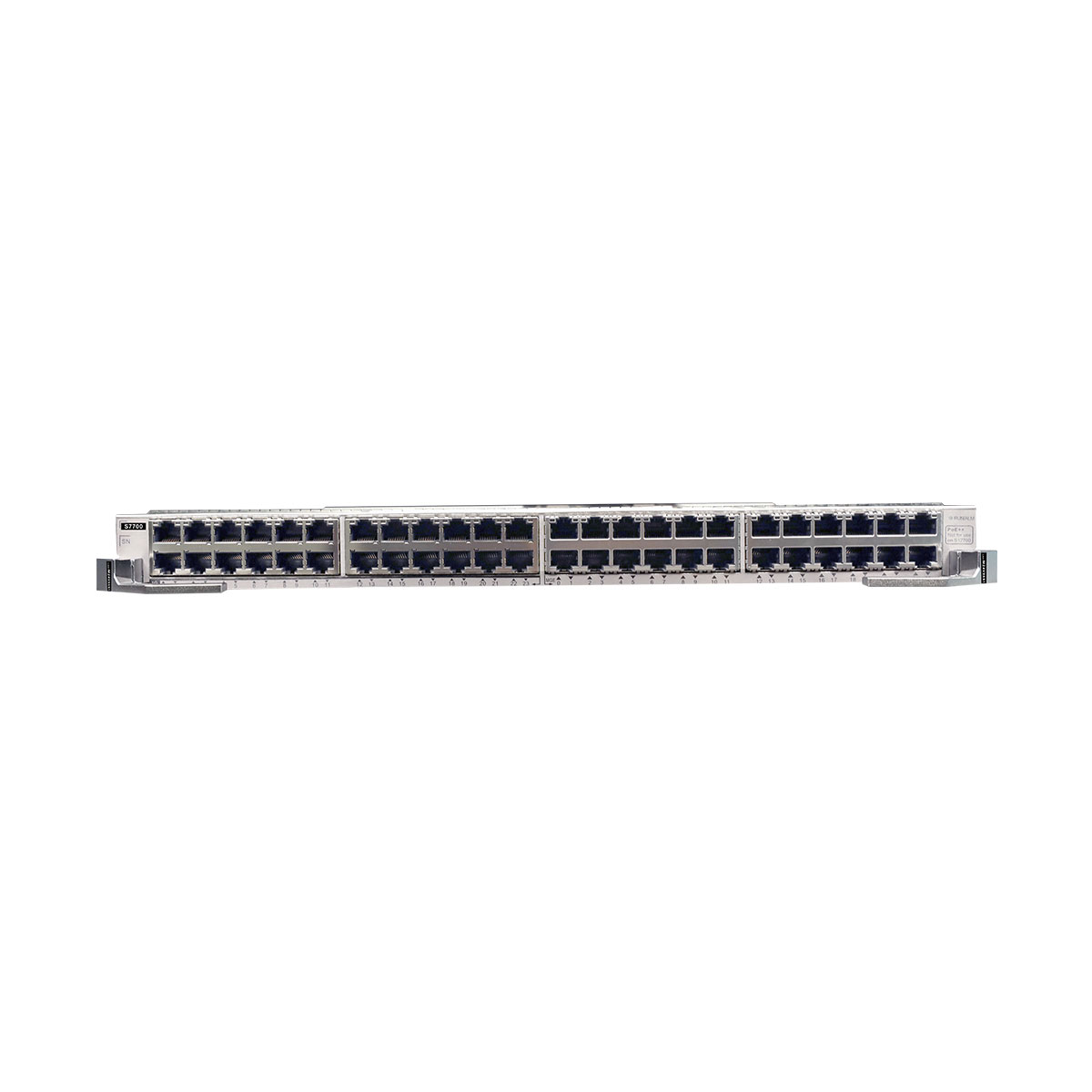

LSS7M24VX6S1

The card has two units:

• Data switching unit: consists of the CPU, switching chip, and physical layer (PHY).
• PoE management unit: consists of the CPU and the PSE daughter card.

The card provides:

• Twenty-four 100M/1000M/2.5GE/5GE/10GE BASE-T ports and twenty-four 100/1000BASE-T ports for data transmission and switching
• PoE++ function

• When the card is used on a non-PoE chassis: the card does not provide PoE power supply.
• When the card is used on a PoE chassis of S7703, S7706, or S7712: 90 W for each port and 1776 W for the whole card
• When the card is used on the S7703 PoE or S7706 PoE: 90 W for each port and 2880 W for the whole card

The card can be registered and used in a PoE chassis only when the following conditions are met:

• A PSE daughter card has been installed in the card.
• S7703, S7706, and S7712 chassis: The PoE power modules are supplying power to the chassis normally.
• S7703 PoE and S7706 PoE chassis: The power modules are supplying power to the chassis normally.

When the card used in a non-PoE chassis, the card does not provide the PoE function.
