LST7SFUHX100

LST7SFUHX100 Overview

Huawei LST7SFUHX100 S12700E Switch Fabric Unit H(X1)

The LST7SFUHX100 can be installed in:

• Slots 07 and 08 in S12700E-4 chassis.
• Slots 11 to 14 in S12700E-8 chassis.

Functions

The LST7SFUHX100 provides the data plane for the entire system. The data plane provides high-speed, non-blocking data channels for data switching between service modules.

The LST7SFUHX100 consists of the following functional modules:

• Switching module: functions as the data plane and provides high-speed service channels for data switching.
• Local clock module: provides the working clock for the chips of the switching module, management module, and monitoring module on the LST7SFUHX100.
• Power supply module: provides power supply for the LST7SFUHX100.

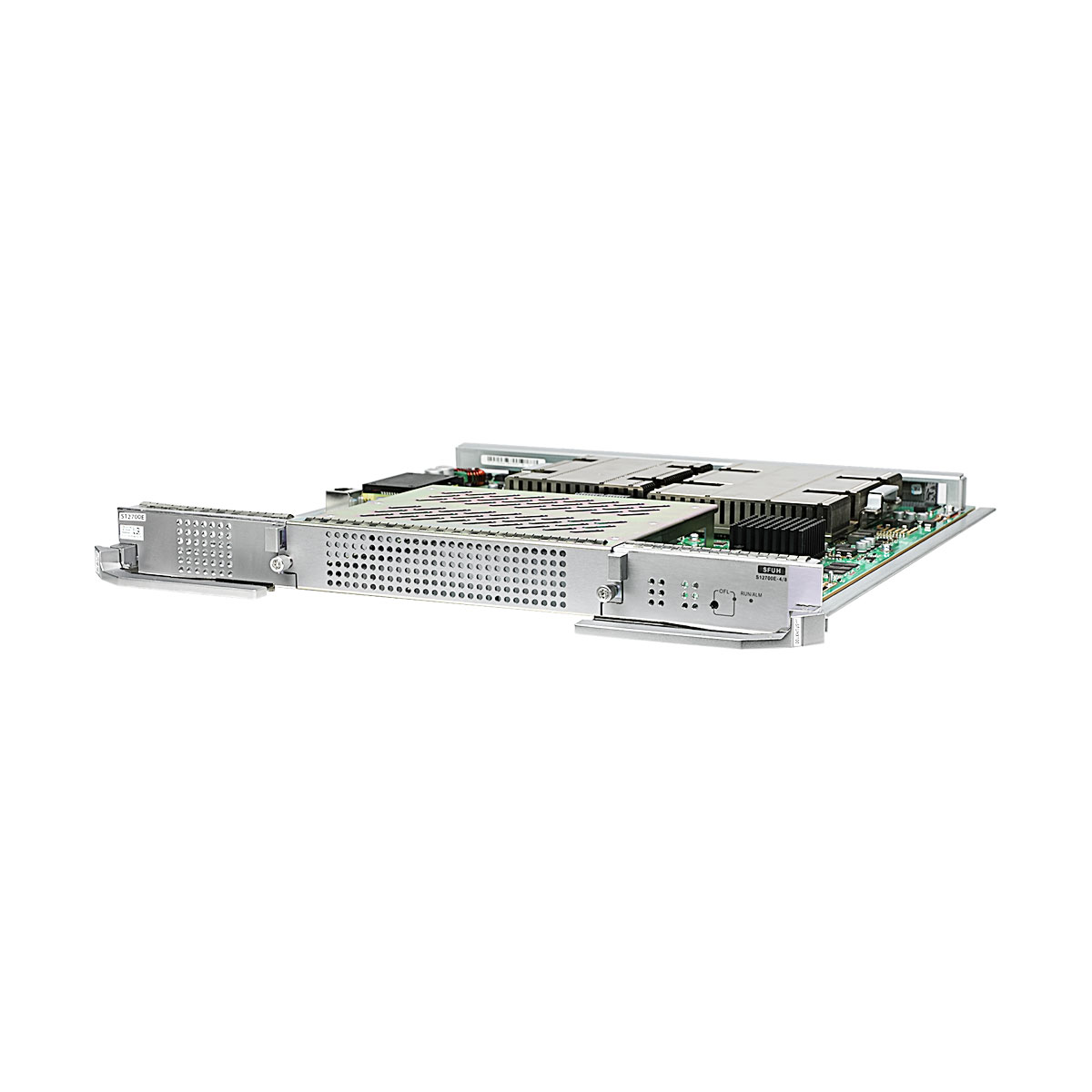

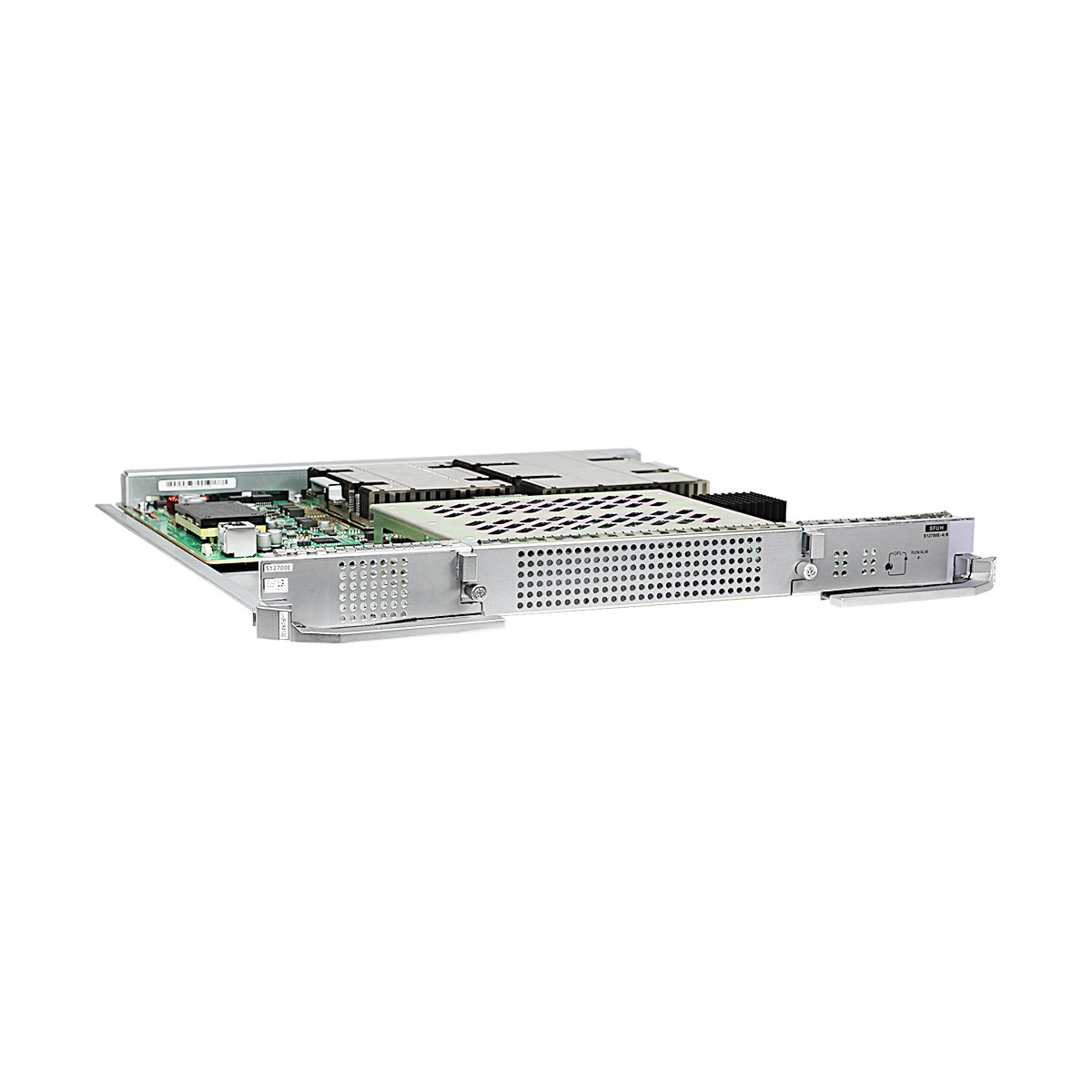

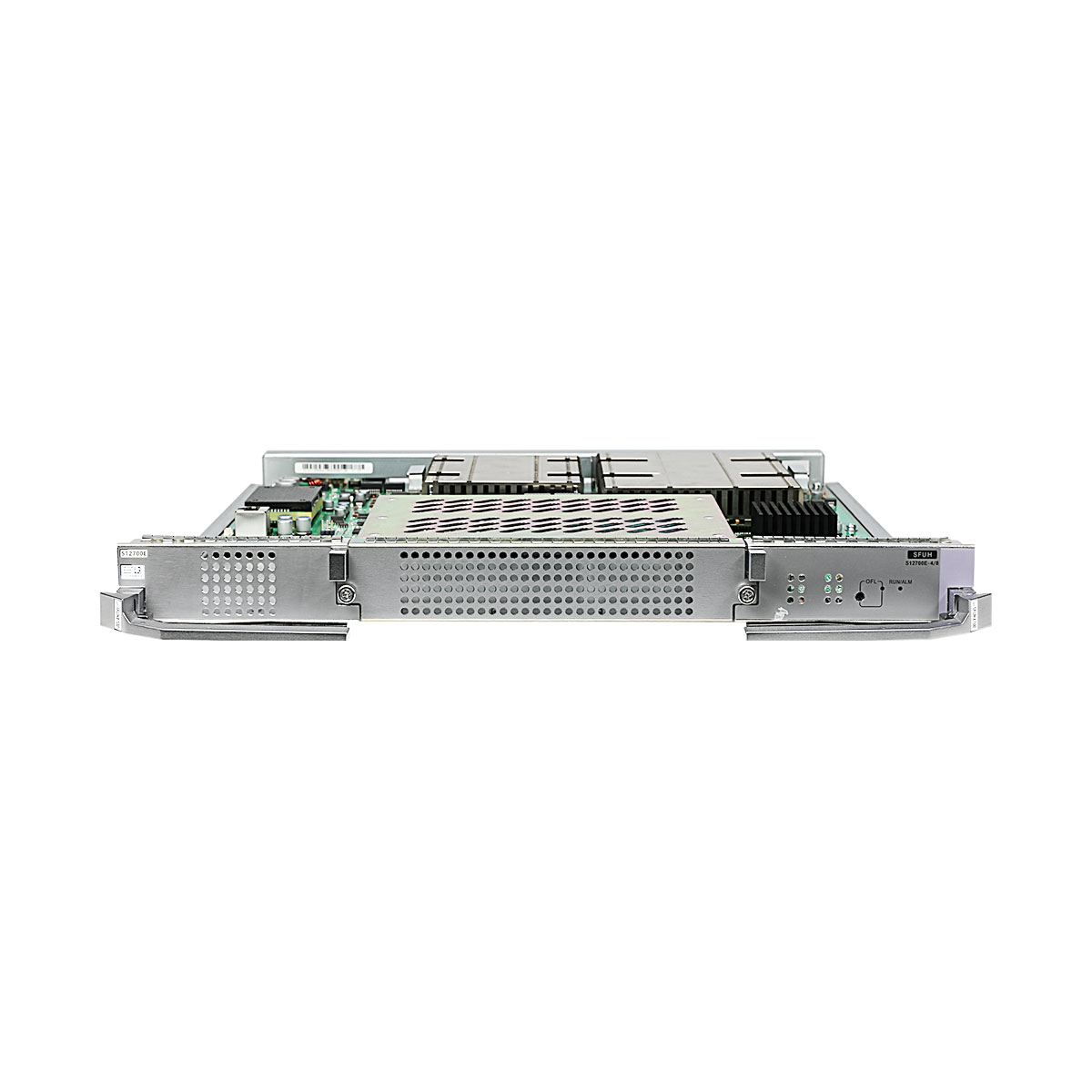

LST7SFUHX100 Front Panel
