Introduction

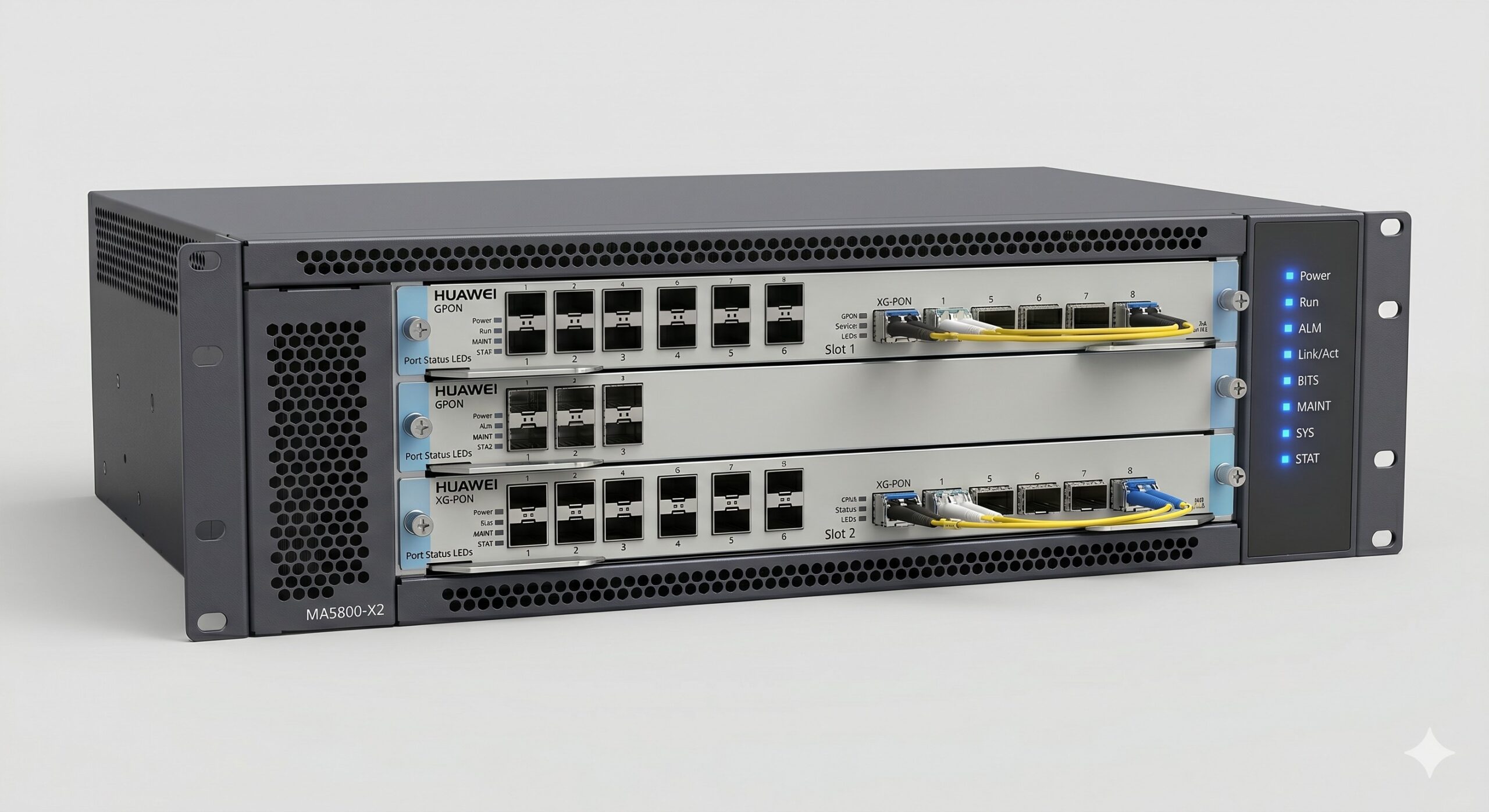

As global bandwidth demand continues to surge, telecom operators and ISPs require carrier-grade OLT platforms that deliver unmatched density, flexibility, and longevity. Huawei’s MA5800-X2, part of the SmartAX series, is a mid-sized OLT designed for FTTH, business VPN, and mobile backhaul applications. This article provides a deep technical dive into the MA5800-X2’s architecture, performance metrics, and real-world deployment scenarios.
Key Features & Core Capabilities
The MA5800-X2 distinguishes itself through a distributed 10GE switching architecture and support for GPON, XG-PON, XGS-PON, and point-to-point GE optical access on a single chassis. Key features include:
- 2U chassis with 2 service slots, offering up to 128 GPON ports or 64 XGS-PON ports per system
- Non-blocking switching capacity up to 400 Gbit/s backplane
- Type B and Type C protection schemes for link and board redundancy
- Native Ethernet and TDM simulation for legacy E1 services
- SyncE and IEEE 1588v2 for precision mobile timing
- Hot-swappable power modules and fan trays
| Parameter | MA5800-X2 | MA5800-X7 | MA5800-X15 |
|---|---|---|---|
| Chassis height | 2U | 7U | 15U |
| Service slots | 2 | 6 | 14 |
| Max GPON ports | 128 | 384 | 896 |
| Max XGS-PON ports | 64 | 192 | 448 |
| Switching capacity (backplane) | 400 Gbit/s | 1.6 Tbit/s | 3.2 Tbit/s |
| Typical power (full load) |
Technical Specifications Comparison
When compared to the larger MA5800-X15 or smaller MA5800-X7, the MA5800-X2 strikes an optimal balance between port density and physical footprint. Below is a head-to-head comparison of critical parameters against its siblings:
| Parameter | MA5800-X2 | MA5800-X7 | MA5800-X15 |
|---|---|---|---|
| Chassis height | 2U | 7U | 15U |
| Service slots | 2 | 6 | 14 |
| Max GPON ports | 128 | 384 | 896 |
| Max XGS-PON ports | 64 | 192 | 448 |
| Switching capacity (backplane) | 400 Gbit/s | 1.6 Tbit/s | 3.2 Tbit/s |
| Typical power (full load) |
For field engineers, the MA5800-X2 consumes
Application Scenarios
The MA5800-X2 excels in three primary use cases:
- High-density FTTH rollout: With 64 XGS-PON ports (downstream 9.95 Gbps, upstream 8.64 Gbps per port), it serves 4,096 residential subscribers using 1:64 splitters.
- Wholesale & business VPN: VLAN mapping and QinQ support enable secure multi-tenant isolation, plus L2 VPN and L3 VPN over MPLS.
- 5G mobile backhaul: Combined with XGS-PON and WDM-PON uplinks, the MA5800-X2 delivers sub-1ms latency and hardware-based OAM for small cell aggregation.
Conclusion
The Huawei MA5800-X2 is not merely an OLT — it is a long-term investment for operators evolving from GPON to 50G PON. Its compact 2U form factor, redundant hardware architecture, and multi-PON support make it the go-to platform for greenfield FTTH projects and brownfield upgrades. For B2B buyers seeking a balance between cost, scalability, and cutting-edge PON technology, the MA5800-X2 remains a top recommendation in 2025 and beyond.
