Description
MA5801-GP08-H2 Overview
With the continuous promotion of new services, such as 4K/VR videos, home networks, and network cloudification, optical fiber access has become an important means for countries around the world to popularize broadband networks. As optical fiber access nodes keep moving closer to end users, OLTs are closer to end users. Deployment scenarios are complex and diversified. In this case, network needs OLTs with small volume and low density.

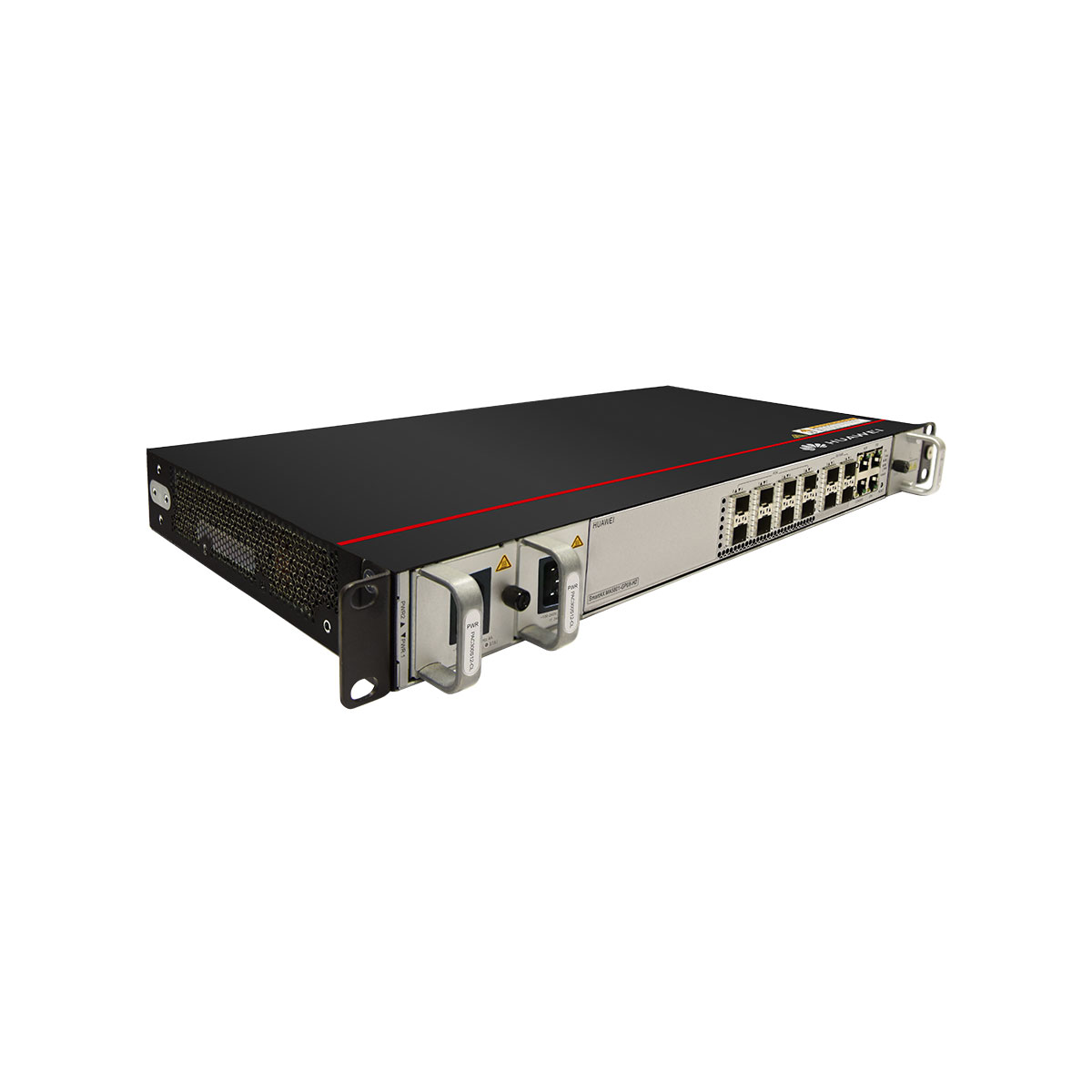

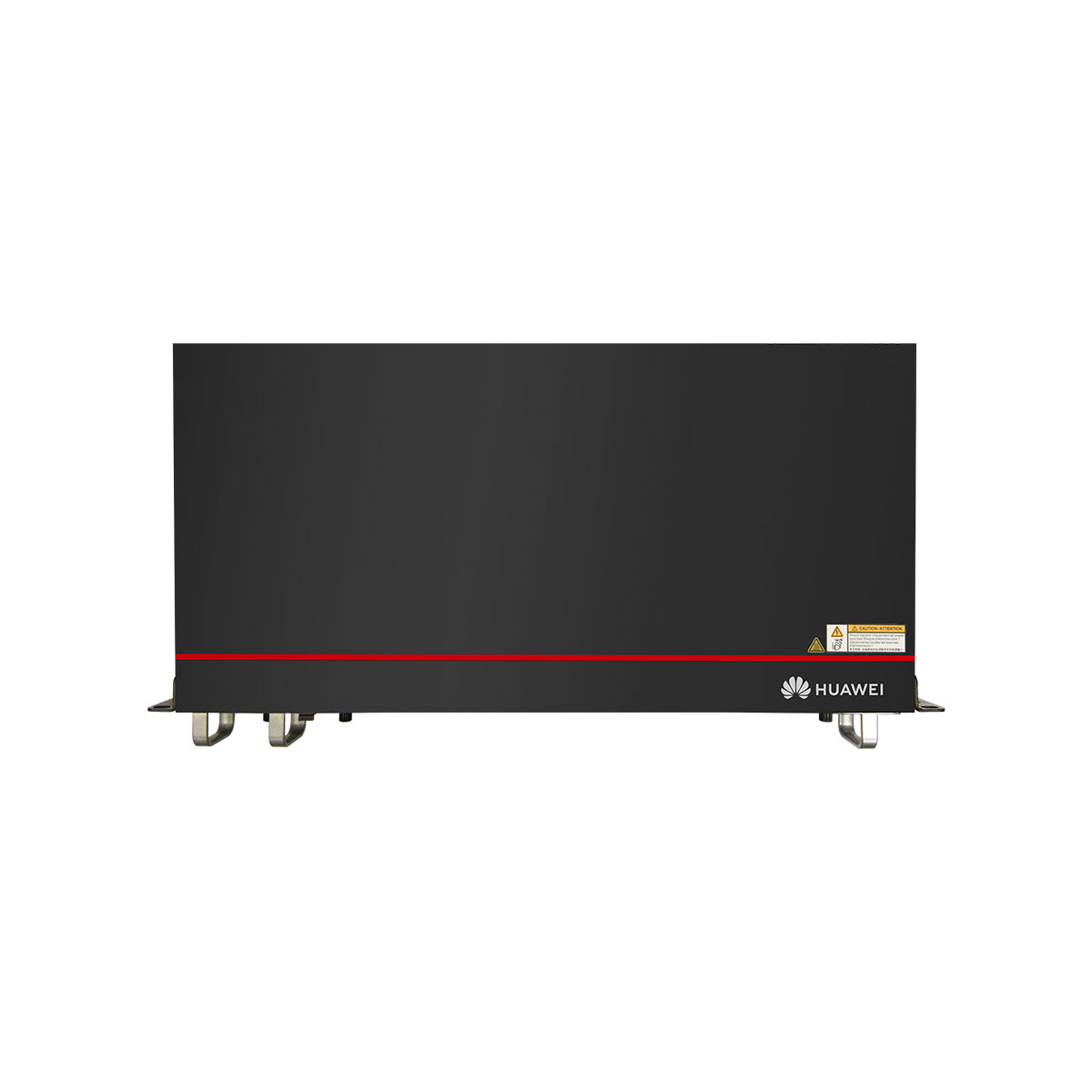

The MA5801-GP08-H2 is a compact and low-density box-shaped OLT. It provides multiple fiber to the home (FTTH) solutions to meet the requirements of economical and efficient network construction. It can be flexibly deployed in fast fixed mobile convergence (FMC) scenario, national broadband coverage scenario, and enterprise’s all-optical campus scenario.
MA5801-GP08-H2 Ports
| Port Name | Silk Screen | Number of Ports | Function |
|---|---|---|---|

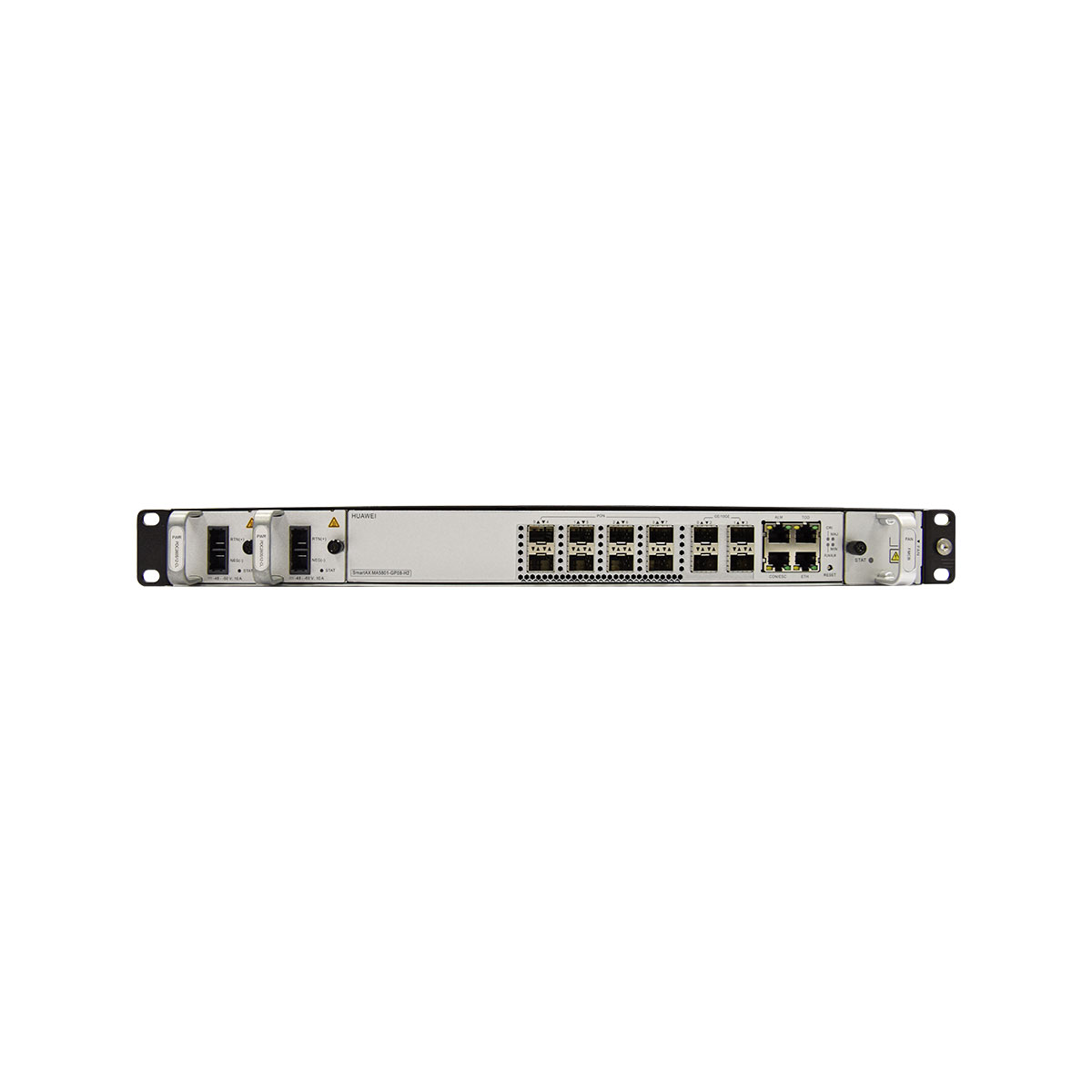

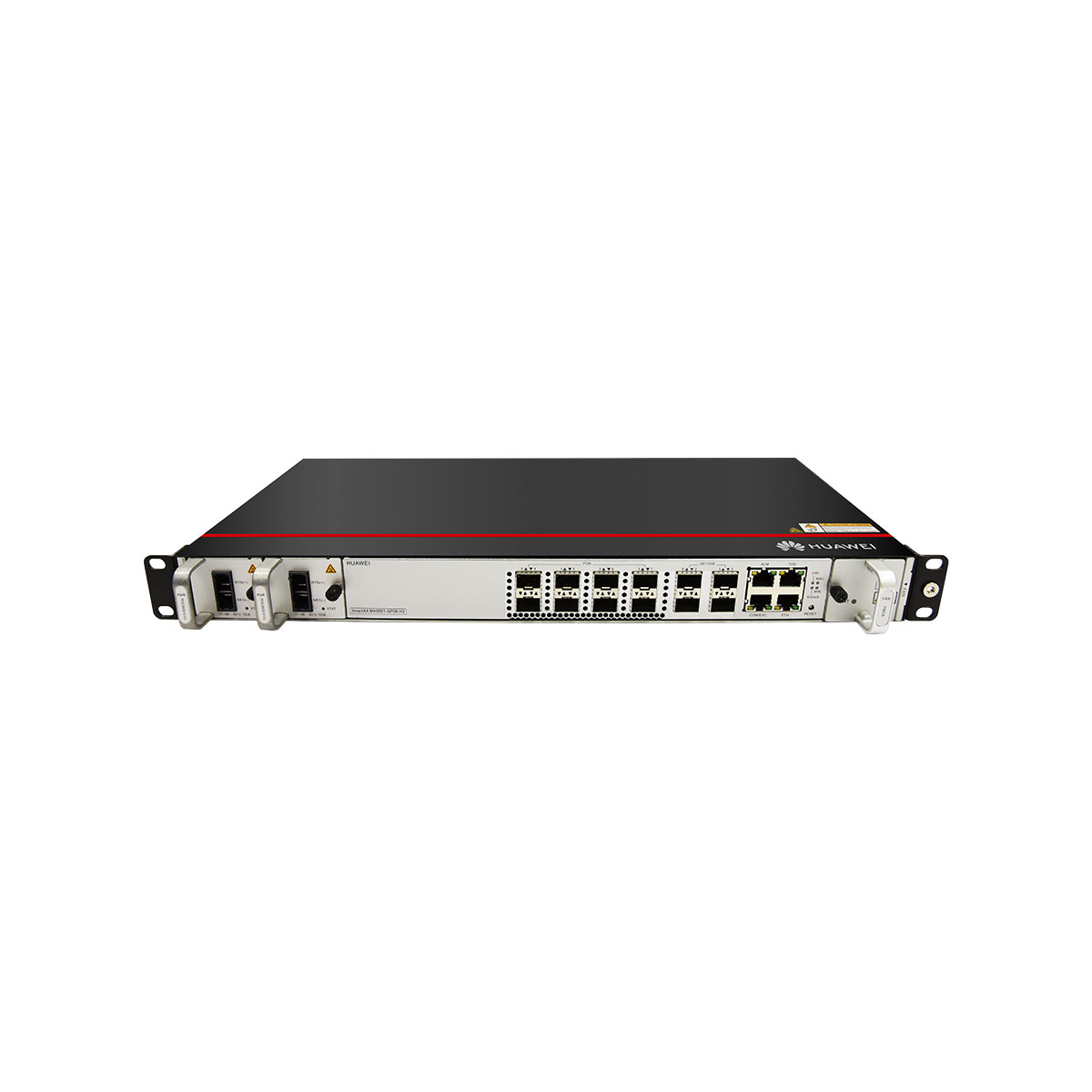

| DC power port | – | 2 | Connects to –48/–60 V DC power. |

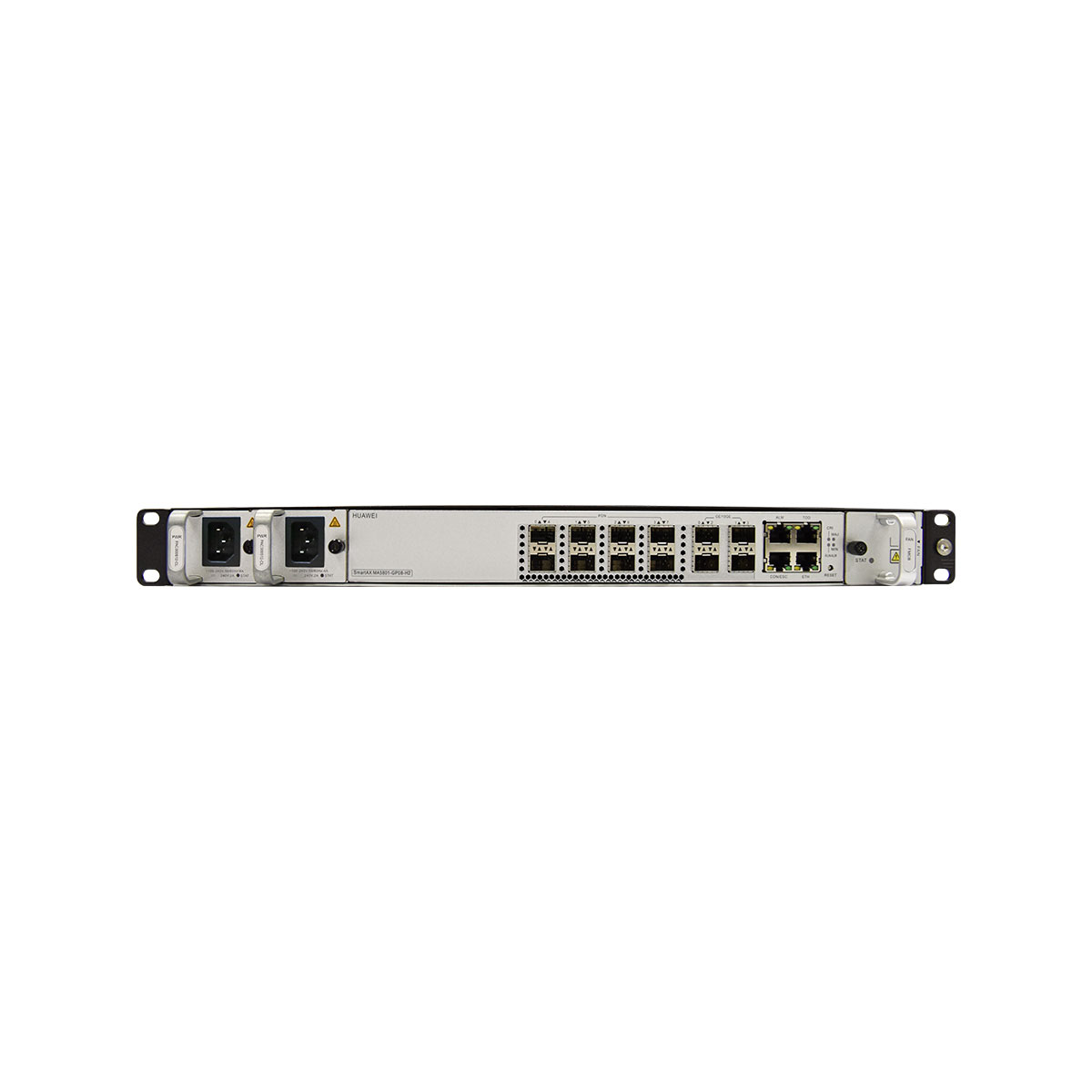

| AC power port | – | 2 | Connects to 110/220 V AC power. |
| Reset button | RESET | 1 | This button is used to reset the board manually. Resetting the board interrupts the services. Hence, exercise caution when using the reset button. |
| GPON port | PON: 0–7 | 8 | Provides 8 GPON ports for GPON service access. |
| Upstream port (10GE/GE optical) | 10GE/GE: 0–3 | 4 | Provides 4 10GE/GE ports for upstream transmission. |
| GE maintenance network port | ETH | 1 | 10/100/1000M BASE-T maintenance port. Connected to the Ethernet port of the maintenance terminal. |
| RS-232 serial port/RS-485 monitoring serial port | CON/ESC | 1 | Connected to the serial port of the maintenance terminal/Connected to the serial port of the monitored device. |
| TOD port | TOD | 1 | Reserved. |
| Environment monitoring port | ALM | 1 | Connected to digital sensors. |
MA5801-GP08-H2 Product Highlights
Lightweight and small size
The lightweight OLT weighs less than 5 kg and occupies 1 U installation space. It can be flexibly adapted to various scenarios.
Dual power supplies, high reliability
Supports dual AC or DC power supplies, providing flexible power supply and high reliability.
Easy installation and flexible deployment
The matching small outdoor cabinet can be installed on a pole, tower, or wall, facilitating installation and reducing engineering costs.
MA5801-GP08-H2 Primary Features
| Layer 2 features | |
| VLAN+MAC forwarding | SVLAN+CVLAN forwarding |
| PPPoE+ | DHCP option82 |
| Layer 3 features | |
| Static route | RIP/RIPng |
| OSPF/OSPFv3 | IS-IS |
| BGP/BGP4+ | ARP |
| DHCP relay | VRF |
| Multicast | |
| IGMP v2/v3 | IGMP Proxy/Snooping |
| MLD v1/v2 | MLD Proxy/Snooping |
| VLAN-based IPTV multicast | IPv4 PIM and PIM-SSM |
| QoS | |
| Traffic classification | Priority processing |
| trTCM-based traffic policing | WRED |
| Traffic shaping | HQoS |
| PQ/WRR/PQ+WRR | ACL |
| IPv6 | |
| IPv4/IPv6 dual stack | IPv6 L2 and L3 forwarding |
| DHCPv6 relay | |
| System reliability | |
| GPON Type B/Type C protection | ERPS (G.8032) |
| 2 power boards for redundancy protection | In-service board fault detection and rectification |
| Aggregation | |
| Aggregation management | |
