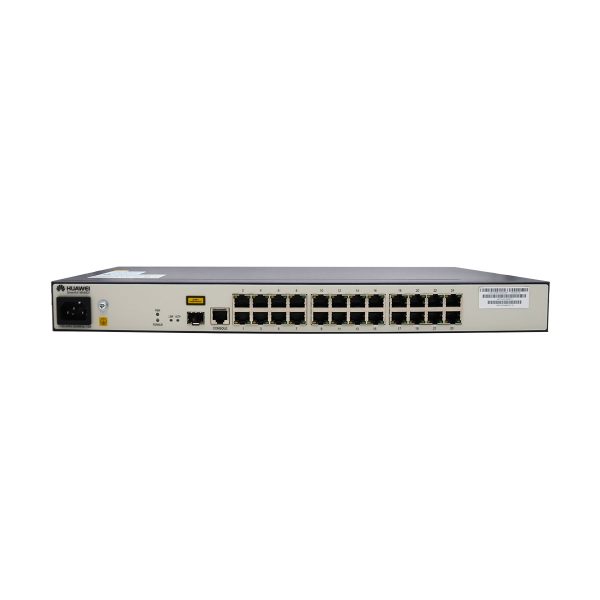

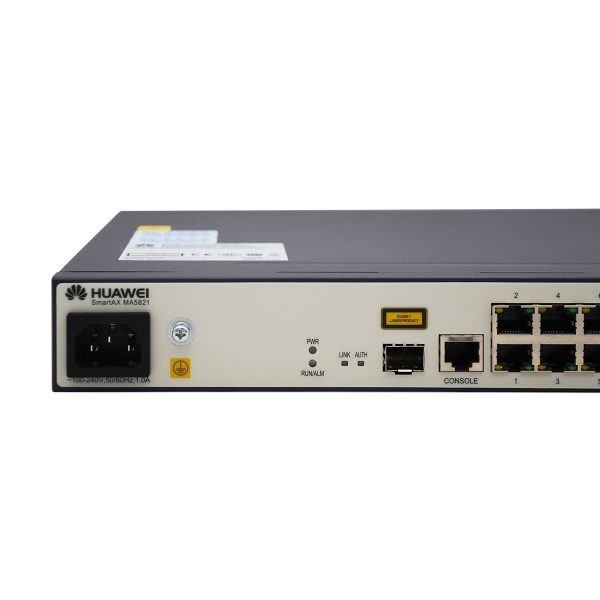

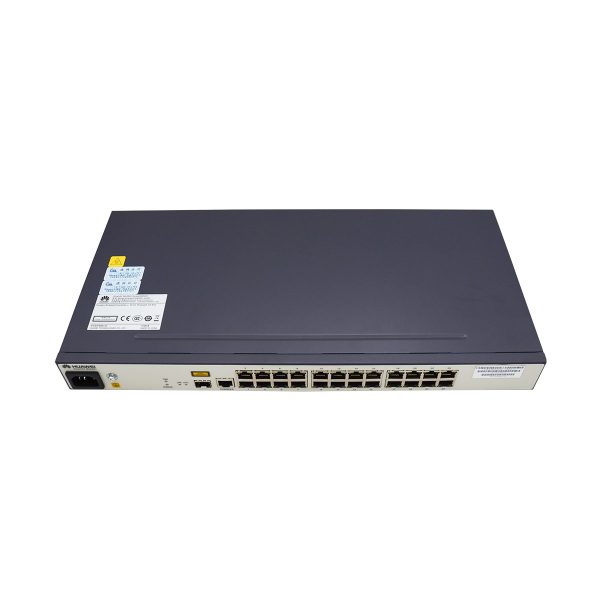

MA5821-24GE provides 1 SFP optical port, 24 GE electrical ports, and supports POTS access, fixed AC power

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

MA5821-24GE overview

The SmartAX MA5821/MA5822 is a multi-service access module launched by Huawei Technologies Co, Ltd. The MA5821/MA5822 applies to fiber to the building (FTTB) or fiber to the curb (FTTC) network applications for providing voice, data, and multicast services for community users. The MA5821 applies to video surveillance scenarios.

Highlights

  • 10G GPON Upstream Transmission
  • Rich and Complete Specifications
  • A Rich Variety of Services
  • Comprehensive Management and Maintenance
  • High-Reliability Design
Items MA5821-24GE
Port Configuration 24GE
Control Board H825XPUB
HS22EPGE
Uplink port Provides one small formfactor pluggable (SFP) port to support the following upstream transmission modes:
•10G GPON (asymmetric)
•GPON
Dimensions 442 mm x 220 mm x 43.6 mm (Without the Mounting Brackets)
482 mm x 220 mm x 43.6 mm (With the Mounting Brackets)
Ambient Temperature -40° C to + 55° C
Ambient Humidity 5%RH to 95%RH
Atmospheric Pressure 70 kPa to 106 kPa
Altitude ≤ 4000 m
Power Supply Mode 220 V AC
Working Voltage Range 100 V AC to 240 V AC
Static Power Consumption 14W
Maximum Power Consumption 23W
Maximum input current 1A
Optical Port Specifications
Parameter 10G GPON GPON
Optical module type One-fiber bi-directional One-fiber bi-directional
Port mode Single-mode Single-mode
Connector type SC/PC (UPC) SC/PC (UPC)
Maximum transmission distance (km) 60 20
Center wavelength (nm) Tx: 1270 TX: 1310
Rx: 1577 RX: 1490
TX optical power (dBm) 2 to 7 0.5 to 5
Extinction ratio (dB) 8.2 > 10
Maximum RX sensitivity (dBm) -28 -27
Overload optical power (dBm) -8 -8

Additional information

Brand

Huawei
Lead Time

3-5 days
Ship From

Shenzhen Warehouse
Items MA5821-24GE
Port Configuration 24GE
Control Board H825XPUB
HS22EPGE
Uplink port Provides one small formfactor pluggable (SFP) port to support the following upstream transmission modes:
•10G GPON (asymmetric)
•GPON
Dimensions 442 mm x 220 mm x 43.6 mm (Without the Mounting Brackets)
482 mm x 220 mm x 43.6 mm (With the Mounting Brackets)
Ambient Temperature -40° C to + 55° C
Ambient Humidity 5%RH to 95%RH
Atmospheric Pressure 70 kPa to 106 kPa
Altitude ≤ 4000 m
Power Supply Mode 220 V AC
Working Voltage Range 100 V AC to 240 V AC
Static Power Consumption 14W
Maximum Power Consumption 23W
Maximum input current 1A
Optical Port Specifications
Parameter 10G GPON GPON
Optical module type One-fiber bi-directional One-fiber bi-directional
Port mode Single-mode Single-mode
Connector type SC/PC (UPC) SC/PC (UPC)
Maximum transmission distance (km) 60 20
Center wavelength (nm) Tx: 1270 TX: 1310
Rx: 1577 RX: 1490
TX optical power (dBm) 2 to 7 0.5 to 5
Extinction ratio (dB) 8.2 > 10
Maximum RX sensitivity (dBm) -28 -27
Overload optical power (dBm) -8 -8
