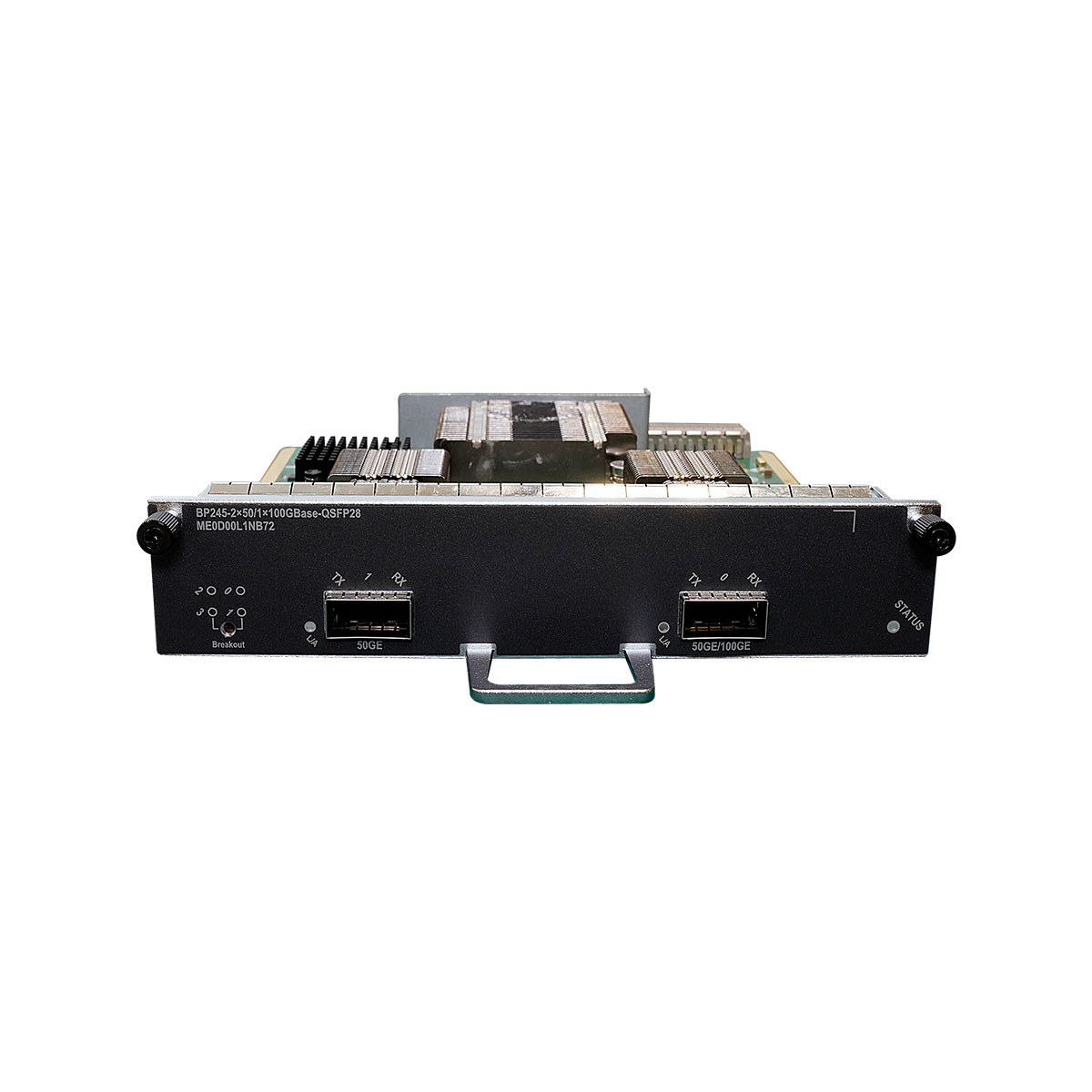

ME60 ME0D00L1NB72 with 2-Port 50GBase/1-Port 100GBase-QSFP28 Flexible Card(BP245)

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

ME0D00L1NB72 Overview

Item Details
Description 2-Port 50GBase/1-Port 100GBase-QSFP28 Flexible Card(BP245)
Part Number 03034MCS
Model ME0D00L1NB72
Card type Flexible Board
Silkscreen BP245-2×50/1×100GBase-QSFP28





Mappings between ME0D00L1NB72 and product models

Chassis Product Model Supported Versions Last Supported Version
ME60-X8 Integrated Chassis Components (Including 4 DC Power) ME0B0BKP0830 V800R021C10SPC600 and later versions V800R023C00SPC500
ME60-X8A Integrated Chassis DC Components(Including 2 Fan Tray) ME0B0BKP0871 V800R021C10SPC600 and later versions –
ME60-X8A Integrated Chassis AC Components(Including 2 Fan Tray) ME0B0BKP0872 V800R021C10SPC600 and later versions –
ME60-X8A Integrated Chassis HVDC Components(Including 2 Fan Tray) ME0B0BKP0873 V800R021C10SPC600 and later versions –
ME60-X8A Integrated Chassis DC Components ME0B0BKP0874 V800R021C10SPC600 and later versions –
ME60-X8A Integrated AC/HVDC Chassis Components ME0B0BKP0875 V800R021C10SPC600 and later versions –
ME60-X16 Integrated Chassis Components (Including 8 DC Power) ME0B0BKP1630 V800R021C10SPC600 and later versions V800R023C00SPC500
ME60-X16A Integrated DC Chassis Components(Including 4 Fan Tray) ME0B0BKP1671 V800R021C10SPC600 and later versions –
ME60-X16A Integrated AC Chassis Components(Including 4 Fan Tray) ME0B0BKP1672 V800R021C10SPC600 and later versions –
ME60-X16A Integrated HVDC Chassis Components(Including 4 Fan Tray) ME0B0BKP1673 V800R021C10SPC600 and later versions –
ME60-X16A Integrated DC Chassis Components ME0B0BKP1674 V800R021C10SPC600 and later versions –
ME60-X16A Integrated AC/HVDC Chassis Components ME0B0BKP1675 V800R021C10SPC600 and later versions –
Item ME0D00L1NB72
Basic function Provides two 50 Gbit/s or one 100 Gbit/s interfaces for line-rate forwarding.
Reliability and availability Hot swappable.
Restrictions and remarks 1. Interface 0 can work in 100GE, 50GE, 40GE, 4x25GE breakout, or 4x10GE breakout mode, and interface 1 can work only in 50GE mode. You can run the port-speed command to switch the working mode to 50GE/100GE, or run the port split command to switch the working mode to 40GE, 4x25GE breakout, or 4x10GE breakout. 2. If interface 0 works in 4x10GE breakout/4x25GE breakout/40GE/100GE mode, interface 1 cannot work in 50GE mode. If interface 0 works in 50GE mode, interface 1 can work in 50GE mode. 3. 10GE WAN interfaces support only the master clock mode. The default transmission rate of interfaces on the subcard is 50 Gbit/s. If the interface transmission rate of the optical module in use does not match the default rate (for example, a 40G optical module is used), run the port split command to enable the interface breakout function. 4. When the board works with the 02312NCX optical module, the long-term operating temperature of the optical module is limited to 0°C to 45°C.
Breakout supported Yes.   To enable the breakout function on a port, run the port split command.
Interface rate auto-sensing supported No
FlexE supported No
Dimensions without packaging (H x W x D) [mm(in.)] 37.2 mm x 178.7 mm x 193.3 mm (1.46 in. x 7.04 in. x 7.61 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 95 mm x 290 mm x 370 mm (3.74 in. x 11.42 in. x 14.57 in.)
Weight without packaging [kg(lb)] 1.0 kg (2.2 lb)
Weight with packaging [kg(lb)] 1.4 kg (3.09 lb)
Typical power consumption [W] 28.6 W
Typical heat dissipation [BTU/hour] 92.93 BTU/hour
Long-term operating temperature [°C(°F)] 0°C to 45°C (32°F to 113°F)
Short-term operating temperature [°C(°F)] –5°C to +50°C (23°F to 122°F)
