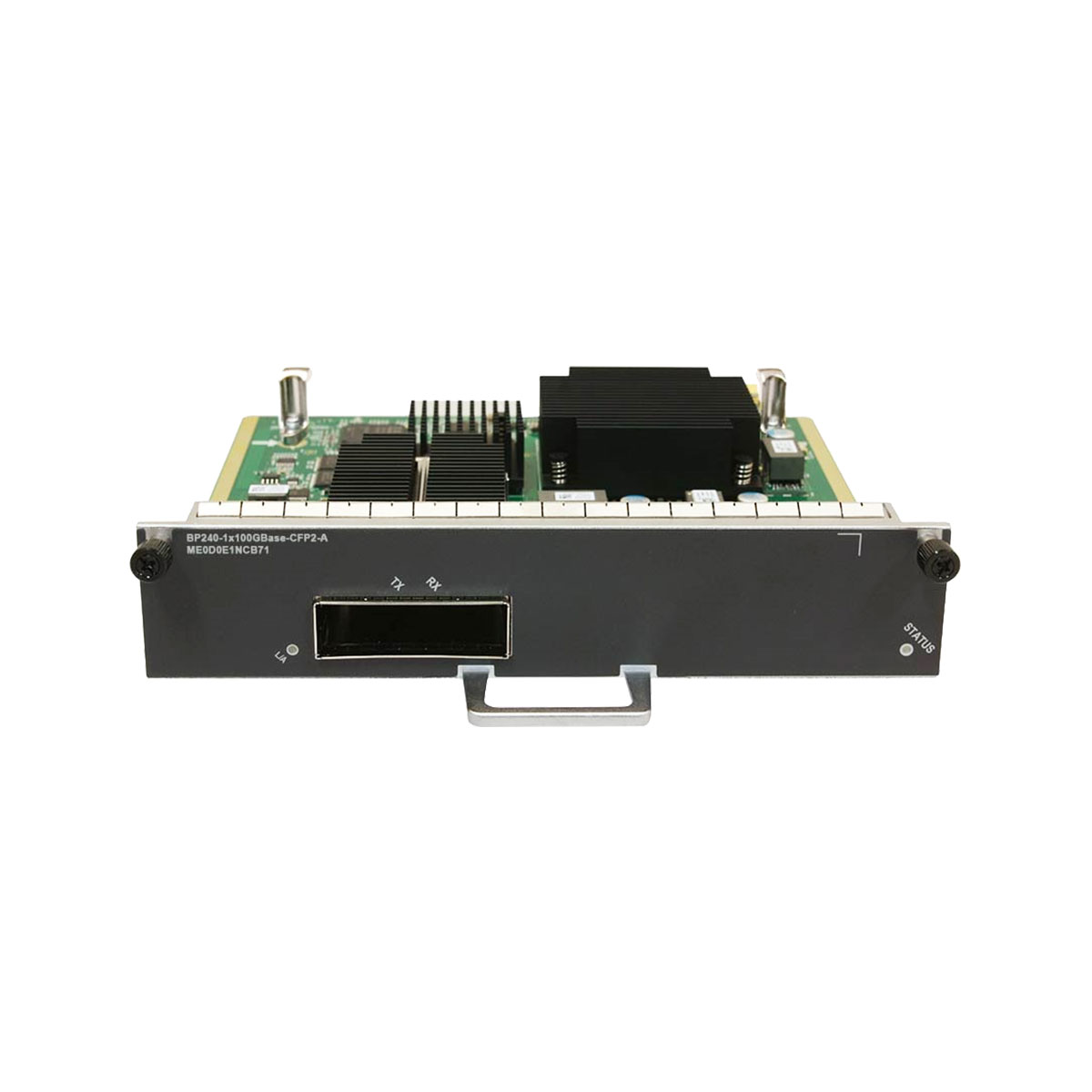

ME0D0E1NCB71
1-Port 100GBase-CFP2 Flexible Card(BP240)
- Description
- DATASHEET
- Packing info
- Reviews (0)
Description
ME0D0E1NCB71 Overview
1-Port 100GBase-CFP2 Flexible Card(BP240)
Mapping products and versions
Product |
Motherboard |
Minimum Version Requirement for Flexible Card |
---|---|---|
ME60–X8 |
Flexible Card Broadband Service Unit(BSUF-240,2 sub-slots) Flexible Card Multi Service Unit(MSUF-240,2 sub-slots) |
V800R009C10 |
ME60–X16 |
Flexible Card Broadband Service Unit(BSUF-240,2 sub-slots) Flexible Card Multi Service Unit(MSUF-240,2 sub-slots) |
V800R009C10 |
ME60–X8A |
Flexible Card Broadband Service Unit(BSUF-240,2 sub-slots) Flexible Card Multi Service Unit(MSUF-240,2 sub-slots) |
V800R009C10 |
ME60–X16A |
Flexible Card Broadband Service Unit(BSUF-240,2 sub-slots) Flexible Card Multi Service Unit(MSUF-240,2 sub-slots) |
V800R009C10 |
ME0D0E1NCB71 Datasheet
Item | ME0D0E1NCB71 |
Line-Rate capability | Provides one 100GE interface for line-rate transmitting and receiving. |
Reliability and availability | Hot swappable. |
Whether breakout is supported | No |
Restrictions and remarks | The interface cannot go up if its FEC does not match its peer’s. |
Optical type supported |
100Gbps CFP optical module |
Working mode | Full-duplex |
Compliant standard | IEEE 802.3 |
Frame format | Ethernet_II, Ethernet_SAP and Ethernet_SNAP |
Dimensions (H x W x D) | 37.2 mm x 178.7 mm x 193.3 mm (1.46 in. x 7.04 in. x 7.61 in.) |
Typical power consumption | 40.0 W |
Typical heat dissipation | 129.7 BTU/hour |
Weight | 0.8 kg (1.76 lb) |
Ambient temperature | Long terms: 0 °C to 45 °C (32°F to 113°F) ; Short terms: -5 °C to 55 °C (23°F to 131°F) |
Additional information
Weight | 1.3000 kg |
---|---|
Dimensions | 19.3300 × 17.8700 × 3.7200 cm |
