ME0D0EFGFE7E

0 Reviews Write a review
PN03031XQM
AvailabilityIn Stock
ME60 BRAS BSUF-51/MSUF-51
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

Original price was: $0.00.Current price is: $0.00.

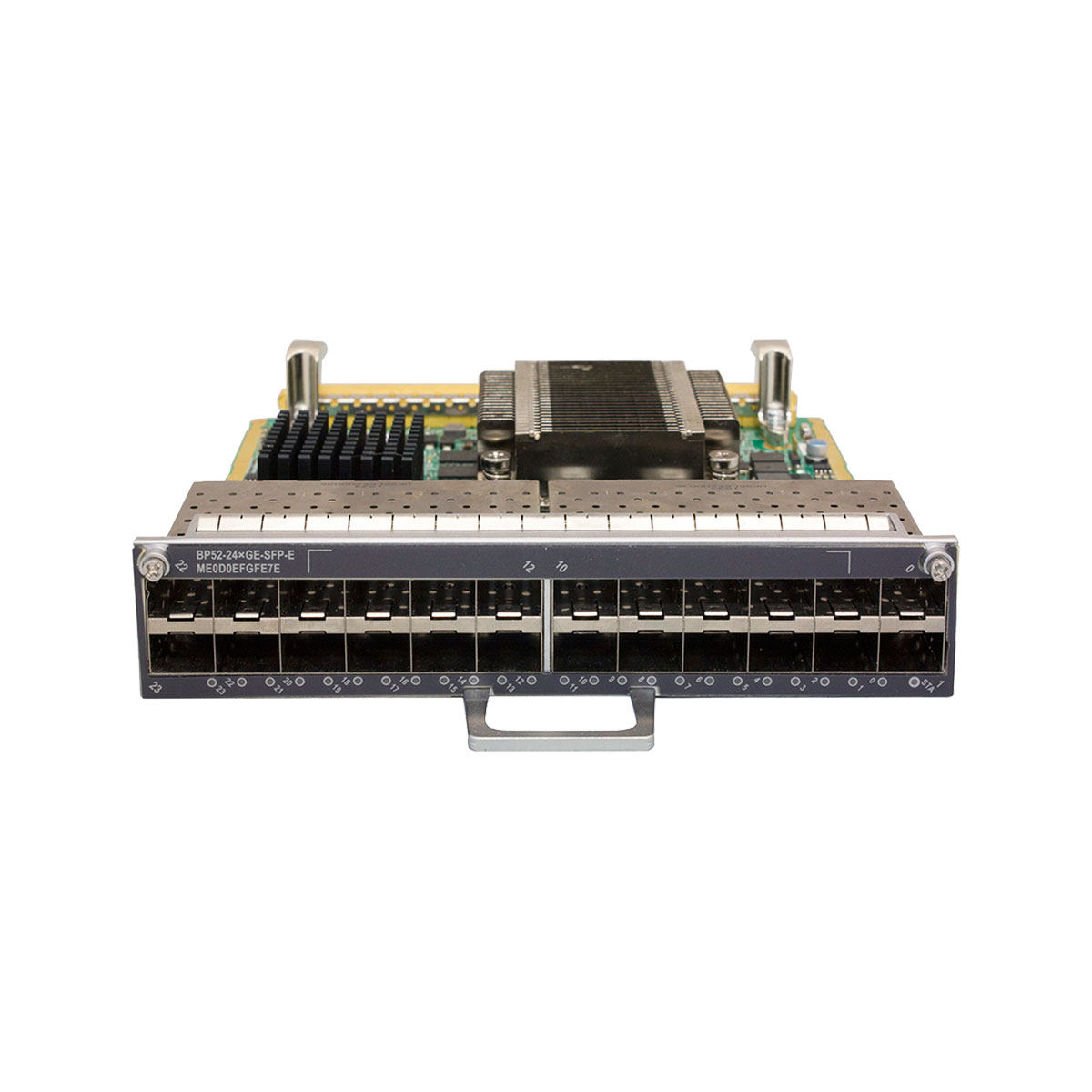

24-Port 1000Base-X-SFP Flexible Card E(BP52-E)

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

ME0D0EFGFE7E Overview

24-Port 1000Base-X-SFP Flexible Card E(BP52-E)

Mapping products and versions

Product

Motherboard

Minimum Version Requirement for Flexible Card

ME60–X8

Flexible Card Broadband Service Unit(BSUF-51,2 sub-slots)

Flexible Card Multi Service Unit(MSUF-51,2 sub-slots)

V800R009C00

ME60–X16

Flexible Card Broadband Service Unit(BSUF-51,2 sub-slots)

Flexible Card Multi Service Unit(MSUF-51,2 sub-slots)

V800R009C00

ME60–X8A

Flexible Card Broadband Service Unit(BSUF-51,2 sub-slots)

Flexible Card Multi Service Unit(MSUF-51,2 sub-slots)

V800R009C00

ME60–X16A

Flexible Card Broadband Service Unit(BSUF-51,2 sub-slots)

Flexible Card Multi Service Unit(MSUF-51,2 sub-slots)

V800R009C00

ME60–X8

Flexible Card Broadband Service Unit(BSUF-100,2 sub-slots)

Flexible Card Multi Service Unit(MSUF-100,2 sub-slots)

V800R009C00

ME60–X16

Flexible Card Broadband Service Unit(BSUF-100,2 sub-slots)

Flexible Card Multi Service Unit(MSUF-100,2 sub-slots)

V800R009C00

ME60–X8A

Flexible Card Broadband Service Unit(BSUF-100,2 sub-slots)

Flexible Card Multi Service Unit(MSUF-100,2 sub-slots)

V800R009C00

ME60–X16A

Flexible Card Broadband Service Unit(BSUF-100,2 sub-slots)

Flexible Card Multi Service Unit(MSUF-100,2 sub-slots)

V800R009C00

ME60–X8

Flexible Card Broadband Service Unit(BSUF-240,2 sub-slots)

Flexible Card Multi Service Unit(MSUF-240,2 sub-slots)

V800R011C00

ME60–X16

Flexible Card Broadband Service Unit(BSUF-240,2 sub-slots)

Flexible Card Multi Service Unit(MSUF-240,2 sub-slots)

V800R011C00

ME60–X8A

Flexible Card Broadband Service Unit(BSUF-240,2 sub-slots)

Flexible Card Multi Service Unit(MSUF-240,2 sub-slots)

V800R011C00

ME60–X16A

Flexible Card Broadband Service Unit(BSUF-240,2 sub-slots)

Flexible Card Multi Service Unit(MSUF-240,2 sub-slots)

V800R011C00

ME60–X8A

Flexible Card Multi Service Unit(BSUF-241,2 sub-slots)

V800R011C00

ME60–X16A

Flexible Card Multi Service Unit(BSUF-241,2 sub-slots)

V800R011C00
ME0D0EFGFE7E Datasheet
Item ME0D0EFGFE7E
Line-Rate capability Provides twenty-four GE interfaces to support line-rate transmitting and receiving.
Reliability and availability Hot swappable.
Whether breakout is supported No
Restrictions and remarks The FPIC supports GE optical interfaces but not 100M optical interfaces if a GE optical module is used. The FPIC does not support synchronous Ethernet. The FPIC is not supported on the BSUF-51 or BSUF-51-B.
Interface Rate Auto-Negotiation Supported GE/10GE autonegotiation supported
Optical type supported

1Gbps electrical module

1.25Gbps eSFP optical module

1.25Gbps eSFP CWDM optical module

1.25Gbps eSFP BIDI optical module

125M~2.67Gbps eSFP DWDM optical module
Working mode Full-duplex
Compliant standard IEEE 802.3
Frame format Ethernet_II, Ethernet_SAP and Ethernet_SNAP
Dimensions (H x W x D) 37.2 mm x 178.7 mm x 193.3 mm (1.46 in. x 7.04 in. x 7.61 in.)
Typical power consumption 77.1 W
Typical heat dissipation 250.2 BTU/hour
Weight 1.2 kg (2.65 lb)
Ambient temperature Long terms: 0 °C to 45 °C (32°F to 113°F) ; Short terms: -5 °C to 55 °C (23°F to 131°F)

Additional information

Weight 1.5000 kg
Dimensions 4.0000 × 18.0000 × 20.0000 cm
ME60 BRAS

ME0D0EFGFE7E Datasheet
Item ME0D0EFGFE7E
Line-Rate capability Provides twenty-four GE interfaces to support line-rate transmitting and receiving.
Reliability and availability Hot swappable.
Whether breakout is supported No
Restrictions and remarks The FPIC supports GE optical interfaces but not 100M optical interfaces if a GE optical module is used. The FPIC does not support synchronous Ethernet. The FPIC is not supported on the BSUF-51 or BSUF-51-B.
Interface Rate Auto-Negotiation Supported GE/10GE autonegotiation supported
Optical type supported

1Gbps electrical module

1.25Gbps eSFP optical module

1.25Gbps eSFP CWDM optical module

1.25Gbps eSFP BIDI optical module

125M~2.67Gbps eSFP DWDM optical module
Working mode Full-duplex
Compliant standard IEEE 802.3
Frame format Ethernet_II, Ethernet_SAP and Ethernet_SNAP
Dimensions (H x W x D) 37.2 mm x 178.7 mm x 193.3 mm (1.46 in. x 7.04 in. x 7.61 in.)
Typical power consumption 77.1 W
Typical heat dissipation 250.2 BTU/hour
Weight 1.2 kg (2.65 lb)
Ambient temperature Long terms: 0 °C to 45 °C (32°F to 113°F) ; Short terms: -5 °C to 55 °C (23°F to 131°F)
