24-Port 10GBase LAN/WAN-SFP+ Broadband Service Unit Integrated (BSUI-242)

Description

ME0D0EFXFB70 Overview

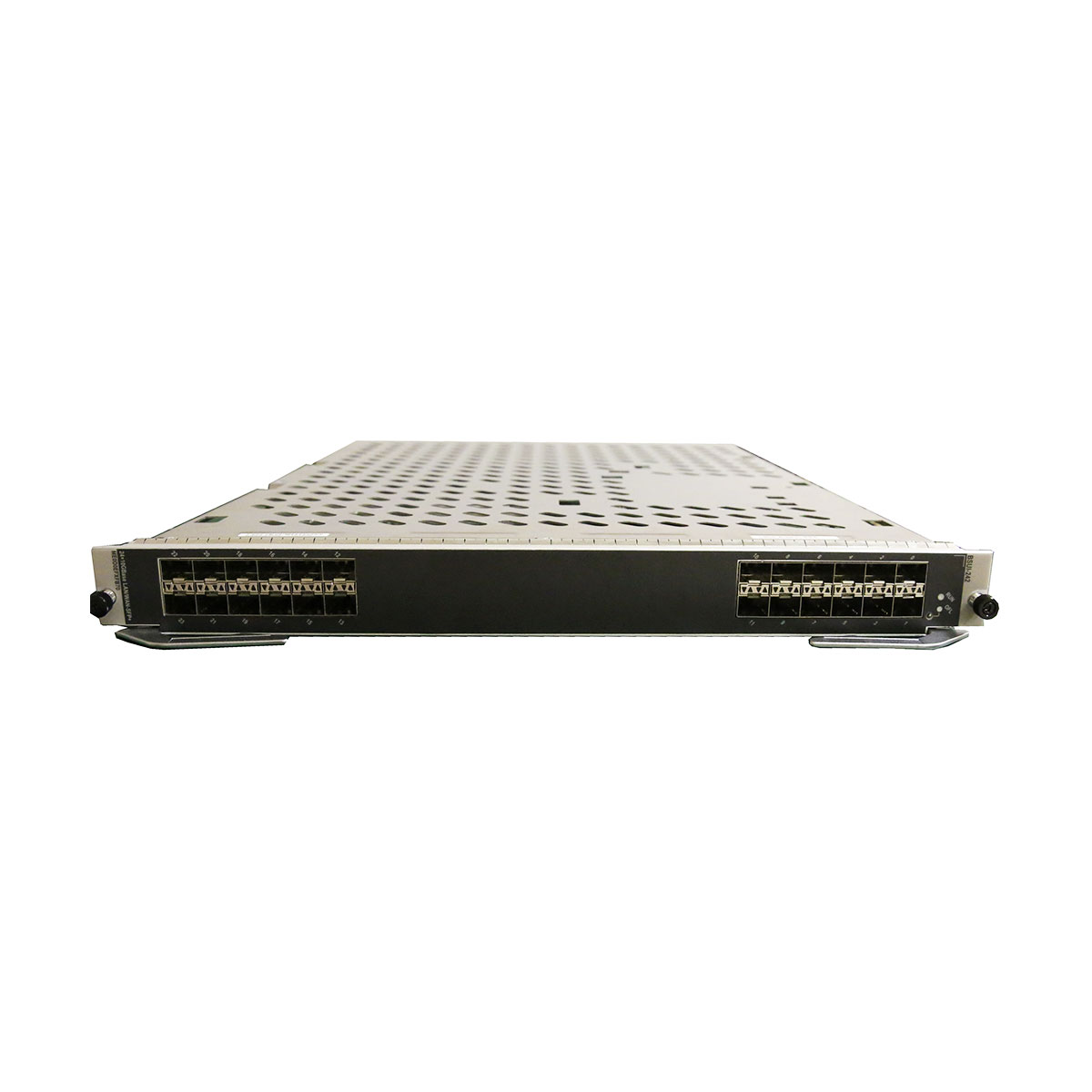

24-Port 10GBase LAN/WAN-SFP+ Broadband Service Unit Integrated (BSUI-242)

Mapping products and versions
Product Minimum Version Requirement
ME60X3 V800R009C00
ME60X8 V800R009C00
ME60X16 V800R009C00
ME60X8A V800R009C00
ME60X16A V800R009C00
ME0D0LAXXH71 Datasheet
Item ME0D0LAXXH71
Line-Rate capability Supports 240G line-rate forwarding.
Reliability and availability Hot swappable.
Restrictions and remarks

1. All 10GE WAN interfaces support the master clock mode but not the slave clock mode.

2. Every four interfaces (interfaces 0–3, 4–7, 8–11, 12–15, 16–19, and 20–23) are configured as a group. There are six groups in total. Interfaces of the same group must all work in the same mode, either 10GE LAN or 10GE WAN mode. Mixed use of 10GE LAN and 10GE WAN modes is not allowed in the same group.

Interface Rate Auto-Negotiation Supported GE/10GE autonegotiation supported
Optical type supported

1Gbps electrical module

1.25Gbps eSFP optical module

1.25Gbps eSFP CWDM optical module

1.25Gbps eSFP BIDI optical module

125M~2.67Gbps eSFP DWDM optical module

10Gbps SFP+ optical module

10Gbps SFP+ CWDM optical module

10Gbps SFP+ BIDI optical module

10Gbps SFP+ DWDM optical module

1.25/9.953/10.3125Gbps SFP+ optical module

Working mode Full-duplex
Compliant standard IEEE 802.3
Frame format Ethernet_II, Ethernet_SAP and Ethernet_SNAP
Dimensions (H x W x D) 40.1 mm x 399.2 mm x 535.6 mm (1.58 in. x 15.72 in. x 21.09 in.)
Typical power consumption 321.0 W
Typical heat dissipation 1041.5 BTU/hour
Weight 8.9 kg (19.62 lb)
Ambient temperature Long terms: 0 °C to 45 °C (32°F to 113°F) ; Short terms: -5 °C to 55 °C (23°F to 131°F)

Additional information

Weight 8.9000 kg
Dimensions 53.5600 × 39.9200 × 4.0100 cm
