ME0D0L2NCB70

0 Reviews Write a review
PN3057646
AvailabilityIn Stock
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

Original price was: $0.00.Current price is: $0.00.

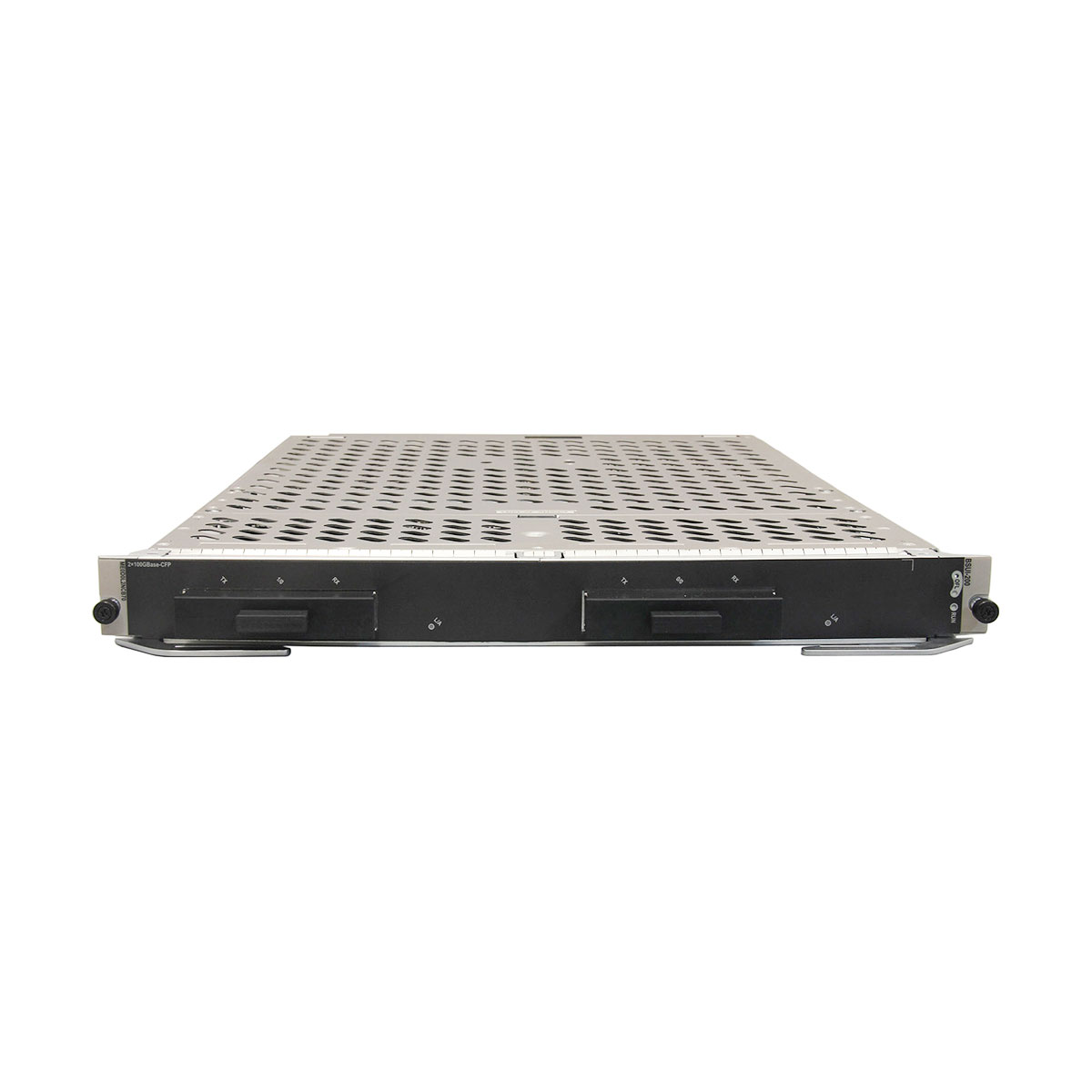

2-Port 100GBase-CFP Broadband Service Unit Integrated(BSUI-200)

Description

ME0D0L2NCB70 Overview

2-Port 100GBase-CFP Broadband Service Unit Integrated(BSUI-200)

Mapping products and versions
Product Minimum Version Requirement
ME60X3 V800R009C00
ME60X8 V800R009C00
ME60X16 V800R009C00
ME60X8A V800R009C00
ME60X16A V800R009C00
ME0D0L2NCB70 Datasheet
Item ME0D0L2NCB70
Line-Rate capability Supports 240G line-rate forwarding. It provides two 100GE interfaces.
Whether breakout is supported No
Reliability and availability Hot swappable.
Optical type supported

100Gbps CFP optical module

Working mode Full-duplex
Compliant standard IEEE 802.3
Frame format Ethernet_II, Ethernet_SAP and Ethernet_SNAP
Dimensions (H x W x D) 40.1 mm x 399.2 mm x 535.6 mm (1.58 in. x 15.72 in. x 21.09 in.)
Typical power consumption 346.0 W
Typical heat dissipation 1122.6 BTU/hour
Weight 10.5 kg (23.15 lb)
Ambient temperature Long terms: 0 °C to 45 °C (32°F to 113°F) ; Short terms: -5 °C to 55 °C (23°F to 131°F)

Additional information

Weight 10.5000 kg
Dimensions 53.5600 × 39.9200 × 4.0100 cm
ME60 BRAS

ME0D0L2NCB70 Datasheet
Item ME0D0L2NCB70
Line-Rate capability Supports 240G line-rate forwarding. It provides two 100GE interfaces.
Whether breakout is supported No
Reliability and availability Hot swappable.
Optical type supported

100Gbps CFP optical module

Working mode Full-duplex
Compliant standard IEEE 802.3
Frame format Ethernet_II, Ethernet_SAP and Ethernet_SNAP
Dimensions (H x W x D) 40.1 mm x 399.2 mm x 535.6 mm (1.58 in. x 15.72 in. x 21.09 in.)
Typical power consumption 346.0 W
Typical heat dissipation 1122.6 BTU/hour
Weight 10.5 kg (23.15 lb)
Ambient temperature Long terms: 0 °C to 45 °C (32°F to 113°F) ; Short terms: -5 °C to 55 °C (23°F to 131°F)
