ME0D0L5XXE8E

0 Reviews Write a review
PN03031XQA
AvailabilityIn Stock
ME60 BRAS BSUF-100/MSUF-100
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

Original price was: $0.00.Current price is: $0.00.

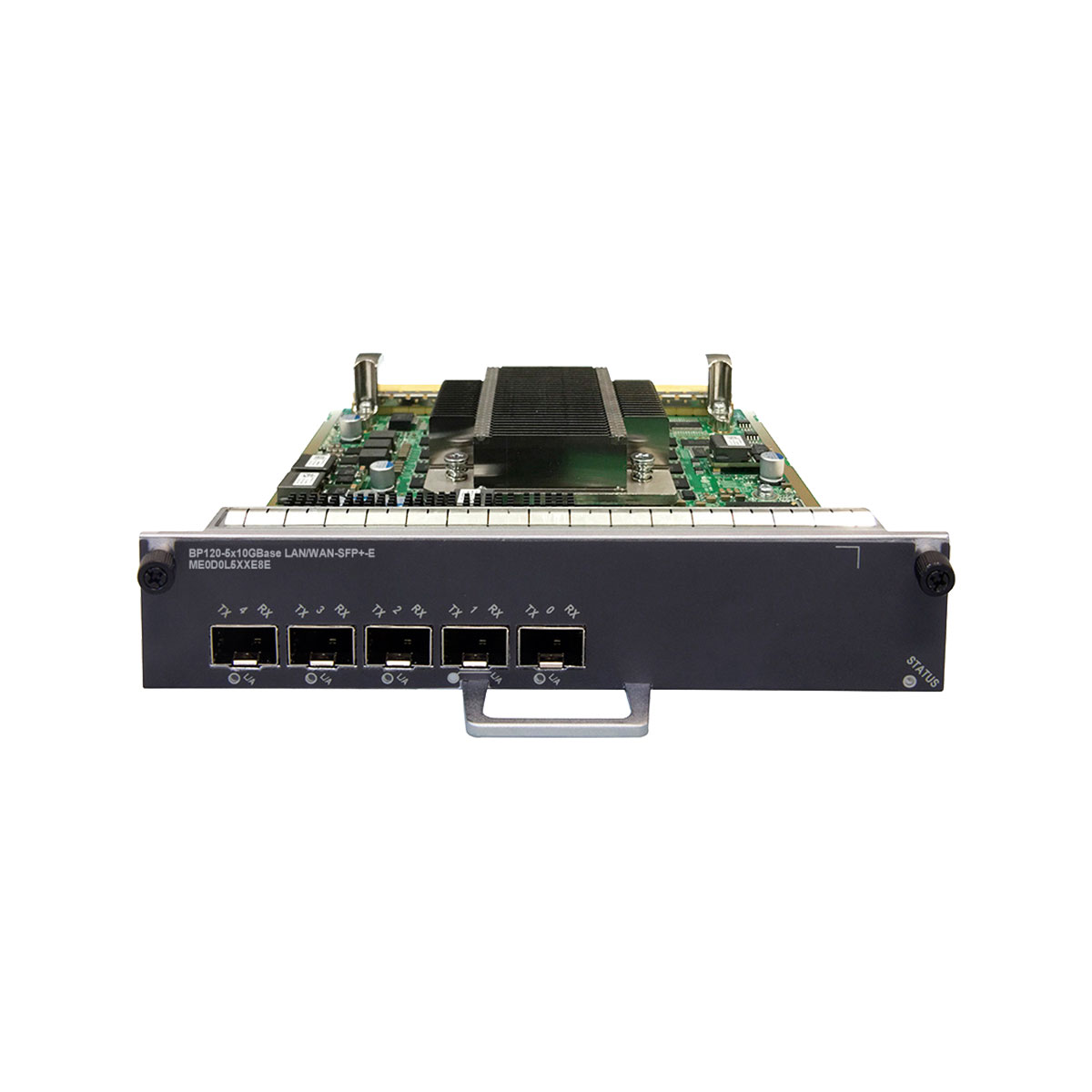

5-Port 10GBase LAN/WAN-SFP+ Flexible Card E(BP120-E)

Description

ME0D0L5XXE8E Overview

5-Port 10GBase LAN/WAN-SFP+ Flexible Card E(BP120-E)

Mapping products and versions
Product Motherboard Minimum Version Requirement for Flexible Card
ME60X3

Flexible Card Broadband Service Unit(BSUF-100,2 sub-slots)

Flexible Card Multi Service Unit(MSUF-100,2 sub-slots)

V800R008C10
ME60X8

Flexible Card Broadband Service Unit(BSUF-100,2 sub-slots)

Flexible Card Multi Service Unit(MSUF-100,2 sub-slots)

V800R008C10
ME60X16

Flexible Card Broadband Service Unit(BSUF-100,2 sub-slots)

Flexible Card Multi Service Unit(MSUF-100,2 sub-slots)

V800R008C10
ME60X8A

Flexible Card Broadband Service Unit(BSUF-100,2 sub-slots)

Flexible Card Multi Service Unit(MSUF-100,2 sub-slots)

V800R008C10
ME60X16A

Flexible Card Broadband Service Unit(BSUF-100,2 sub-slots)

Flexible Card Multi Service Unit(MSUF-100,2 sub-slots)

V800R008C10
ME0D0L5XXE8E Datasheet
Item ME0D0L5XXE8E
Line-Rate capability Provides five 10GE interfaces for line-rate transmitting and receiving.
Whether breakout is supported No
Reliability and availability Hot swappable.
Restrictions and remarks The 10G interfaces 0 to 3 support the LAN and WAN modes. The 10G interfaces working in WAN mode can function only as master interfaces.
Optical type supported

10Gbps SFP+ optical module

10Gbps SFP+ CWDM optical module

10Gbps SFP+ BIDI optical module

10Gbps SFP+ DWDM optical module

Working mode Full-duplex
Compliant standard IEEE 802.3
Frame format Ethernet_II, Ethernet_SAP and Ethernet_SNAP
Dimensions (H x W x D) 37.2 mm x 178.7 mm x 193.3 mm (1.46 in. x 7.04 in. x 7.61 in.)
Typical power consumption 65.0 W
Typical heat dissipation 210.9 BTU/hour
Weight 1.0 kg (2.21 lb)
Ambient temperature Long terms: 0 °C to 45 °C (32°F to 113°F) ; Short terms: -5 °C to 55 °C (23°F to 131°F)

Additional information

Weight 1.0000 kg
Dimensions 19.3300 × 17.8700 × 3.7200 cm
ME60 BRAS

ME0D0L5XXE8E Datasheet
Item ME0D0L5XXE8E
Line-Rate capability Provides five 10GE interfaces for line-rate transmitting and receiving.
Whether breakout is supported No
Reliability and availability Hot swappable.
Restrictions and remarks The 10G interfaces 0 to 3 support the LAN and WAN modes. The 10G interfaces working in WAN mode can function only as master interfaces.
Optical type supported

10Gbps SFP+ optical module

10Gbps SFP+ CWDM optical module

10Gbps SFP+ BIDI optical module

10Gbps SFP+ DWDM optical module

Working mode Full-duplex
Compliant standard IEEE 802.3
Frame format Ethernet_II, Ethernet_SAP and Ethernet_SNAP
Dimensions (H x W x D) 37.2 mm x 178.7 mm x 193.3 mm (1.46 in. x 7.04 in. x 7.61 in.)
Typical power consumption 65.0 W
Typical heat dissipation 210.9 BTU/hour
Weight 1.0 kg (2.21 lb)
Ambient temperature Long terms: 0 °C to 45 °C (32°F to 113°F) ; Short terms: -5 °C to 55 °C (23°F to 131°F)
