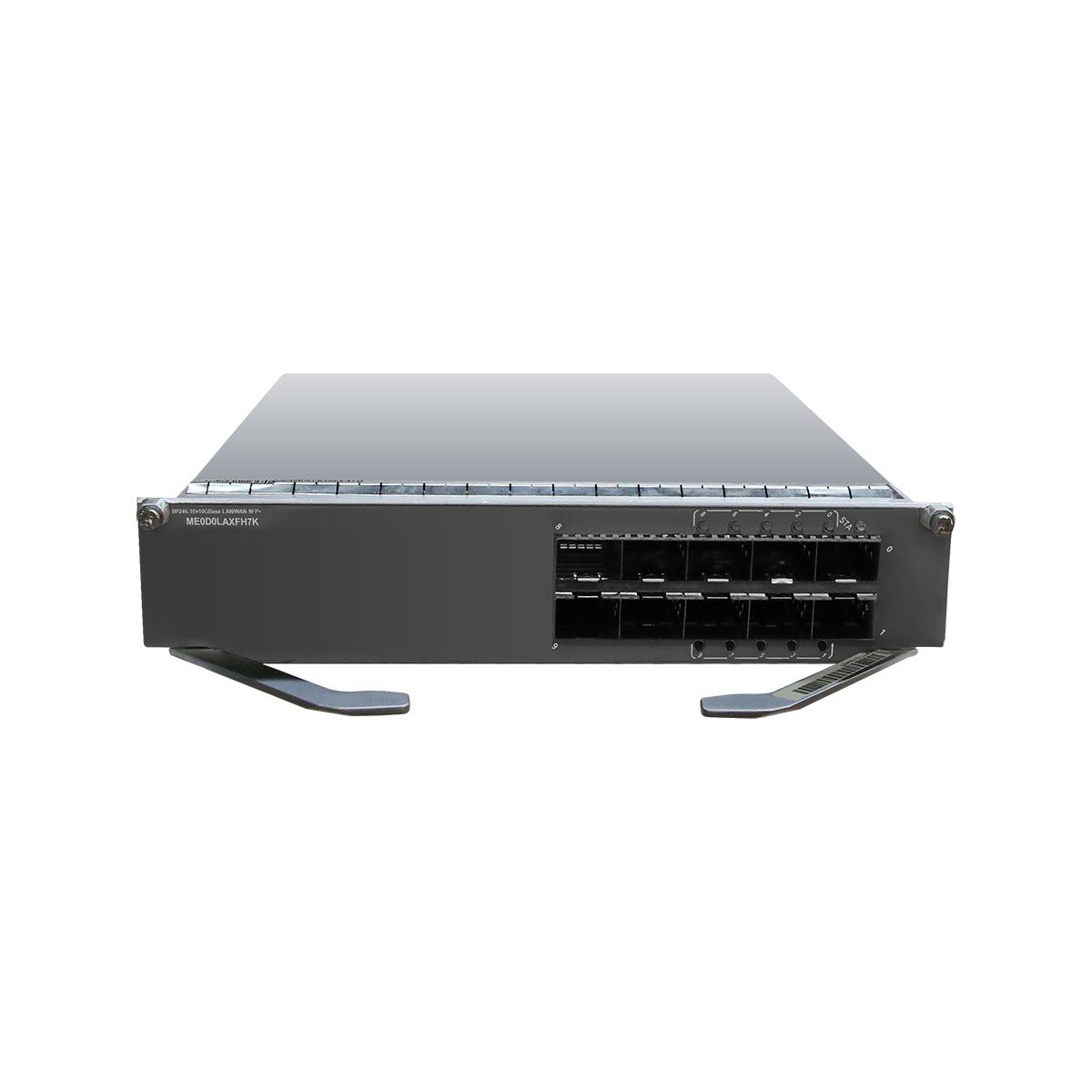

ME60 ME0D0LAXFH7K with 10-Port 10GBase LAN/WAN-SFP+ Flexible Card(BP246-E)

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

ME0D0LAXFH7K Overview

Item Details
Description 10-Port 10GBase LAN/WAN-SFP+ Flexible Card(BP246-E)
Part Number 03035KEY
Model ME0D0LAXFH7K
Card type Flexible Board
Silkscreen BP246-10×10GBase LAN/WAN-SFP+





Mappings between ME0D0LAXFH7K and product models

Chassis Product Model Supported Versions Limitations
ME60-X8A Integrated Chassis DC Components(Including 2 Fan Tray) ME0B0BKP0871 V800R024C00SPC500 and later versions –
ME60-X8A Integrated Chassis AC Components(Including 2 Fan Tray) ME0B0BKP0872 V800R024C00SPC500 and later versions –
ME60-X8A Integrated Chassis HVDC Components(Including 2 Fan Tray) ME0B0BKP0873 V800R024C00SPC500 and later versions –
ME60-X8A Integrated Chassis DC Components ME0B0BKP0874 V800R024C00SPC500 and later versions –
ME60-X8A Integrated AC/HVDC Chassis Components ME0B0BKP0875 V800R024C00SPC500 and later versions –
ME60-X16A Integrated DC Chassis Components(Including 4 Fan Tray) ME0B0BKP1671 V800R024C00SPC500 and later versions –
ME60-X16A Integrated AC Chassis Components(Including 4 Fan Tray) ME0B0BKP1672 V800R024C00SPC500 and later versions –
ME60-X16A Integrated HVDC Chassis Components(Including 4 Fan Tray) ME0B0BKP1673 V800R024C00SPC500 and later versions –
ME60-X16A Integrated DC Chassis Components ME0B0BKP1674 V800R024C00SPC500 and later versions –
ME60-X16A Integrated AC/HVDC Chassis Components ME0B0BKP1675 V800R024C00SPC500 and later versions –
Item ME0D0LAXFH7K
Basic function Provides ten GE/10GE auto-sensing ports for line-rate forwarding.
Reliability and availability Hot swappable
Restrictions and remarks 1. Each port group contains four ports (2–5 or 6–9) and can work in either 10GE or GE mode. A port group works in 10GE mode by default and can automatically switch to the GE mode. Each port group can switch between 10GE LAN and 10GE WAN by group. Mixed use of 10GE LAN and 10GE WAN in one group is not allowed. 10GE WAN supports only the master mode. 2. When the board works with 02311GSA optical modules, the long-term operating temperature range of these optical modules is 0°C to 45°C (32°F to 113°F). 3. When an electrical module is used, the network cable of the electrical module conflicts with the ejector lever of the subcard. It is recommended that the electrical module be used only on even-numbered ports (such as 0, 2, 4, 6, and 8).
Breakout supported No
Interface rate auto-sensing supported Supports GE/10GE auto-sensing.
FlexE supported No
Dimensions without packaging (H x W x D) [mm(in.)] 37.2 mm x 178.7 mm x 230.7 mm (1.46 in. x 7.04 in. x 9.08 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 135 mm x 288 mm x 385 mm (5.31 in. x 11.34 in. x 15.16 in.)
Weight without packaging [kg(lb)] 1.1 kg (2.43 lb)
Weight with packaging [kg(lb)] 1.9 kg (4.19 lb)
Typical power consumption [W] 28.4 W
Typical heat dissipation [BTU/hour] 96.9 BTU/hour
Long-term operating temperature [°C(°F)] 0°C to 45°C (32°F to 113°F)
Short-term operating temperature [°C(°F)] –5°C to +55°C (23°F to 131°F)
