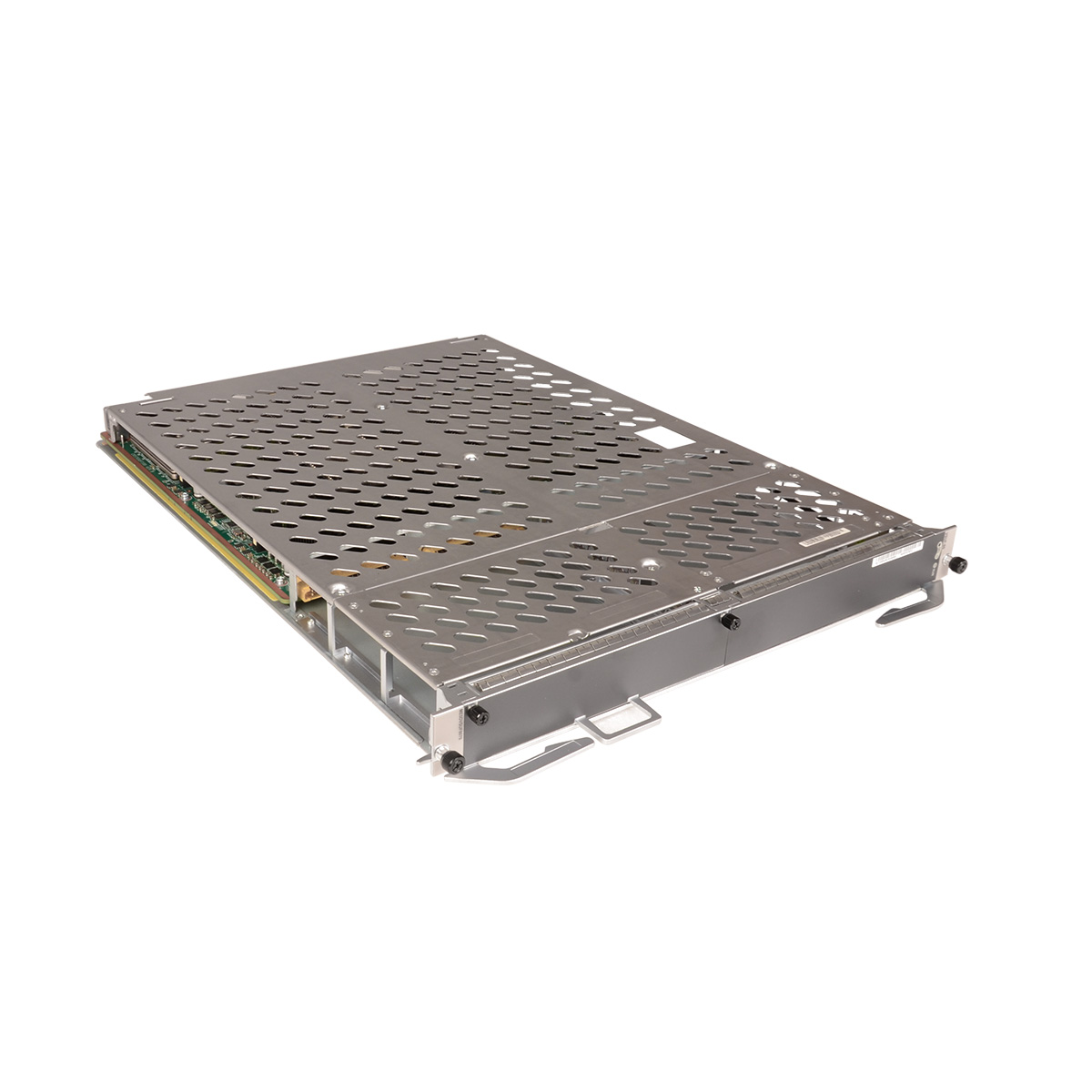

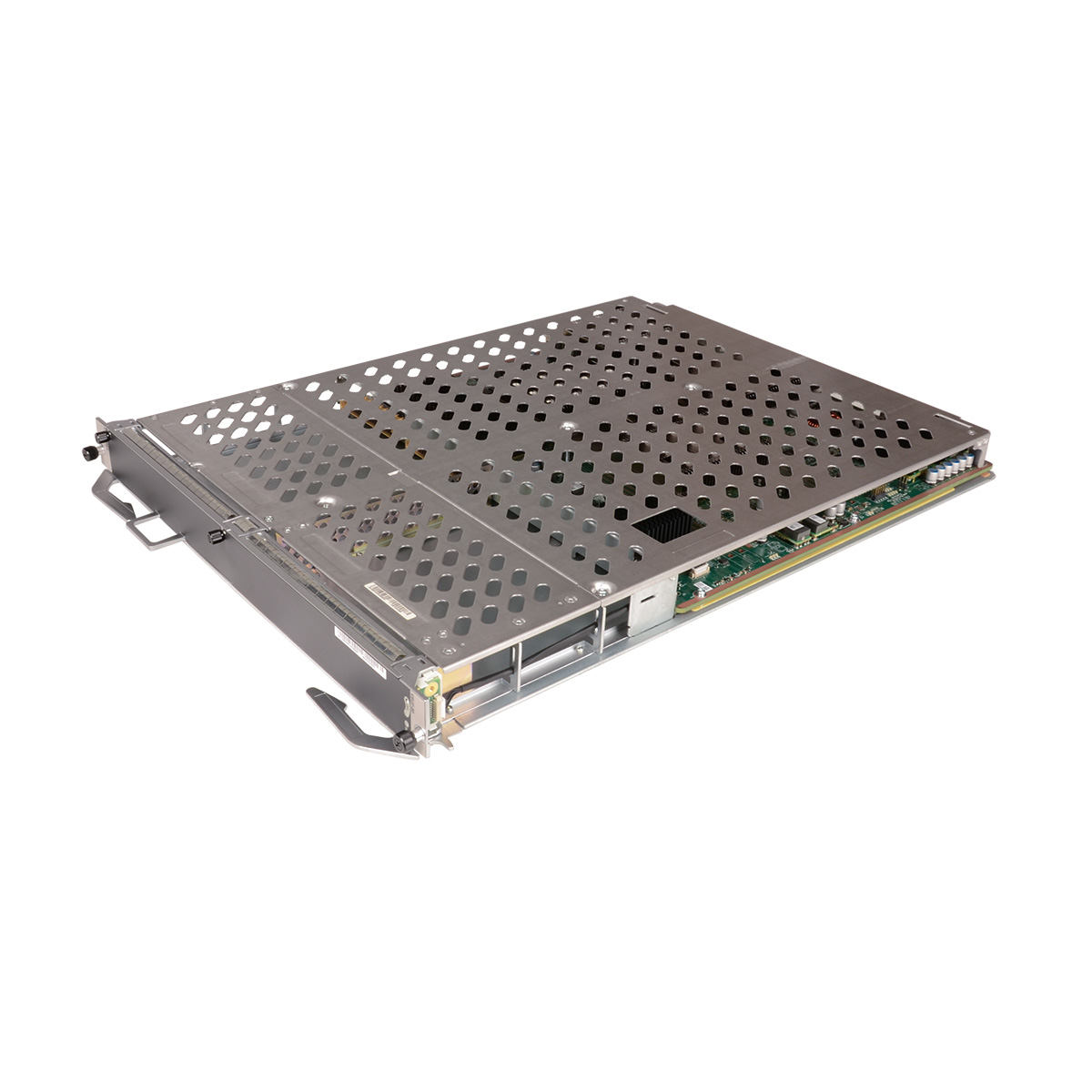

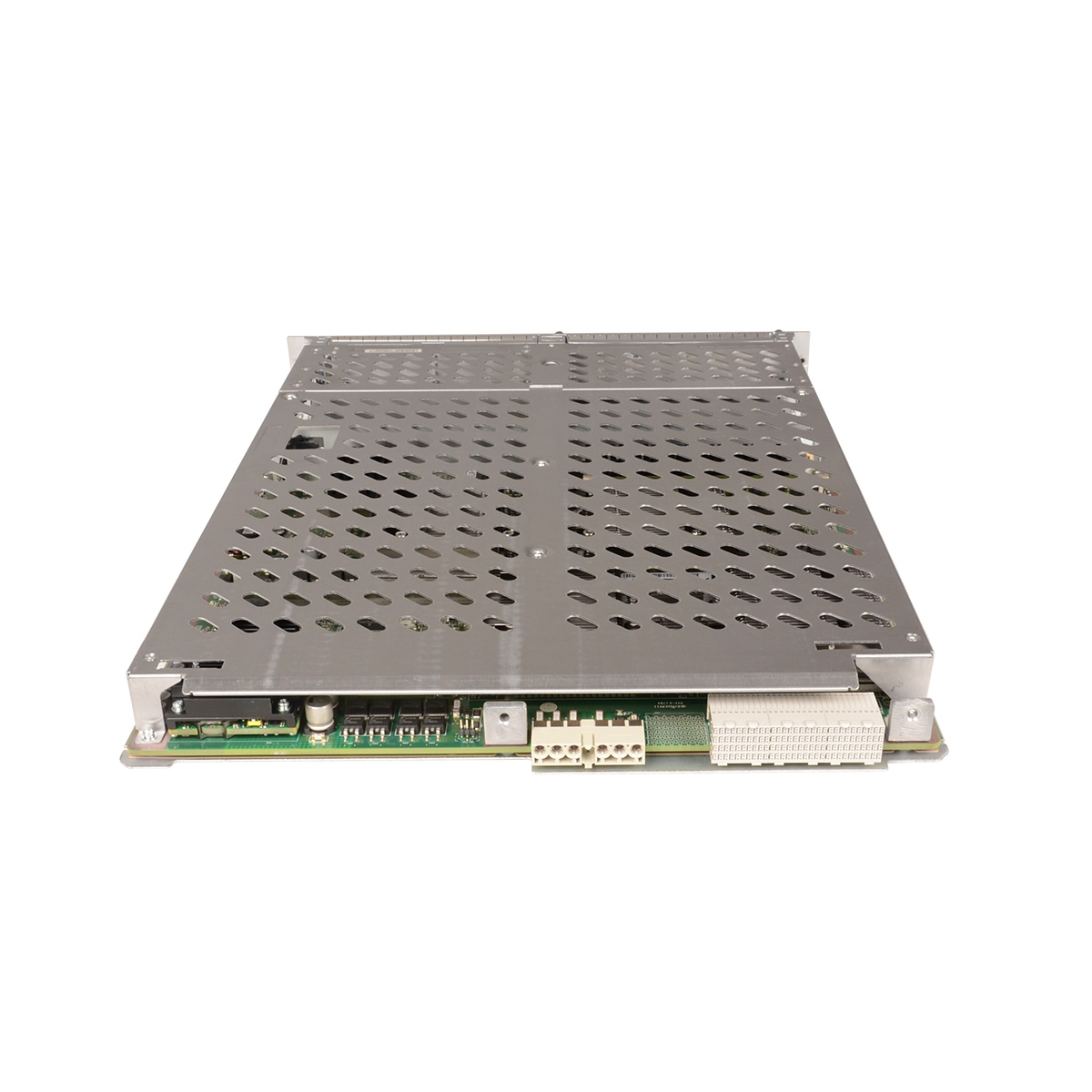

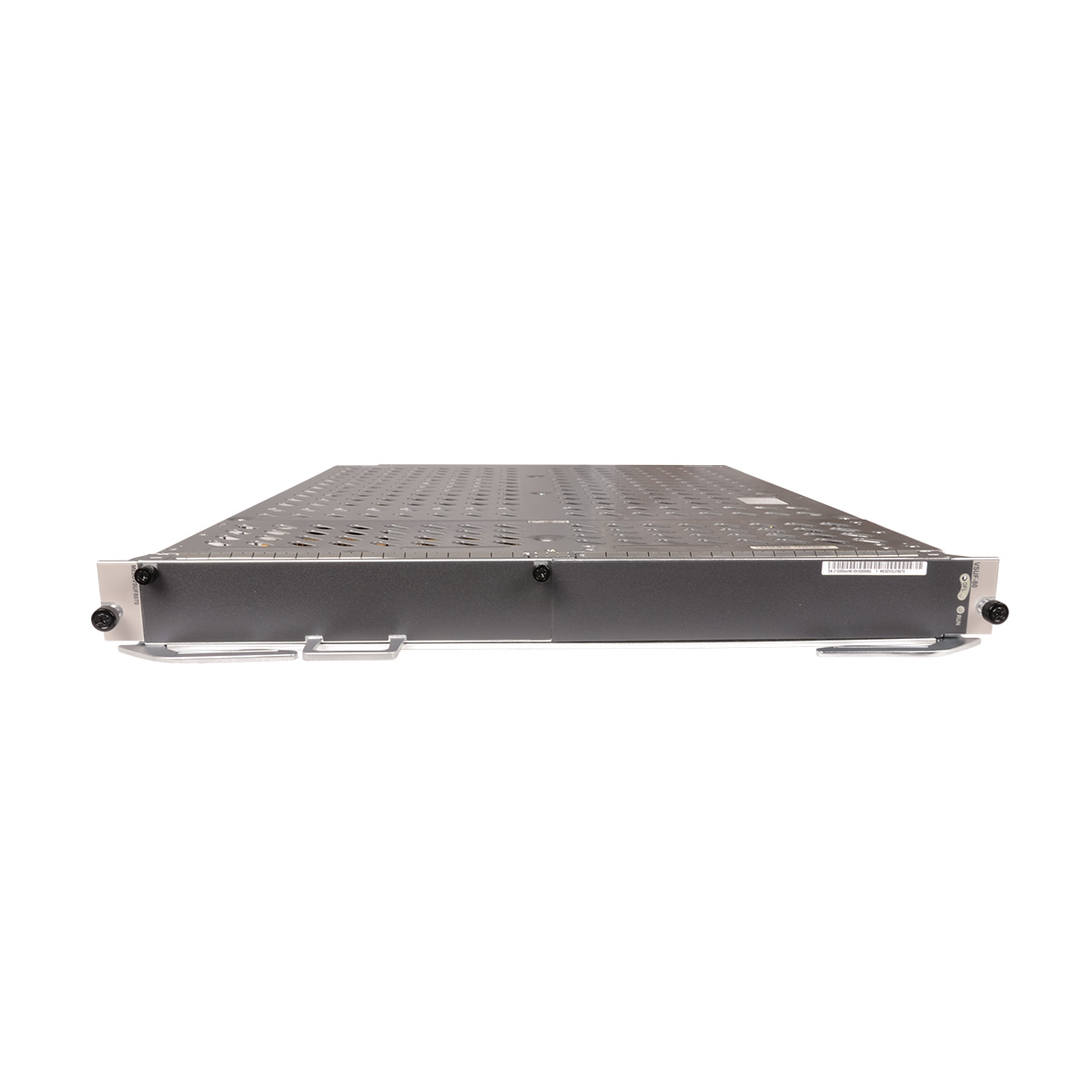

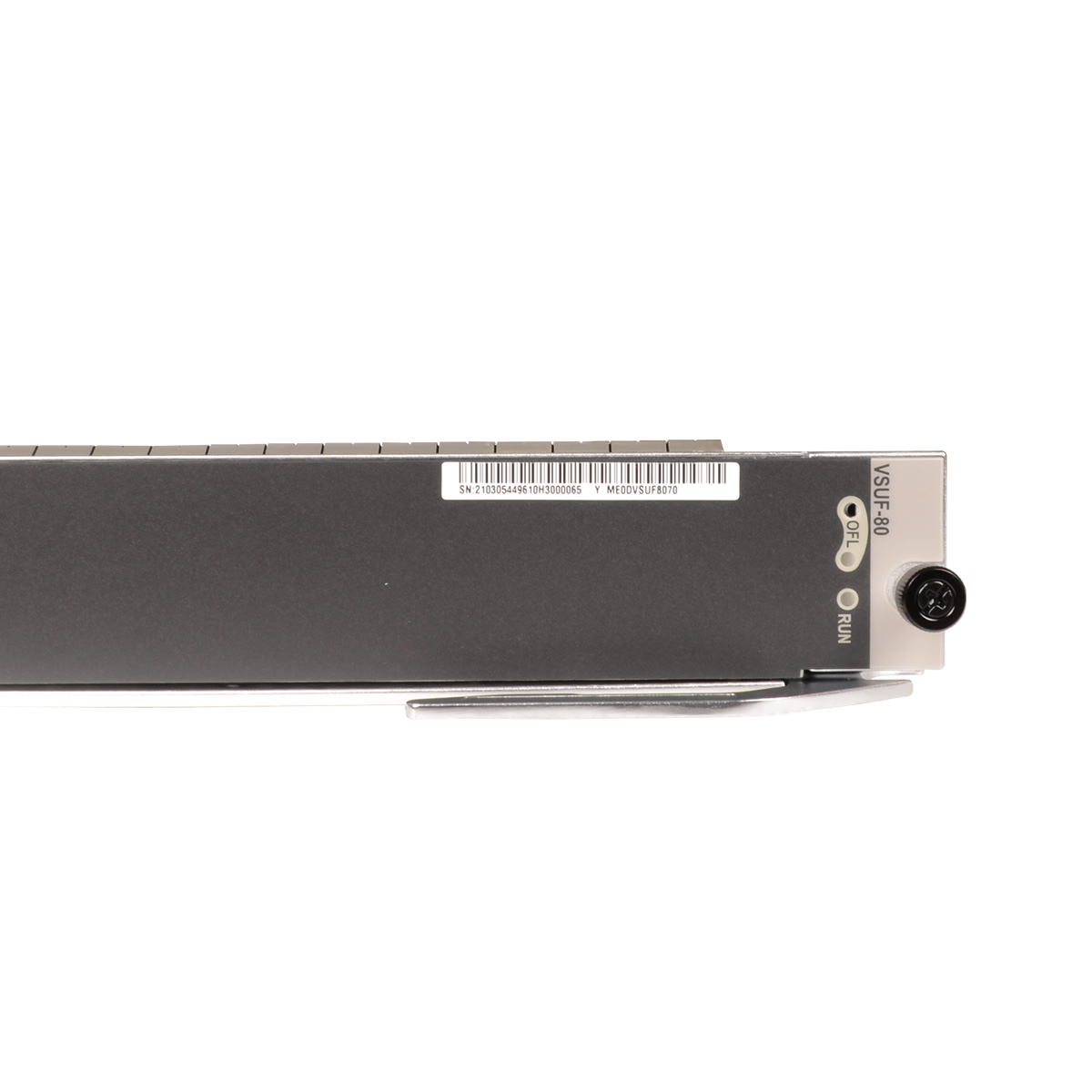

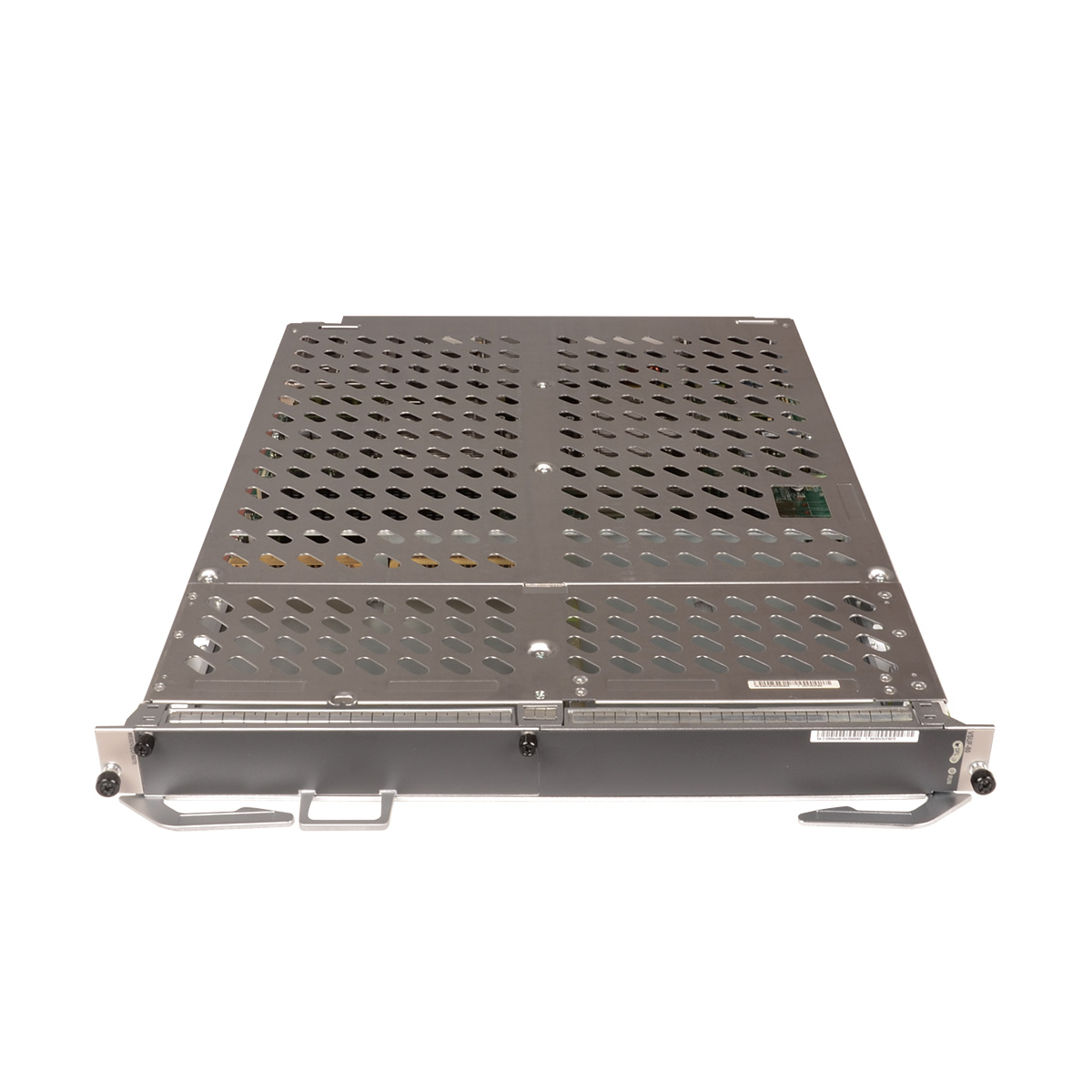

Flexible Card Versatile Service Unit 80(VSUF-80)

SKU: 11561 PN: 3054496 Category:


ME0DVSUF8070 Overview

Flexible Card Versatile Service Unit 160(VSUF-160)

Mapping products and versions
Product Minimum Version Requirement
ME60X3 V800R008C10
ME60X8 V800R008C10
ME60X16 V800R008C10
ME60X8A V800R008C10
ME60X16A V800R008C10
 ME0DVSUF8070 Datasheet
Item ME0DVSUF8070
Line-Rate capability Supports a maximum of 80 Gbit/s line-rate service processing capability.
Slot information The board provides one card slot and the slot can hold one universal service card.
Reliability and availability Hot swappable.
Restrictions and remarks To facilitate heat dissipation, on the ME60-X8, installing a VSUF-80 in slot 3, 4, 5, or 6 is recommended; on the ME60-X16, installing a VSUF-80 in slot 3, 4, 5, 10, 11, 12, 13, or 14 is recommended. .
Dimensions (H x W x D) 40.1 mm x 399.2 mm x 535.6 mm (1.58 in. x 15.72 in. x 21.09 in.)
Typical power consumption 182.0 W
Typical heat dissipation 590.5 BTU/hour
Weight 7.5 kg (16.54 lb)
Ambient temperature Long terms: 0 °C to 45 °C (32°F to 113°F) ; Short terms: -5 °C to 55 °C (23°F to 131°F)

Additional information

Weight 7.1500 kg
Dimensions 55.0000 × 40.0000 × 5.0000 cm
