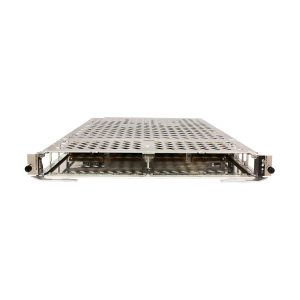

ME60 ME0M0E2NFB7B with 2-Port 100GBase-QSFP28 Flexible Card A(BP486-A)

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

ME0M0E2NFB7B Overview

Item Details
Description 2-Port 100GBase-QSFP28 Flexible Card A(BP486-A)
Part Number 03034XRV
Model ME0M0E2NFB7B
Card type Flexible Board
Silkscreen BP486-2×100GBase-QSFP28





Mappings between ME0M0E2NFB7B and product models

Chassis Product Model Supported Versions Limitations
ME60-X8A Integrated Chassis DC Components(Including 2 Fan Tray) ME0B0BKP0871 V800R023C00SPC500 and later versions –
ME60-X8A Integrated Chassis AC Components(Including 2 Fan Tray) ME0B0BKP0872 V800R023C00SPC500 and later versions –
ME60-X8A Integrated Chassis HVDC Components(Including 2 Fan Tray) ME0B0BKP0873 V800R023C00SPC500 and later versions –
ME60-X8A Integrated Chassis DC Components ME0B0BKP0874 V800R023C00SPC500 and later versions –
ME60-X8A Integrated AC/HVDC Chassis Components ME0B0BKP0875 V800R023C00SPC500 and later versions –
ME60-X16A Integrated DC Chassis Components(Including 4 Fan Tray) ME0B0BKP1671 V800R023C00SPC500 and later versions –
ME60-X16A Integrated AC Chassis Components(Including 4 Fan Tray) ME0B0BKP1672 V800R023C00SPC500 and later versions –
ME60-X16A Integrated HVDC Chassis Components(Including 4 Fan Tray) ME0B0BKP1673 V800R023C00SPC500 and later versions –
ME60-X16A Integrated DC Chassis Components ME0B0BKP1674 V800R023C00SPC500 and later versions –
ME60-X16A Integrated AC/HVDC Chassis Components ME0B0BKP1675 V800R023C00SPC500 and later versions –
Item ME0M0E2NFB7B
Basic function Provides two 100G interfaces for line-rate forwarding.
Reliability and availability Hot swappable.
Restrictions and remarks 1. An interface can work in 4 x 10GE breakout, 40GE, 50GE, or 100GE mode. By default, the interface works in 100GE mode. You can run the port-speed command to switch the interface mode to 50GE/100GE or run the port split command to switch the interface mode to 40GE or 4 x 10GE breakout mode. 2. The four 10GE interfaces split from the same QSFP+ interface must work in 10GE LAN mode. The default transmission rate of an interface on the subcard is 100 Gbit/s. If the transmission rate of the used optical module does not match the default rate (for example, a 40 Gbit/s optical module is used), run the port split command to enable the interface splitting function. 3. When the board is used with the 02312NCX or 02312MLF optical module, the long-term operating temperature of the optical module ranges from 0°C to 45°C.
Breakout supported Yes. To enable the breakout function on a port, run the port split command.
Interface rate auto-sensing supported No
FlexE supported No
Dimensions without packaging (H x W x D) [mm(in.)] 37.2 mm x 178.7 mm x 230.7 mm (1.46 in. x 7.04 in. x 9.08 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 135 mm x 288 mm x 385 mm (5.31 in. x 11.34 in. x 15.16 in.)
Weight without packaging [kg(lb)] 0.974 kg (2.15 lb)
Weight with packaging [kg(lb)] 1.774 kg (3.91 lb)
Typical power consumption [W] 27 W
Typical heat dissipation [BTU/hour] 87.6 BTU/hour
Long-term operating temperature [°C(°F)] 0°C to 45°C (32°F to 113°F)
Short-term operating temperature [°C(°F)] –5°C to +55°C (23°F to 131°F)

Additional information

Brand

Huawei
Lead Time

3-5 days
Ship From

Shenzhen Warehouse
Item ME0M0E2NFB7B
Basic function Provides two 100G interfaces for line-rate forwarding.
Reliability and availability Hot swappable.
Restrictions and remarks 1. An interface can work in 4 x 10GE breakout, 40GE, 50GE, or 100GE mode. By default, the interface works in 100GE mode. You can run the port-speed command to switch the interface mode to 50GE/100GE or run the port split command to switch the interface mode to 40GE or 4 x 10GE breakout mode. 2. The four 10GE interfaces split from the same QSFP+ interface must work in 10GE LAN mode. The default transmission rate of an interface on the subcard is 100 Gbit/s. If the transmission rate of the used optical module does not match the default rate (for example, a 40 Gbit/s optical module is used), run the port split command to enable the interface splitting function. 3. When the board is used with the 02312NCX or 02312MLF optical module, the long-term operating temperature of the optical module ranges from 0°C to 45°C.
Breakout supported Yes. To enable the breakout function on a port, run the port split command.
Interface rate auto-sensing supported No
FlexE supported No
Dimensions without packaging (H x W x D) [mm(in.)] 37.2 mm x 178.7 mm x 230.7 mm (1.46 in. x 7.04 in. x 9.08 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 135 mm x 288 mm x 385 mm (5.31 in. x 11.34 in. x 15.16 in.)
Weight without packaging [kg(lb)] 0.974 kg (2.15 lb)
Weight with packaging [kg(lb)] 1.774 kg (3.91 lb)
Typical power consumption [W] 27 W
Typical heat dissipation [BTU/hour] 87.6 BTU/hour
Long-term operating temperature [°C(°F)] 0°C to 45°C (32°F to 113°F)
Short-term operating temperature [°C(°F)] –5°C to +55°C (23°F to 131°F)
