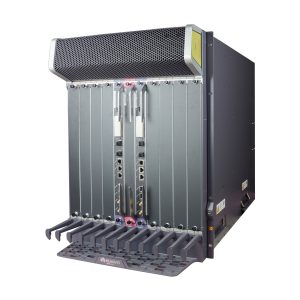

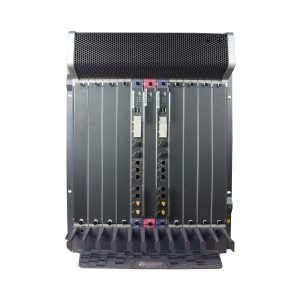

Huawei ME60-X8 AC with 1*Chassis, 2*SRUA570 200G switch and route processing board, 1*SFU 200G switching board, 4*AC power module

SKU: 11527 PN: 02350RFC-1 Category:


ME60 X8 AC Overview

ME60 series are multiple-service control gateways (BRASs) developed by Huawei for industries such as broadcasting, television, and education. ME60s provide a platform for unified user access and management.

Based on a 2T platform, ME60s provide the industry’s largest-capacity routing line card (480G) and a large-capacity NAT service line card (160G) that enable customers to smoothly evolve from IPv4 to IPv6.

Device Components

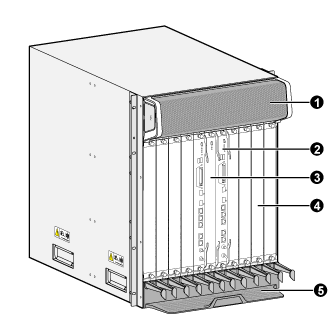

Front view of the ME60-X8

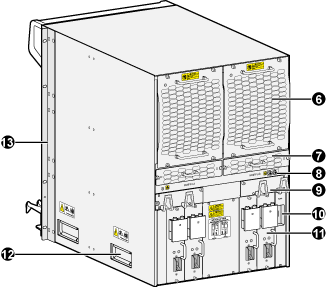

Rear view of the ME60-X8


No. Component Quantity
1 Air intake vent 1
2 MPU slot 2
3 SFU slot 1
4 LPU slot 8
5 Front cable tray 1
6 Fan module 2
7 Filler Panel 2
8 Ground terminal 1
9 Rear cable tray 2
10 Power monitoring module 1
11 DC power entry module (PEM) 4
12 Handle 4
13 Mounting ear 2
Air flow of the ME60-X8


ME60 X8 AC Datasheet
Item ME60 X8 AC
Switching Capacity 7.08 Tbit/s
Forwarding Performance 2,880 Mbit/s
Number of Slots 11 slots, including 8 LPUs, 2 SRUs, and 1 SFU
Interface Types 100 GE-WAN/LAN



Processing unit(GHz) Main frequency: 1.5
BootROM(MB) 16
Flash(MB) 32
CF card(GB) 2
BRAS User access protocols: PPPoE, IPoE, 802.1X, and ND access

User authentication protocols: PAP, CHAP, MSCHAP, RADIUS, and HWTACACS

User billing protocols: RADIUS, HWTACACS, and COPS

User authorization protocols: RADIUS, HWTACACS, COPS, and COA

L2TP Maximum number of sessions supported: 64K per slot and 128K per device
Maximum number of tunnels supported: 16K per slot, 16K per LAC device, and 48K per LNS device
IPv4 Supports the static routing protocol and dynamic routing protocols, such as RIP, OSPF, IS-IS, and BGP-4. All ports support line-rate forwarding even in complex routing environments, for example, when route flapping occurs
IPv6 IPv4/IPv6 dual stacks

A variety of IPv4-to-IPv6 transition technologies: Manually configured tunnels, IPv6 over IPv4 tunnels, GRE tunnels, IPv4 over IPv6 tunnels, and IPv6 Provider Edge (6PE)

IPv6 static routes and dynamic routing protocols, such as BGP4/BGP4+, RIPng, OSPFv3, and IS-ISv6

IPv6 neighbor discovery, PMTU discovery, TCP6, ping IPv6, tracert IPv6, socket IPv6, static IPv6 DNS, IPv6 DNS server, TFTP IPv6 client, and IPv6 policy-based routing

Network Address Translation IPv6-to-IPv4 (NAT64), NAT44 and Dual-Stack Lite (DS-Lite)

Internet Control Message Protocol Version 6 (ICMPv6) Management Information Base (MIB), User Datagram Protocol Version 6 (UDP6) MIB, TCP6 MIB, and IPv6 MIB

MPLS/MPLS VPN MPLS TE and MPLS/BGP VPN in compliance with RFC 2547bis

Inter-AS Option A, inter-AS Option B, and inter-AS Option C

Integration with Internet services

Martini MPLS L2VPN and Kompella MPLS L2VPN


Heterogeneous interworking

Multicast VPN

Layer 2 Features Protocols such as IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1D, IEEE 802.1w, and IEEE 802.1s

VLAN aggregation (super VLAN)

Filtering list based on MAC addresses and ports

Reliability Protection mechanisms such as IP/LDP/VPN/TE/VLL FRR, IP/TE automatic rerouting, fast convergence of IGP/BGP/multicast routes, VRRP, load balancing among IP-Trunk links, BFD, MPLS/Ethernet OAM, and routing protocol/port/VLAN damping

PW redundancy, E-Trunk, E-APS, and E-STP

In-service patching for smooth software upgrade

Passive backplane

Redundancy backup for key components such as route processing modules, SFUs, and power modules to guard against a single point of failure

Switching between components that hot back up each other, Graceful Restart (GR), NSF, NSR, and ISSU

Hot swapping for all components

Intra- or inter-CGN service chassis 1+1 and 1:1 hot backup

QoS Provides a well-designed HQoS mechanism

Provides advanced scheduling and congestion avoidance technologies, accurate traffic policing and traffic shaping, and complex rule definition and fine-grained flow identification

Supports MPLS HQoS and ensures QoS for MPLS VPN, VLL, and PWE3 services

Supports DiffServ- and MPLS TE-based DS-TE, eight Class Types (CTs), and TE-tunnel-based QoS

Supports a maximum of 768K flow queues per slot

Value-added Service Supports Destination Address Accounting (DAA), which helps carriers identify services based on destination network segments and perform separate accounting for different services on IP bearer networks

Supports Enhanced Dynamic Service Gateway (EDSG), which identifies various user services based on traffic destination addresses and implements independent rate limit, accounting, and management for each service

Multicast IGMP v1, IGMP v2, and IGMP v3

Static multicast

Multicast routing protocols, such as PIM-SM, PIM-SSM, MSDP, and MBGP

Multicast CAC

Interoperability between multicast protocols

Multicast policies for multicast routing protocols and multicast forwarding

Multicast QoS

Two-level multicast replication on the SFU and LPU to achieve optimal multicast service performance

Security ACL-based packet filtering



DHCP snooping

ARP attack defense

DoS attack defense

MAC address limit

MAC-IP binding



Typical power consumption(W) 4100
Maximum Power Consumption(W) 2,340 (BSUF-100)
3,220 (BSUF-240)
Operating Environment Long-term operating temperature: 0°C to 45°C

Short-term operating temperature: –5°C to 55°C

Long-term operating humidity: 5% to 85%

Short-term operating humidity: 0% to 100%

Operating altitude: Equal to or below 4,000m

Dimensions(mm) 620(H)x 442(W) x 650(D) (14U) (chassis main body dimensions)

620(H)x 442(W)  x 770(D) (chassis dimensions including the chassis’s front and rear assembly and cable racks)

Empty chassis Weight(kg) 43.2
Full Configuration Weight(kg) 118 (40G platform)

136 (200G platform)

Additional information

Weight 150.0000 kg
Dimensions 88.0000 × 59.0000 × 80.0000 cm
