Description
ME60 X8A DC Overview
The ME60 is a multi-service control gateway product series launched by Huawei. ME60s are mainly used as broadband service access BRAS nodes and IP/MPLS network serviceprovisioning nodes.
The ME60 uses the CLOS distributed multilevel switching architecture, and leverages distributed hardware-based forwarding and non-blocking switching to achieve excellent line-speed forwarding performance, superb scalability, comprehensive QoS, and strong service processing capabilities. Based on an industry-leading 2 Tbps platform, the ME60 is compatible with the line cards already installed on existing networks, which helps to maximize the protection of customer investment.
The ME60 is a high-performance service management and provisioning platform, which fully meets the requirements of a variety of service-provisioning modes, bears multiple services simultaneously, and ensures that a wide range of telecommunication services run stably and reliably. Through using the ME60 and corresponding solutions, operators can constructa future-oriented intelligent broadband IP network with greatly reduced multi-service network construction and O&M costs.
Device Components

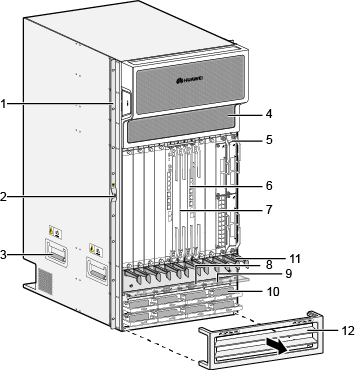

Front view of the ME60-X8A
1. Rack-mounting ear | 2. ESD jack | 3. Lifting handle | 4. Air intake frame (With air filter) |
5. BSU/MSU | 6. SRU | 7. SFU | 8. Switch module |
9. Power monitoring module (PMU) | 10 Power module (PM) | 11. Cabling tray | 12. Power module cover |

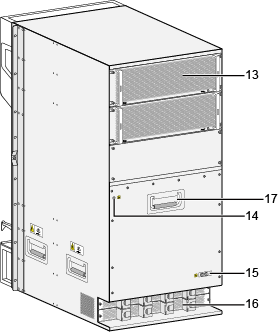

Rear view of the ME60-X8A
13. Fan module | 14. ESD jack | 15. Ground terminal | 16. Power entry module (PEM) |
17. Non-lifting handle | – | – | – |

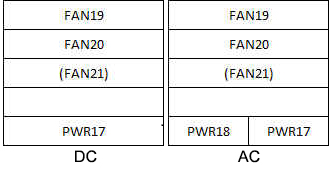

Slot layout
Slot Name | Slot Quantity | Slot ID | Remarks |
---|---|---|---|
BSU/MSU | 8 | 1 to 8 | These slots hold BSU/MSUs. |
SRU | 2 | 9 to 10 | These slots hold SRUs. |
SFU | 2 | 11 to 12 | These slots hold SFUs. |
Power | DC: 1
AC: 2 |
DC: 17
AC: 17 and 18 |
These slots hold powers. |
Fan | 2 (3) | 19 and 20 | These slots hold fans. |
