Home/Enterprise Router/H3C Router/H3C MSR Series/MSR610
MSR610
Categories:

MSR610

0 Reviews Write a review
SKU2015206
Brands
AvailabilityIn Stock
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

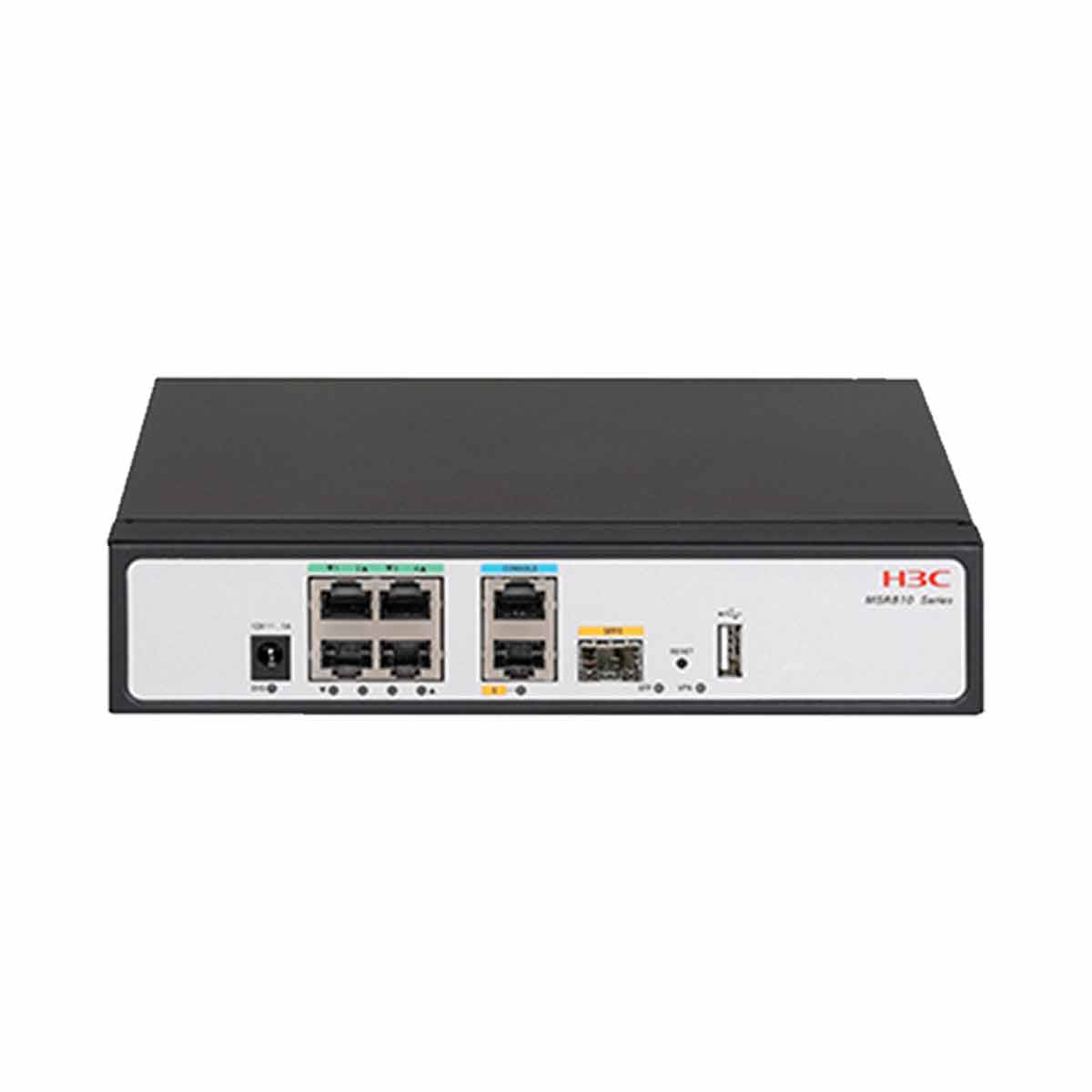

H3C MSR610 router, supports GE0 to GE4, SFP5

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

MSR610 overview

The MSR600 series can be deployed as an egress router for small- to medium-sized enterprise networks to operate with VPN, NAT, and IPSec service gateways. Together with other H3C products, the MSR600 series can provide comprehensive network solutions for government, power, financial, tax, public security, railway, and education customers.

The router provides a reset (RESET) button for rebooting the system and restoring the factory default settings. To reboot the router, press and hold the reset button for a short time. To reboot

the router and restore the factory settings, press and hold the reset button for a minimum of 4 seconds.

H3C MSR600 router series has one model: MSR610.

Device model
Interfaces
MSR610 GE0 to GE4, SFP5
Model
Description
RT-MSR610 H3C MSR610 Enterprise-Level 6-Port Gigabit Ethernet Router
Show More Show Less
Item
MSR610
Forwarding Performance In Service (IMIX) 200 Mbps
CPU 800MHz
Memory 1 GB
Internal Flash 256 MB
External Flash NA
USB ports 1
Console ports 1
WAN ports 1 × GE copper port 1 × SFP port
LAN port 4 × GE ports (can be configured as WAN interfaces)
Max power consumption 24W
Power voltage(adapter) External power adapter: 100 VAC to 240 VAC @ 50 Hz/60 Hz
Power voltage(device) DC 12V 2A
Dimensions (W × D × H) 210 x 140 x 44 mm
Operating temperature 0°C to 40°C (32°F to 104°F)
Operating humidity 5% RH to 95% RH, non-condensing
EMC FCC Part 15 (CFR 47) CLASS A ICES-003 CLASS A VCCI-3 CLASS A VCCI-4 CLASS A CISPR 22 CLASS A EN 55022 CLASS A AS/NZS CISPR22 CLASS A CISPR 24 EN 55024 EN 61000-3-2 EN 61000-3-3 EN 61000-6-1 ETSI EN 300 386 EN 301 489-1 EN 301 489-17
Safety UL 60950-1 CAN/CSA C22.2 No 60950-1 IEC 60950-1 EN 60950-1/A11 AS/NZS 60950 EN 60825-1 EN 60825-2 FDA 21 CFR Subchapter J GB 4943

Additional information

Brand

Huawei
Lead Time

3-5 days
Ship From

Shenzhen Warehouse
Item
MSR610
Forwarding Performance In Service (IMIX) 200 Mbps
CPU 800MHz
Memory 1 GB
Internal Flash 256 MB
External Flash NA
USB ports 1
Console ports 1
WAN ports 1 × GE copper port 1 × SFP port
LAN port 4 × GE ports (can be configured as WAN interfaces)
Max power consumption 24W
Power voltage(adapter) External power adapter: 100 VAC to 240 VAC @ 50 Hz/60 Hz
Power voltage(device) DC 12V 2A
Dimensions (W × D × H) 210 x 140 x 44 mm
Operating temperature 0°C to 40°C (32°F to 104°F)
Operating humidity 5% RH to 95% RH, non-condensing
EMC FCC Part 15 (CFR 47) CLASS A ICES-003 CLASS A VCCI-3 CLASS A VCCI-4 CLASS A CISPR 22 CLASS A EN 55022 CLASS A AS/NZS CISPR22 CLASS A CISPR 24 EN 55024 EN 61000-3-2 EN 61000-3-3 EN 61000-6-1 ETSI EN 300 386 EN 301 489-1 EN 301 489-17
Safety UL 60950-1 CAN/CSA C22.2 No 60950-1 IEC 60950-1 EN 60950-1/A11 AS/NZS 60950 EN 60825-1 EN 60825-2 FDA 21 CFR Subchapter J GB 4943
