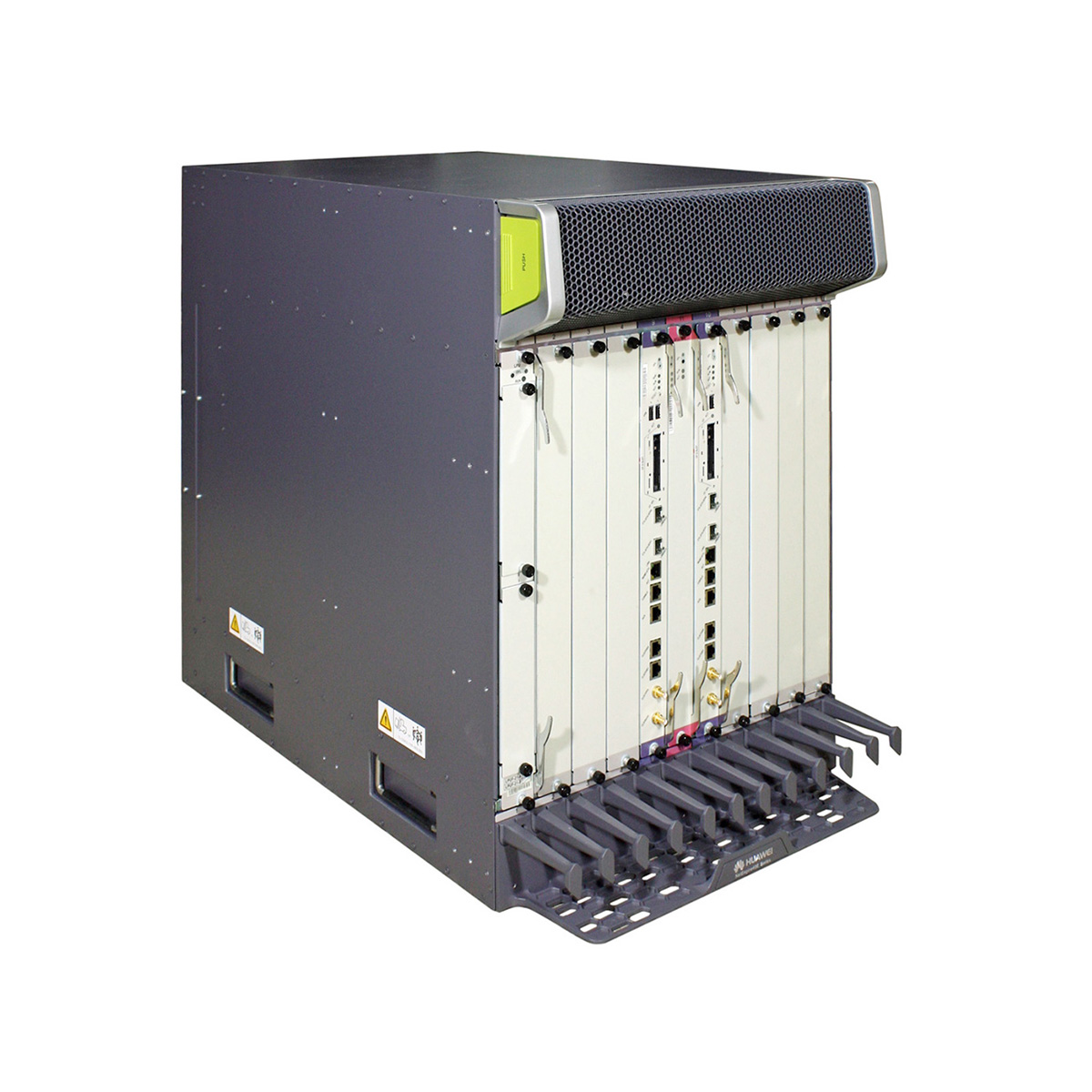

NE40E-X8 DC

0 Reviews Write a review
PN2351930
AvailabilityIn Stock
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

Original price was: $0.00.Current price is: $0.00.

NE40E-X8 Integrated Chassis Components (Including 4 DC Power)

Description

Item NE40E-X8 DC
Cabinet installation standard Can be installed in a standard 19″ 800 mm-deep cabinet. A Huawei 2.2 m-high N68E cabinet is used by default.
Typical power consumption 3220 W (fully configured with LPUF-240s)
DC input voltage input voltage range: –38.4 V to –72 V
input rated voltage: –48 V/ –60 V
AC input voltage input voltage range: 180 V to 264 V
input rated voltage: 200 V to 240 V
MTBF 21.91 years
MTTR 0.5 hours
Availability 0.999997395
Slot quantity 11
Redundant MPUs 0.042361111
Redundant Switch fabrics 2+1
Redundant fans 2 assemblies
Support for proper fan operation in case of a single fan failure for a short period at 40°C (104°F)
Redundant power supply 2+2
Forwarding performance 2800 Mpps (LPUF-240)
Switching capacity 7.08 Tbps (LPUF-240/LPUI-240)
Operating temperature Long-term: 0°C to 45°C (32°F to 113°F)
Short-term: –5°C to +55°C (23°F to131°F)
Remark: Restriction on the temperature variation rate: 30°C/hour (86°F/h)
Storage temperature –40°C to +70°C (–40°F to +158°F)
Relative operating humidity Long term: 5% to 85% RH, non-condensing
Short term: 5% to 95% RH, non-condensing
Relative storage humidity 5% to 95% RH, non-condensing
Long-term operating altitude <= 4000 m (13123.2 ft.) (For the altitude in the range of 1800 m to 4000 m [5905.44 ft. to 13123.2 ft.], the operating temperature of the NEU100 must decrease by 1°C [33.8°F] for every 220 m [721.78 ft.].)
Storage altitude Less than 5000 m (16404 ft.)
Dimensions (H x W x D) (14 U) 620 mm x 442 mm x 650 mm (24.41 in. x 17.40 in. x 25.59 in.)(Chassis main body)
(14 U) 620 mm x 442 mm x 770 mm (24.41 in. x 17.40 in. x 30.31 in.)(Dimensions of the chassis body together with cable trays and front and back attachments)
Weight (empty) 25.8 kg (56.89 lb) (without filler panels)
Weight (full configuration) 136 kg (299.88 lb)

Additional information

Weight 50.0000 kg
Dimensions 62.0000 × 45.0000 × 77.0000 cm
