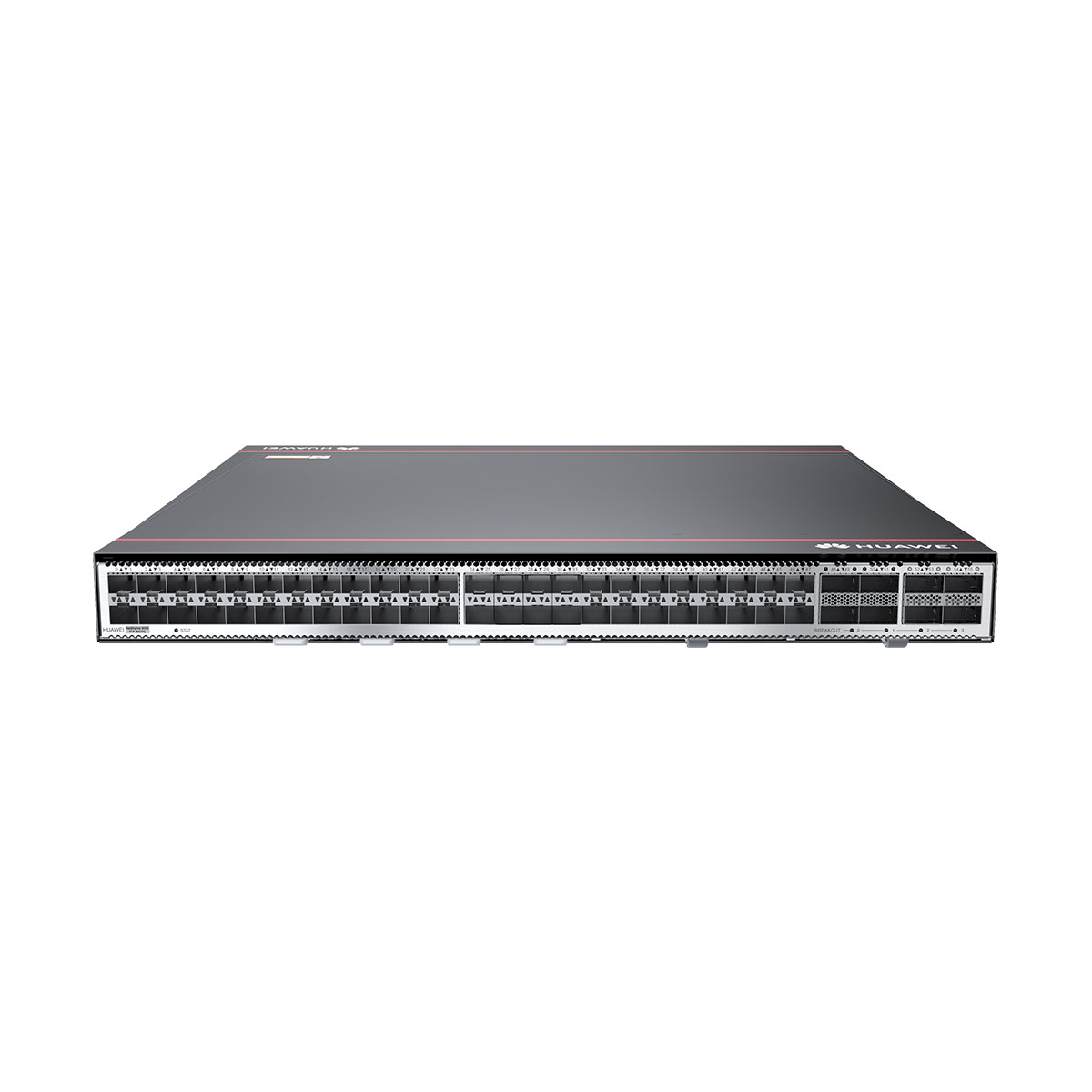

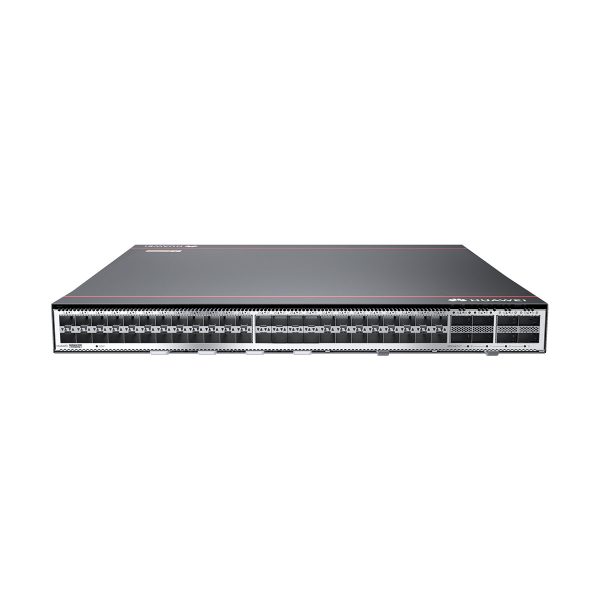

NetEngine 8000 F1A-8H20Q (Port-side Exhaust)

1 Review Write a review
PN02353AGV
Brands
AvailabilityIn Stock
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

NetEngine 8000 F1A-8H20Q Integrated Chassis Components (Port-side Exhaust), 02353AGV



    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

NetEngine 8000 F1A-8H20Q Integrated Chassis Components (Port-side Exhaust)



Basic information about the NetEngine 8000 F1A-8H20Q:

Description Part Number Model First Supported Version Remarks
NetEngine 8000 F1A-8H20Q Integrated Chassis Components (Port-side Intake) 02353AES CR8B0BKP03C0 V800R012C00 –
NetEngine 8000 F1A-8H20Q Integrated Chassis Components (Port-side Exhaust) 02353AGV CR8B0BKP03C2 V800R012C00 –
NetEngine 8000 F1A-8H20Q Integrated Chassis Components(support FlexE, Port-side Intake) 02353YPU CR8B0BKP03C4 V800R012C11 –
NetEngine 8000 F1A-8H20Q Integrated Chassis Components(support FlexE, Port-side Exhaust) 02353YQB CR8B0BKP03C5 V800R012C11 –



Slot Layout of the NetEngine 8000 F1A-8H20Q:

Slot Layout of the NetEngine 8000 F1A-8H20Q

Item NetEngine 8000 F1A-8H20Q
Support Interface Type 100GE/50E/40GE/25GE/10GE/GE/FE/E1/Channelized STM-1c/OC-3c/STM-1c
Switching Capacity 2.4 Tbit/s
Forwarding performance 453 Mpps
Processing unit 20 Core@2.0 GHz
SDRAM 16 GB
Storage 4G NAND FLASH
Redundant fans 3+1.
The device can work properly for a short period at ambient temperature of 40°C if a single fan fails.
Redundant power supply The system supports DC and AC power supply in 1+1 backup mode.
Typical power consumption 325 W
Typical heat dissipation 1054.44 BTU/Hour
DC input voltage Input voltage range:-40V to -72V
Input rated voltage: -48V/-60V
AC input voltage Input voltage range: 90 V to 290 V
Input rated voltage: 100 V to 240 V
Maximum input cable diameter DC: 4mm^2 (1-14 meters), 6mm^2 (15-21 meters), 10mm^2 (22-35 meters)
AC: 2.5mm^2
Front-end circuit breaker/fuse DC: ≥32A
AC: ≥10A
MTBF DC: 25.52 years
AC: 25.65 years
MTTR 0.5 hours
Availability 0.99999
Dimensions (H x W x D) 43.6 x 442 x 420 mm (1 U)
Dimensions (H x W x D) 44 mm x 442 mm x 420 mm
Weight without packaging (full configuration) DC: 8.4 kg
AC: 8.75 kg
Cabinet installation standard IEC 19-inch

Additional information

Brand

Huawei
Lead Time

3-5 days
Ship From

Shenzhen Warehouse
Item NetEngine 8000 F1A-8H20Q
Support Interface Type 100GE/50E/40GE/25GE/10GE/GE/FE/E1/Channelized STM-1c/OC-3c/STM-1c
Switching Capacity 2.4 Tbit/s
Forwarding performance 453 Mpps
Processing unit 20 Core@2.0 GHz
SDRAM 16 GB
Storage 4G NAND FLASH
Redundant fans 3+1.
The device can work properly for a short period at ambient temperature of 40°C if a single fan fails.
Redundant power supply The system supports DC and AC power supply in 1+1 backup mode.
Typical power consumption 325 W
Typical heat dissipation 1054.44 BTU/Hour
DC input voltage Input voltage range:-40V to -72V
Input rated voltage: -48V/-60V
AC input voltage Input voltage range: 90 V to 290 V
Input rated voltage: 100 V to 240 V
Maximum input cable diameter DC: 4mm^2 (1-14 meters), 6mm^2 (15-21 meters), 10mm^2 (22-35 meters)
AC: 2.5mm^2
Front-end circuit breaker/fuse DC: ≥32A
AC: ≥10A
MTBF DC: 25.52 years
AC: 25.65 years
MTTR 0.5 hours
Availability 0.99999
Dimensions (H x W x D) 43.6 x 442 x 420 mm (1 U)
Dimensions (H x W x D) 44 mm x 442 mm x 420 mm
Weight without packaging (full configuration) DC: 8.4 kg
AC: 8.75 kg
Cabinet installation standard IEC 19-inch

Reviews

  1. David –

    I asied several suppliers, they said NetEngine 8000 F1A needs to pre-order, lead time is about 45 days, but Telecomate.com helped me to find one, very nice!
