OPTICAL ACCESS ARCHITECTURE REFERENCE DOCUMENT: SINGLE-MODE VS MULTI-MODE FIBER SELECTION GUIDE
1. TECHNOLOGY OVERVIEW
This document serves as the definitive technical reference for the selection and deployment of optical fiber infrastructure within carrier-grade and enterprise networks. It provides a comprehensive comparative analysis of Single-Mode Fiber (SMF) and Multi-Mode Fiber (MMF) technologies, detailing their respective physical layer characteristics, performance envelopes, and optimal application scenarios. This guide is intended for network architects, systems engineers, and procurement specialists tasked with designing robust, scalable, and cost-effective optical transport layers.
The choice between SMF and MMF is a foundational decision that impacts network performance, reach, scalability, and total cost of ownership. This document elucidates the physical principles governing each fiber type, delineates their capabilities against current and emerging standards, and provides a structured decision-making framework to ensure that the selected optical infrastructure aligns with both immediate operational requirements and long-term strategic objectives.

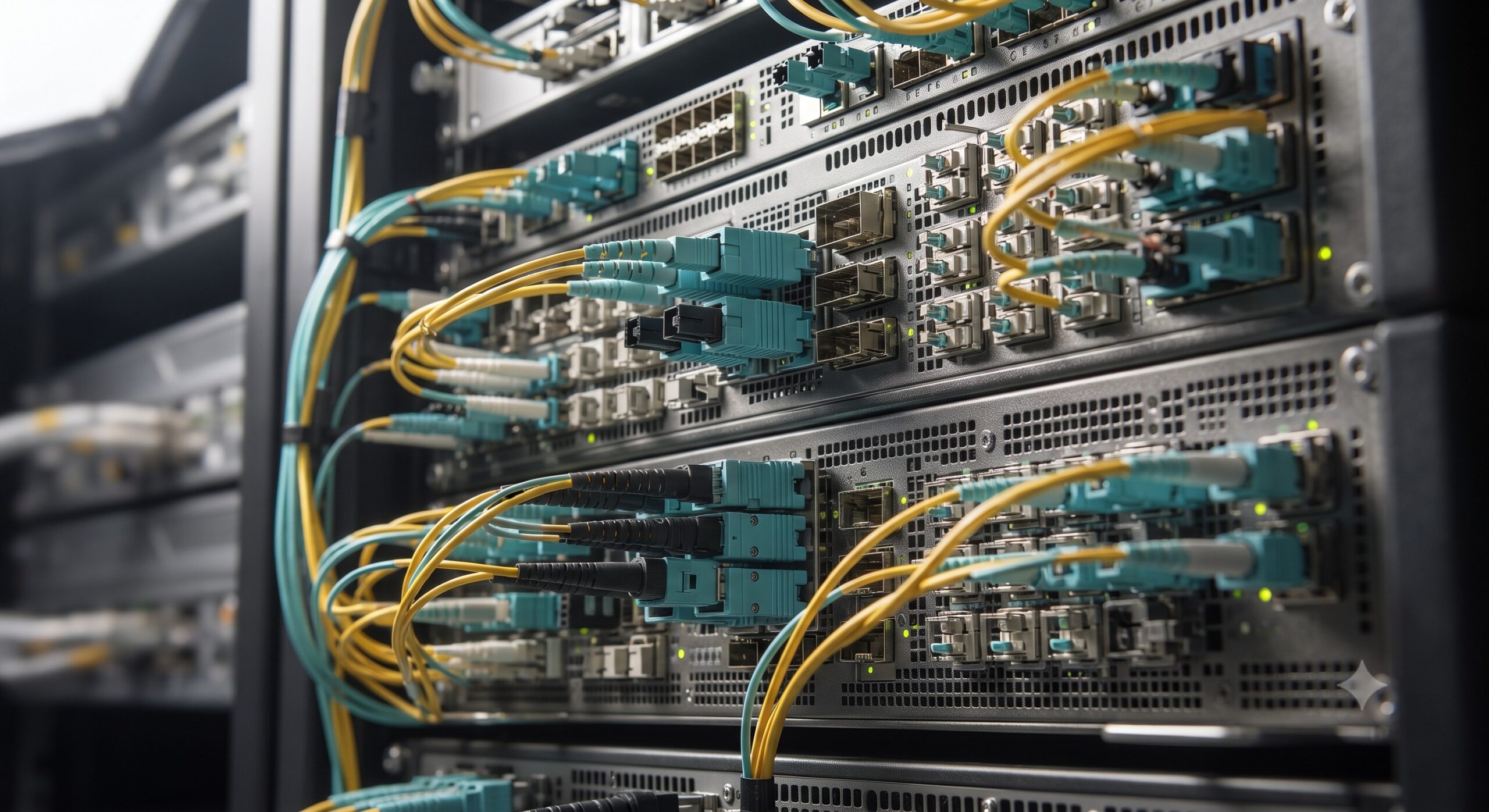

2. OPTICAL TRANSCEIVER INTERFACES AND CORE PRINCIPLES
The fundamental distinction between SMF and MMF lies in the core diameter and the propagation characteristics of light within the fiber. Single-Mode Fiber features a small core diameter (typically 8-10 µm) that permits only a single propagation mode of light to travel directly down the fiber. This eliminates modal dispersion, the primary cause of pulse broadening in optical fibers, enabling exceptional signal integrity over extended distances. Multi-Mode Fiber incorporates a larger core diameter (50 µm or 62.5 µm), permitting multiple light modes to propagate simultaneously. While this facilitates simpler and less expensive light source coupling (using LEDs or VCSELs), it introduces modal dispersion that limits the bandwidth-distance product.
This section details the standardized optical transceiver interfaces that are compatible with each fiber type, specifying the optical power budgets, wavelengths (e.g., 850 nm, 1310 nm, 1550 nm), and reach capabilities. It also addresses the critical importance of connector hygiene and precision termination to maintain optimal return loss and insertion loss parameters.
3. REDUNDANT SUBSYSTEMS AND HIGH-AVAILABILITY ARCHITECTURES
For mission-critical infrastructure, the optical physical layer must incorporate redundancy to ensure carrier-grade availability. This section outlines strategies for implementing resilient optical links, including dual-homing architectures, diverse fiber path routing, and automatic protection switching mechanisms. It differentiates between link-level protection (e.g., 1+1 or 1:1 protection) and network-level restoration.
The selection of fiber type directly influences the feasibility and cost of implementing these redundancy schemes. For example, the extended reach of SMF may enable diverse routing options that are geographically constrained in MMF-based systems. This chapter provides a framework for assessing the availability and reliability requirements of different network tiers and selecting an optical architecture that meets the requisite Service Level Agreements.
4. CAPABILITY METRICS AND PERFORMANCE COMPARISON
This section provides a detailed technical comparison of SMF and MMF across key performance indicators. The analysis is grounded in standards defined by the Institute of Electrical and Electronics Engineers (IEEE) and the Telecommunication Industry Association (TIA). Key parameters include maximum channel reach, supported data rates, optical link budgets, and chromatic dispersion tolerance. It provides a deep dive into the performance limitations of MMF, specifically examining the impact of modal bandwidth, as specified by the effective modal bandwidth (EMB) metric, and its influence on the maximum supported link distances for 10 Gigabit, 40 Gigabit, and 100 Gigabit Ethernet applications.
Conversely, it characterizes SMF’s capacity for high-speed, long-haul transmission, addressing its inherent compatibility with advanced modulation formats and dense wavelength division multiplexing (DWDM). The comparative analysis is presented in a clear, quantitative format to facilitate informed engineering decisions.
| Parameter | Single-Mode Fiber (SMF) | Multi-Mode Fiber (MMF) |
|---|---|---|
| Core Diameter (Typical) | 8-10 µm | 50 µm (OM3/OM4) or 62.5 µm (OM1) |
| Typical Wavelengths | 1310 nm / 1550 nm | 850 nm / 1300 nm |
| Maximum Reach @ 10G | Up to 10-40 km (depending on transceiver) | Up to 300-400 m (OM3/OM4) |
| Maximum Reach @ 100G | Up to 40-80 km (depending on transceiver) | Up to 70-150 m (OM3/OM4) |
| Modal Dispersion | Negligible | Significant (primary bandwidth limitation) |
| Typical Light Source | Fabry-Perot/DFB Lasers | VCSELs or LEDs |
| Relative Cost (Per Meter) | Higher | Lower |
| Future-Proofing Capacity | Excellent (DWDM, Coherent Optics) | Limited by Bandwidth-Distance Product |
5. COMPLIANCE AUDIT AND STANDARDS CERTIFICATION
Deployment of optical fiber infrastructure must adhere to a comprehensive suite of industry standards to ensure interoperability, safety, and performance. This section provides a compliance audit checklist, referencing key standards from the IEEE (e.g., 802.3ae, 802.3ba), the TIA (e.g., TIA-568, TIA-492), and the International Organization for Standardization (ISO, e.g., ISO/IEC 11801).
It also addresses the regulatory compliance requirements for premises cabling, including fire safety ratings (e.g., OFNR, OFNP) and electromagnetic compatibility. A specific focus is placed on the certification and testing procedures mandated for both SMF and MMF installations, including optical time-domain reflectometer (OTDR) testing, insertion loss measurement, and end-face inspection criteria, ensuring all deployed links meet the stringent performance benchmarks required for modern data communication systems.
6. SCALING STRATEGY AND LONG-TERM INVESTMENT PROTECTION
The final section provides a strategic roadmap for scaling optical infrastructure to accommodate future bandwidth demands. It evaluates the upgrade paths available for both SMF and MMF, considering the proliferation of 400G and emerging 800G Ethernet standards. It advocates for a lifecycle cost analysis that accounts not only for initial capital expenditure (CAPEX) but also for operational expenditure (OPEX), including power consumption, cooling, and ongoing maintenance.
The analysis demonstrates that while MMF offers a lower initial investment for short-reach applications, SMF provides a superior upgrade path and greater long-term investment protection, offering a nearly infinite future-proofing capability due to its immense bandwidth potential and compatibility with next-generation coherent optics. This section concludes with actionable recommendations for network architects to define a strategic optical investment plan that balances immediate constraints with future performance requirements.
