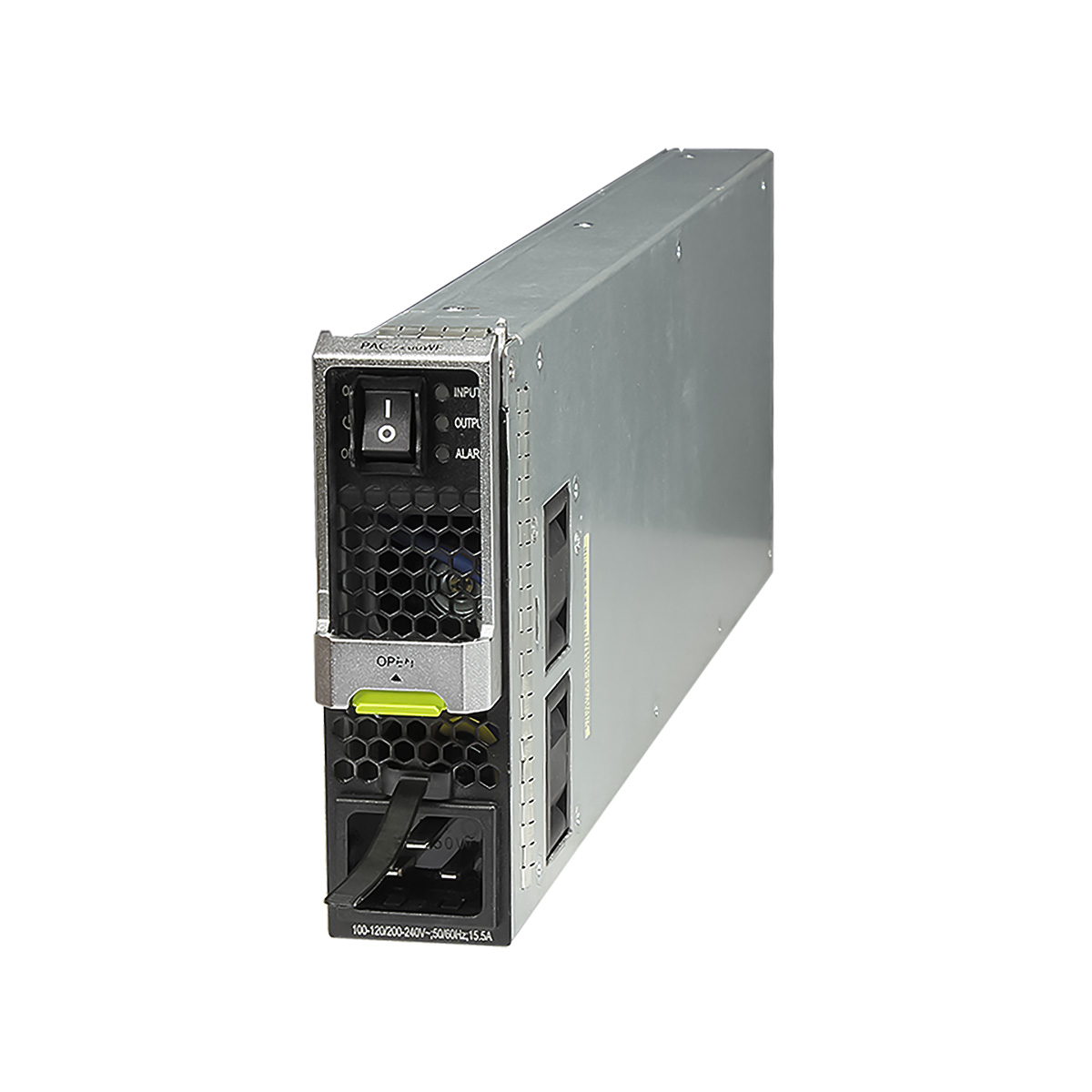

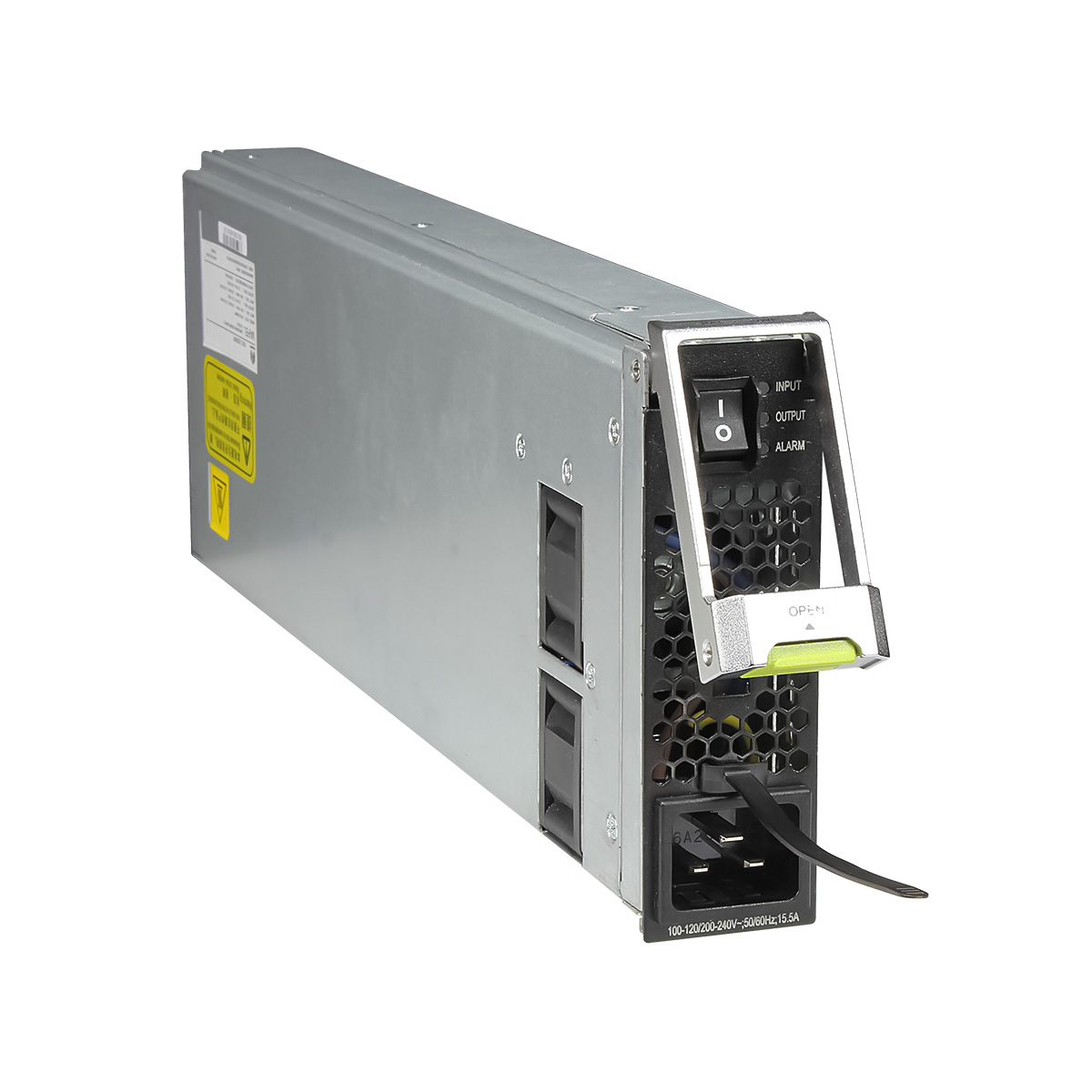

PAC-2200WF

Huawei PAC-2200WF 2200 W AC Power Module apply to Huawei S7700/S9700/S12700 series switch

Huawei

3-5 days

Shenzhen Warehouse

SKU: 8314 PN: 2131120 Categories: ,

Description

PAC-2200WF Overview

Huawei PAC-2200WF 2200 W AC Power Module apply to Huawei S7700/S9700/S12700 series switch

Mappings between W2PSA0800 and product models
Product Product Model First Supported Version
S12700 S12704 V200R008C00
S12700 S12708 V200R005C00
S12700 S12712 V200R005C00
S12700 S12710 V200R010C00
S9700 S9700 V200R001C00
S7700 S7700 V200R002C00

(In V100R006C00 and V200R001C00, this power module is supported only in the PoE power module slots)

Functions of a 2200 W AC power module
Function Description
Input protection Input undervoltage protection In this protection state, the power module is turned off and stops supplying power. When the system recovers from input undervoltage, the power module can automatically start supplying power again.
Input overcurrent protection In this protection state, the power module is turned off and stops supplying power. The power module cannot automatically start supplying power again and needs to be replaced.
Output protection Output overvoltage protection In this protection state:

  • If output overvoltage is caused by the power module itself, the power module stops supplying power. When the system recovers from output overvoltage, the power module cannot automatically start supplying power again.
  • If output overvoltage is caused by increase of the input voltage received from the external power source, the power module stops supplying power. When the system recovers from output overvoltage, the power module can automatically start supplying power again.
Output overcurrent protection In this protection state, the output current is limited to a certain value. When the system recovers from output overcurrent, the power module can automatically start supplying power again.
Output short-circuit protection In this protection state, the power module supplies power intermittently, and the output current is limited to a range. When the system recovers from output short-circuit, the power module can automatically start supplying power again.
Overtemperature protection When the temperature of the power module exceeds a specified threshold, the power module stops supplying power. When the temperature falls into the normal range, the power module automatically resumes power supply.
Hot swapping The power module is hot swappable.

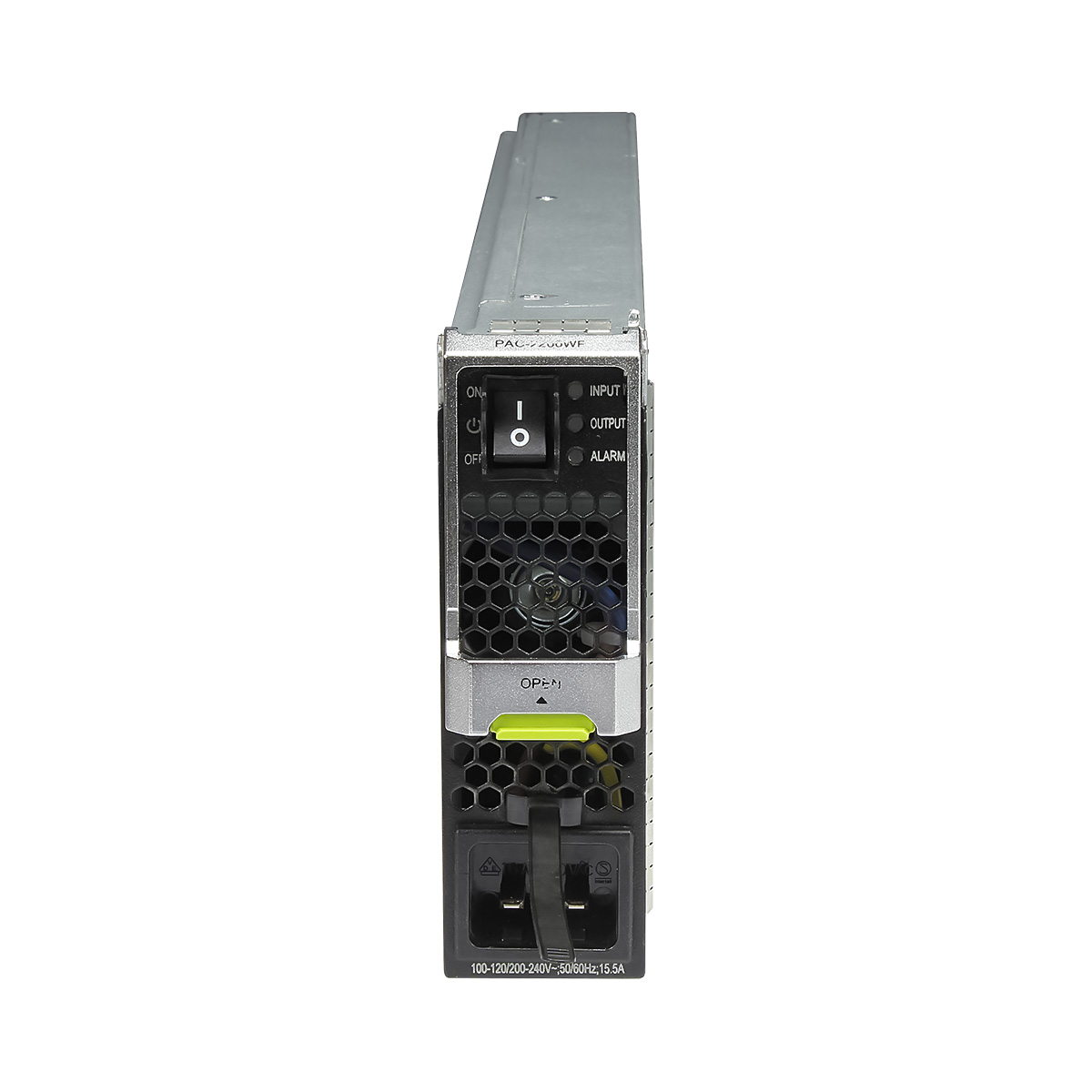

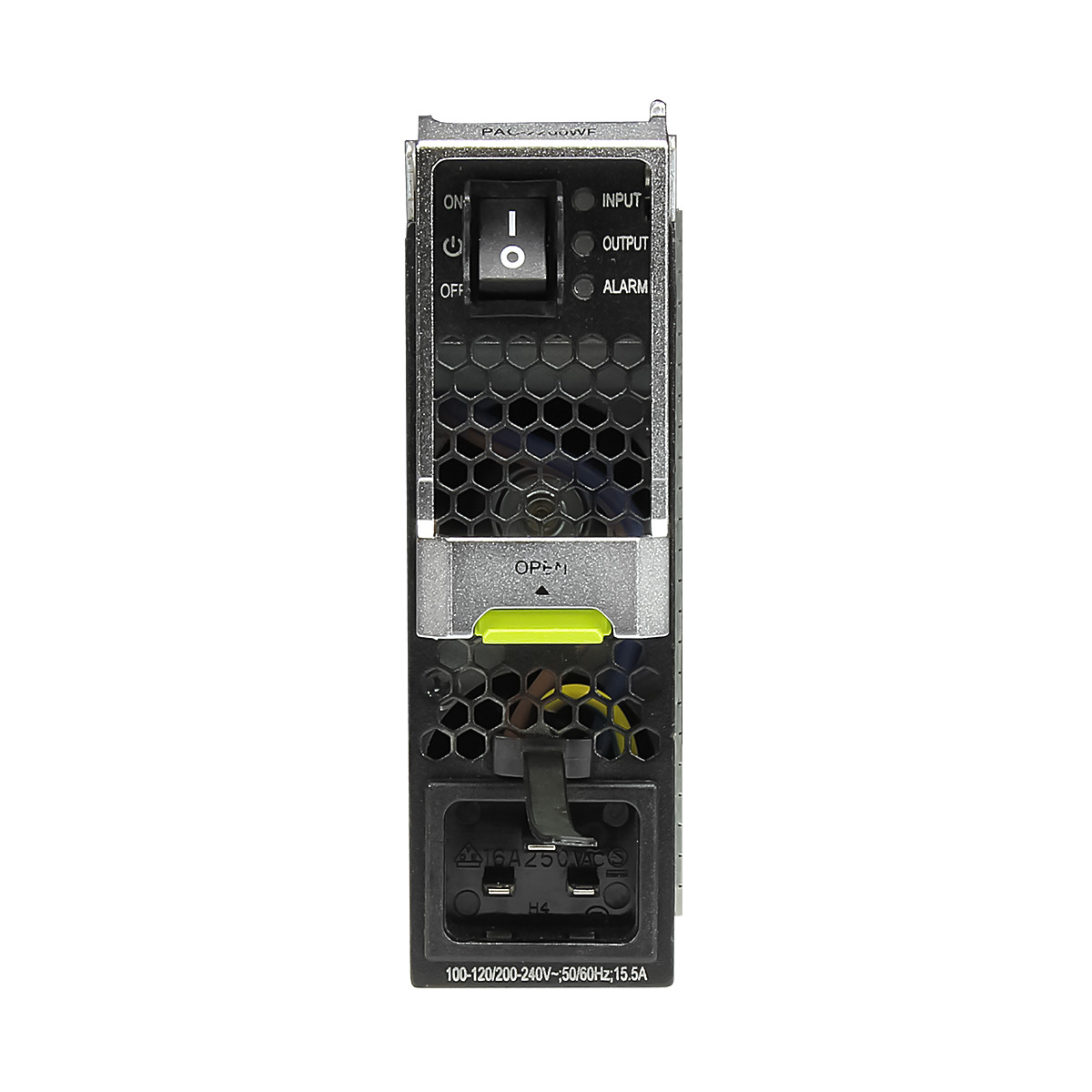

Front Panel

PAC-2200WF-0

1 Power switch
2 Ejector lever
3 Power socket
4 ALARM indicator
5 OUTPUT indicator
6 INPUT indicator



PAC-2200WF Datasheet
Item PAC-2200WF
Input Rated input voltage 220 V AC/110 V AC; 50/60 Hz
Rated input voltage range 200 V AC to 240 V AC (220 V AC input)/100 V AC to 120 V AC (110 V AC input); 47 Hz to 63 Hz
Maximum input voltage range 90 V AC to 290 V AC; 47 Hz to 63 Hz (The maximum output power reduces by a half when the input voltage is in the range of 90 V AC to 175 V AC.)
Maximum input current 15.5 A
Output Maximum output current 42 A (220 V AC input)/21 A (110 V AC Input)
Maximum output power 2200 W (220 V AC input)/1100 W (110 V AC input)
Hot swapping Supported
Part number 02131120
Dimensions (H x W x D) 130 mm x 41 mm x 393 mm (5.1 in. x 1.6 in. x 15.5 in.)
Weight < 2.5 kg

Additional information

Weight 4.0000 kg
Dimensions 52.2000 × 28.0000 × 12.5000 cm
