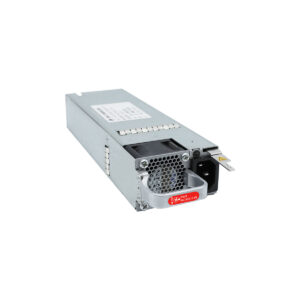

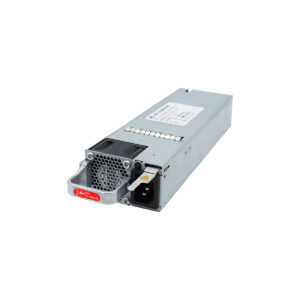

Huawei PAC1K2S12-PB supports 1200W AC&240V DC Power Module (Back to Front,Power panel side exhaust)

Description

PAC1K2S12-PB Overview



Huawei PAC1K2S12-PB with 1200W AC&240V DC Power Module (Back to Front,Power panel side exhaust) apply to CloudEngine XH9000 and XH8000 Series Switches.



Mappings between PAC1K2S12-PB and product models

Product Product Model First Supported Version
CloudEngine XH8000 XH8110-24BQ8DQ (02355YSK) V300R023C10
CloudEngine XH8000 XH8110-24BQ8DQ (02355YSL) V300R023C10
CloudEngine XH8000 XH8110-24BQ8DQ (02355YSJ) V300R023C10
CloudEngine XH9000 XH9110-24BQ8DQ (02355YSP) V300R023C10
CloudEngine XH9000 XH9110-24BQ8DQ (02355YSM) V300R023C10
CloudEngine XH9000 XH9110-24BQ8DQ (02355YSN) V300R023C10

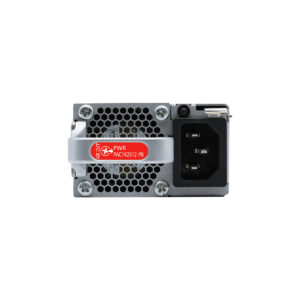

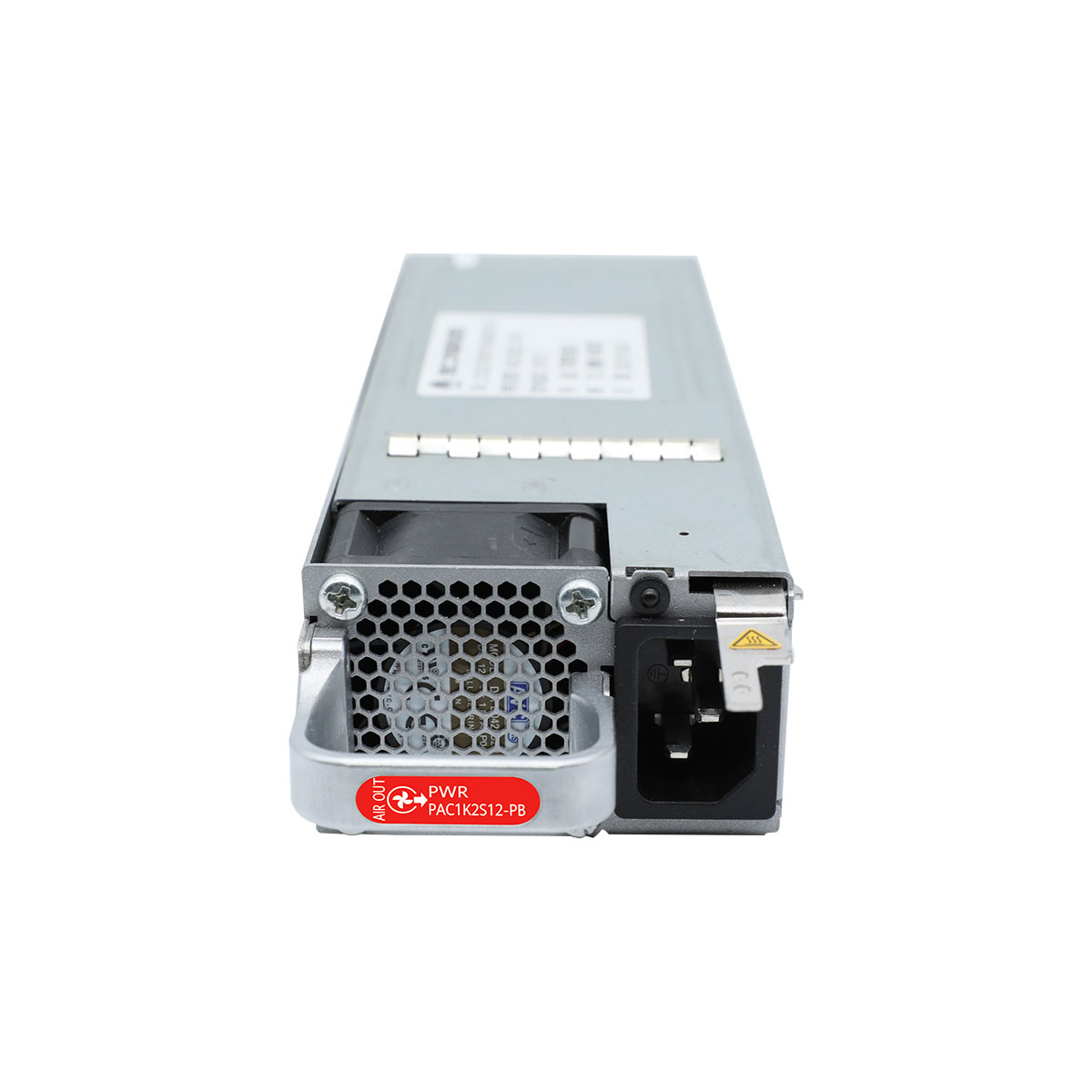

Front Panel

PAC1K2S12 PB

1. Handle 2. Airflow flag 3. Air vent 4. Indicator

5. Power socket

6. Lock



Functions of the PAC1K2S12-PB
Functions Description
Input overvoltage protection and undervoltage protection In this protection state, the power module stops supplying power. When the input voltage restores to the normal range, the power module automatically resumes power supply.
Input overcurrent protection In this protection state, the power module stops supplying power and cannot automatically resume power supply when the input current restores to the normal range.
Output overvoltage protection In this protection state, the power adapter stops supplying power intermittently. When the output voltage restores to the normal range, the power adapter automatically resumes power supply.
Output overcurrent protection In this protection state, the power module supplies power intermittently. When the output current is limited within a range, the power module automatically resumes power supply.
Output short-circuit protection In this protection state, the power module supplies power intermittently. When the short circuit is removed, the power module automatically resumes power supply.
Overtemperature protection When the temperature of the power module exceeds a specified threshold, the power module stops supplying power. When the temperature falls into the normal range, the power module automatically resumes power supply.
Heat dissipation Back-to-front airflow
Hot swapping The power module is hot swappable.



Item PAC1K2S12-PB
Number of inputs 1
Number of outputs 1
Rated input voltage [V] 200 V AC to 240 V AC; 50/60 Hz 100 V AC to 130 V AC; 50/60 Hz 240 V DC
Maximum Input voltage [V] AC: 90–290 V AC; 45–65 Hz High-voltage DC: 190 V DC to 290 V DC
Rated input current [A] 8 A (200 V AC to 240 V AC); 10 A (100 V AC to 130 V AC); 8 A (240 V DC)
Rated output voltage [V] 12 V
Rated output current [A] 100A
Rated output power [W] 1200 W
Dimensions without packaging (H x W x D) [mm (in.)] 39.6 mm x 66.0 mm x 215.0 mm (1.56 in. x 2.6 in. x 8.46 in.)
Weight without packaging [kg (lb)] 0.844 kg (lb)

Additional information

Item PAC1K2S12-PB
Number of inputs 1
Number of outputs 1
Rated input voltage [V] 200 V AC to 240 V AC; 50/60 Hz 100 V AC to 130 V AC; 50/60 Hz 240 V DC
Maximum Input voltage [V] AC: 90–290 V AC; 45–65 Hz High-voltage DC: 190 V DC to 290 V DC
Rated input current [A] 8 A (200 V AC to 240 V AC); 10 A (100 V AC to 130 V AC); 8 A (240 V DC)
Rated output voltage [V] 12 V
Rated output current [A] 100A
Rated output power [W] 1200 W
Dimensions without packaging (H x W x D) [mm (in.)] 39.6 mm x 66.0 mm x 215.0 mm (1.56 in. x 2.6 in. x 8.46 in.)
Weight without packaging [kg (lb)] 0.844 kg (lb)
