Description
PAC1K8S12-PF Overview

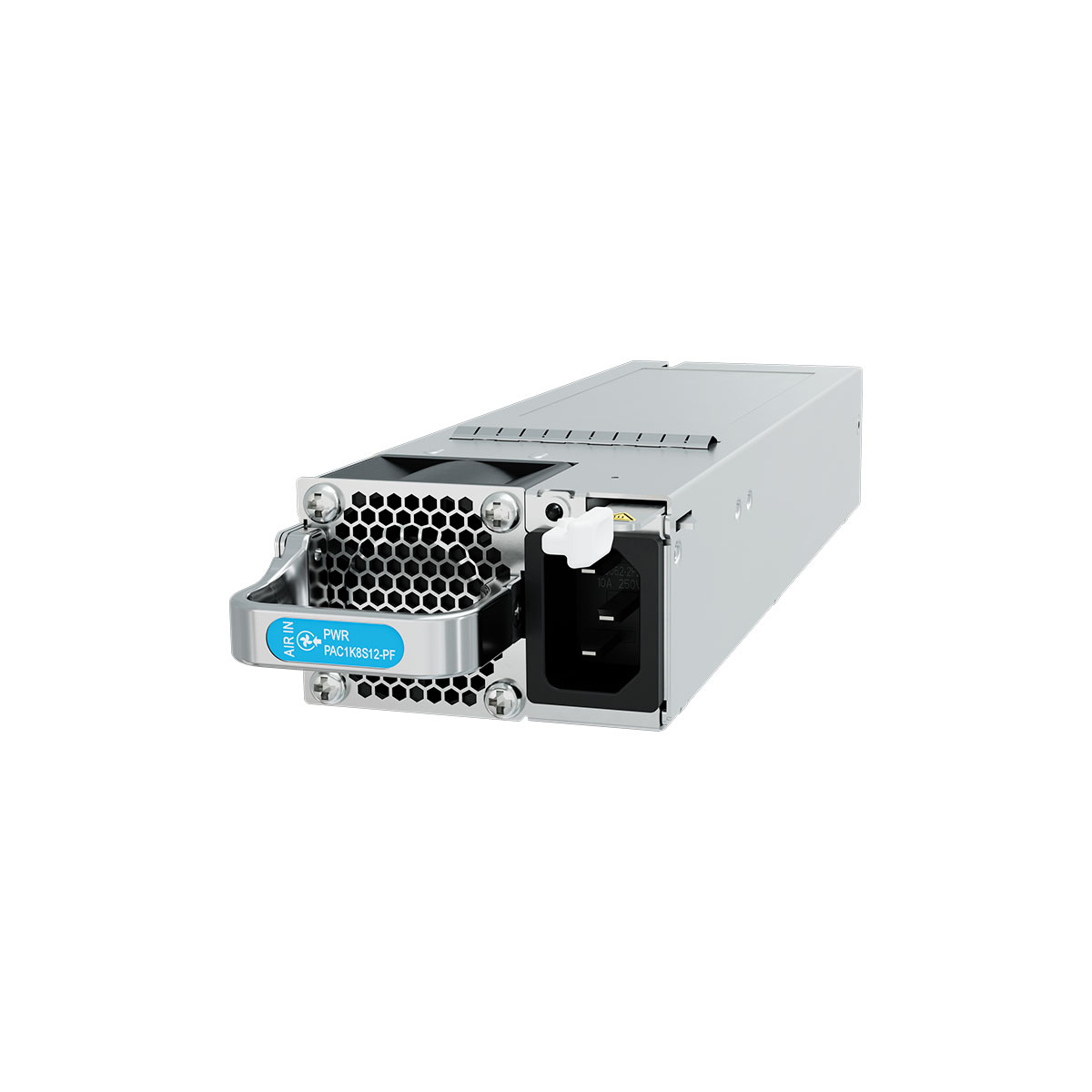

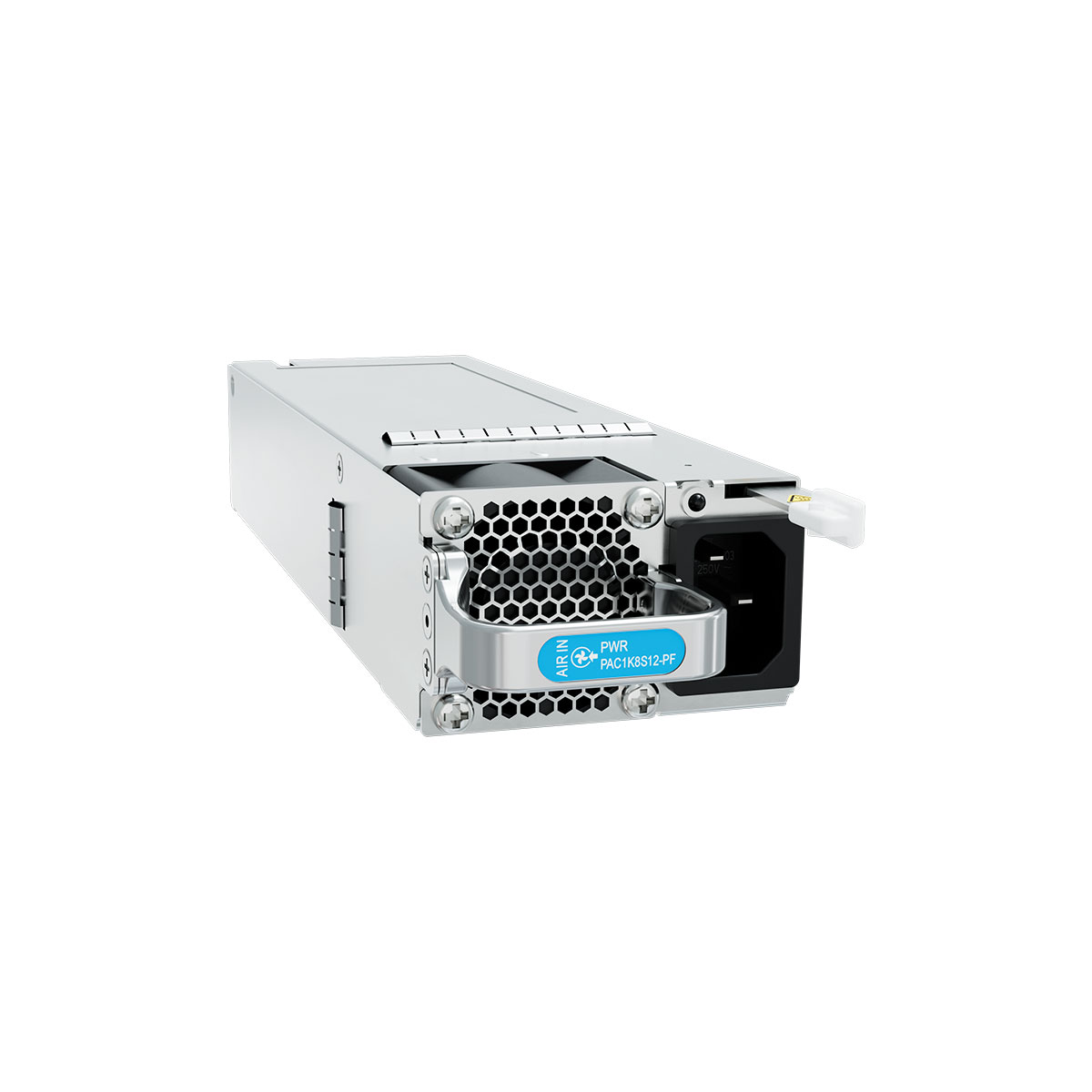

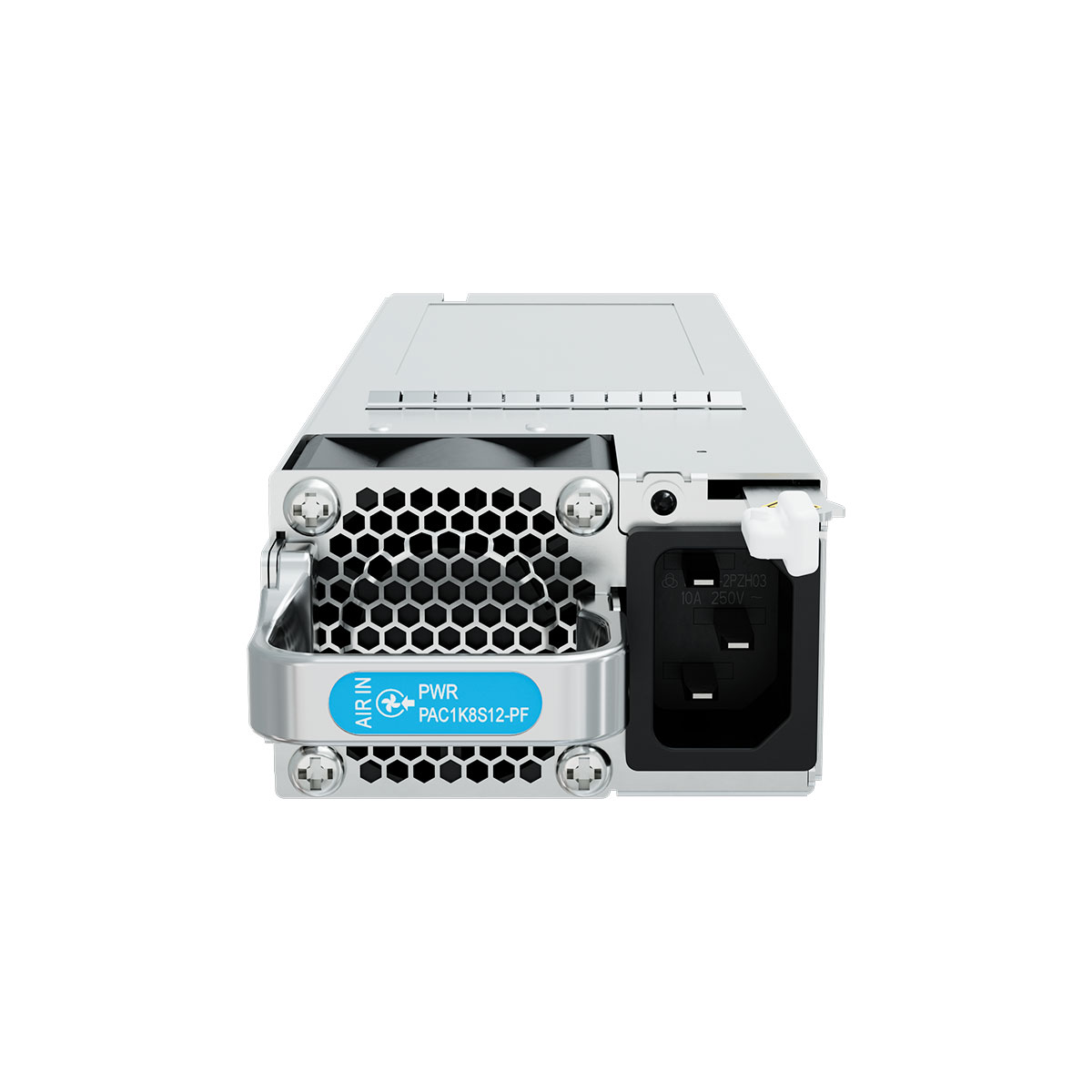

Huawei PAC1K8S12-PF with 1800 W AC&240 V DC Power Module apply to CloudEngine 8800 and 6800 Series Switches.
Mappings between PAC1K8S12-PF and product models
| Product | Product Model | First Supported Version |
|---|---|---|
| CloudEngine 8800 | CE8865-4C (02355RTA) | V300R023C10 |
| CloudEngine 8800 | CE8865-4C (02355RTB) | V300R023C10 |
| CloudEngine 8800 | CE8865-4C (02355RTC) | V300R023C10 |
| CloudEngine 8800 | CE8865-SAN-4C (02355SDP) | V300R023C10 |
| CloudEngine 8800 | CE8865-SAN-4C (02355SDQ) | V300R023C10 |
| CloudEngine 8800 | CE8865-SAN-4C (02355SDR) | V300R023C10 |

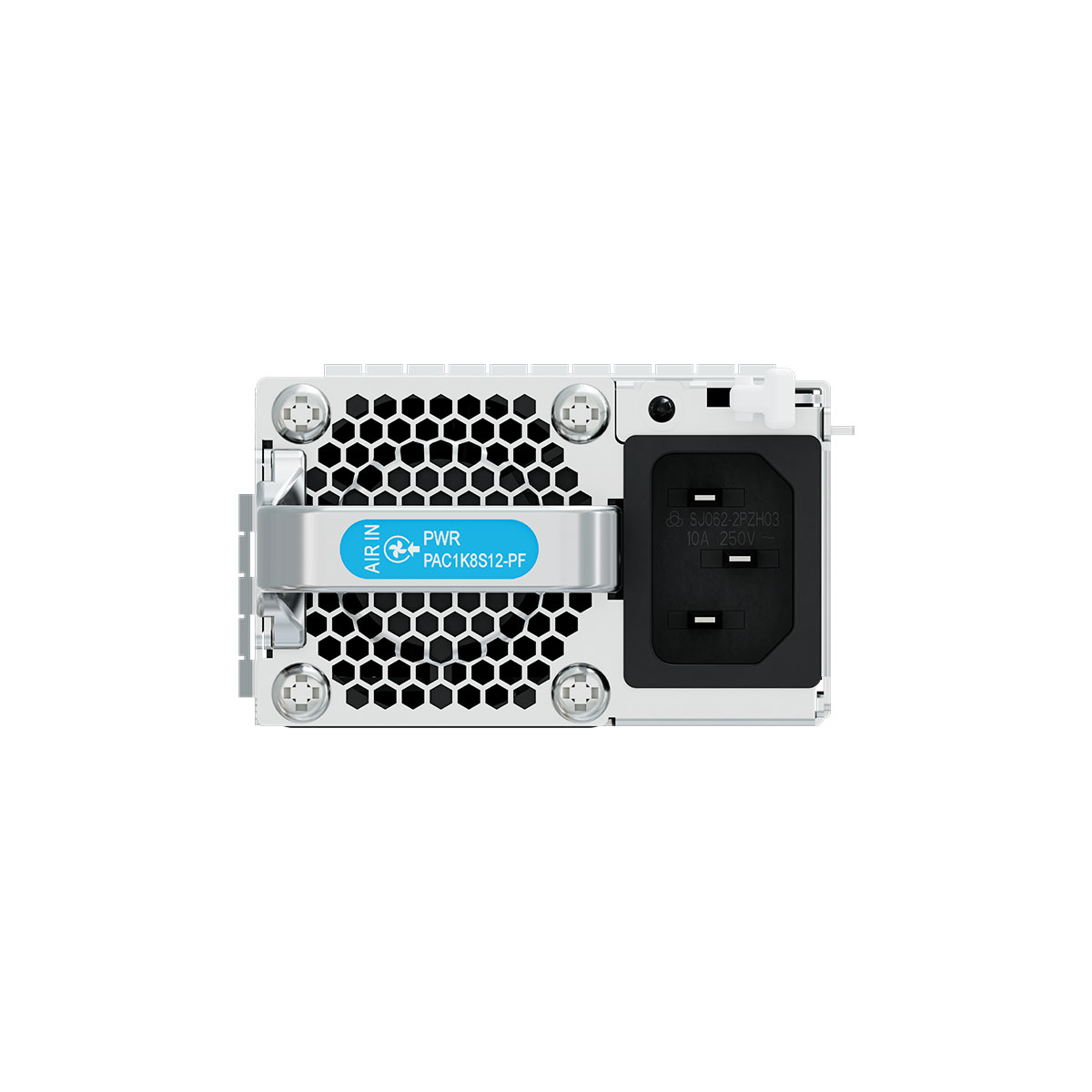

Front Panel
|
1. Handle NOTE: Each power module is delivered with a velcro strap on the handle. This velcro strap is used to strap the power cable to the handle. |
2. Airflow flag
|
3. Air vent |
4. Indicator |
|
5. Power socket |
6. Lock |
– |
– |
: back-to-front airflow
: front-to-back airflow
Functions of the PAC1K8S12-PF
| Functions | Description |
|---|---|
| Input overvoltage protection and undervoltage protection | In this protection state, the power module stops supplying power. When the input voltage restores to the normal range, the power module automatically resumes power supply. |
| Output overvoltage protection | In this protection state, the power module stops supplying power intermittently. When the system recovers from output overvoltage, the power module cannot automatically resume power supply. |
| Output overcurrent protection | In this protection state, the power module supplies power intermittently. When the output current is limited within a range, the power module cannot automatically resume power supply. |
| Output short-circuit protection | In this protection state, the power module supplies power intermittently. When the short circuit is removed, the power module cannot automatically resume power supply. |
| Overtemperature protection | When the temperature of the power module exceeds a specified threshold, the power module stops supplying power. When the temperature falls into the normal range, the power module automatically resumes power supply. |
| Heat dissipation | Front-to-back airflow |
| Hot swapping | The power module is hot swappable. |
