PAC2KS12-PB

0 Reviews Write a review
PN02314LFR
AvailabilityIn Stock
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

Huawei PAC2KS12-PB supports 2000W AC&240V DC Power Module (Back to Front, Power panel side exhaust)

Description

PAC2KS12-PB Overview

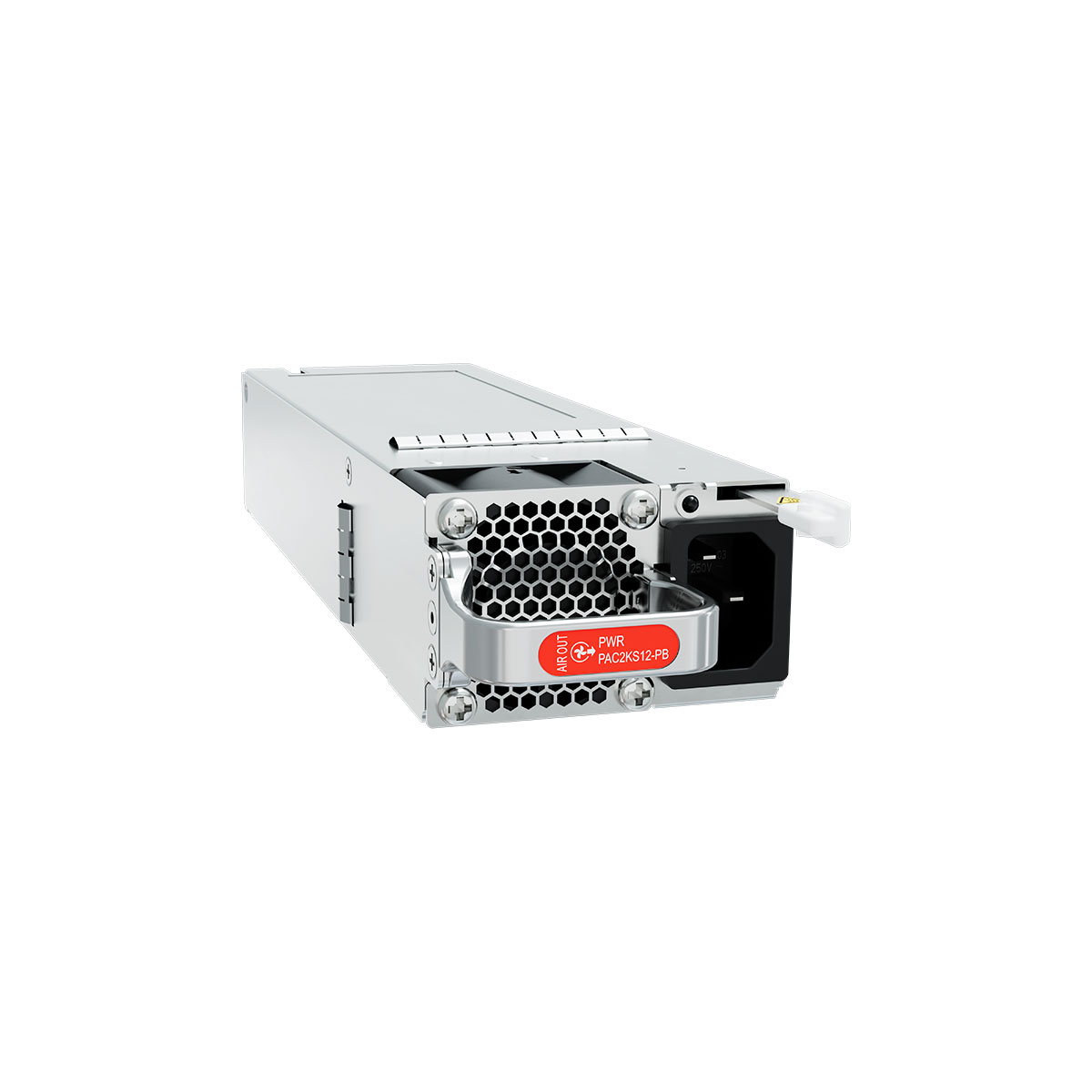

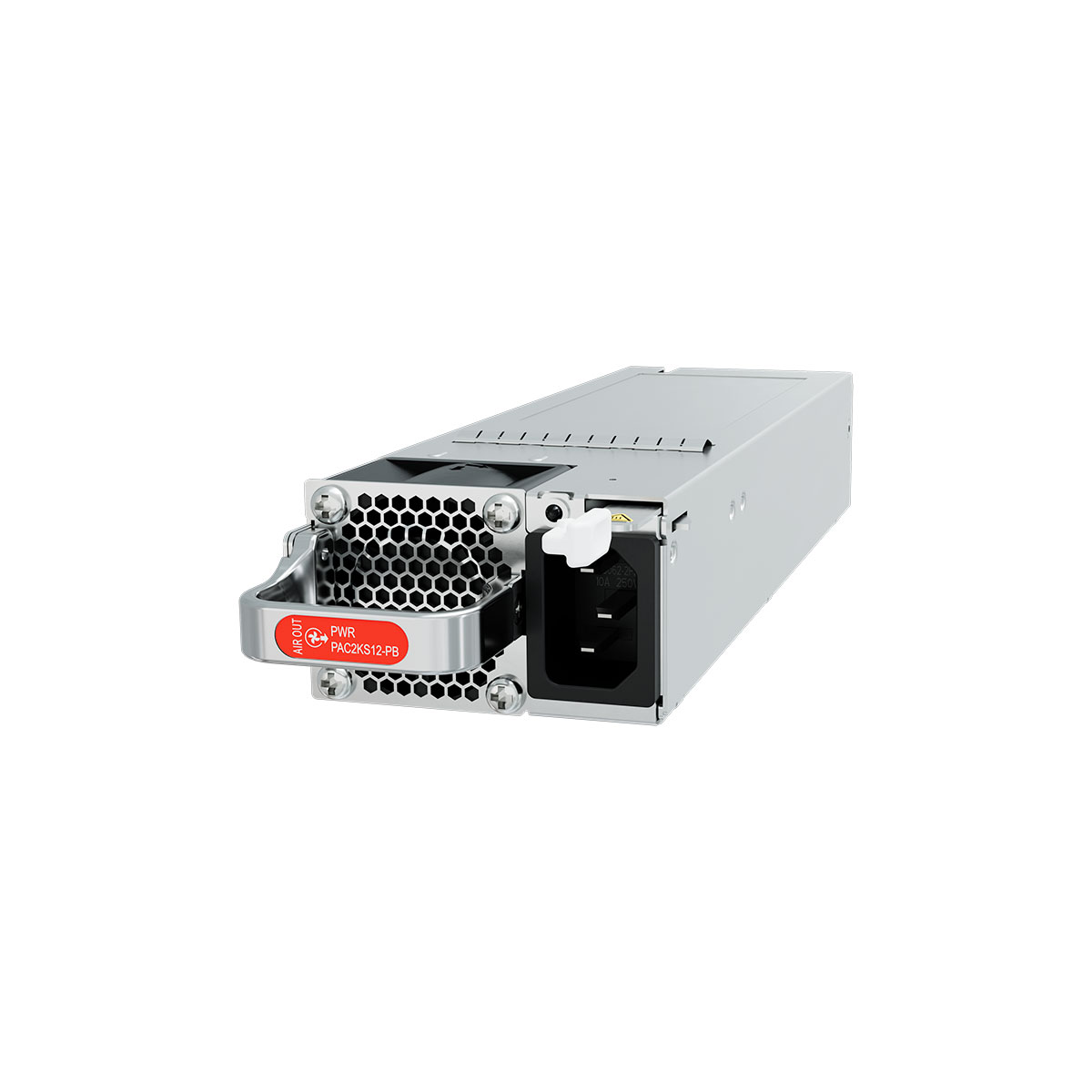

Huawei PAC2KS12-PB with 2000W AC&240V DC Power Module (Back to Front, Power panel side exhaust) apply to CloudEngine XH9000 and XH8000 Series Switches.



Mappings between PAC2KS12-PB and product models

Product Product Model First Supported Version
CloudEngine XH8000 XH8210-32DQ (02355YSQ) V300R023C11
CloudEngine XH8000 XH8210-32DQ (02355YSR) V300R023C11
CloudEngine XH9000 XH9210-32DQ (02355YST) V300R023C11
CloudEngine XH9000 XH9210-32DQ (02355YSU) V300R023C11

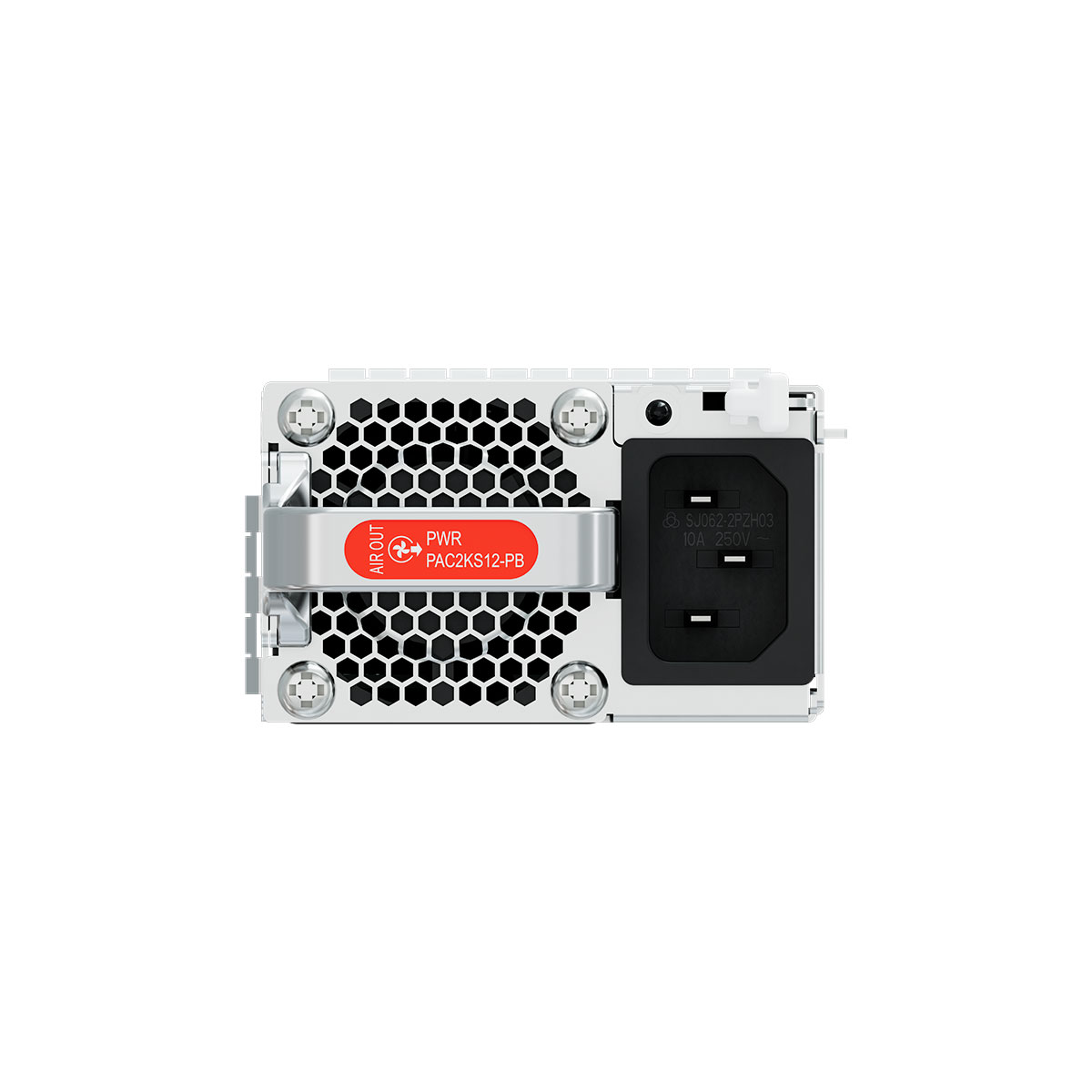

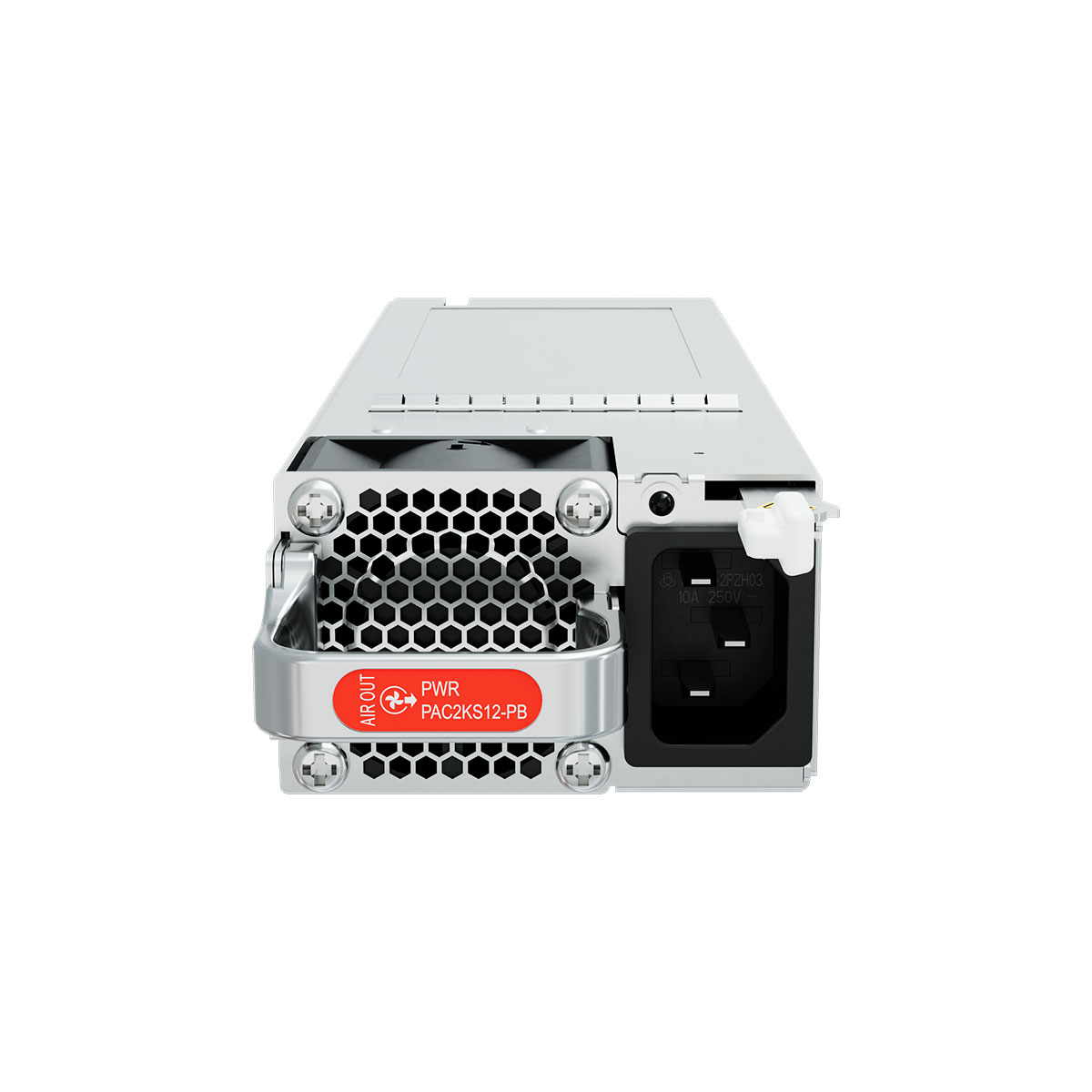

Front Panel

PAC2KS12 PB

1. Handle 2. Airflow flag 3. Air vent 4. Indicator

5. Power socket

6. Lock



Functions of the PAC2KS12-PB

Functions Description
Input overvoltage protection and undervoltage protection In this protection state, the power module stops supplying power. When the input voltage restores to the normal range, the power module automatically resumes power supply.
Output overvoltage protection In this protection state, the power module stops supplying power intermittently. When the system recovers from output overvoltage, the power module cannot automatically resume power supply.
Output overcurrent protection In this protection state, the power module supplies power intermittently. When the output current is limited within a range, the power module cannot automatically resume power supply.
Output short-circuit protection In this protection state, the power module supplies power intermittently. When the short circuit is removed, the power module cannot automatically resume power supply.
Overtemperature protection When the temperature of the power module exceeds a specified threshold, the power module stops supplying power. When the temperature falls into the normal range, the power module automatically resumes power supply.
Heat dissipation Back-to-front airflow
Hot swapping The power module is hot swappable.



Item PAC2KS12-PB
Number of inputs 1
Number of outputs 1
Rated input voltage [V] 100 V AC to 240 V AC, 50 Hz/60 Hz 240 V DC
Maximum Input voltage [V] 90 V AC to 290 V AC; 45 Hz to 66 Hz 190 V DC to 290 V DC
Rated input current [A] 10 A (100 V AC to 240 V AC) 10 A (240 V DC)
Rated output voltage [V] 12 V
Rated output current [A] 166.7 A (220 V AC to 240 V AC&240 V DC) 150 A (200 V AC to 220 V AC) 75 A (100 V AC to 130 V AC)
Rated output power [W] 2000 W (220 V AC to 240 V AC&240 V DC) 1800 W (200 V AC to 220 V AC) 900 W (100 V AC to 130 V AC)
Dimensions without packaging (H x W x D) [mm (in.)] 39.6 mm x 66.0 mm x 215.0 mm (1.56 in. x 2.6 in. x 8.46 in.)
Weight without packaging [kg (lb)] 1 kg (2.20 lb)

Additional information

Brand
Lead Time
Ship From
Item PAC2KS12-PB
Number of inputs 1
Number of outputs 1
Rated input voltage [V] 100 V AC to 240 V AC, 50 Hz/60 Hz 240 V DC
Maximum Input voltage [V] 90 V AC to 290 V AC; 45 Hz to 66 Hz 190 V DC to 290 V DC
Rated input current [A] 10 A (100 V AC to 240 V AC) 10 A (240 V DC)
Rated output voltage [V] 12 V
Rated output current [A] 166.7 A (220 V AC to 240 V AC&240 V DC) 150 A (200 V AC to 220 V AC) 75 A (100 V AC to 130 V AC)
Rated output power [W] 2000 W (220 V AC to 240 V AC&240 V DC) 1800 W (200 V AC to 220 V AC) 900 W (100 V AC to 130 V AC)
Dimensions without packaging (H x W x D) [mm (in.)] 39.6 mm x 66.0 mm x 215.0 mm (1.56 in. x 2.6 in. x 8.46 in.)
Weight without packaging [kg (lb)] 1 kg (2.20 lb)
