PAC600S12-EF

0 Reviews Write a review
PN02313RMT
AvailabilityIn Stock
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

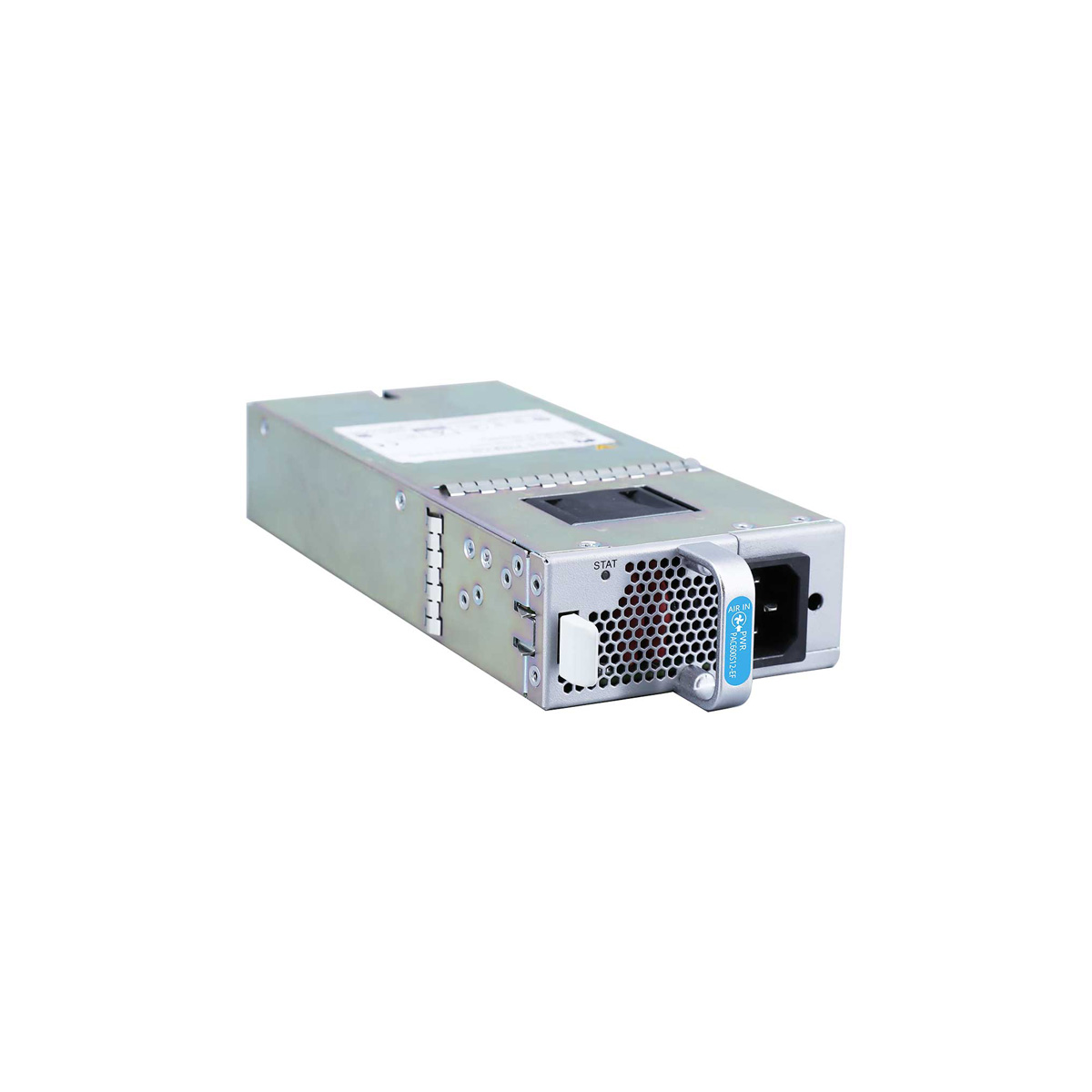

Huawei PAC600S12-EF supports 600W AC Power Module

Description

PAC600S12-EF Overview



Huawei PAC600S12-EF with 600W AC Power Module apply to CloudEngine 8800 and 6800 Series Switches.



Mappings between PAC600S12-EF and product models

Product Product Model First Supported Version
CloudEngine 6800 CE6820H-48S6CQ (02354FTG) V300R021C10
CloudEngine 6800 CE6820H-48S6CQ (02354FTG-002) V300R022C00
CloudEngine 6800 CE6820H-48S6CQ (02354FTG-003) V300R022C00
CloudEngine 6800 CE6820H-48S6CQ (02354FTK) V300R021C10
CloudEngine 6800 CE6820H-48S6CQ (02354FTK-002) V300R022C00
CloudEngine 6800 CE6820H-48S6CQ (02354FTK-003) V300R022C00
CloudEngine 6800 CE6820H-48S6CQ (02354FTL) V300R021C10
CloudEngine 6800 CE6820H-48S6CQ (02354FTL-002) V300R022C00
CloudEngine 6800 CE6820H-48S6CQ (02354FTL-003) V300R022C00
CloudEngine 6800 CE6820H-48S6CQ-K (02354VTE) V300R022C00
CloudEngine 6800 CE6820H-48S6CQ-K (02354VTF) V300R022C00
CloudEngine 6800 CE6820H-48S6CQ-K (02354VTG) V300R022C00
CloudEngine 6800 CE6820S-48S6CQ (02354WAW) V300R022C00
CloudEngine 6800 CE6820S-48S6CQ (02354WAX) V300R022C00
CloudEngine 6800 CE6820S-48S6CQ (02354WAY) V300R022C00
CloudEngine 6800 CE6860-HAM (02354WBA) V300R022C00
CloudEngine 6800 CE6860-HAM (02354WBB) V300R022C00
CloudEngine 6800 CE6860-HAM (02354WBC) V300R022C00
CloudEngine 6800 CE6860-SAN (02354FPM) V300R021C00SPC200
CloudEngine 6800 CE6860-SAN (02354FPM-001) V300R022C00
CloudEngine 6800 CE6860-SAN (02354FPN) V300R021C00SPC200
CloudEngine 6800 CE6860-SAN (02354FPN-001) V300R022C00
CloudEngine 6800 CE6860-SAN (02354FPP) V300R021C00SPC200
CloudEngine 6800 CE6860-SAN (02354FPP-001) V300R022C00
CloudEngine 6800 CE6863H-48S6CQ (02354LMA) V300R021C10
CloudEngine 6800 CE6863H-48S6CQ (02354LMA-001) V300R021C10
CloudEngine 6800 CE6863H-48S6CQ (02354LMA-002) V300R021C10
CloudEngine 6800 CE6863H-48S6CQ (02354LMA-003) V300R021C10
CloudEngine 6800 CE6863H-48S6CQ (02354LMB) V300R021C10
CloudEngine 6800 CE6863H-48S6CQ (02354LMB-001) V300R021C10
CloudEngine 6800 CE6863H-48S6CQ (02354LMB-002) V300R021C10
CloudEngine 6800 CE6863H-48S6CQ (02354LMB-003) V300R021C10
CloudEngine 6800 CE6863H-48S6CQ (02354LMC) V300R021C10
CloudEngine 6800 CE6863H-48S6CQ (02354LMC-001) V300R021C10
CloudEngine 6800 CE6863H-48S6CQ (02354LMC-002) V300R021C10
CloudEngine 6800 CE6863H-48S6CQ (02354LMC-003) V300R021C10
CloudEngine 6800 CE6863H-48S6CQ-K (02354VTA) V300R021C10
CloudEngine 6800 CE6863H-48S6CQ-K (02354VTB) V300R021C10
CloudEngine 6800 CE6863H-48S6CQ-K (02354VTC) V300R021C10
CloudEngine 6800 CE6866-48S8CQ-K (02353PJM) V300R021C00SPC200
CloudEngine 6800 CE6866-48S8CQ-K (02353PJM-001) V300R022C00
CloudEngine 6800 CE6866-48S8CQ-K (02353PJN) V300R021C00SPC200
CloudEngine 6800 CE6866-48S8CQ-K (02353PJN-001) V300R022C00
CloudEngine 6800 CE6866-48S8CQ-P (02353EGL) V300R021C00SPC200
CloudEngine 6800 CE6866-48S8CQ-P (02353EGL-001) V300R021C00SPC200
CloudEngine 6800 CE6866-48S8CQ-P (02353EGL-002) V300R022C00
CloudEngine 6800 CE6866-48S8CQ-P (02353EGM) V300R021C00SPC200
CloudEngine 6800 CE6866-48S8CQ-P (02353EGM-001) V300R021C00SPC200
CloudEngine 6800 CE6866-48S8CQ-P (02353EGM-002) V300R022C00
CloudEngine 6800 CE6866-48S8CQ-P (02353EGN) V300R021C00SPC200
CloudEngine 6800 CE6866-48S8CQ-P (02353EGN-001) V300R021C00SPC200
CloudEngine 6800 CE6866-48S8CQ-P (02353EGN-002) V300R022C00
CloudEngine 6800 CE6881H-48S6CQ (02354LLV) V300R022C00
CloudEngine 6800 CE6881H-48S6CQ (02354LLV-001) V300R022C00
CloudEngine 6800 CE6881H-48S6CQ (02354LLW) V300R022C00
CloudEngine 6800 CE6881H-48S6CQ (02354LLW-001) V300R022C00
CloudEngine 6800 CE6881H-48S6CQ (02354LLY) V300R022C00
CloudEngine 6800 CE6881H-48S6CQ (02354LLY-001) V300R022C00
CloudEngine 6800 CE6881H-48S6CQ-K (02354VSS) V300R022C00
CloudEngine 6800 CE6881H-48S6CQ-K (02354VST) V300R022C00
CloudEngine 6800 CE6881H-48S6CQ-K (02354VSU) V300R022C00
CloudEngine 6800 CE6881H-48T6CQ (02354VNR) V300R022C00
CloudEngine 6800 CE6881H-48T6CQ (02354VNR-001) V300R022C00
CloudEngine 6800 CE6881H-48T6CQ (02354VNR-002) V300R022C10
CloudEngine 6800 CE6881H-48T6CQ (02354VNS) V300R022C00
CloudEngine 6800 CE6881H-48T6CQ (02354VNS-001) V300R022C00
CloudEngine 6800 CE6881H-48T6CQ (02354VNS-002) V300R022C10
CloudEngine 6800 CE6881H-48T6CQ (02354VNT) V300R022C00
CloudEngine 6800 CE6881H-48T6CQ (02354VNT-001) V300R022C00
CloudEngine 6800 CE6881H-48T6CQ (02354VNT-002) V300R022C10
CloudEngine 6800 CE6881H-48T6CQ-K (02354VSV) V300R022C00
CloudEngine 6800 CE6881H-48T6CQ-K (02354VSW) V300R022C00
CloudEngine 6800 CE6881H-48T6CQ-K (02354VSX) V300R022C00



Front Panel

PAC600S12 EF



Ports on the PAC600S12-EF

Port Description
Power cable port C13 power cable port



Functions of the PAC600S12-EF

Functions Description
Input overvoltage protection and undervoltage protection In this protection state, the power module stops supplying power. When the input voltage restores to the normal range, the power module automatically resumes power supply.
Input overcurrent protection In this protection state, the power module stops supplying power and cannot automatically resume power supply when the input current restores to the normal range.
Output overvoltage protection In this protection state, the power adapter stops supplying power intermittently. When the output voltage restores to the normal range, the power adapter automatically resumes power supply.
Output overcurrent protection In this protection state, the power module supplies power intermittently. When the output current is limited within a range, the power module automatically resumes power supply.
Output short-circuit protection In this protection state, the power module supplies power intermittently. When the short circuit is removed, the power module automatically resumes power supply.
Overtemperature protection When the temperature of the power module exceeds a specified threshold, the power module stops supplying power. When the temperature falls into the normal range, the power module automatically resumes power supply.
Heat dissipation Front-to-back airflow
Hot swapping The power module is hot swappable.



Item PAC600S12-EF
Number of inputs 1
Number of outputs 1
Rated input voltage [V] 100 V AC to 240 V AC, 50 Hz/60 Hz 240 V DC
Maximum Input voltage [V] AC: 90–290 V AC; 45–65 Hz High-voltage DC: 190 V DC to 290 V DC
Rated input current [A] 8 A (100 V AC to 240 V AC) ; 4 A (240 V DC)
Rated output voltage [V] 12 V
Rated output current [A] 50A
Rated output power [W] 600W
Dimensions without packaging (H x W x D) [mm (in.)] 40.0 mm x 90.0 mm x 205.0 mm (1.57 in. x 3.54 in. x 8.07 in.)
Weight without packaging [kg (lb)] 0.985 kg (2.17 lb)
Weight with packaging [kg (lb)] 1 kg (2.20 lb)

Additional information

Brand
Lead Time
Ship From
Item PAC600S12-EF
Number of inputs 1
Number of outputs 1
Rated input voltage [V] 100 V AC to 240 V AC, 50 Hz/60 Hz 240 V DC
Maximum Input voltage [V] AC: 90–290 V AC; 45–65 Hz High-voltage DC: 190 V DC to 290 V DC
Rated input current [A] 8 A (100 V AC to 240 V AC) ; 4 A (240 V DC)
Rated output voltage [V] 12 V
Rated output current [A] 50A
Rated output power [W] 600W
Dimensions without packaging (H x W x D) [mm (in.)] 40.0 mm x 90.0 mm x 205.0 mm (1.57 in. x 3.54 in. x 8.07 in.)
Weight without packaging [kg (lb)] 0.985 kg (2.17 lb)
Weight with packaging [kg (lb)] 1 kg (2.20 lb)
