PAC600S12-PB Overview

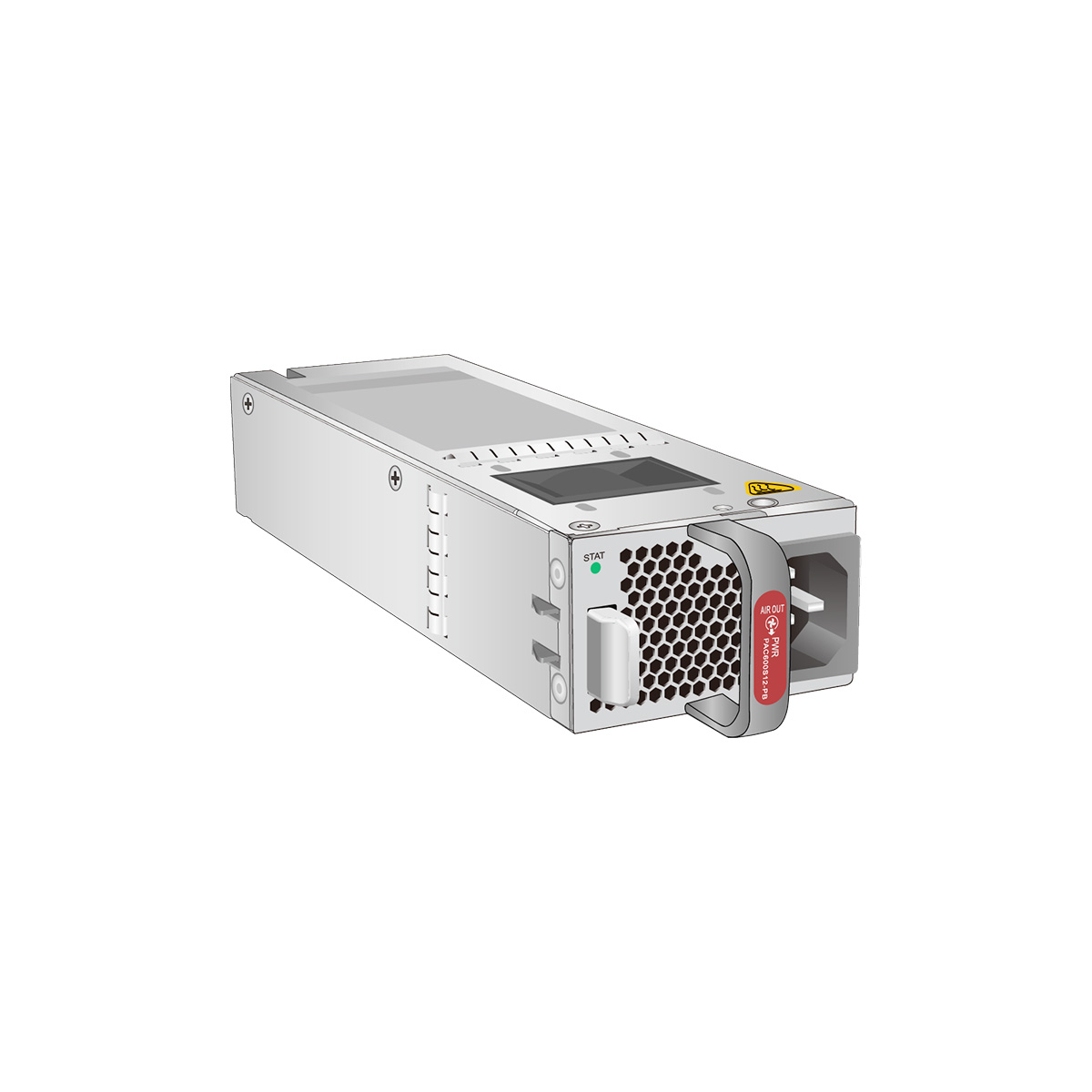

HuaWei  PAC600S12-PB support 600W AC &240 V DC Power Module(66 mm Width Case, Back to Front, Power panel side exhaust)



Mappings between PAC600S12-PB and product models

Product Product Model First Supported Version Limitations
S6730-H-V2 S6730-H28X6CZ-TV2 (02354VCS) V600R022C00
S6730-H-V2 S6730-H28X6CZ-TV2 (02354VUG) V600R022C00
S6730-H-V2 S6730-H28X6CZ-V2 (02354VCR) V600R022C00
S6730-H-V2 S6730-H28X6CZ-V2 (02354VUF) V600R022C00
S6730-H-V2 S6730-H48X6CZ-TV2 (02354VCQ) V600R022C00
S6730-H-V2 S6730-H48X6CZ-TV2 (02354VUE) V600R022C00
S6730-H-V2 S6730-H48X6CZ-V2 (02354VCP) V600R022C00
S6730-H-V2 S6730-H48X6CZ-V2 (02354VUD) V600R022C00
S6750-H S6750-H48Y8C (02355UEL) V600R023C10
S6750-H S6750-H48Y8C (02355UEL-001) V600R023C10



Front Panel

PAC600S12-PB

1. Lock

2. Indicator

3. Fan air vent

4. Handle

5. Airflow flag (air out)

6. AC power socket

Item PAC600S12-PB
Rated input voltage [V]
  • AC input: 100 V to 240 V, 50 Hz/60 Hz
  • High-voltage DC input: 240 V DC
Input voltage range [V]
  • AC input: 90 V to 290 V, 45 Hz to 65 Hz
  • High-voltage DC input: 190 V DC to 290 V DC
Maximum input current [A] 100 V AC to 240 V AC: 8 A 240 V DC: 4 A
Rated output voltage [V] 12 V
Rated output current [A] 50 A
Rated output power [W] 600 W
Power dissipation Mode Heat dissipation with fan
Hot swapping Supported
Dimensions without packaging (H x W x D) [mm(in.)] 39.6 mm x 66.0 mm x 215 mm (1.56 in. x 2.6 in. x 8.46 in.)
Weight without packaging [kg(lb)] 1 kg (2.20 lb)
Number of inputs 1

Additional information

Item PAC600S12-PB
Rated input voltage [V]
  • AC input: 100 V to 240 V, 50 Hz/60 Hz
  • High-voltage DC input: 240 V DC
Input voltage range [V]
  • AC input: 90 V to 290 V, 45 Hz to 65 Hz
  • High-voltage DC input: 190 V DC to 290 V DC
Maximum input current [A] 100 V AC to 240 V AC: 8 A 240 V DC: 4 A
Rated output voltage [V] 12 V
Rated output current [A] 50 A
Rated output power [W] 600 W
Power dissipation Mode Heat dissipation with fan
Hot swapping Supported
Dimensions without packaging (H x W x D) [mm(in.)] 39.6 mm x 66.0 mm x 215 mm (1.56 in. x 2.6 in. x 8.46 in.)
Weight without packaging [kg(lb)] 1 kg (2.20 lb)
Number of inputs 1
