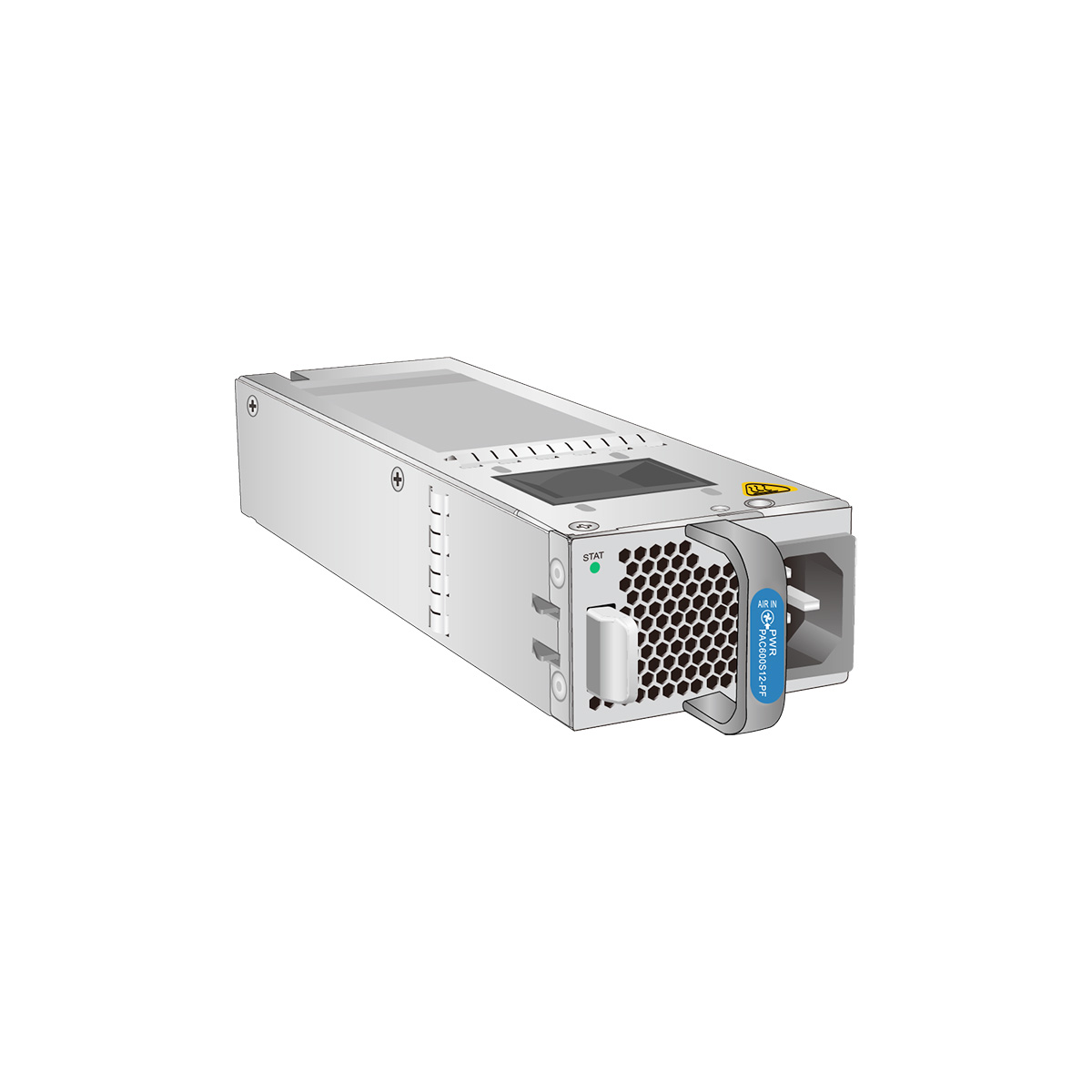

PAC600S12-PF
Categories:

PAC600S12-PF

0 Reviews Write a review
PN02313BUW
AvailabilityIn Stock
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

HuaWei PAC600S12-PF support 600W AC Power Module Front to Back, Power panel side intake

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

PAC600S12-PF Overview



HuaWei PAC600S12-PF support 600W AC Power Module Front to Back, Power panel side intake



Mappings between PAC600S12-PF and product models

Product Product Model First Supported Version Limitations
CloudEngine 6800 CE6870-48S6CQ-EI-A (02354VSK) V200R022C00 –
CloudEngine 6800 CE6870-48S6CQ-EI-A (02354VSJ) V200R022C00 –
CloudEngine 6800 CE6870-48S6CQ-EI-A (02354VSH) V200R022C00 –



Front Panel

PAC600S12-PF

1. Lock

2. Indicator

3. Air vent

4. Handle

NOTE:

Each power module is delivered with a velcro strap on the handle. This velcro strap is used to strap the power cable to the handle.

5. Airflow flag

  • back-to-front airflow
  • front-to-back airflow

6. Power socket

–

–
Show More Show Less
Item PAC600S12-PF
Number of inputs 1
Rated input voltage [V] 100 V AC to 240 V AC, 50 Hz/60 Hz 240 V DC
Maximum Input voltage [V] AC: 90–290 V AC; 45–65 Hz High-voltage DC: 190 V DC to 290 V DC
Rated input current [A] 8 A (100 V AC to 240 V AC) ; 4 A (240 V DC)
Rated output voltage [V] 12 V
Rated output current [A] 50A
Rated output power [W] 600W
Hot swapping Supported
Dimensions without packaging (H x W x D) [mm (in.)] 39.6 mm x 66 mm x 215 mm (1.56 in. x 2.6 in. x 8.46 in.)
Weight without packaging [kg (lb)] 1 kg (2.20 lb)
Weight with packaging [kg (lb)] 1 kg (2.20 lb)

Additional information

Brand
Lead Time
Ship From
Warranty
Item PAC600S12-PF
Number of inputs 1
Rated input voltage [V] 100 V AC to 240 V AC, 50 Hz/60 Hz 240 V DC
Maximum Input voltage [V] AC: 90–290 V AC; 45–65 Hz High-voltage DC: 190 V DC to 290 V DC
Rated input current [A] 8 A (100 V AC to 240 V AC) ; 4 A (240 V DC)
Rated output voltage [V] 12 V
Rated output current [A] 50A
Rated output power [W] 600W
Hot swapping Supported
Dimensions without packaging (H x W x D) [mm (in.)] 39.6 mm x 66 mm x 215 mm (1.56 in. x 2.6 in. x 8.46 in.)
Weight without packaging [kg (lb)] 1 kg (2.20 lb)
Weight with packaging [kg (lb)] 1 kg (2.20 lb)
