PDC1000S12-DF

0 Reviews Write a review
PN02312QJL
AvailabilityIn Stock
CE Switch Power Module
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

Original price was: $0.00.Current price is: $0.00.

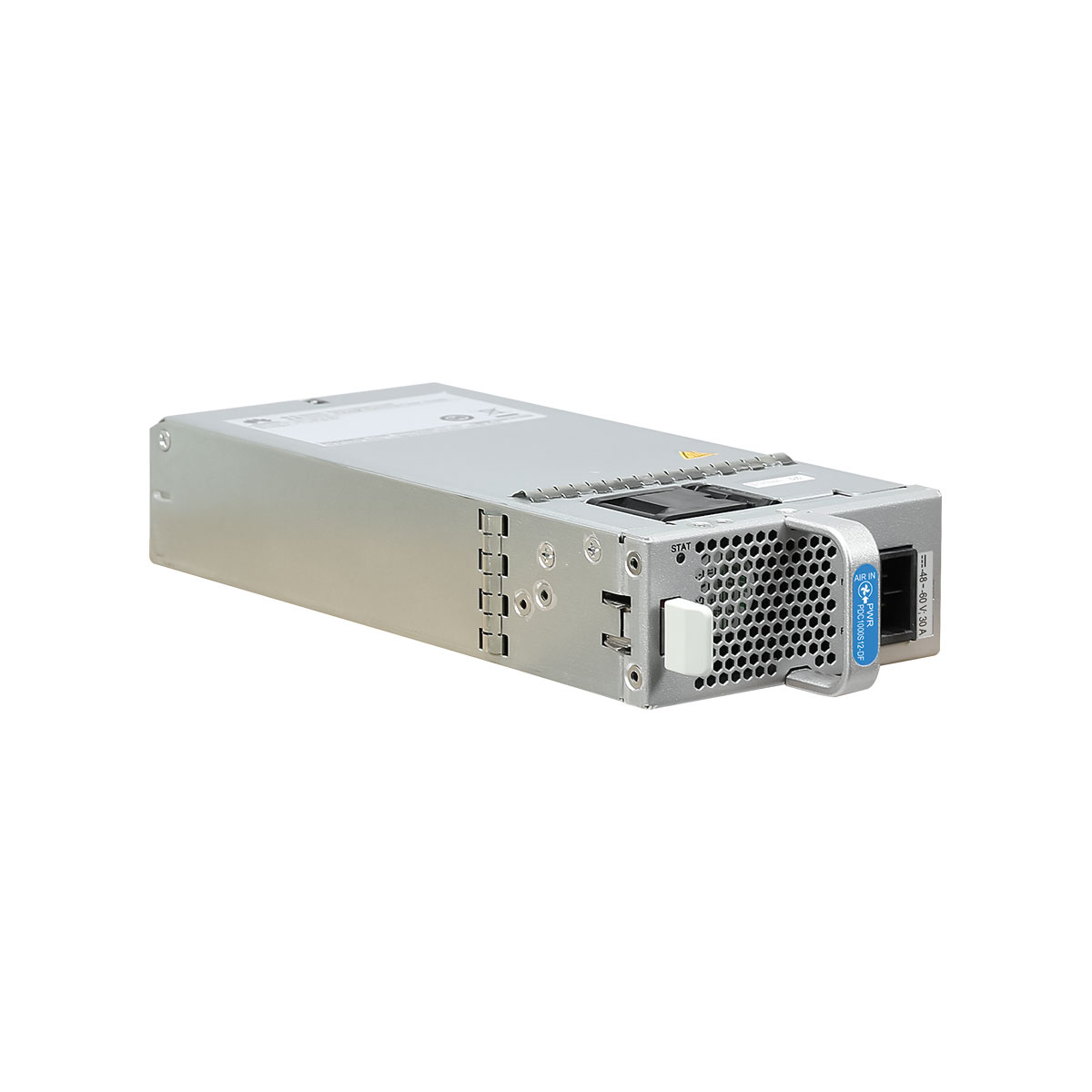

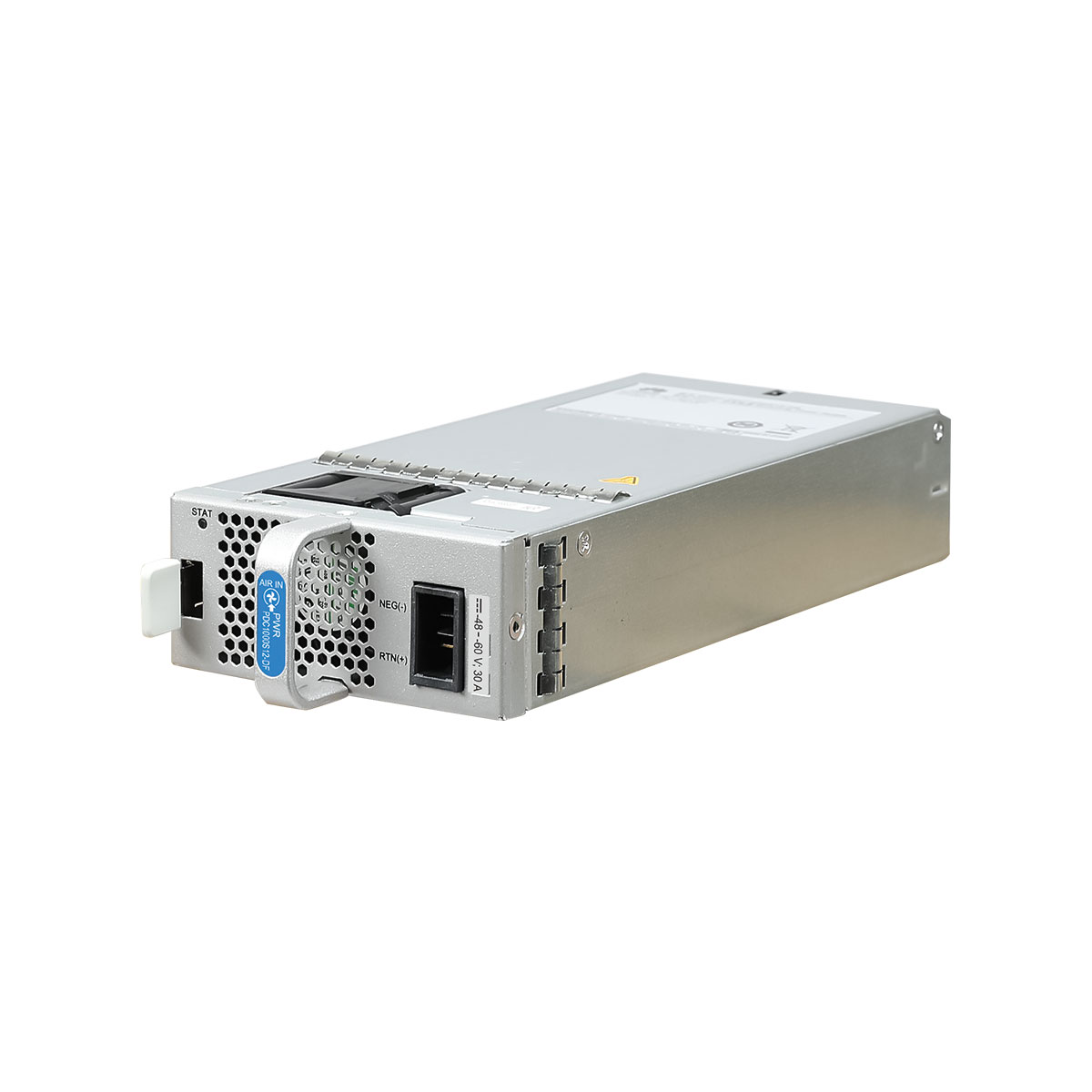

Huawei PDC1000S12-DF supports 1000W DC Power Module apply to Huawei CE6800 series switches

Description

PDC1000S12-DF Overview

Huawei PDC1000S12-DF with 1000W DC Power Module apply to Huawei CE6800 series switches



Mappings between PDC1000S12-DF and product models
Product Product Model First Supported Version
CloudEngine 6800 CE6866-48S8CQ-P V300R020C00
CloudEngine 6800 CE6866-48S8CQ-K V300R020C00
CloudEngine 6800 CE6860-SAN V300R020C10SPC200
CloudEngine 6800 CE6820H-48S6CQ V300R021C00SPC100

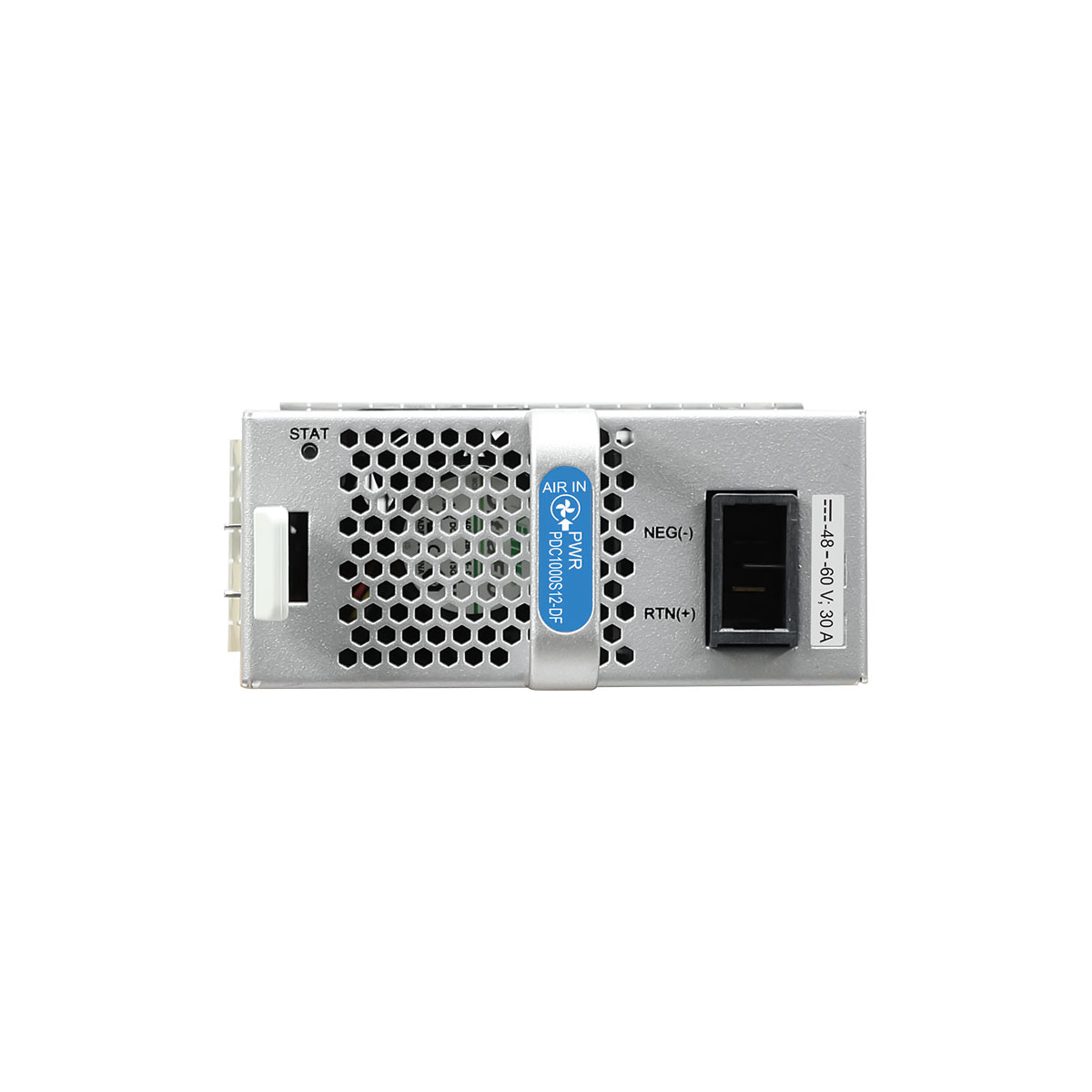

Front Panel



Function of the PDC1000S12-DF
Function Description
Input overvoltage protection and undervoltage protection In either of the two protection states, the power module stops supplying power. When the input voltage restores to the normal range, the power module automatically resumes power supply.
Input overcurrent protection In this protection state, the power module stops supplying power and cannot automatically resume power supply when the input current restores to the normal range.
Output overvoltage protection In this protection state, the power module stops supplying power intermittently. When the system recovers from output overvoltage, the power module automatically resumes power supply.
Output overcurrent protection In this protection state, the power module supplies power intermittently. When the output current is limited within a range, the power module automatically resumes power supply.
Output short-circuit protection In this protection state, the power module supplies power intermittently. When the short circuit is removed, the power module automatically resumes power supply.
Overtemperature protection When the temperature of the power module exceeds a specified threshold, the power module stops supplying power. When the temperature falls into the normal range, the power module automatically resumes power supply.
Heat dissipation front-to-back airflow
Item Specification
Rated input voltage [V] -48 V DC to -60 V DC
Maximun Input voltage [V] -38.4 V DC to -72 V DC
Rated input current [A] 30 A
Rated output voltage [V] 12 V
Rated output current [A] 83.3 A
Rated output power [W] 1000 W
Hot swapping Supported
Dimensions without packaging (H x W x D) [mm (in.)] 39.6 mm x 90 mm x 214.5mm (1.6 in. x 3.5 in. x 8.4 in.)
Weight without packaging [kg (lb)] 0.86 kg (1.70 lb)

Additional information

Brand

Huawei

Lead Time

3-5 days

Ship From

Shenzhen Warehouse

CE Switch

Item Specification
Rated input voltage [V] -48 V DC to -60 V DC
Maximun Input voltage [V] -38.4 V DC to -72 V DC
Rated input current [A] 30 A
Rated output voltage [V] 12 V
Rated output current [A] 83.3 A
Rated output power [W] 1000 W
Hot swapping Supported
Dimensions without packaging (H x W x D) [mm (in.)] 39.6 mm x 90 mm x 214.5mm (1.6 in. x 3.5 in. x 8.4 in.)
Weight without packaging [kg (lb)] 0.86 kg (1.70 lb)
