PDC1K2S12-CE

0 Reviews Write a review
AvailabilityIn Stock
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

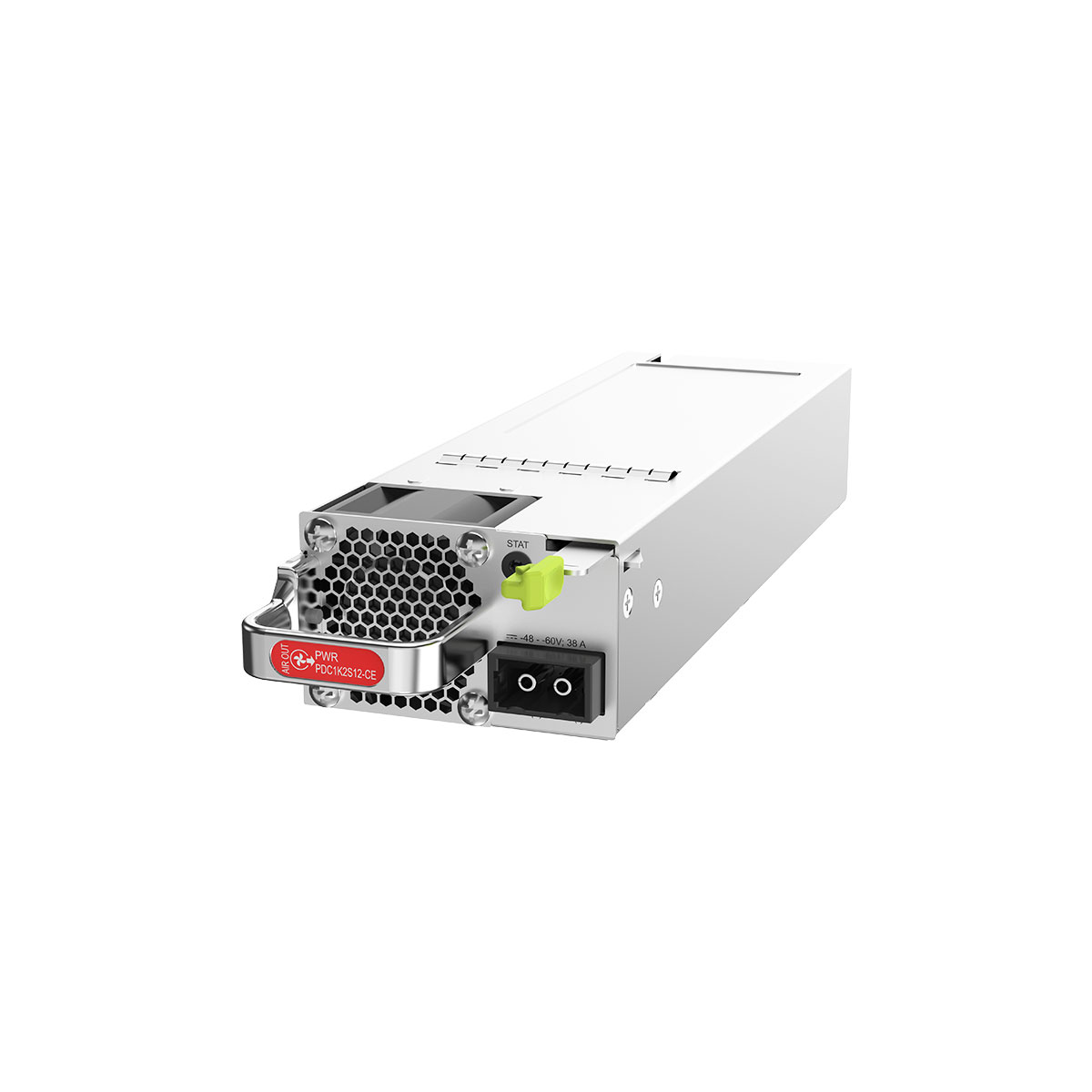

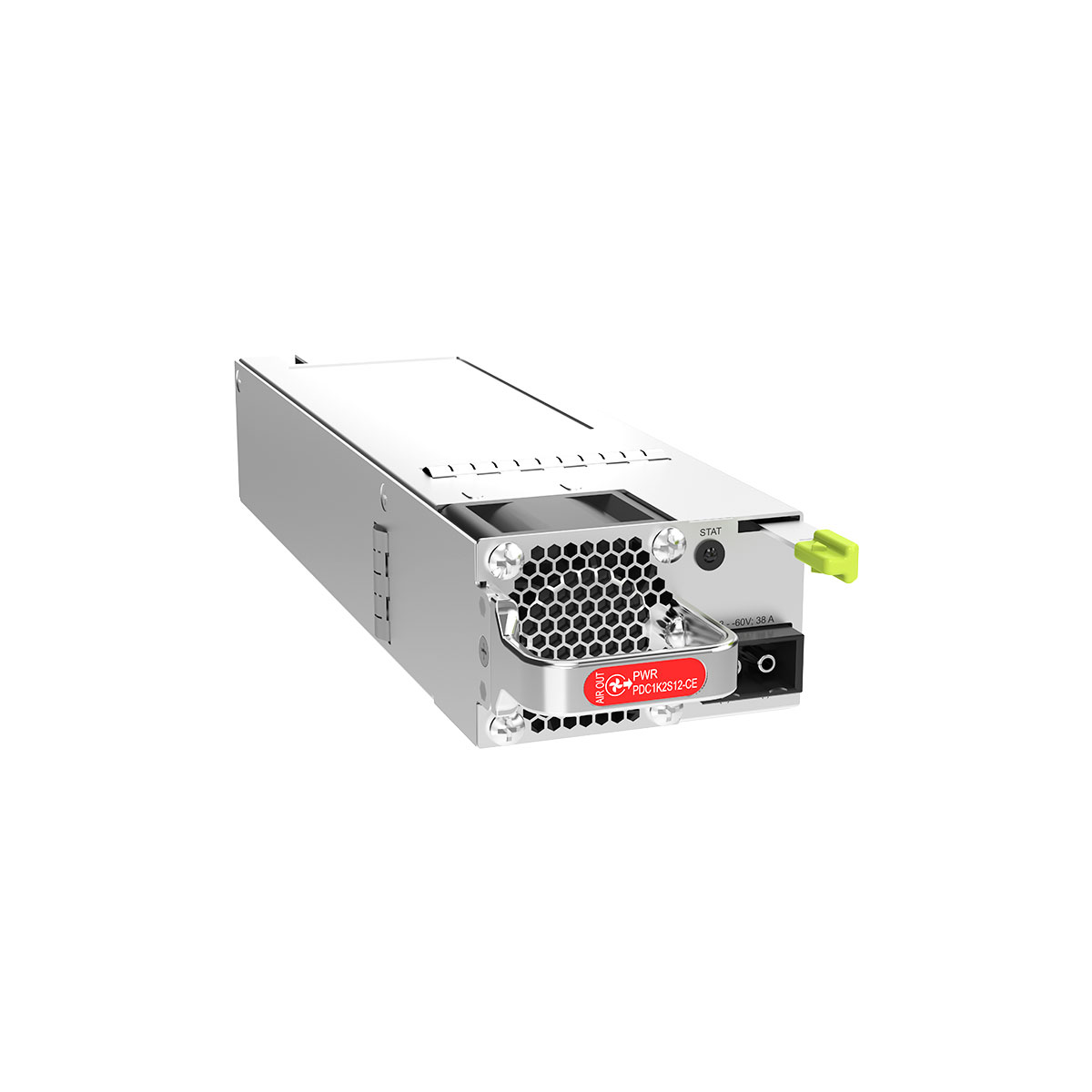

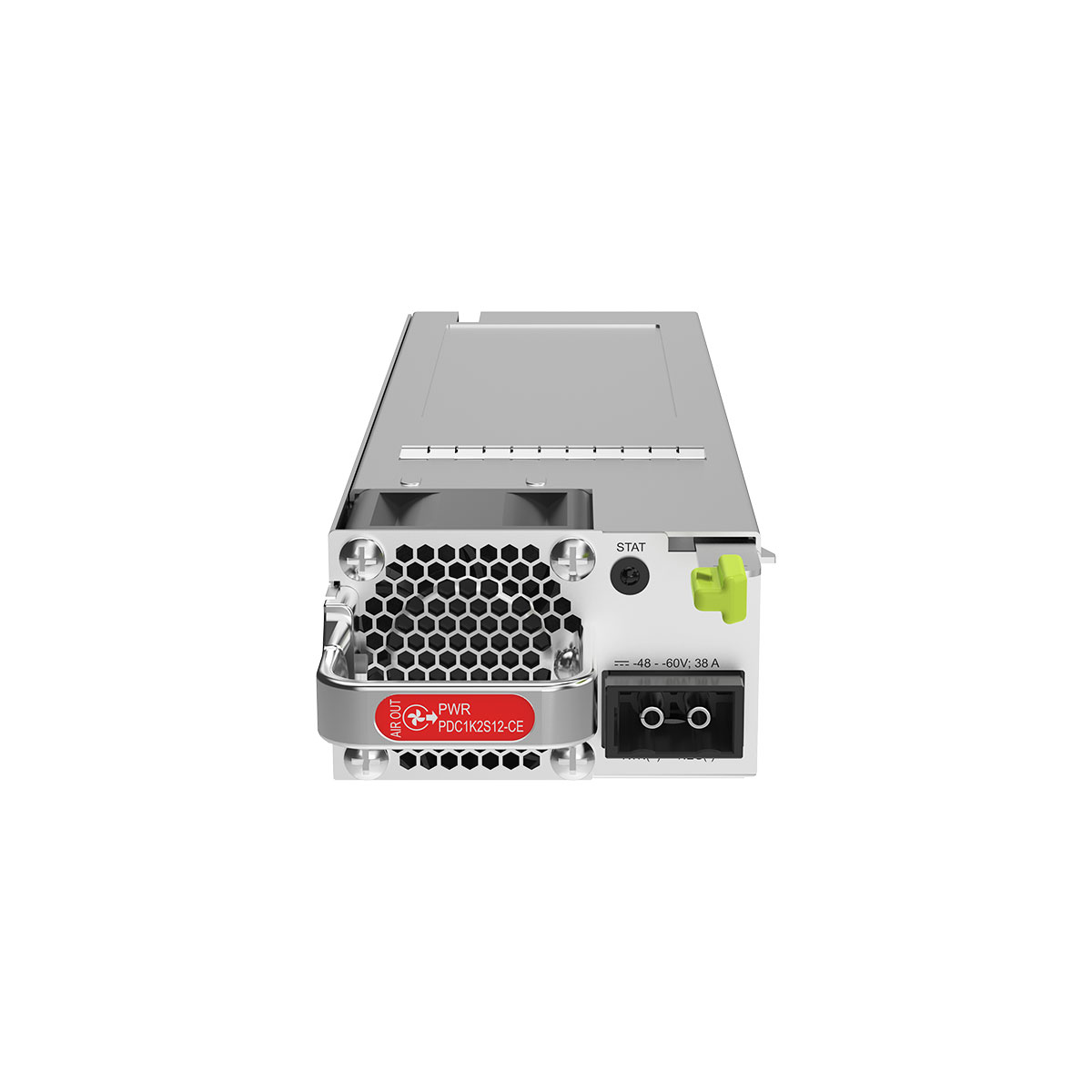

HuaWei PDC1K2S12-CE support 1200W DC Power Module 66 mm Width case, Back to Front, Power panel side exhaust

Description

PDC1K2S12-CE Overview



1200W DC Power Module 66 mm Width case, Back to Front, Power panel side exhaust



Mappings between PDC1K2S12-CE and product models

Product Product Model First Supported Version Limitations
S5732-H-V2 S5732-H24S4X6QZ-TV2 (02354VCV) V600R022C00
S5732-H-V2 S5732-H24S4X6QZ-V2 (02354VBL) V600R022C00
S5732-H-V2 S5732-H44S4X6QZ-TV2 (02354VCU) V600R022C00
S5732-H-V2 S5732-H44S4X6QZ-V2 (02354VCT) V600R022C00
S5735-S-V2 S5735-S24ST4XE-V2 (98012231) V600R023C00
S5735-S-V2 S5735-S24T4XE-V2 (98012016) V600R022C01
S5735-S-V2 S5735-S48S4XE-V2 (98012232) V600R023C00
S5735-S-V2 S5735-S48T4XE-V2 (98012044) V600R022C01
S5735I-S-V2 S5735I-S24T4XE-T-V2 (98012020) V600R022C01
S5735I-S-V2 S5735I-S24T4XE-V2 (98012019) V600R022C01
S5755-H S5755-H24T4Y2CZ (98012219) V600R023C00
S5755-H S5755-H24T4Y2CZ (98012219-001) V600R023C00
S5755-H S5755-H48T4Y2CZ (98012216) V600R023C00
S5755-H S5755-H48T4Y2CZ (98012216-001) V600R023C00

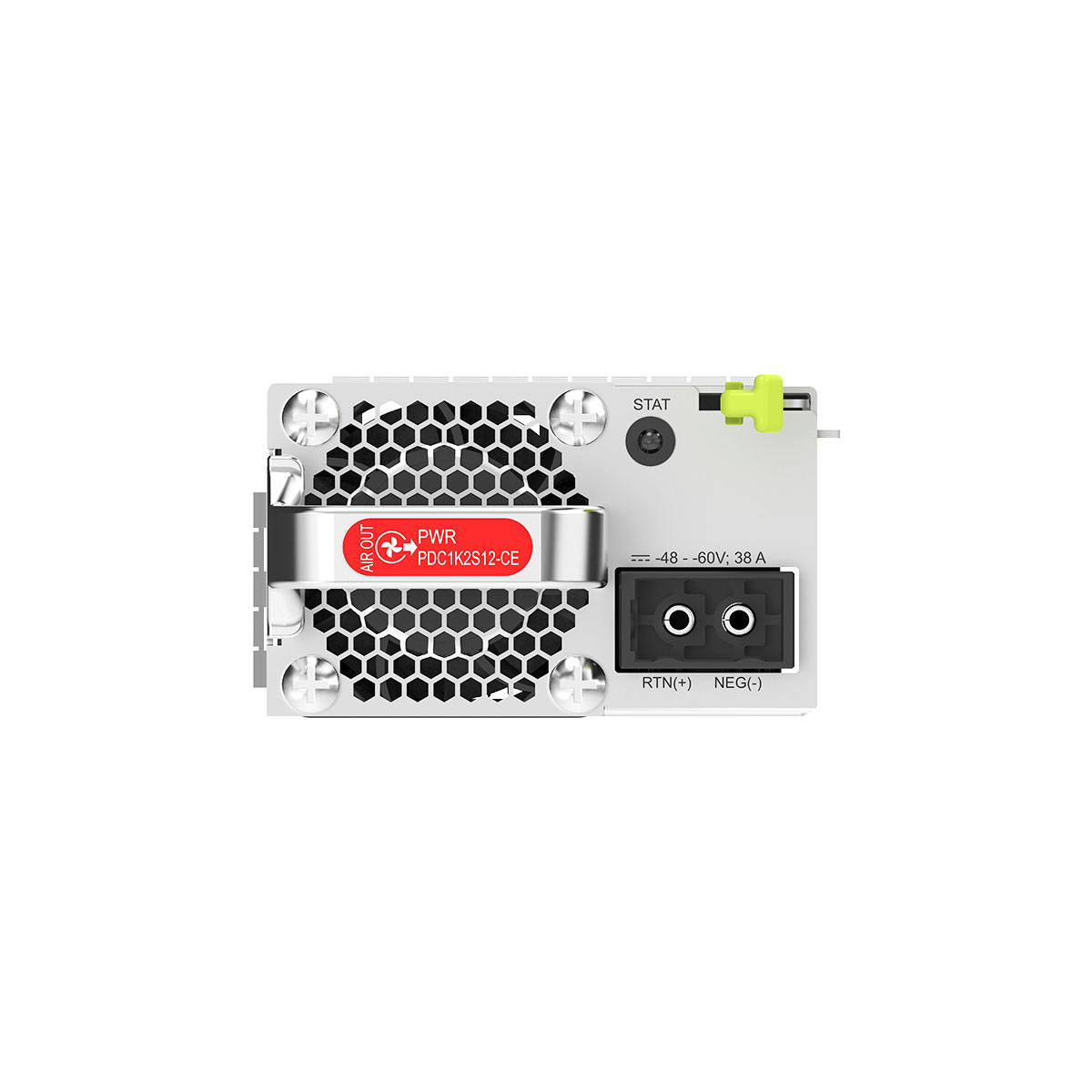

Front Panel

PDC1K2S12-CE

1. Handle

2. Airflow flag (air out)

3. Air vent

4. Indicator

5. Power socket

6. Lock

Item PDC1K2S12-CE
Dimensions without packaging (H x W x D) [mm(in.)] 39.6 mm x 66.0 mm x 215 mm (1.56 in. x 2.6 in. x 8.46 in.)
Weight without packaging [kg(lb)] 1.5 kg (3.31 lb)
Number of inputs 1
Rated input voltage [V]
  • +48 V DC
  • -48 V DC to -60 V DC
Input voltage range [V]
  • +40 V DC to +57 V DC
  • -38.4 V DC to -72 V DC
Maximum input current [A] 38 A
Rated output voltage [V] 12 V
Rated output power [W] 1200 W
Power dissipation Mode Heat dissipation with fan
Hot swapping Supported

Additional information

Brand
Lead Time
Ship From
Warranty
Item PDC1K2S12-CE
Dimensions without packaging (H x W x D) [mm(in.)] 39.6 mm x 66.0 mm x 215 mm (1.56 in. x 2.6 in. x 8.46 in.)
Weight without packaging [kg(lb)] 1.5 kg (3.31 lb)
Number of inputs 1
Rated input voltage [V]
  • +48 V DC
  • -48 V DC to -60 V DC
Input voltage range [V]
  • +40 V DC to +57 V DC
  • -38.4 V DC to -72 V DC
Maximum input current [A] 38 A
Rated output voltage [V] 12 V
Rated output power [W] 1200 W
Power dissipation Mode Heat dissipation with fan
Hot swapping Supported
