Description

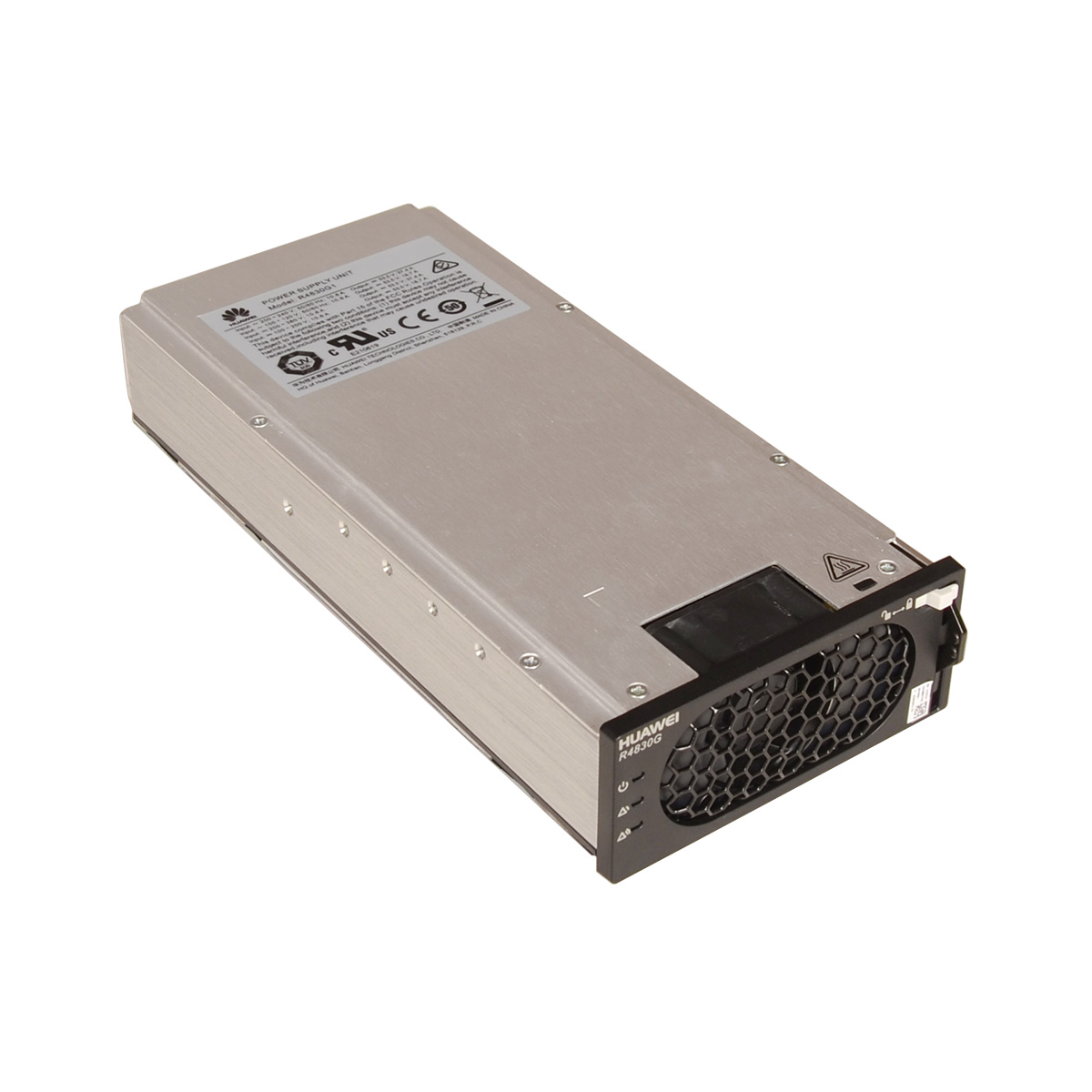

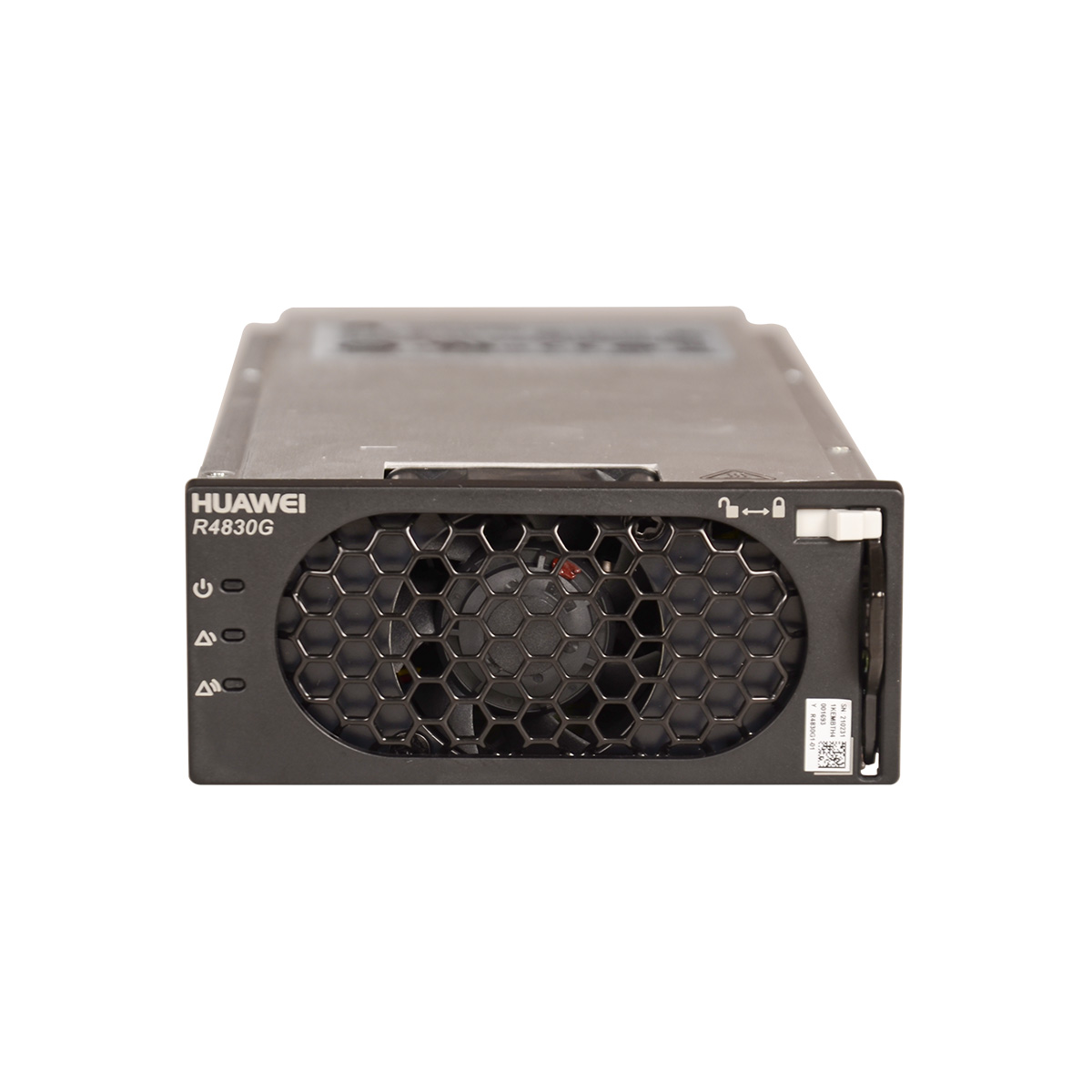

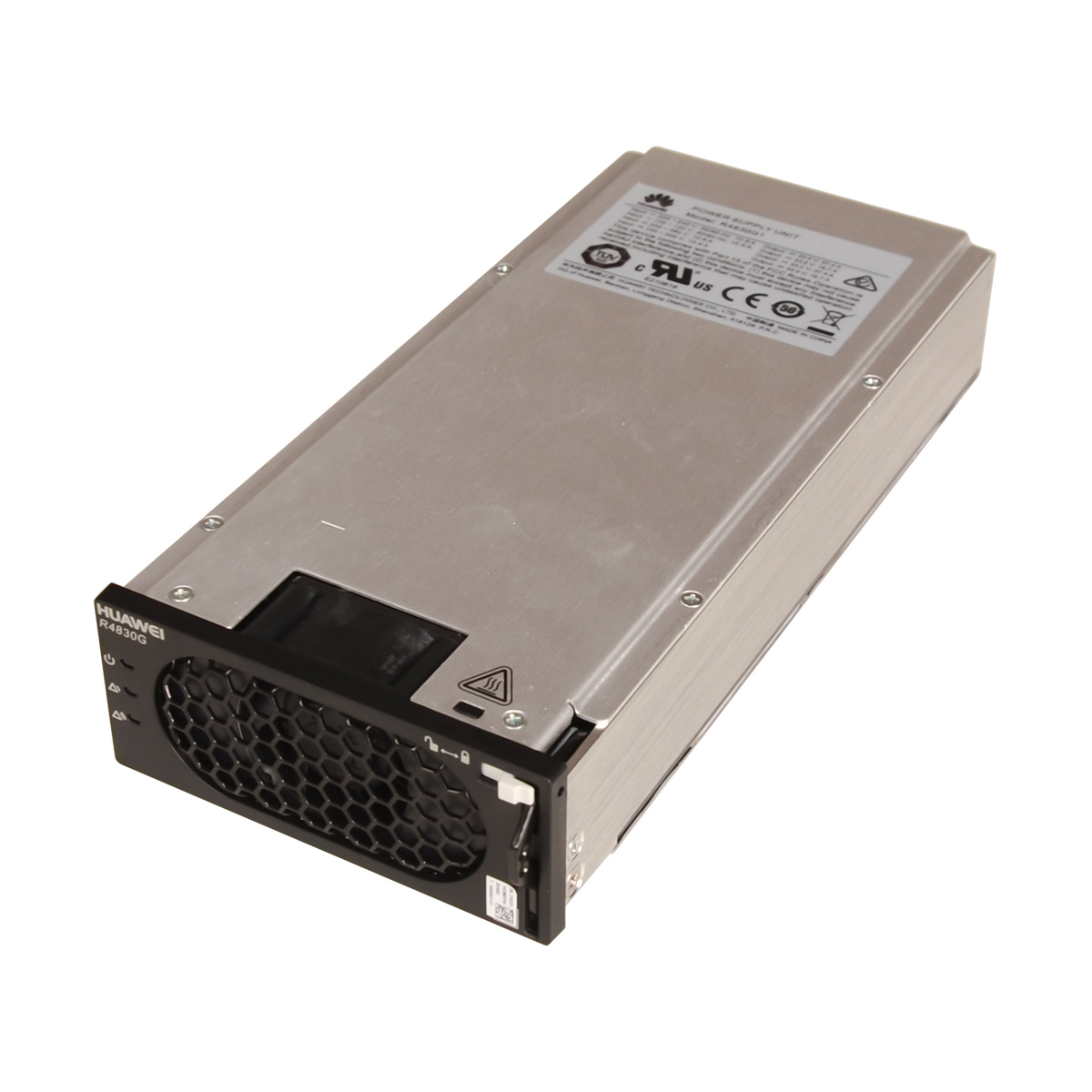

R4830G Overview
Apply to ETP4890-A2, R4830G 30A rectifier.
Wide range of AC input voltage from 85V to 300V.
Maximum output power: 1600W.
Wide operation temperature range of rectifier from -40℃ to 75℃.
High rectifier efficiency over 96% helps to save energy.
R4830G Datasheet
Item | R4830G |
Rate Power | 1600W (176~300VAC) |
Input voltage | 85VAC~300 VAC, rated 220VAC |
Dimension | 95.5mm(W)×208mm(D)×40.8mm(1U, H) |
Weight | ≤1.6kg |
Cooling mode | Forced cooling |
Power factor | ≥0.99 |
THD | ≤5% |
Additional information
Weight | 1.5000 kg |
---|---|
Dimensions | 34.0000 × 8.5000 × 14.5000 cm |
