RA-PIU-08FE1GE-1SFP

0 Reviews Write a review
SKU2009588
AvailabilityIn Stock
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

ZXR10 ZSR V2 series line interface board RA-PIU-08FE1GE-1SFP supports 8*GE electrical ports and 1*GE optical port

Description

Overview

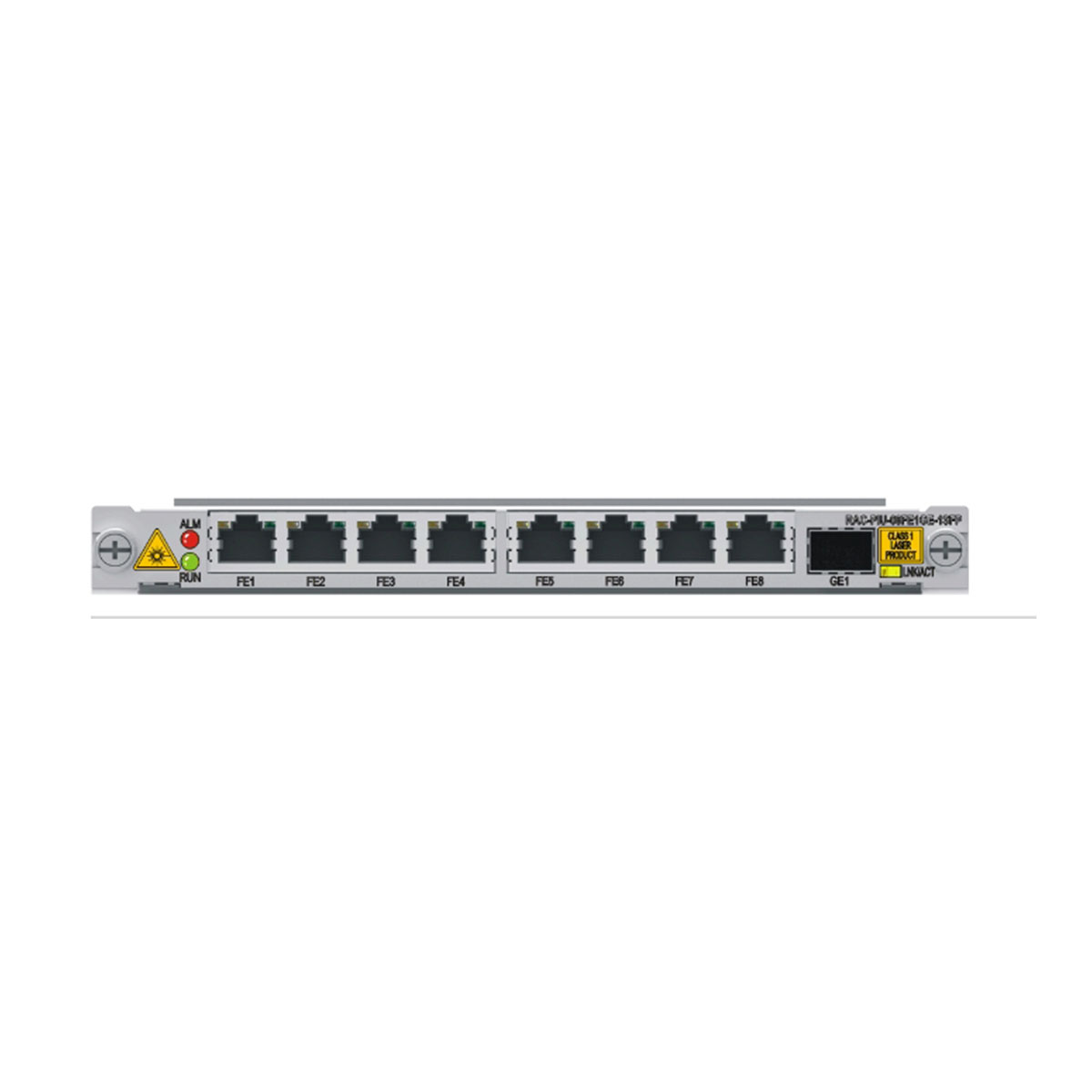

ZXR10 ZSR V2 series line interface board RA-PIU-08FE1GE-1SFP supports 8*GE electrical ports and 1*GE optical port.

A line interface board is an external interface of a wire-speed router and implements the access of interfaces of various rates and types.

The board provides one or more high-speed network interfaces.

The ZXR10 ZSR V2 provides various line interface boards and supports various interface rates and port density to meet the requirements of different networks and services.

  • Provides eight FE electrical interfaces and one GE optical interface.
  • The FE electrical interfaces support 100BASE-TX and the GE optical interface supports 1000BASE-X.
  • Supports hot swapping.
  • Supports board information query and temperature monitoring.
Item RA-PIU-08FE1GE-1SFP
 GE Electrical Interface
Connector type RJ45
Operational mode Full duplex, Half duplex
Applied standard IEEE 802.3u Fast Ethernet standard
Supported frame format Ethernet frame
Supported network protocol IP
Optical Interface
Connector type LC-type SFP optical module interface
Operational mode Full duplex
Applied standard IEEE 802.3z Gigabit Ethernet standard
Supported frame format Ethernet frame
Supported network protocol IP
Technical Parameters
Dimensions (W × H × D) 197.2 mm ×19.92 mm ×175 mm
Power consumption 11 W
Weight 0.54 kg
Rate 1 GE × 1, 1FE × 8

Additional information

Brand

ZTE

Lead Time

3-5 days

Ship From

Shenzhen Warehouse

Item RA-PIU-08FE1GE-1SFP
 GE Electrical Interface
Connector type RJ45
Operational mode Full duplex, Half duplex
Applied standard IEEE 802.3u Fast Ethernet standard
Supported frame format Ethernet frame
Supported network protocol IP
Optical Interface
Connector type LC-type SFP optical module interface
Operational mode Full duplex
Applied standard IEEE 802.3z Gigabit Ethernet standard
Supported frame format Ethernet frame
Supported network protocol IP
Technical Parameters
Dimensions (W × H × D) 197.2 mm ×19.92 mm ×175 mm
Power consumption 11 W
Weight 0.54 kg
Rate 1 GE × 1, 1FE × 8
