Raman Amplifier Safety Interlock Configuration FAQ: Expert Answers to Technical & Deployment Questions

Overview & Thematic Scope

This FAQ provides expert guidance on configuring safety interlocks for Raman amplifiers, specifically Automatic Laser Shutdown (ALS) and Optical Safety Remote Interlock (OSRI) mechanisms. These critical safety features protect against eye hazards from high-power Raman pumps (typically 200 mW to 2 Watts) by ensuring automatic laser shutdown in the event of fiber cuts or disconnections . This guide addresses common technical and deployment questions for network engineers and telecom procurement specialists.

Frequently Asked Questions

What is the primary purpose of a Raman amplifier safety interlock (ALS)?

The primary purpose is to provide fail-safe automatic laser shutdown to prevent eye damage from high-power Raman pump radiation. An optical power above 5 mW is considered eye-unsafe, and Raman pumps operate at levels from 200 mW to 2 Watts, posing a severe hazard if a fiber is cut or disconnected . The safety interlock (ALS) system monitors a supervisor signal and shuts down the pump quickly in response to any loss or change in that signal, ensuring the system is safe for personnel .

How does a Raman amplifier safety interlock (ALS) system work?

The system uses a supervisor signal sent from one end of the fiber to a receiver at the other end; if this signal is interrupted, the Raman pump is shut off. This supervisor signal is an optical signal that propagates in a direction opposite to the Raman pump radiation, minimizing the time between a fiber cut and shutdown . The system operates in an “always-on” or “quasi-always-on” mode to ensure fail-safe operation, meaning the pump will not operate unless the supervisory link is intact .

What are the different ALS modes available for Raman amplifiers?

Common ALS modes include Disabled, Automatic Restart, and Manual Restart, with Automatic Restart being the typical default for safety. In Automatic Restart mode, the system automatically shuts down the laser when needed and periodically tries to restart using low-power probe pulses until the fault is repaired . Manual Restart mode requires a user to trigger the re-start, while Disabled mode deactivates the safety feature and is not recommended for operational networks .

What is the Optical Safety Remote Interlock (OSRI) and how is it configured?

OSRI is a signal that, when set to ON, immediately shuts down the TX output power of the optical amplifier. In the Cisco NCS 2000 series, this is a simple configuration option where the OSRI is toggled between OSRI-OFF and OSRI-ON . This provides a remote kill switch for the optical power, allowing a central controller to disable the laser in an emergency, even if the fiber path is still intact.

How do you clear a Raman Laser Shutdown (RLS) condition?

The Raman Laser Shutdown (RLS) condition is raised when excessive back reflection is detected, typically during the turn-up phase of the Raman link. To clear the RLS, you must first rectify the issue causing the excessive back reflection (e.g., check connectors and fiber quality), and then provision the card to clear the RLS condition . The pump laser remains off until the RLS condition is cleared, requiring manual intervention to ensure the optical path is safe.

What are the Recovery Pulse Interval and Duration for ALS?

The Recovery Pulse Interval is the time between probe pulses (typically 60 to 300 seconds), and Recovery Pulse Duration is the length of each pulse (2 to 100 seconds) used to test the line after a shutdown. These parameters are used in Automatic Restart mode to check the fiber integrity . If a fiber cut is repaired, the probe pulse will reach the far-end receiver, and the system can safely resume full power operation.

What are the safety considerations for installing Raman amplifiers in hazardous areas?

Installations in explosive atmospheres require optical protection concepts like Ex op is (inherently safe power levels) or Ex op sh (interlocked optical systems). Ex op sh, which relies on active safety interlocks like ALS, is required when optical power exceeds the inherently safe limits . The interlock system must monitor conditions like cable breaks and connector status, immediately shutting down the laser if a fault is detected to prevent optical ignition of flammable gases .

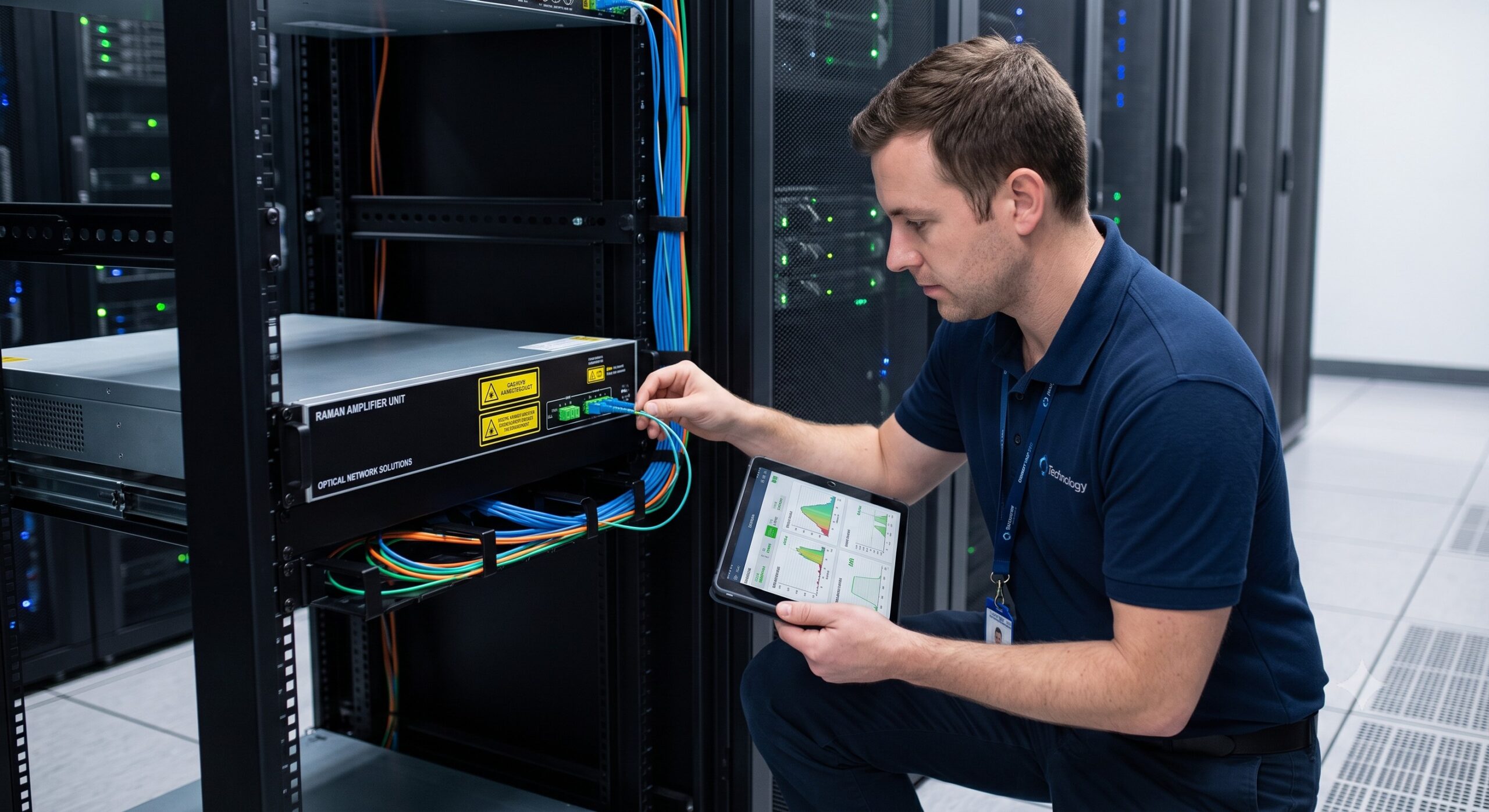

What is the correct procedure for connecting fiber pigtails to a Raman amplifier safely?

The recommended procedure is to power off the Raman amplifier before connecting the pigtail and ensure the pigtail end-face is perfectly clean to avoid damage and back-reflection. Always clean the end face with fiber wiping paper if contaminated, and replace the fiber if the core is damaged, before connecting it to the Raman amplifier port . This practice prevents contamination-induced heating and ensures that the safety interlock system is not triggered by false back-reflection alarms.
