Description

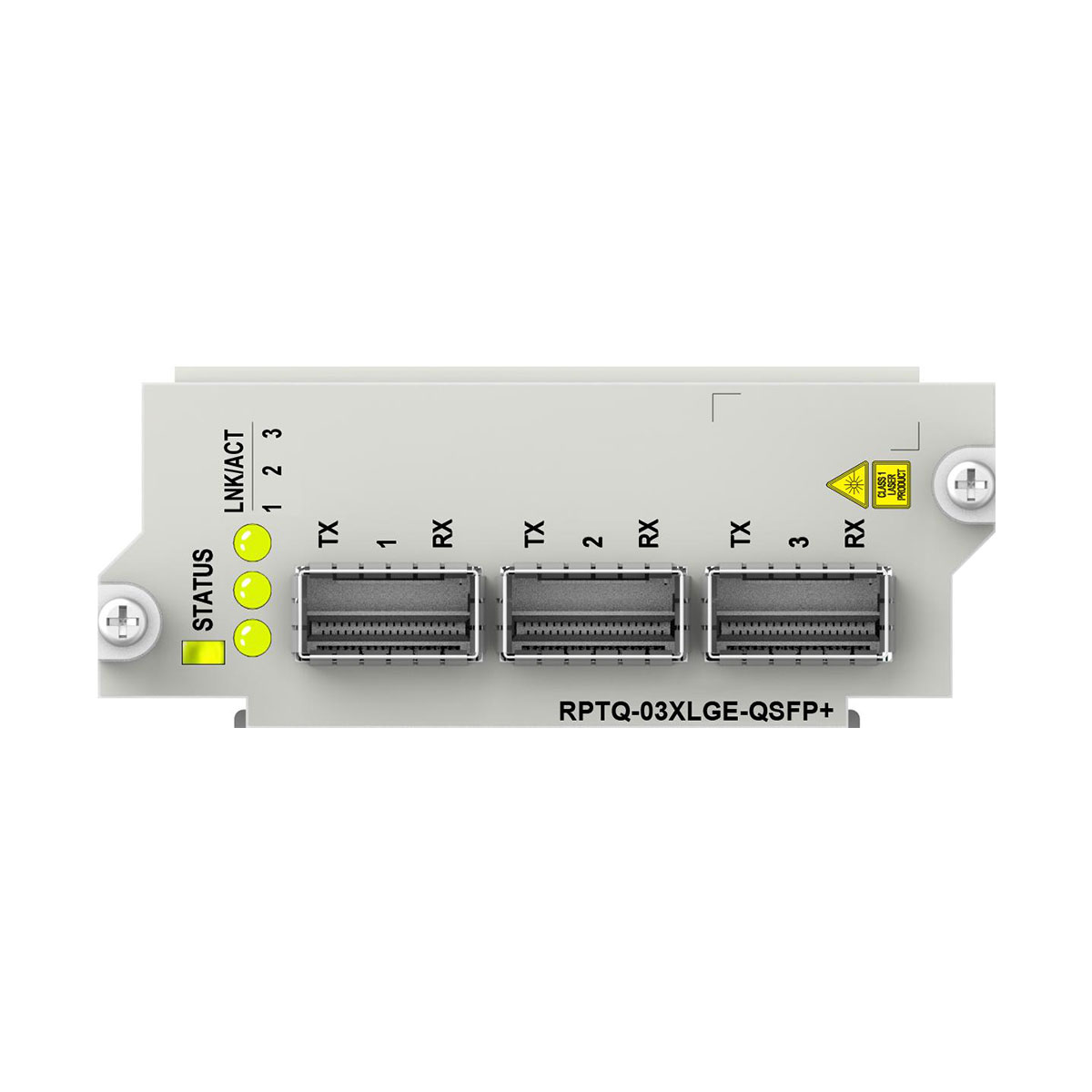

RPTQ-03XLGE-QSFP+ overview
The RPTQ-03XLGE-QSFP+ daughter card provides the following functions:
- Provides three 40 gigabit Ethernet optical interfaces.
- Implements MAC/PHY processing of three 40 GEs.
- Resumes the optical path data clock to be the reference of the MPU.
- The optical port meets the IEEE 802.3ba standard.
- Provides status indicators for the QSFP+ module.
- Provides multiple loopback functions.
- Supports daughter card information query and temperature monitoring.
| Attribute | RPTQ-03XLGE-QSFP+ |
|---|---|
| Connector type | MPO |
| Optical interface attribute | Determined by the selected QSFP+ optical module |
| Operating mode | Full duplex |
| Standard | IEEE 802.3ba |
| Frame format | Ethernet_II, Ethernet_SAP, Ethernet_SNAP |
| Network protocol | IP |
