RPTQ-08P192-SFP+

RPTQ-08P192-SFP+

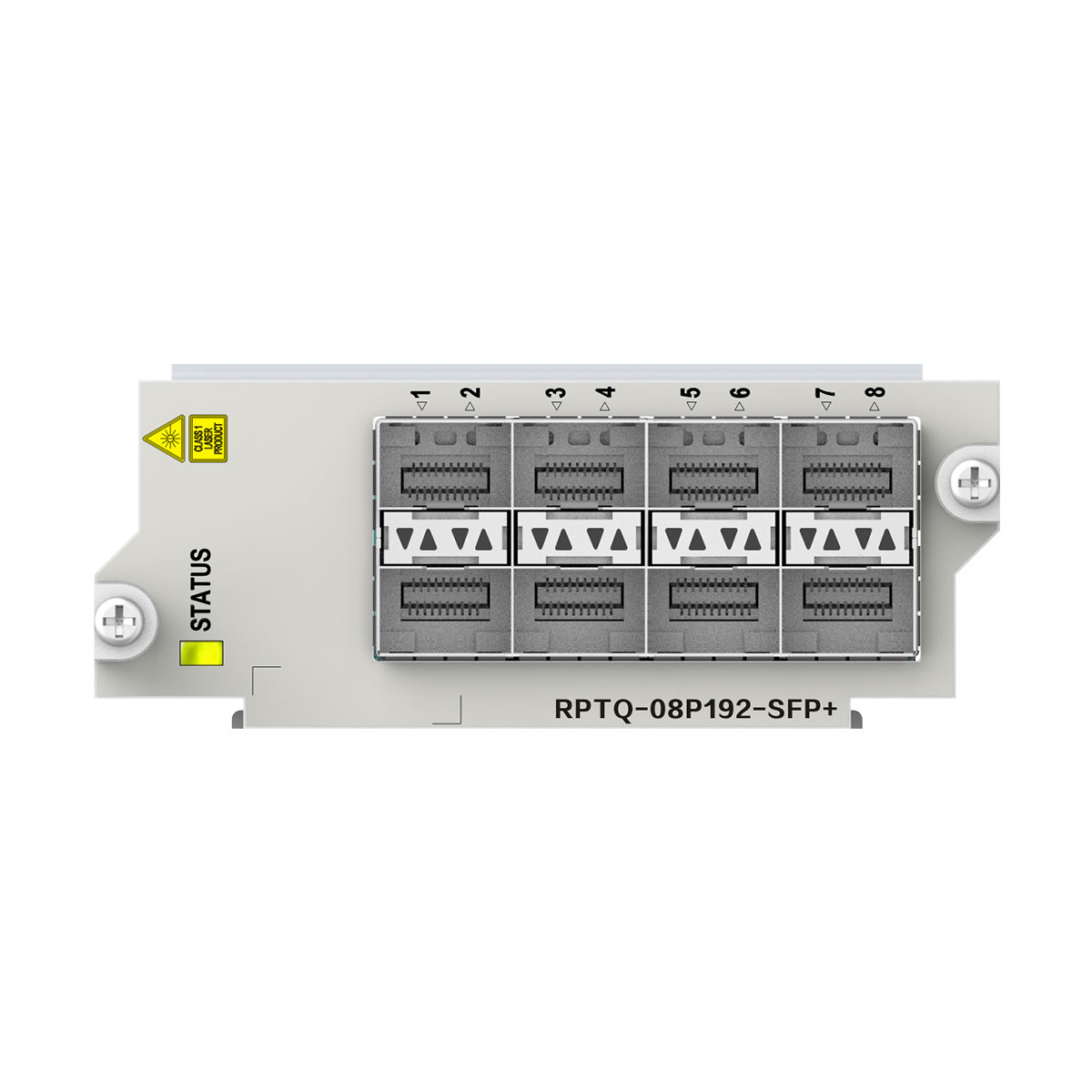

ZTE RPTQ-08P192-SFP+ physical line interface unit provides 8-port OC-192/STM-64 POS SFP+

ZTE

3-5 days

Shenzhen Warehouse

SKU: 2009557 Category:

Description

RPTQ-08P192-SFP+ overview

The RPTQ-08P192-SFP+ daughter card provides the following functions:

  • Provides eight 10 gigabit POS interfaces.
  • Provides the function for storing physical information such as the daughter card ID, delivery date, daughter card version,and repair records.
  • Provides the key chip temperature detection function.
  • Provides an SJTAG interface for the network processing unit for online download and production test.



Attribute RPTQ-08P192-SFP+
Connector type Duplex LC
Optical interface attribute Determined by the selected SFP+ optical module
Operating mode Full duplex
Standard OC192
Supported link protocol POS frame
Network protocol IP





Item RPTQ-08P192-SFP+
Silk screen name RPTQ-08P192-SFP+
Dimensions (Width × Height × Depth) 37.1 mm × 96.5 mm × 170.9 mm
Power consumption 50 W
Thermal load 171 BTU/Hour
Weight 0.47 kg
Rate 9.953 Gbps
