Ruggedized Telecom Infrastructure Application Note: Industrial Ethernet Switch Environmental Specs

RUGGEDIZED DESIGN PHILOSOPHY

This document serves as the definitive technical application note for the Industrial Ethernet Switch Environmental Specifications, outlining the rigorous engineering principles governing our carrier-grade hardware. Designed from the ground up to operate reliably in the most demanding industrial and outdoor telecom environments, the platform transcends traditional enterprise switching boundaries, delivering deterministic performance across a temperature spectrum from -40°C to +85°C. Our philosophy centers on a holistic approach to survivability, ensuring that every component, from the passive cooling chassis to the conformal-coated PCB, contributes to a system with unparalleled Mean Time Between Failures (MTBF) in harsh physical domains. This is not merely a hardened switch; it is a foundational asset for smart grid, intelligent transportation systems, and military communications infrastructure, where environmental resilience is paramount to operational continuity.

THERMAL & ELECTRICAL TOLERANCE

At the core of the platform’s environmental pedigree is a comprehensive thermal management architecture that eschews active cooling components, eliminating a primary point of failure. The fanless design leverages a finned aluminum heatsink chassis that maximizes surface area for passive convection, allowing for seamless operation in dusty, particle-filled environments where moving parts would rapidly succumb to wear. Electrical tolerance is equally robust, featuring integrated surge protection (IEC 61000-4-5) and transient voltage suppression to safeguard against the unpredictable power fluctuations common in industrial substations and roadside cabinets. The power supply subsystem supports dual redundant, hot-swappable inputs with a wide range of 12-60VDC or 90-264VAC, ensuring that the switch remains operational even during brownouts or polarity reversals. This granular attention to power integrity and thermal dissipation guarantees that the forwarding engine maintains wire-speed performance without throttling, irrespective of external ambient stresses.

OPERATIONAL ADVANTAGES

Deploying this switch provides a distinct operational advantage by drastically reducing the total cost of ownership through minimized site visits and extended service intervals. The environmental hardening translates directly to network stability in edge locations where climate control is non-existent or cost-prohibitive. By supporting a wide operational humidity range (5% to 95%, non-condensing) and high vibration resistance (IEC 60068-2-6), the hardware proves invaluable for mobile applications, such as onboard rail or marine vessels, where constant movement would degrade standard commercial equipment. Furthermore, the enhanced electrostatic discharge (ESD) protection on all copper ports ensures that the switch maintains connectivity and data integrity even in high-interference environments like factory floors with heavy machinery, thereby enabling seamless OT/IT convergence.

CERTIFICATIONS MATRIX

The platform’s industrial-grade credentials are validated by a comprehensive suite of international certifications, confirming its readiness for global deployment across diverse regulatory landscapes. Adherence to the EN 50155 standard for railway applications verifies its suitability for rolling stock, while compliance with IEEE 1613 ensures operational integrity in electric power substations. For hazardous locations, the switch holds Class I, Division 2 (C1D2) and ATEX Zone 2 certifications, permitting safe installation in areas with potentially flammable gases or dust. The certification matrix is completed by a robust portfolio of EMC compliance, including FCC Part 15, EN 55032, and EN 55024, assuring that the device neither emits nor is susceptible to electromagnetic interference that could disrupt adjacent sensitive equipment.

EXACT SPECS

The following detailed parameters define the physical and environmental boundaries of the system. The chassis is constructed from heavy-gauge steel with a chemical-resistant powder coating, and all connectors are IP30-rated to provide protection against solid objects greater than 2.5mm. The system is engineered to withstand a mechanical shock of 30g and a vibration profile of 5-500Hz at 3g, ensuring structural integrity during seismic events or heavy transport.

FIELD DEPLOYMENT SCHEMATIC

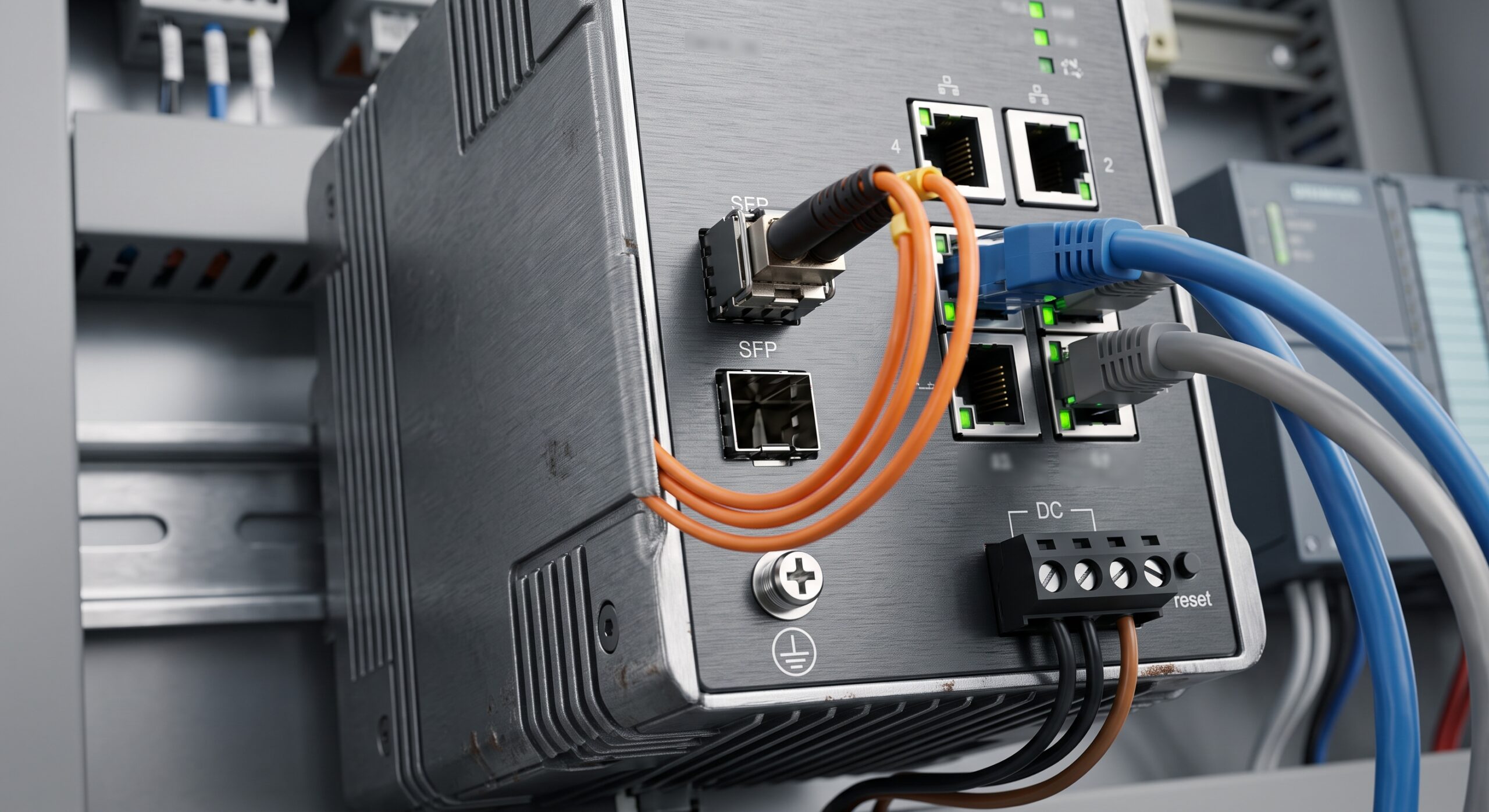

The architecture of the platform is optimized for flexible field deployment, supporting both DIN-rail and wall-mounting configurations to accommodate space-constrained cabinet installations. The front-panel layout provides clear LED status indication for power, link/activity, and alarm relays, facilitating rapid on-site diagnostics without the need for external test equipment. The design incorporates dual redundant alarm relays (Form C contacts) that can be integrated with SCADA systems or central management consoles to provide immediate notification of power failures or environmental threshold breaches. This schematic clarity ensures that field technicians can effectively install, troubleshoot, and maintain the switch infrastructure with minimal training, thereby accelerating mean time to repair (MTTR) in critical network segments.
