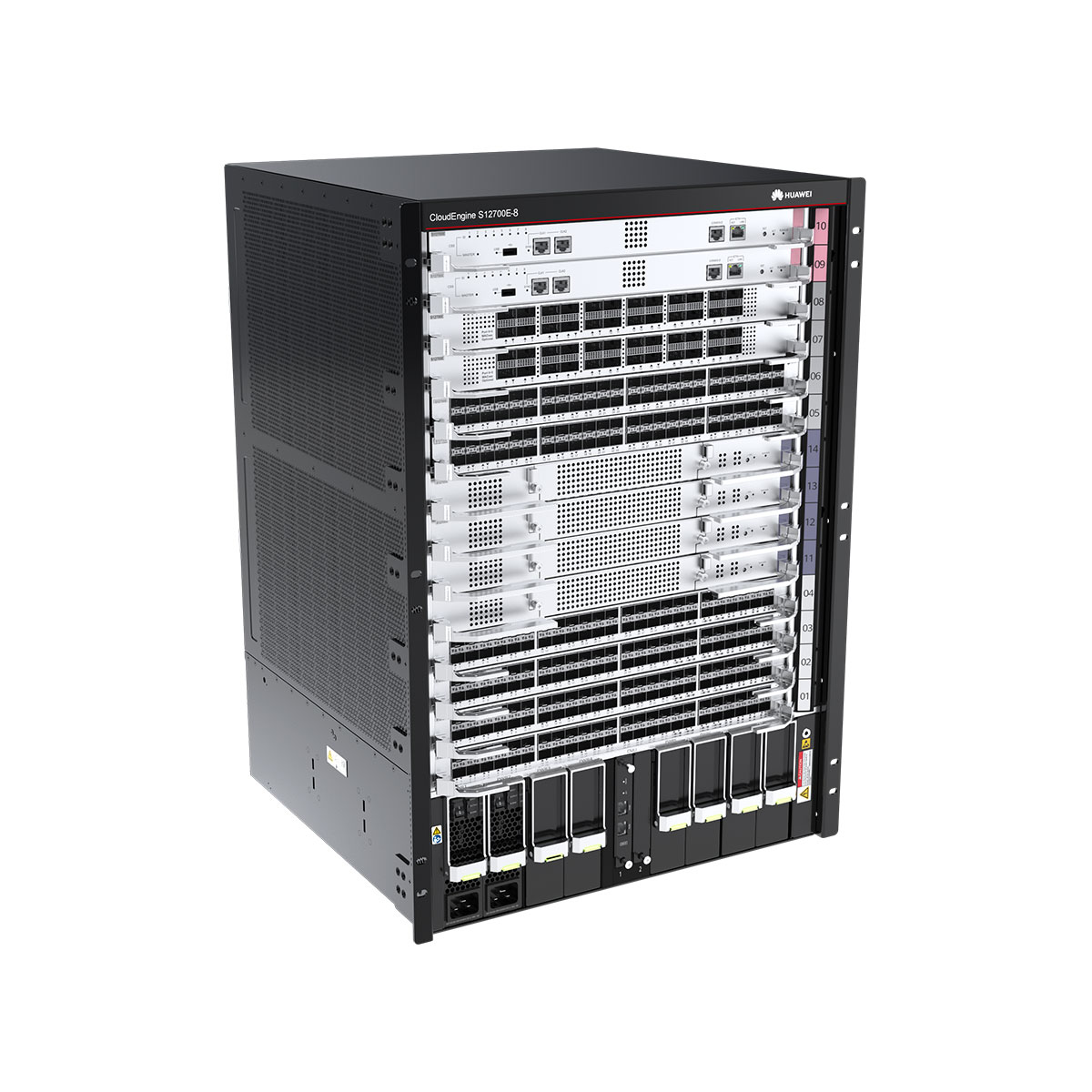

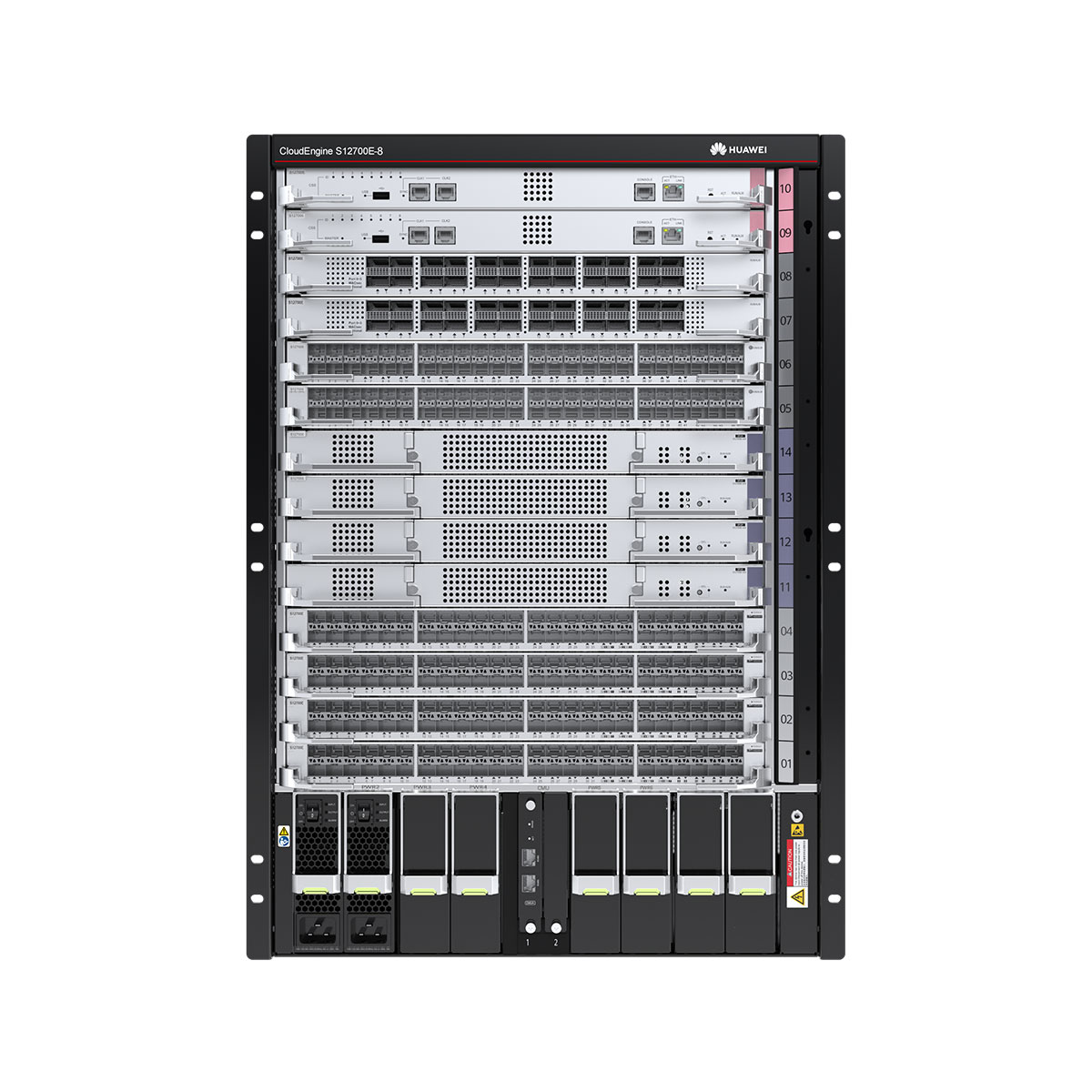

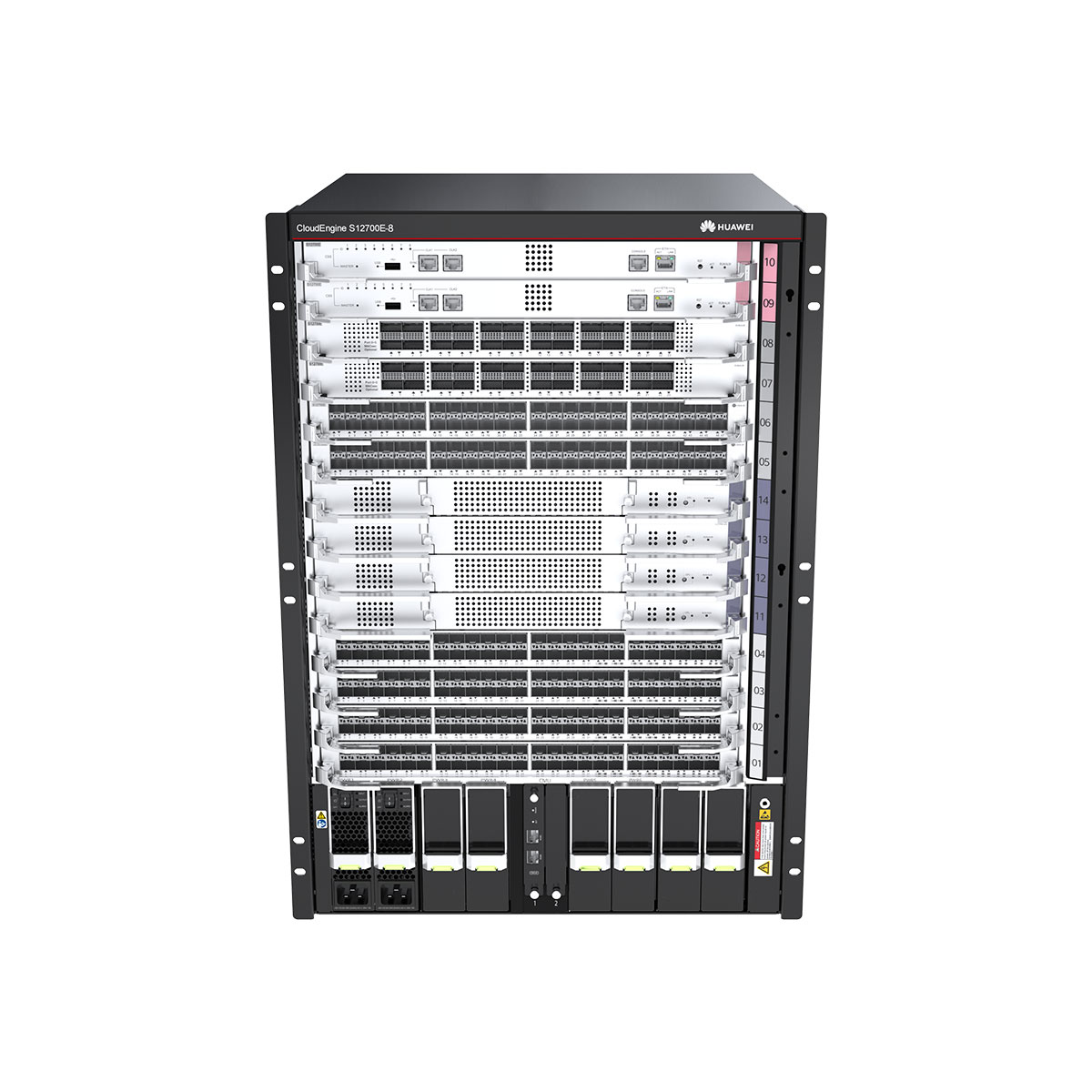

Huawei S12700E-8 switch chassis with 8 LPU slots, 4 SFU slots, 2 MPU slots, 2 CMU slots, and 6 power module slots

Description

S12700E-8 Overview

Huawei CloudEngine S12700E series agile switches are core switches designed for next-generation campus networks.

  • Using a fully programmable switching architecture, the S12700E series switches allow for fast, flexible function customization and support a smooth evolution to software-defined networking (SDN).
  • The S12700E series switches provide the native wireless access controller (AC) capability to help build a wired and wireless converged network. Their unified user management capabilities deliver refined user and service management, and Huawei’s Packet Conservation Algorithm for Internet (iPCA) supports hop-by-hop monitoring of any service flows, helping you manage services in a more refined way.
  • The S12700E series switches run Huawei Versatile Routing Platform (VRP), which provides high-performance L2/L3 switching services as well as a variety of network services, such as MPLS VPN, desktop cloud, and video conferencing.
  • The S12700E series switches adopt next-generation switch fabric (NGSF), and use the cell switching technology to reduce the forwarding latency and improve the load balancing capability of switch fabric units (SFUs).
  • The S12700E series switches support single-link 100G hardware clustering and a variety of reliability technologies such as hardware Ethernet OAM, BFD, and ring network protection. These help you improve productivity and maximize network operation time, and therefore reduce the total cost of ownership (TCO).

The S12700E series switches come in three models: S12700E-4, S12700E-8, and S12700E-12. The maximum numbers of line processing units and switch fabric units supported by these models are:

  • S12700E-4: 2 MPUs, 2 SFUs, and 4 LPUs
  • S12700E-8: 2 MPUs, 4 SFUs, and 8 LPUs
  • S12700E-12: 2 MPUs, 4 SFUs and 12 LPUs

The S12700E-8 chassis provides 8 LPU slots, 4 SFU slots, 2 MPU slots, 2 CMU slots, and 6 power module slots.



Mapping between the S12700E-8 chassis and software versions
Chassis Version
S12700E-8 chassis Supported in V200R019C00 and later versions
Slot distribution in the S12700E-8 chassis

S12700E 8 frontS12700E 8 rear

Slot Type Slot ID Slot ID Remarks
MPU slots SLOT09, SLOT10 MPU MPUs in the two slots work in active/standby mode.
MPU slots SLOT11, SLOT14 SFU One to two SFUs can be installed.
MPU slots SLOT01 to SLOT08 NOTE:

The cards supported by a switch depend on the software version.

CMU slots CMU1, CMU2 CMU NOTE:

The cards supported by a switch depend on the software version.

CMU slots PWR1 to PWR6 Power Module
Fan module slot FAN1 to FAN4 Fan Module



Item S12700E-8
Number of LPU slots 8
Number of MPU slots 2
Number of SFU slots 4
Number of fan slots 4
Number of power module slots 6
Number of CMU slots 2
Port density per chassis 384xFE, 384xGE, 384x10GE, 320x25GE, 192x40GE, 192x100GE
Installation The switch can be installed in an N66E or N68E cabinet, one cabinet for one chassis.
Cluster switch system (CSS) Service port clustering
Maximum power consumption (fully configured) NOTE: The heat dissipation value of a chassis is equal to the current power consumption. 6950 W
Power specifications
  • DC input voltage Rated voltage: -48 V DC to -60 V DC Maximum voltage range: -40 V DC to -72 V DC
  • AC input voltage Rated voltage: 110 V AC/220 V AC, 50/60 Hz Maximum voltage range: 90 V AC to 290 V AC; 47 Hz to 63 Hz (The maximum output power reduces by a half when the input voltage ranges from 90 V AC to 175 V AC.)
  • HVDC input voltage (3000 W AC) Rated voltage: 240 V DC Maximum voltage range: 190 V DC to 290 V DC
Dimensions (H x W x D, without rack-mounting brackets)
  • With cable management frames (15 U high): 663.9 mm x 442 mm x 585 mm (26.1 in. x 17.4 in. x 23.0 in.)
  • Without cable management frames (15 U high): 663.9 mm x 442 mm x 517.4 mm (26.1 in. x 17.4 in. x 20.37 in.)
Weight (empty/fully configured) 42.5 kg/114 kg (93.7 lb/251.3 lb)
Reliability and availability
  • Mean Time Between Failures (MTBF): 32.76 years
  • Mean time to repair (MTtr): 2 hours
  • Availability: 0.999996515
NOTE: The preceding values are calculated based on the typical configuration of the product. The actual values will vary depending on the modules installed on the product.
Environment specifications
  • Operating temperature and altitude: -60 m to +1800 m (-197 ft. to 5906 ft.): 0°C to 45°C (32°F to 113°F) 1800 m to 4000 m (5906 ft. to 13123 ft.): Operating temperature decreases by 1°C (1.8°F) every time the altitude increases 220 m (722 ft.). 4000 m (13123 ft.): 0°C to 35°C (32°F to 95°F)
  • Relative humidity: 5% RH to 95% RH (noncondensing)
  • Storage temperature: -40°C to +70°C (-40°F to +158°F)
  • Storage altitude: < 5000 m (16404 ft.)
Noise under normal temperature (sound power) ≤ 78 dB(A)
Certification
  • EMC certification
  • Safety certification
  • Manufacturing certification
Part number 02115870
