S12704

Huawei S12704 Bundle include 2 MPU slots, 2 CMU slots, 4 LPU slots, 2 SFU slots, 4 Power Module slots, 2 Fan Module slots, 2200W DC/AC supported

Huawei

3-5 days

Shenzhen Warehouse

SKU: 02350MJA Category: Tag:

Description

S12704 overview

HUAWEI S12700 series agile switches (S12700 for short) are designed for next-generation campus networks. Using a fully programmable switching architecture, the S12700 allows fast, flexible function customization and supports smooth evolution to Software-Defined Networking (SDN). The S12700 uses a Huawei Ethernet Network Processor (ENP) and provides a native Wireless Access Controller (AC) to help build a wired and wireless converged network. Its Unified User Management capabilities deliver unified user and service management, and Huawei’s Packet Conservation Algorithm for the Internet (iPCA) supports hop-by-hop monitoring of any service flows, helping manage services in a more refined way.
The S12700 runs the Huawei Versatile Routing Platform (VRP), which provides high-performance L2/L3 switching services and rich network services, such as Multiprotocol Label Switching (MPLS) VPN, hardware IPv6, desktop cloud, video conferencing. In addition, the S12700 series uses a variety of reliability technologies, including non-stop forwarding, hardware Eth-OAM/BFD, ring network protection, and Cluster Switch System Generation2 (CSS2) — a switch fabric hardware clustering technology that allows 1+N backup of Main Processing Units (MPUs). These technologies help improve productivity and maximize network operation time, reducing the Total Cost of Ownership (TCO).



S12704 appearance and structure

The S12704 chassis is 10 U high (1 U = 44.45 mm). When the chassis has no cable management frames installed, the dimensions (H x W x D) are 441.7 mm x 442 mm x 517.4 mm. When the chassis has cable management frames installed, the dimensions (H x W x D) are 441.7 mm x 442 mm x 585 mm. Figure 1 and Figure 2 show the appearance of the S12704 chassis.



S12704
1. Two MPUs 2. Four of the following service cards can be installed:

3. Two SFUs 4. A pair of mounting brackets

NOTE:

The mounting brackets are used to secure the chassis in a cabinet.

5. Four power modules 6. Two CMUs 7. Front ESD jack

NOTE:

The ground terminal of an ESD wrist strap can be inserted into this jack. The ESD wrist strap can provide ESD protection when the chassis is reliably grounded.

8. Cable management frames

NOTE:

The cable management frames separate cables on different cards and helps route cables orderly.

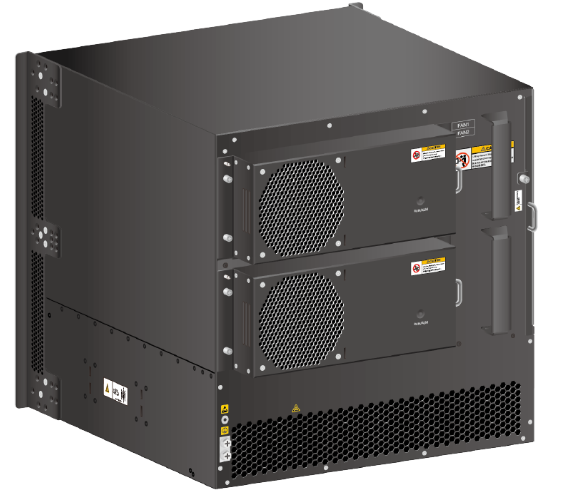

S12704 chassis structure (rear view):
S12704
1. Two Fan Module 2. Rear ESD jack

NOTE:

The ground terminal of an ESD wrist strap can be inserted into this jack. The ESD wrist strap can provide ESD protection when the chassis is reliably grounded.

3. JG ground terminal

NOTE:

The two-hole OT terminal of a ground cable can be connected to the screws to ground the chassis.

4. Air filter

NOTE:

The air filter prevents dust from entering the chassis.

5. A pair of removable handles

NOTE:

You can install these handles on two sides of the chassis to lift the chassis.

Item S12704
Number of LPU slots  4
Number of MPU slots  2
Number of SFU slots  2
Number of fan slots  2
Number of power module slots  4
Number of CMU slots  2
 Port density per chassis
  • V200R008C00 to V200R009C00: 192xFE, 192xGE, 192x10GE, 64x40GE, 8x100GE
  • V200R010C00 to V200R011C10: 192xFE, 192xGE, 192x10GE, 32x40GE, 16x100GE
  • V200R012C00 and later versions: 192xFE, 192xGE, 192x10GE, 64x40GE, 32x100GE
 Installation  The switch can be installed in an N66E or N68E cabinet, one cabinet for one or two chassis.
 Cluster switch system (CSS)  CSS2, switch fabric hardware clustering
Maximum power consumption (fully configured)

NOTE:

The heat dissipation value of a chassis is equal to the current power consumption.

2550 W
Power specifications
  • DC input voltage

    Rated voltage: -48 V DC to -60 V DC

    Maximum voltage range: -40 V DC to -72 V DC

  • AC input voltage

    Rated voltage: 110 V AC/220 V AC, 50/60 Hz

    Maximum voltage range: 90 V AC to 290 V AC; 47 Hz to 63 Hz (The maximum output power reduces by a half when the input voltage ranges from 90 V AC to 175 V AC.)

  • HVDC input voltage (3000 W AC)

    Rated voltage: 240 V DC

    Maximum voltage range: 190 V DC to 290 V DC

Dimensions (H x W x D, without rack-mounting brackets)
  • With cable management frames (10 U high): 441.7 mm x 442 mm x 585 mm (17.39 in. x 17.4 in. x 23.0 in.)
  • Without cable management frames (10 U high): 441.7 mm x 442 mm x 517.4 mm (17.39 in. x 17.4 in. x 20.37 in.)
Weight (empty/fully configured) 24.5 kg/71.3 kg (54 lb/157.2 lb)
Reliability and availability
  • Mean Time Between Failures (MTBF): 40.65 years
  • Mean time to repair (MTTR): 2 hours
  • Availability: 0.999998837

NOTE:

The preceding values are calculated based on the typical configuration of the product. The actual values will vary depending on the modules installed on the product.

Environment specifications
  • Operating temperature and altitude:

    -60 m to +1800 m (-197 ft. to 5906 ft.): 0°C to 45°C (32°F to 113°F)

    1800 m to 4000 m (5906 ft. to 13123 ft.): Operating temperature decreases by 1°C (1.8°F) every time the altitude increases 220 m (722 ft.).

    4000 m (13123 ft.): 0°C to 35°C (32°F to 95°F)

  • Relative humidity: 5% RH to 95% RH (noncondensing)
  • Storage temperature: -40°C to +70°C (-40°F to +158°F)
  • Storage altitude: < 5000 m (16404 ft.)
Noise under normal temperature (sound power) ≤ 77.8 dB(A)
Certification
  • EMC certification
  • Safety certification
  • Manufacturing certification
Part number 02114480

Additional information

Weight 50.0000 kg
Dimensions 63.8000 × 61.2000 × 63.2000 cm
Chassis Model Description
S12704 Supports double Main Processing Units (MPUs), four Line Processing Units (LPUs), two Switch Fabric Units (SFUs), and AC or DC power modules in N+N/N+1/N+0 (no redundancy) backup mode.
S12708 Supports double MPUs, eight LPUs, four SFUs, and AC or DC power modules in N+N/N+1/N+0 (no redundancy) backup mode.
S12710 Supports double MPUs, ten LPUs, two SFUs, and AC or DC power modules in N+N/N+1/N+0 (no redundancy) backup mode.
S12712 Supports double MPUs, twelve LPUs, four SFUs, and AC or DC power modules in N+N/N+1/N+0 (no redundancy) backup mode.
