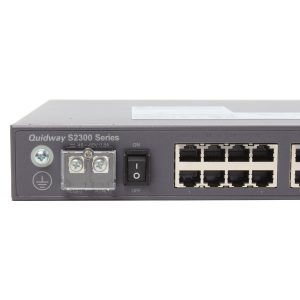

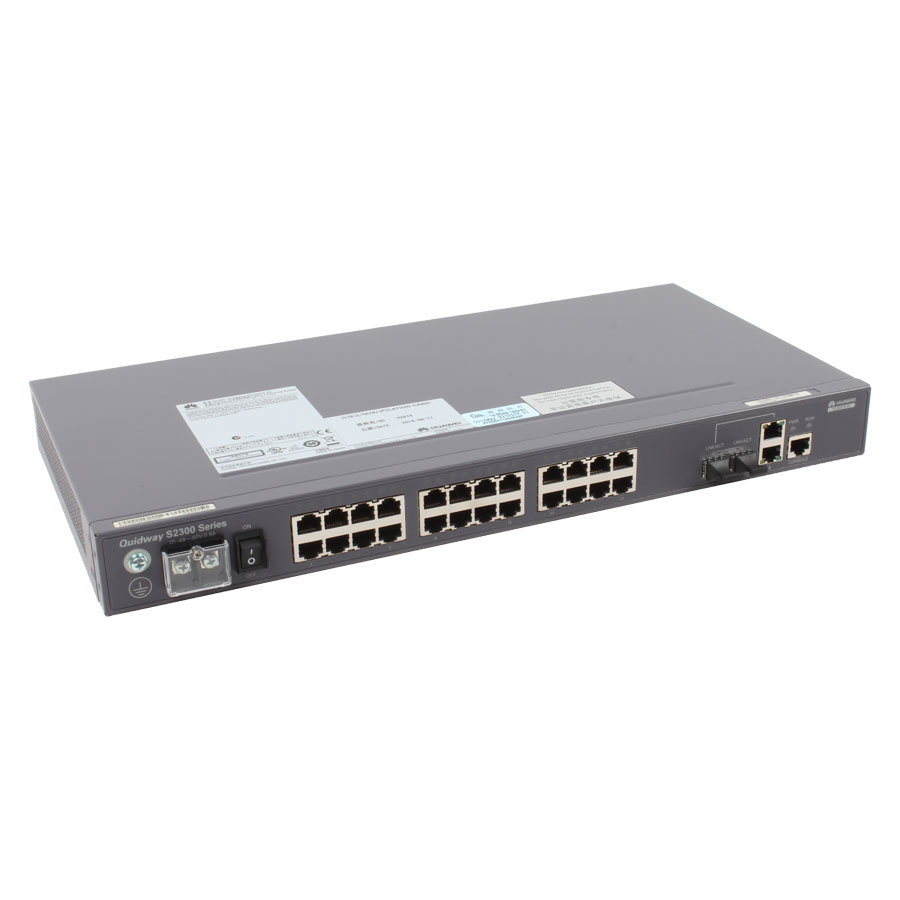

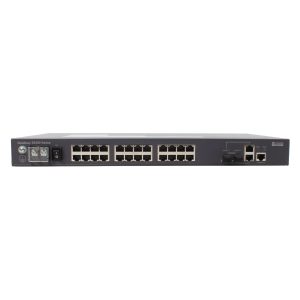

S2326TP-EI-DC

S2326TP-EI-DC

Huawei S2326TP-EI-DC switch supports 24 10/100BASE-T ports, 2 10/100/1000BASE-T or 100/1000BASE-X ports, fixed DC power

Huawei

3-5 days

Shenzhen Warehouse

SKU: 5139 PN: 02351367 Category: Tags: , ,

Description

Item S2326TP-EI-DC
Fixed port 24 10/100Base-T ports, 2 10/100/1000Base-T or 100/1000Base-X ports
Processor Dominant frequency: 200 MHz
Switching capacity 8.8Mpps
Forwarding performance 6.6 MB
DDR memory 64 MB
Flash Memory 16 MB
Backplane switching capacity 32 Gbit/s
MAC address table Supports 8K MAC address entries.
Supports manual addition and deletion of a MAC address table.
Supports configuration of MAC address aging time.
Supports disabling of MAC address learning based on port or aggregation group.
Supports limit on the number of MAC addresses to be learned on a port.
Supports blackhole MAC addresses.
VLAN features Supports IEEE 802.1Q (VLAN) and 4096 VLANs.
Supports port-based VLAN.
QoS Supports port rate limit and traffic rate limit.
Supports four queues with different priorities on each port.
Supports mapping of packets to different queues based on 802.1p.
Supports multiple algorithms including SP, WRR, and SP+WRR.
IPv6 features Supports IPv6 host functions.
Supports static route configuration.
Multicast Supports IGMP v1/v2/v3 snooping.
Supports multicast load sharing among bundled ports.
Supports port-based multicast rate limit and traffic statistics.
Port mirroring Supports 1:1 or N:1 port mirroring.
Supports packet forwarding on an observing port.
Security Supports port isolation.
Supports supperession of multicast,broadcast, and unknown single-cast packets.
Supports CPU protection
Surge protection Each port has a surge protection capability of 6 KV. Each port has a surge
protection capability of 15 KV after an extra surge protection device is added.
Management and maintenance Supports iStack
Supports automatic configuration.
Supports CLI configuration.
Supports remote configuration and maintenance by using Telnet.
Supports SNMP v1/v2/v3.
Supports RMON.
Supports HGMP v2.
Supports SSH v2.
Supports Web management.
Supports GVRP.
Operating environment Operating temperature: 0°C to 50°C (long term); –5°C to 55°C (short term);
relative humidity: 10% to 90% (non-condensing)
Power supply AC:
Rated voltage: -48 V to -60 V
Maximum voltage: -36 V to -72 V
Dimensions (mm) 442 (W) x 420 (D)x 43.6 (H)
Weight < 2.4 kg
Power consumption < 15.5 W

Additional information

Weight 4 kg
Dimensions 55.5 × 37.5 × 9 cm
