S5130S-28S-PWR-EI

S5130S-28S-PWR-EI

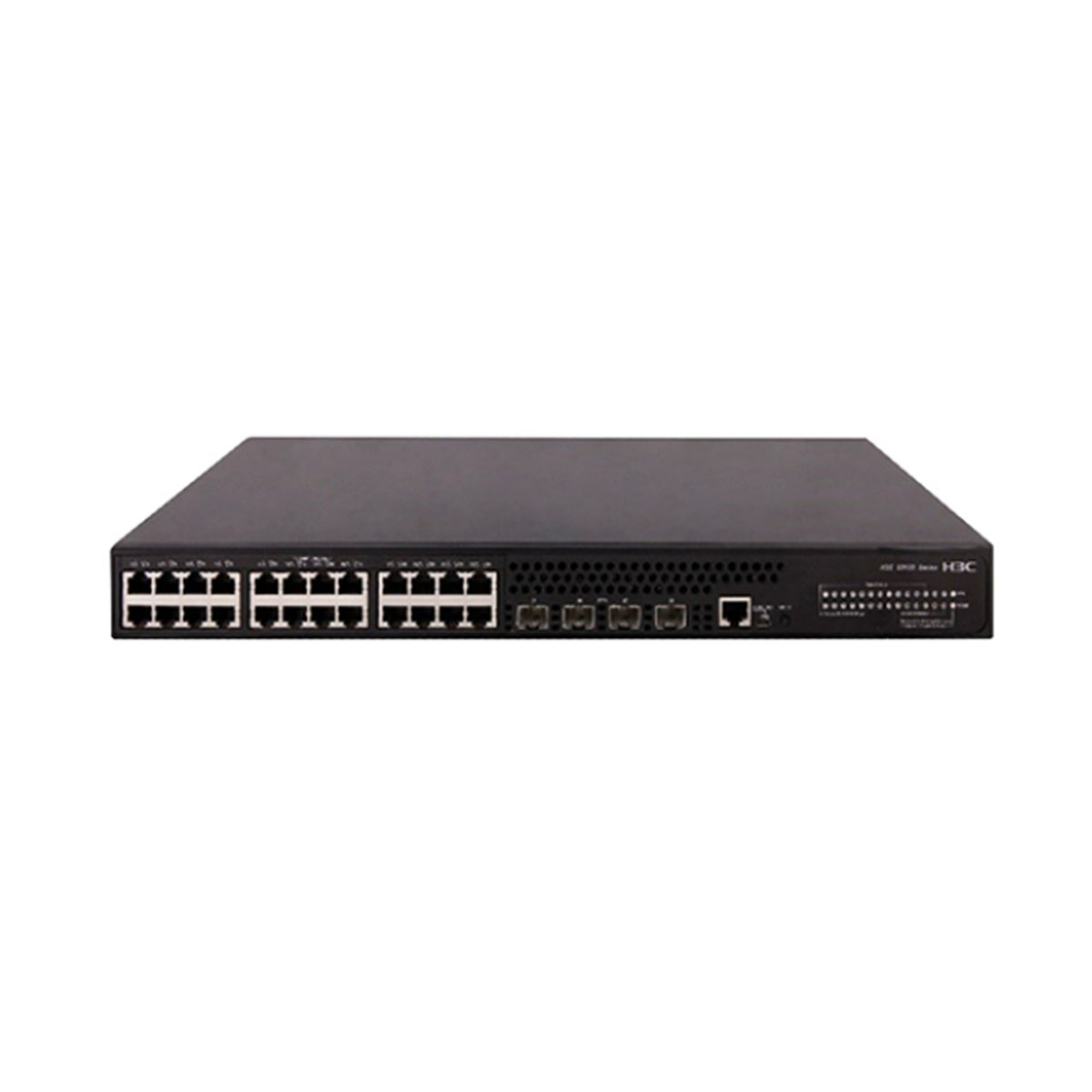

H3C S5130S-28S-PWR-EI switch supports 24×10/100/1000BASE-T Ethernet ports, 4x10G/1G BASE-X SFP+ ports

H3C

3-5 days

Shenzhen Warehouse

Description

S5130S-28S-PWR-EI Overview

H3C S5130S-28S-PWR-EI switch supports 24×10/100/1000BASE-T Ethernet ports, 4x10G/1G BASE-X SFP+ ports.

H3C S5130S-EI Switch Series – A simple (fixed power design), cost-effective and easy to deploy access switching solution with POE+ that offers enhanced security, high-density GE and 10GbE uplinks, static route, RIP, OSPF,

SDN and IRF enabled, flexible management, which meet the requirements for SME access, enterprise desktop access and high density campus access.

H3C S5130S-EI series Ethernet switch includes the following models:

  • S5130S-10P-EI
  • S5130S-10MS-UPWR-EI
  • S5130S-12TP-EI
  • S5130S-16S-PWR-EI
S5130S-28S-PWR-EI Features
  • Software Defined Network (SDN)
  • Intelligent Resilient Framework 2 (IRF2)
  • Smart Management Center (SmartMC)
  • High availability
  • Abundant QoS
  • Professional Anti-lightning function
  • Excellent manageability
  • Green design

Item

S5130S-16S-PWR-EI

S5130S-28S-PWR-EI

S5130S-52S-PWR-EI

S5130S-28S-HPWR-EI

S5130S-28S-HPWR-EI-Q

Dimensions (H × W × D)

43.6 × 300 × 260 mm (1.72 × 11.81 × 10.24 in)

43.6 × 440 × 260 mm (1.72 × 17.32 ×10.24 in)

43.6 × 440 × 400 mm (1.72 × 17.32 × 15.75 in)

43.6 × 440 × 260 mm (1.72 × 17.32 ×10.24 in)

43.6 × 440 × 422 mm (1.72 × 17.32 × 16.61 in)

Weight

≤ 2.5 kg (5.51 lb)

≤ 4 kg (8.82 lb)

 6 kg (13.23 lb)

≤ 4.5 kg (9.92 lb)

≤ 6 kg (13.23 lb)

Console port

·     1 × serial console port

·     1 × micro USB console port

·     When both ports are connected, only the micro USB console port is available.

10/100/1000BASE-T autosensing Ethernet port

14

24

48

24 (The four highest-numbered 10/100/1000BASE-T autosensing Ethernet ports form combo interfaces with their corresponding SFP ports, respectively.)

24

SFP port

N/A

N/A

N/A

4 (Each and its corresponding 10/100/1000BASE-T autosensing Ethernet port form a combo interface.)

N/A

SFP+ port

2

4

4

4

4

Input voltage

·     Rated voltage: 100 VAC to 240 VAC @ 50 or 60 Hz

·     Max voltage: 90 VAC to 264 VAC @ 47 to 63 Hz

·     Rated voltage: 100 VAC to 240 VAC @ 50 or 60 Hz

·     Max voltage: 90 VAC to 264 VAC @ 47 to 63 Hz

AC power source:

·     Rated voltage: 100 VAC to 240 VAC @ 50 or 60 Hz

·     Max voltage: 90 VAC to 264 VAC @ 47 to 63 Hz

DC power source: H3C RPS1600-A

·     Rated voltage: –54 VDC to –57 VDC

·     Max voltage:

¡     Single DC input: –44 VDC to –60 VDC

¡     AC and DC inputs: –54 VDC to –57 VDC

·     Rated voltage: 100 VAC to 240 VAC @ 50 or 60 Hz

·     Max voltage: 90 VAC to 264 VAC @ 47 to 63 Hz

Maximum PoE power per port

30 W

Port 13 and Port 14 do not support PoE.

30 W

30 W

30 W

30 W

Total PoE power

125 W

170 W

·     AC: 370 W

·     DC: 740 W

AC: 370 W

DC: 740 W

370 W

Minimum power consumption

14 W

20 W

·     AC: 37 W

·     DC: 29 W

AC: 24 W

DC: 17 W

12 W

Maximum power consumption (including PoE power consumption)

157 W

235 W

·     AC: 478 W

·     DC: 825 W

AC: 451 W

DC: 793 W

400 W

Chassis leakage current compliance

UL 62368-1/EN 62368-1/IEC 62368-1/UL 60950-1/EN 60950-1/IEC 60950-1/GB4943.1

Melting current of power supply fuse

6.3 A/250 V

10 A/250 V

15 A/250 V

15 A/250 V

10 A/420 V

Cooling system

Natural cooling without fan trays

Using fixed fan trays to draw ambient air in from the left side and port side and exhaust heated air from the right side.

Using fixed fan trays to draw ambient air in from the left side and exhaust heated air from the right side.

Using fixed fan trays to draw ambient air in from the left side and port side and exhaust heated air from the right side.

Natural cooling without fan trays

Operating temperature

–5°C to +45°C (23°F to 113°F)

Operating humidity

5% to 95%, noncondensing

Fire resistance compliance

UL 62368-1/EN 62368-1/IEC 62368-1/UL 60950-1/EN 60950-1/IEC 60950-1/GB4943.1
