Description

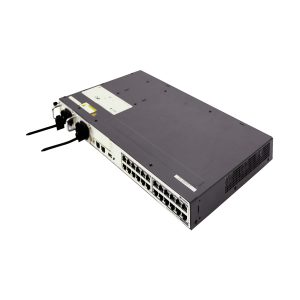

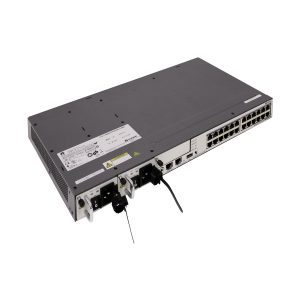

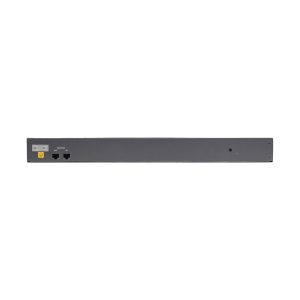

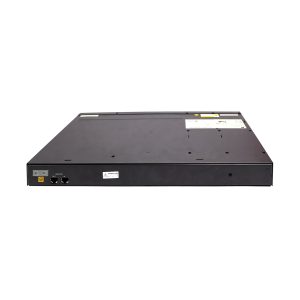

| Item | S5700-28C-HI |
| Fixed port | 24 10/100/1000Base-T ports |
| Extended slot | Provide one extended slot. |
| Forwarding performance | 96 Mpps |
| Switching capacity | 256Gbps |
| VLAN | 4K VLANs |
| Guest VLAN and voice VLAN | |
| VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports | |
| 1:1 and N:1 VLAN Mapping | |
| GVRP, MUX VLAN | |
| Reliability | RRPP ring topology and RRPP multi-instance |
| Smart Link tree topology and Smart Link multi-instance, providing the millisecond-level protection switchover | |
| SEP | |
| ERPS (G.8032）(supported by the S5700-LI/S5700-SI/S5700-EI/S5700-HI series) | |
| STP, RSTP, and MSTP | |
| BPDU protection, root protection, and loop protection | |
| BFD for OSPF, BFD for IS-IS, BFD for VRRP, and BFD for PIM | |
| IP routing | Static routing, RIPv1, RIPv2, OSPF, IS-IS, BGP, and ECMP |
| IPv6 features | Neighbor Discovery (ND) |
| Path MTU (PMTU) | |
| IPv6 ping, IPv6 tracert, and IPv6 Telnet | |
| ACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, or protocol type | |
| MLD v1/v2 snooping | |
| 6to4 tunnel, ISATAP tunnel, and manually configured tunnel | |
| Multicast | IGMP v1/v2/v3 snooping and IGMP fast leave |
| Multicast forwarding in a VLAN and multicast replication between VLANs | |
| Multicast load balancing among member ports of a trunk | |
| Controllable multicast, MLD v1/v2 snooping | |
| Port-based multicast traffic statistics | |
| IGMP v1/v2/v3, PIM-SM, PIM-DM, PIM-SSM, MSDP (supported by the S5700-EI/S5700-HI series) | |
| QoS/ACL | Rate limiting on packets sent and received by an interface |
| Packet redirection | |
| Port-based traffic policing and two-rate three-color CAR | |
| Eight queues on each port | |
| WRR, DRR, SP, WRR+SP, and DRR+SP queue scheduling algorithms | |
| WRED (supported by the S5710-EI and S5700-HI) | |
| Re-marking of the 802.1p priority and DSCP priority | |
| Packet filtering at Layers 2 through 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, port number, protocol type, and VLAN ID | |
| Rate limiting in each queue and traffic shaping on ports | |
| Security | User privilege management and password protection |
| DoS attack defense, ARP attack defense, and ICMP attack defense | |
| Binding of the IP address, MAC address, interface, and VLAN | |
| Port isolation, port security, and sticky MAC | |
| Blackhole MAC address entries | |
| Limit on the number of learned MAC addresses | |
| 802.1x authentication and limit on the number of users on an interface | |
| AAA authentication, RADIUS authentication, HWTACACS authentication, and NAC | |
| SSH v2.0 | |
| Hypertext Transfer Protocol Secure (HTTPS) | |
| CPU defense | |
| Blacklist and whitelist | |
| OAM | Hardware OAM: |
| EFM OAM | |
| CFM OAM | |
| Y.1731 performance test (hardware-level delay and jitter detection) | |
| Management and maintenance | MAC Forced Forwarding (MFF) |
| Virtual cable test | |
| SNMP v1/v2c/v3 | |
| RMON | |
| Web-based NMS | |
| System logs and alarms of different levels | |
| 802.3az EEE | |
| sFlow | |
| NetStream | |
| Dying Gasp | |
| Interoperability | Supports VBST (Compatible with PVST/PVST+/RPVST) |
| Supports LNP (Similar to DTP) | |
| Supports VCMP (Similar to VTP) | |
| Input DC voltage: Rated input voltage range | -48 V DC to -60 V DC |
| Input DC voltage: Maximum voltage range | -36 V DC to -72 V DC |
| Input AC voltage: Rated input voltage range | 100 V AC to 240 V AC, 50/60 Hz |
| Input AC voltage: Maximum voltage range | 90 V AC to 264 V AC, 47 Hz to 63 Hz |
| Operating temperature | 0°C to 50°C |
| Relative humidity | 5% RH to 95% RH, noncondensing |
| Dimensions (W x D x H) | 442.0 mm x 420.0 mm x 43.6 mm |
| Power consumption | < 76 W |
