Description

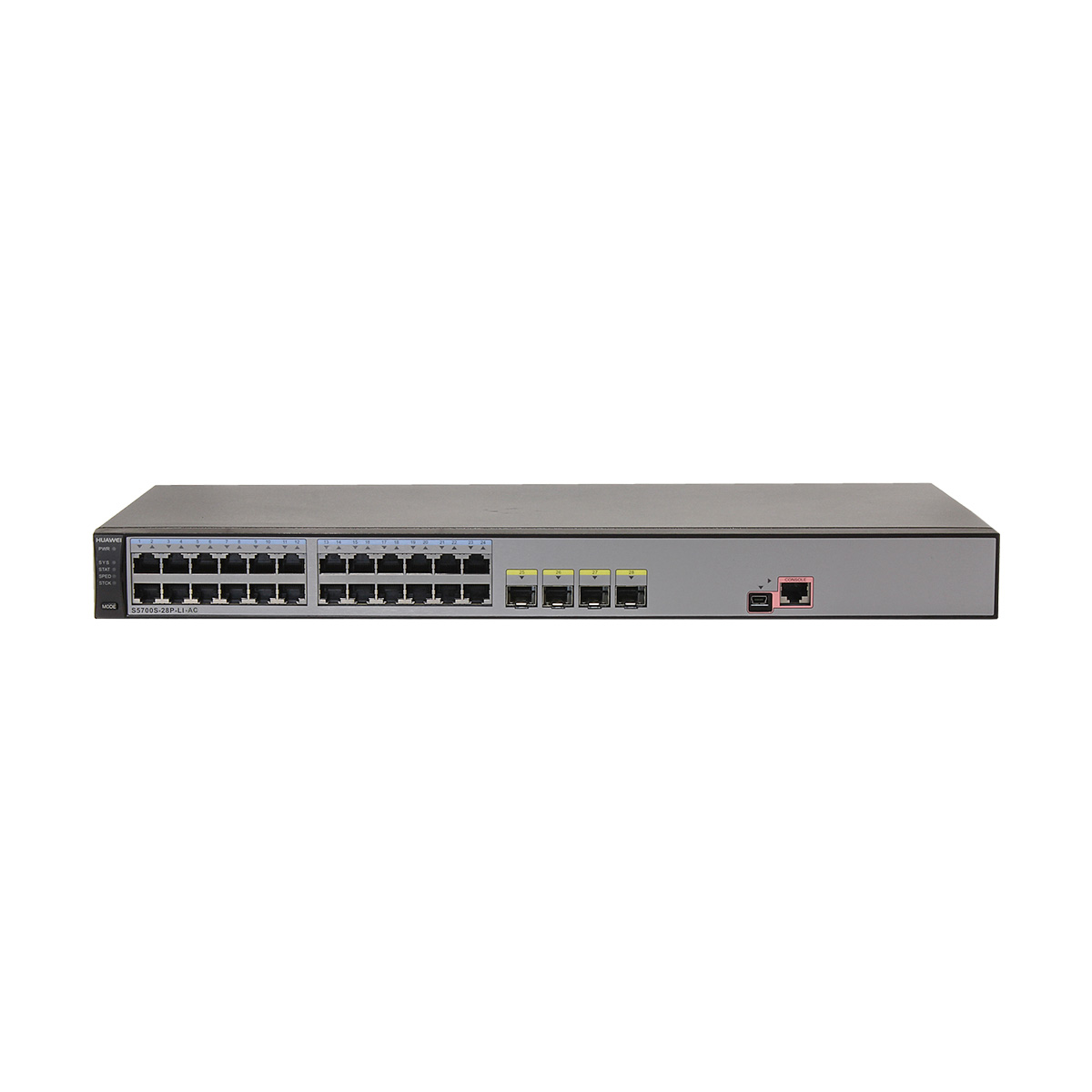

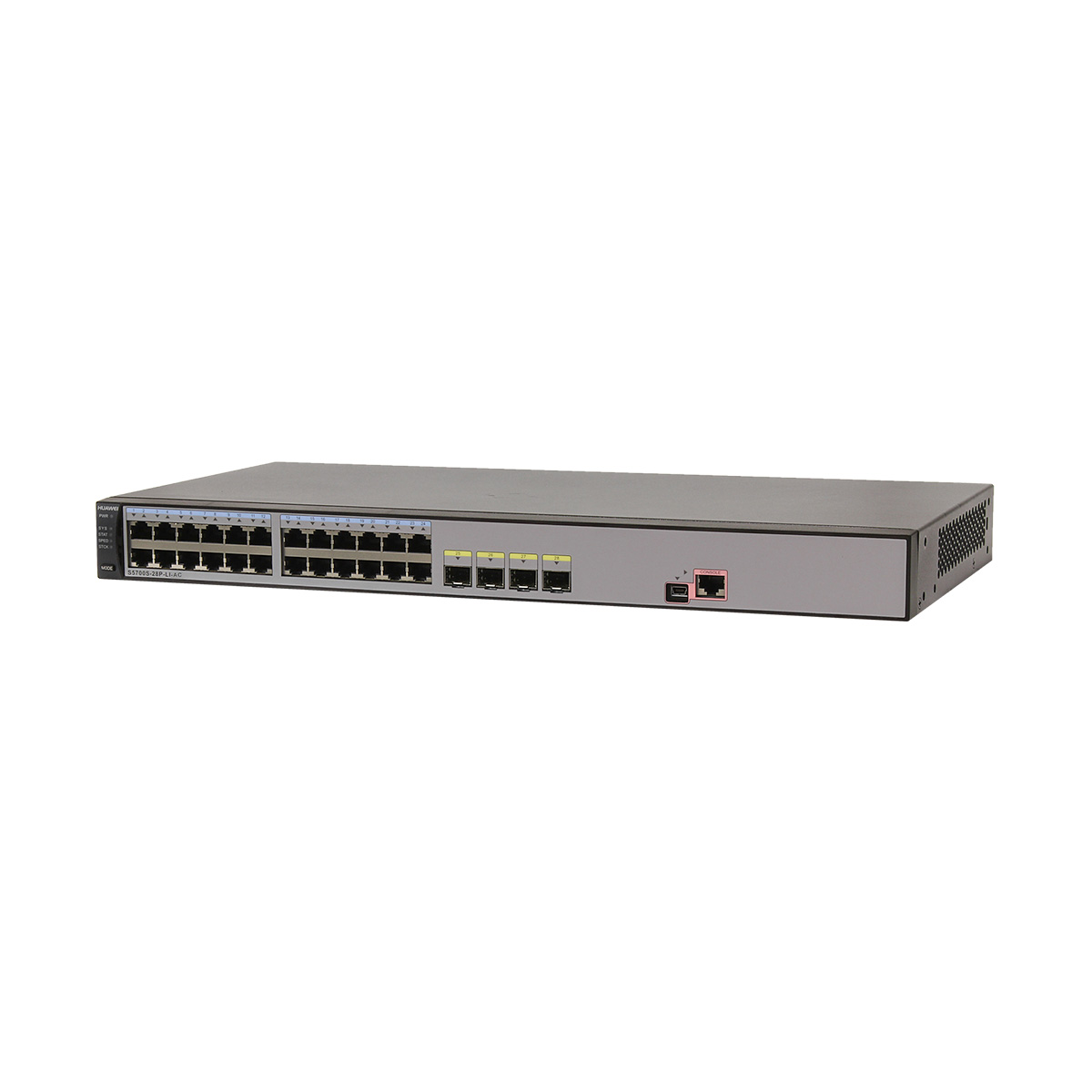

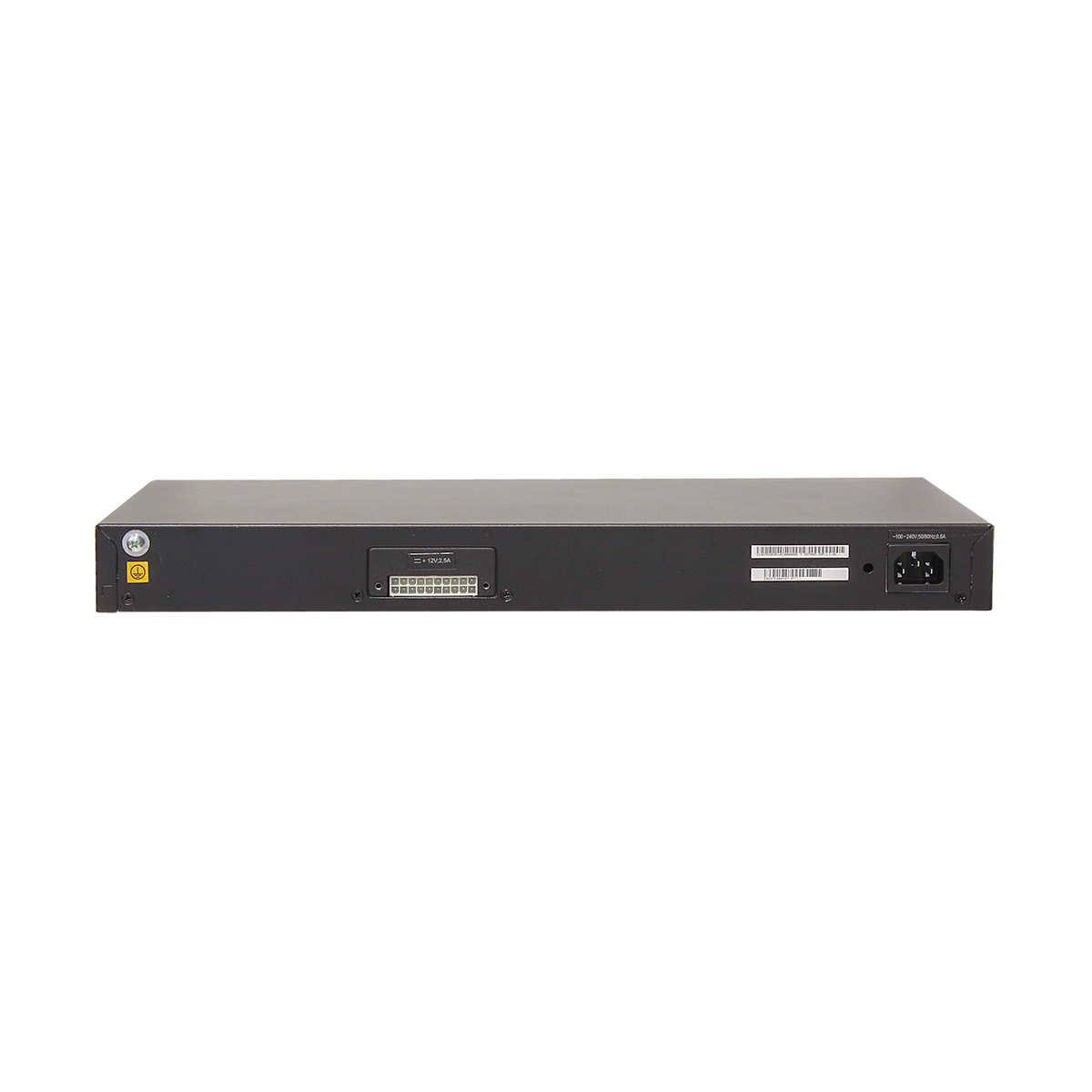

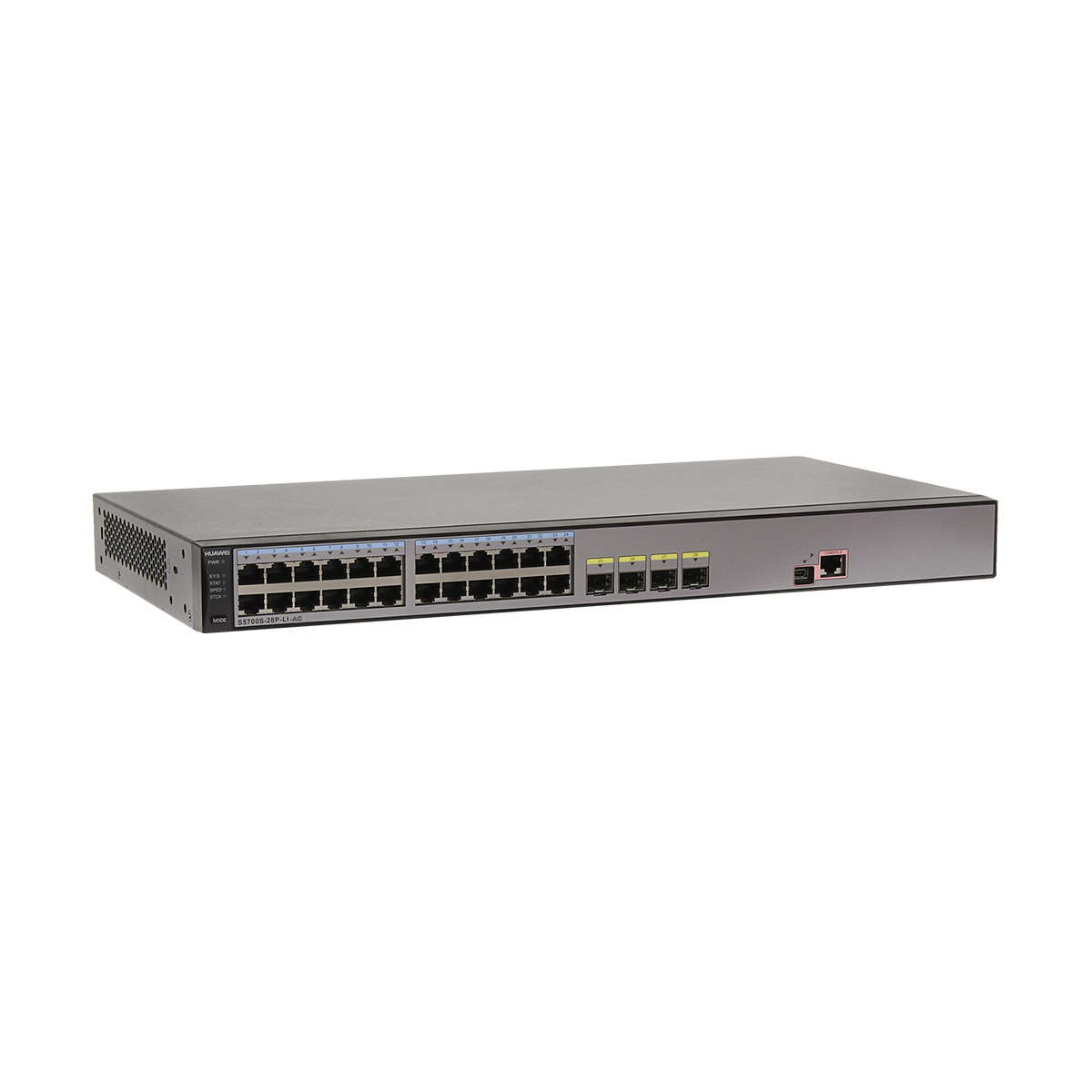

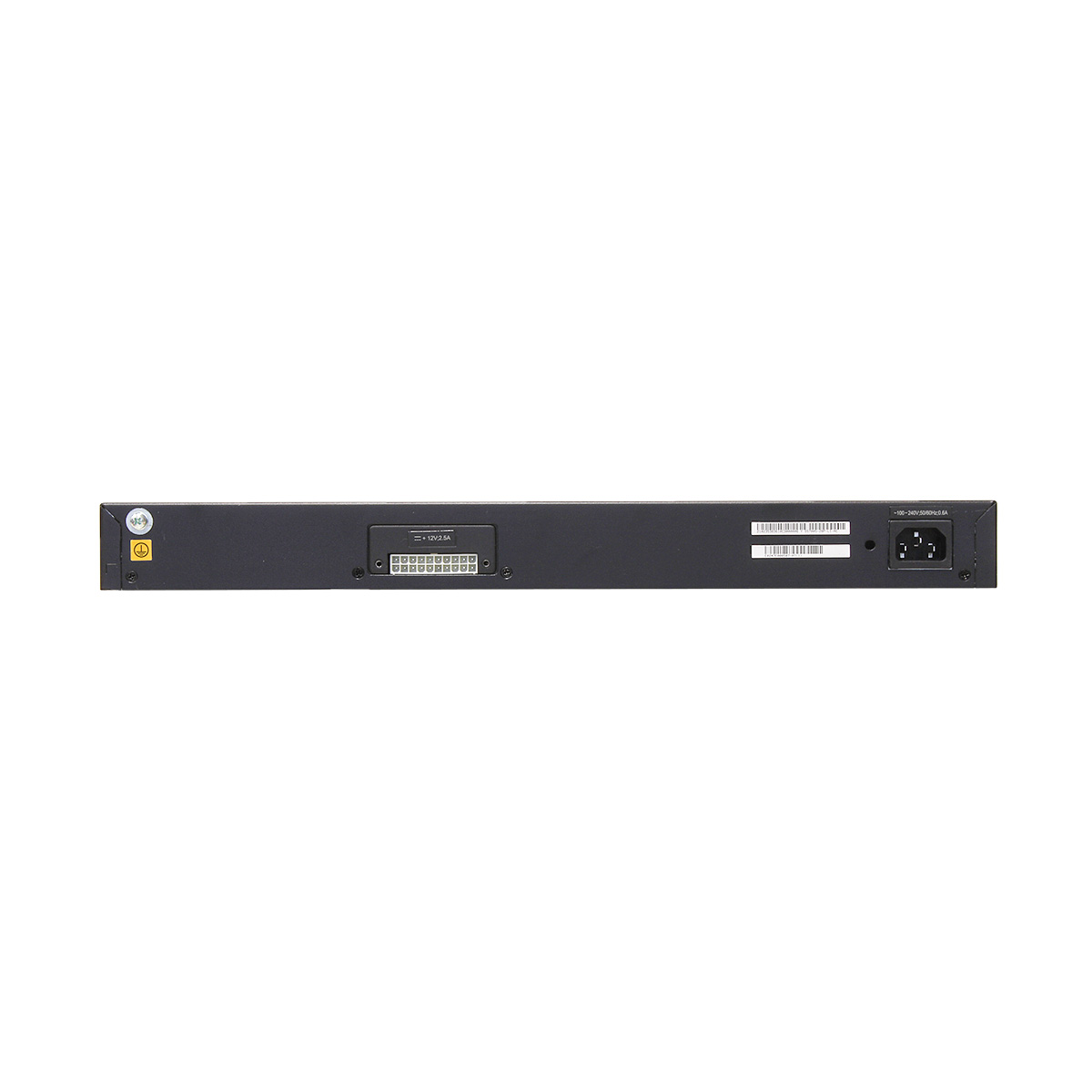

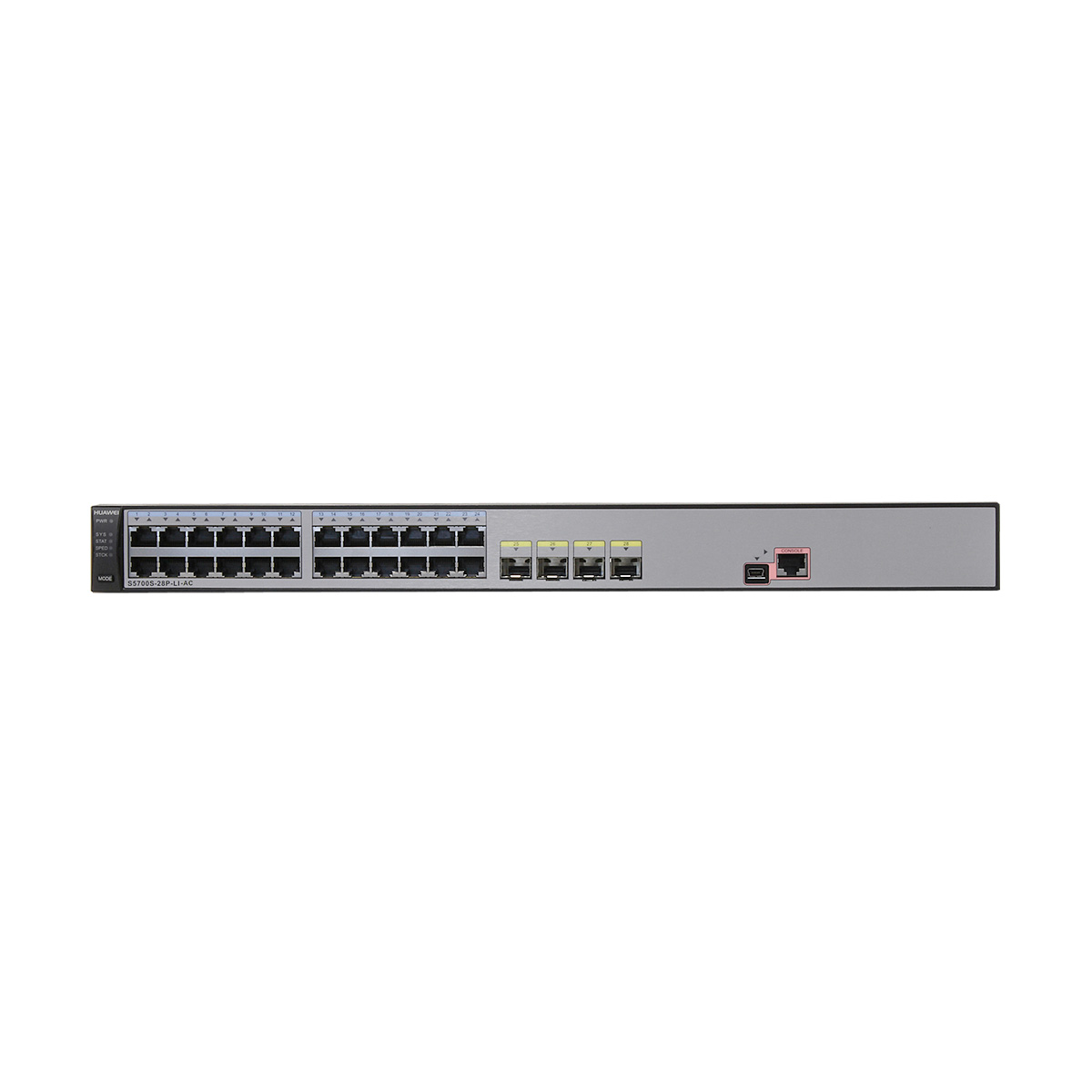

| Item | S5700S-28P-LI-DC |
| Fixed port | 24 10/100/1000BASE-T ports, 4 GE SFP ports |
| VLAN | 4K VLANs |
| Guest VLAN and voice VLAN, GVRP, MUX VLAN | |
| VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports, QinQ, Selective QinQ | |
| 1:1 and N:1 VLAN Mapping | |
| Reliability | RRPP ring topology and RRPP multi-instance |
| Smart Link tree topology and Smart Link multi-instance, providing the millisecond-level protection switchover | |
| SEP | |
| STP, RSTP, and MSTP | |
| BPDU protection, root protection, and loop protection | |
| IP routing | Static routing |
| IPv6 features | IPv6 host |
| Static IPv6 routes | |
| Path MTU (PMTU) | |
| IPv6 ping, IPv6 tracert, IPv4 and IPv6 dual stack | |
| ACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, or protocol type | |
| Multicast | IGMP v1/v2/v3 snooping and IGMP fast leave |
| MLD v1/v2 snooping, Multicast VLAN | |
| Multicast load balancing among member ports of a trunk | |
| Controllable multicast | |
| Port-based multicast traffic statistics | |
| QoS/ACL | Rate limiting on packets sent and received by an interface |
| Packet redirection | |
| Port-based traffic policing and two-rate three-color CAR | |
| Eight queues on each port | |
| WRR, DRR, SP, WRR+SP, and DRR+SP queue scheduling algorithms | |
| Re-marking of the 802.1p priority and DSCP priority | |
| Packet filtering at Layers 2 through 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, port number, protocol type, and VLAN ID | |
| Rate limiting in each queue and traffic shaping on ports | |
| Security | User privilege management and password protection |
| DoS attack defense, ARP attack defense, and ICMP attack defense | |
| Binding of the IP address, MAC address, interface, and VLAN | |
| Port isolation, port security, and sticky MAC | |
| Blackhole MAC address entries | |
| Limit on the number of learned MAC addresses | |
| 802.1x authentication and limit on the number of users on an interface | |
| AAA authentication, RADIUS authentication, HWTACACS authentication, and NAC | |
| SSH v2.0 | |
| Hypertext Transfer Protocol Secure (HTTPS) | |
| CPU defense | |
| Blacklist and whitelist | |
| Access Security | DHCP relay, DHCP server, DHCP snooping, and DHCP security |
| Lightning protection | Service interface: 6 kV |
| Super Virtual Fabric (SVF) | Working as an SVF client that is plug-and-play with zero configuration |
| Automatically loading the system software package and patches of clients One-click and automatic delivery of service configurations | |
| Supports independent running client | |
| Management and maintenance | MAC Forced Forwarding (MFF) |
| Virtual cable test | |
| Ethernet OAM (IEEE 802.3ah and 802.1ag) | |
| SNMP v1/v2c/v3 | |
| RMON | |
| Web-based NMS | |
| NTP | |
| System logs and alarms of different levels | |
| 802.3az EEE(Energy Efficient Ethernet) | |
| DLDP,sFlow | |
| Operating temperature | 0°C to 50°C |
| Relative humidity | 5% to 95% (non-condensing) |
| Input voltage | Rated voltage range: 100 V to 240 V AC, 50/60 Hz |
| Maximum voltage range: 90 V to 264 V AC, 50/60 Hz | |
| Interoperability | Supports VBST (Compatible with PVST/PVST+/RPVST) |
| Supports LNP (Similar to DTP) | |
| Supports VCMP (Similar to VTP) | |
| Dimensions(W x D x H) | 442 x 220 x 43.6 mm |
| Power consumption | < 25W |
