S5710-28C-PWR-EI-AC

PN 02354038

Huawei S5710-28C-PWR-EI-AC switch supports 20 1000BASE-T PoE+ ports, 4 GE SFP combo ports, 4 10GE SFP+ ports, 2 power slots, 2 extension slots, wihtout power module

Shenzhen Warehouse
lead time 3-5 days
- +
Overview
S5710-28C-PWR-EI-AC Overview



Huawei S5710-28C-PWR-EI-AC switch supports 20 1000BASE-T PoE+ ports, 4 GE SFP combo ports, 4 10GE SFP+ ports, 2 power slots, 2 extension slots, wihtout power module

Huawei Quidway S5700 series gigabit enterprise switches is designed for high-bandwidth access and Ethernet aggregation. Huawei Quidway S5700 can be used in various campus network scenarios: access switch, aggregation switch, gigabit access switch in Internet data center, or desktop switch to provide 1000 Mbps access for terminals.



S5710-28C-PWR-EI-AC Quick Specs



20 PoE+ 10/100/1000BASE-T ports, 4 GE SFP combo ports, 4 10GE SFP+ ports

Forwarding performance: 156Mpps

Switching capacity: 256Gbps/2.56Tbps

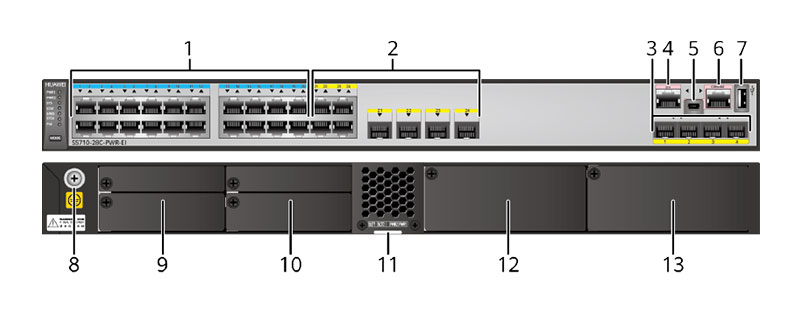

S5710-28C-PWR-EI-AC appearance and structure



 S5710-28C-PWR-EI-AC appearance and structure



1

Twenty PoE+ 10/100/1000BASE-T ports

7

One PNP button

2

Four 10GE SFP+ ports, 4 GE SFP combo ports

8

Ground screw

3

One console port

9

Rear card slot 1

4

One ETH management port

10

Rear card slot 2

5

One USB port

11

Power module slot 1

6

ESN label

12

Power module slot 2
Datasheet
S5710-28C-PWR-EI-AC Datasheet



Item

S5710-28C-PWR-EI-AC

Fixed port

Twenty PoE+ 10/100/1000BASE-T ports,4 GE SFP combo ports, 4 10GE SFP+ ports

Memory (RAM)

512 MB

Flash

200 MB

Mean time between failures(MTBF)

51.28 years

Mean time to repair (MTTR)

2 hours

Availability

> 0.99999

Power supply surge protection

±6 kV in differential mode, ±6 kV in common mode

Service port surge protection

Common mode: ±1 kV

Stack ports

Four fixed 10GE SFP+ ports on the front panel or ports on the 2-port 10GE rear card

Rated voltage range

100 V AC to 240 V AC, 50/60 Hz

Maximum voltage range

90 V AC to 264 V AC, 47 Hz to 63 Hz

Maximum power consumption

(100% throughput, full speed of fans)

No card: 920 W (system power consumption: 180 W, PoE: 740 W); Two 8-port GE electrical card: 934 W (system power consumption: 194 W, PoE: 740 W); Two 8-port GE optical card: 942 W (system power consumption: 202 W, PoE: 740 W); Two 2-port 10GE optical card: 941 W (system power consumption: 201 W, PoE: 740 W)

Certification

EMC certification; Safety certification; Manufacturing certification

Dimensions (H x W x D)

Basic dimensions (excluding the parts protruding from the body): 44.4 mm x 442.0 mm x 420.0 mm

Weight (with packaging)

8 kg
